• LED DOWNLIGHTS

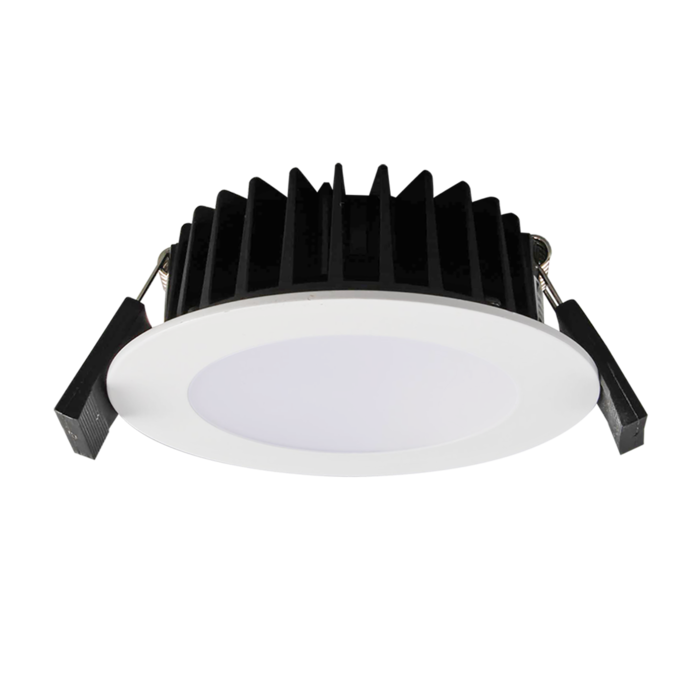

ECOGEM S9041TC ROUND - 10W

Dimmable IP44 LED downlight with selectable colour temperature

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Easy selectable colour temperature with an inbuilt DIP switch, 3000K/4200K/5700K

  • Durable die-cast aluminium body profile

  • Stylish white powder coat finish or satin nickel

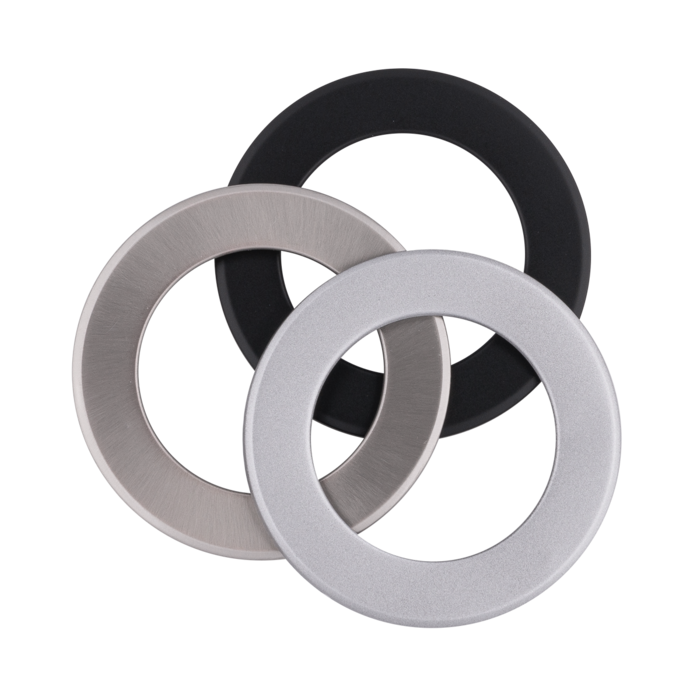

  • Colour trim options: (black ring S9041 BK RING), (satin nickel S9041 SN RING), (silver ring S9041 SL RING)

  • Remote constant current trailing edge dimmable LED driver, with flex and plug

  • High efficiency SMD LED chips and quality opal polycarbonate diffuser

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

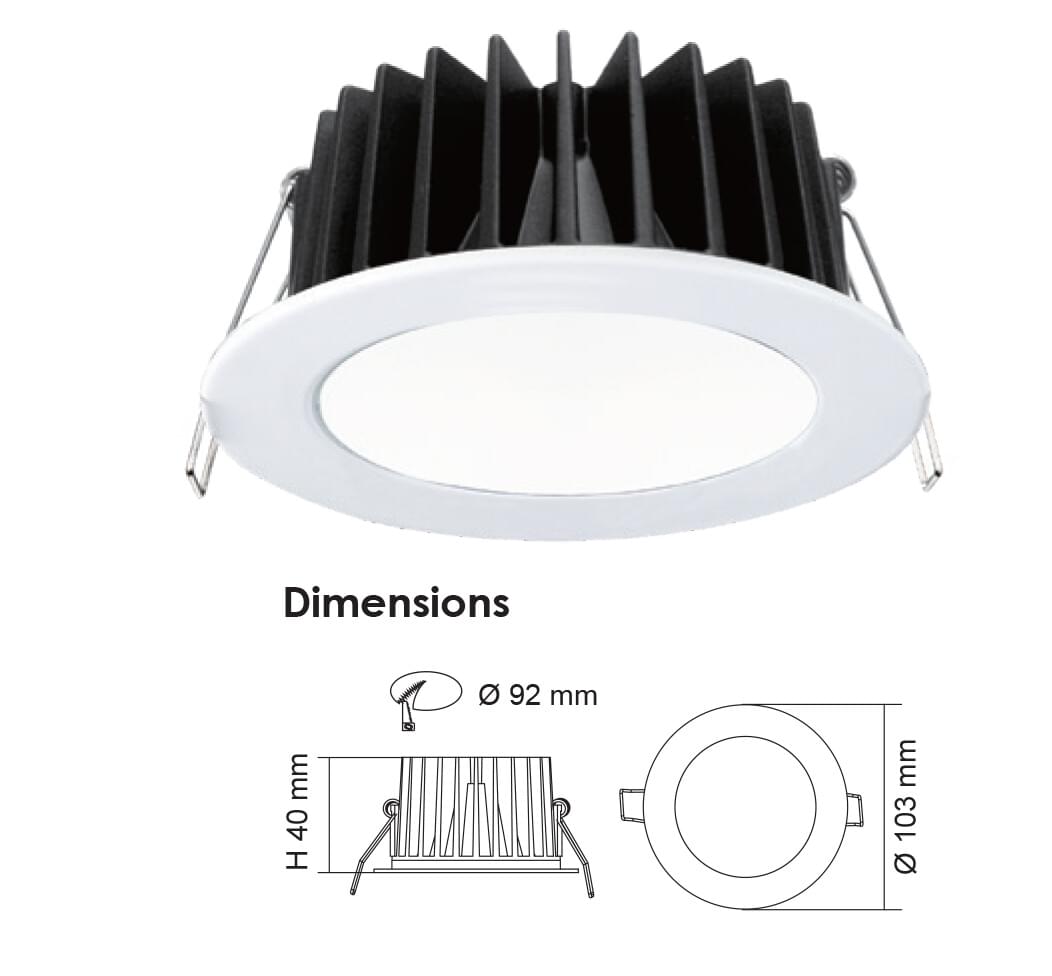

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Black (S9041 BK RING)
    Colour 2 Satin Nickel (S9041 SN RING)
    Colour 3 Silver (S9041 SL RING)

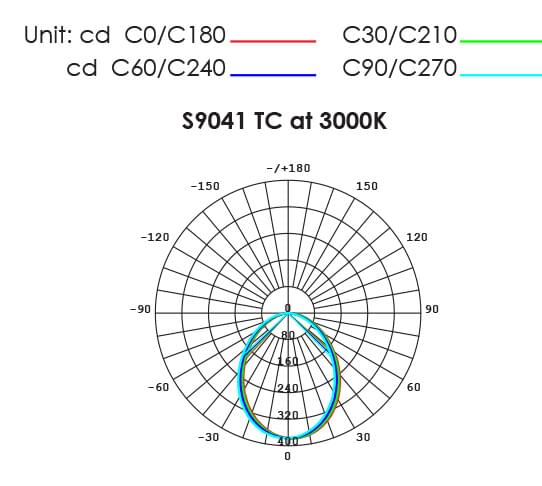

  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9041 TC WH Input Voltage240 Power10 Lumens850/1000/900 CCT3000/4200/5700 Beam Angle90 Dimmable YES CRI80 Body ColourWHITE Dim103(W) x 40(H) Add to Enquiry Add Remove Remove
    Model No.S9041 TC SN Input Voltage240 Power10 Lumens850/1000/900 CCT3000/4200/5700 Beam Angle90 Dimmable YES CRI80 Body ColourSATIN NICKEL Dim103(W) x 40(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
