• LED ARCHITECTURAL

BONDI II SL7322/TC - 2 X 5W

IP65 LED architectural wall luminaires

Application

A decorative residential or commercial, exterior or interior LED solution

Design Specifications

  • Machined 316L stainless steel or cast aluminium body with a black powder coat or a stainless finish

  • Clear tempered glass cover

  • High efficiency LED optics, beam distribution 36°

  • Integral non-dimmable LED driver

  • Up / Down light distribution

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

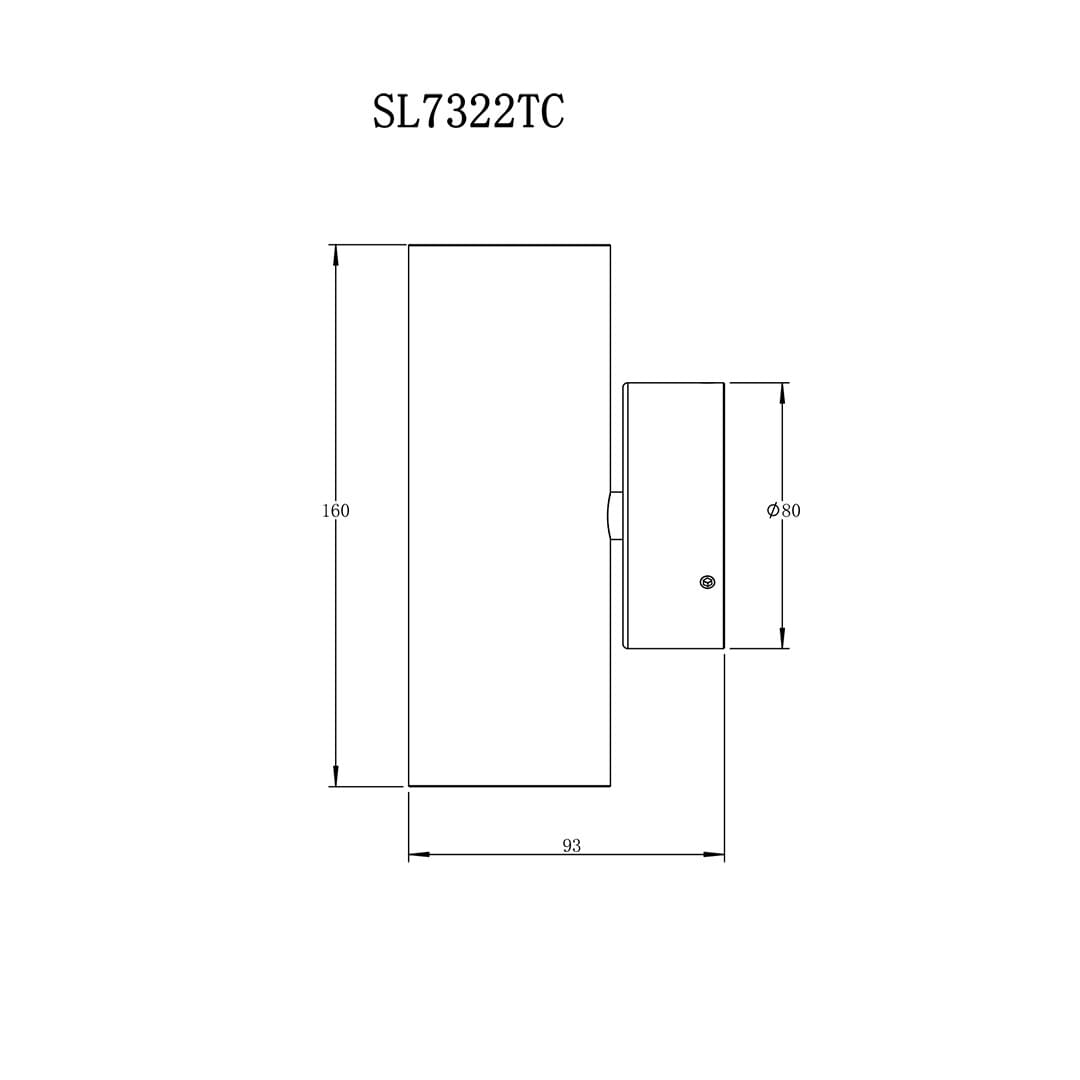

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through HAMER New Zealand Electrical. To find a store near you, simply input your postcode and available locations will be provided.

    • Is Sunny Lighting the same as SAL National?

      Is Sunny Lighting the same as SAL National?

      Yes (Sunny Australia Lighting) is SAL National Pty Ltd

    • What is an IK rating?

      What is an IK rating?

      An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

      High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.


    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.



    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click

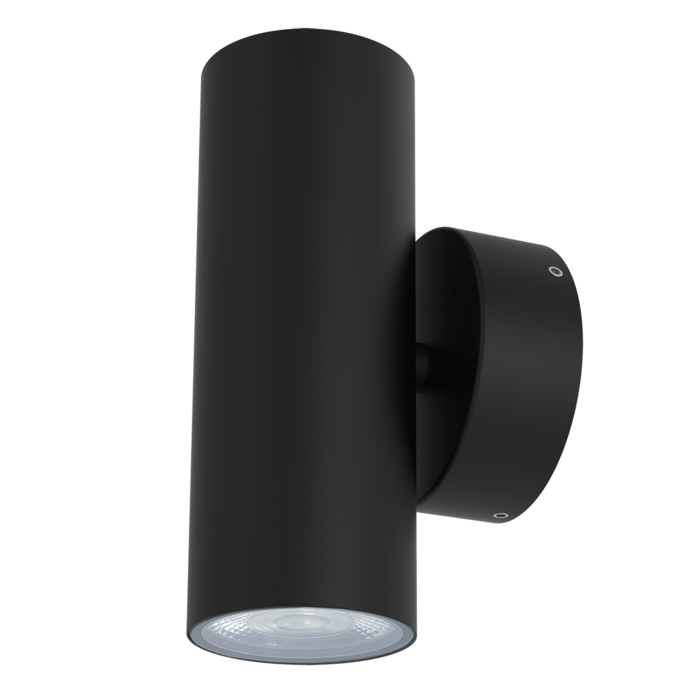

    Model No.SL7322TC/BK Input Voltage240 Power10 Lumens400/430/470 CCT3000/4000/6000 CRI80 Beam Angle36 Mass0.39 Diameter60 Dim160(H) Body ColourBLACK Add to Enquiry Add Remove Remove

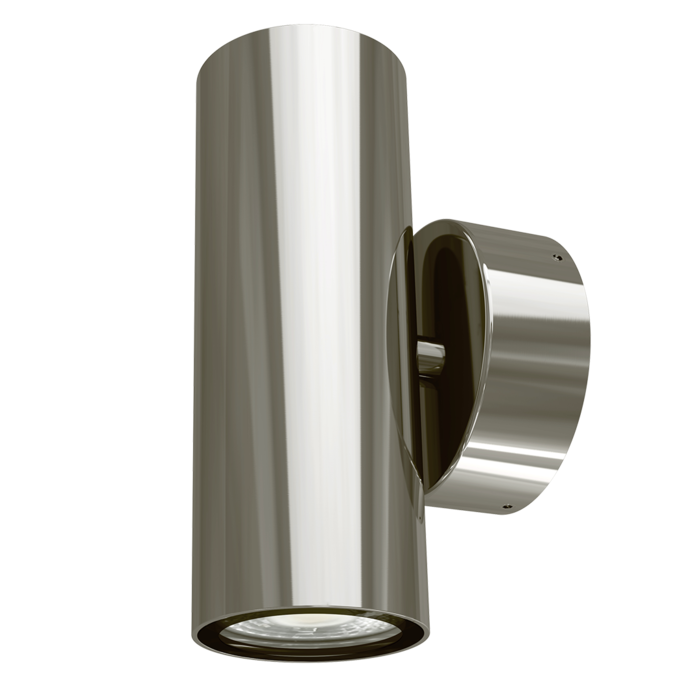

    Model No.SL7322TC/AST Input Voltage240 Power10 Lumens400/430/470 CCT3000/4000/6000 CRI80 Beam Angle36 Mass0.39 Diameter60 Dim160(H) Body ColourALUMINIUM STAINLESS Add to Enquiry Add Remove Remove

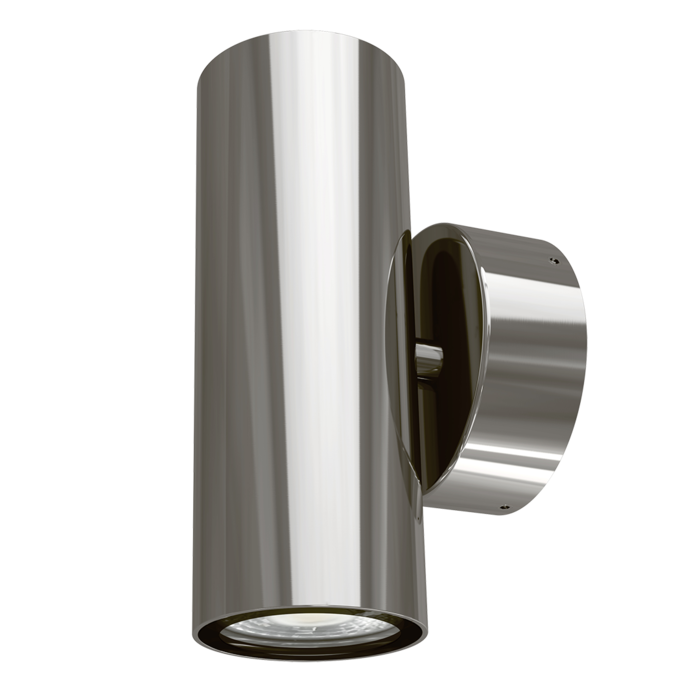

    Model No.SL7322TC/SLS Input Voltage240 Power10 Lumens400/430/470 CCT3000/4000/6000 CRI80 Beam Angle36 Mass0.76 Diameter60 Dim160(H) Body ColourSTAINLESS Add to Enquiry Add Remove Remove

    Note: Lumens (lm) displayed are for one optical output

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
