• LED FLOODLIGHTS

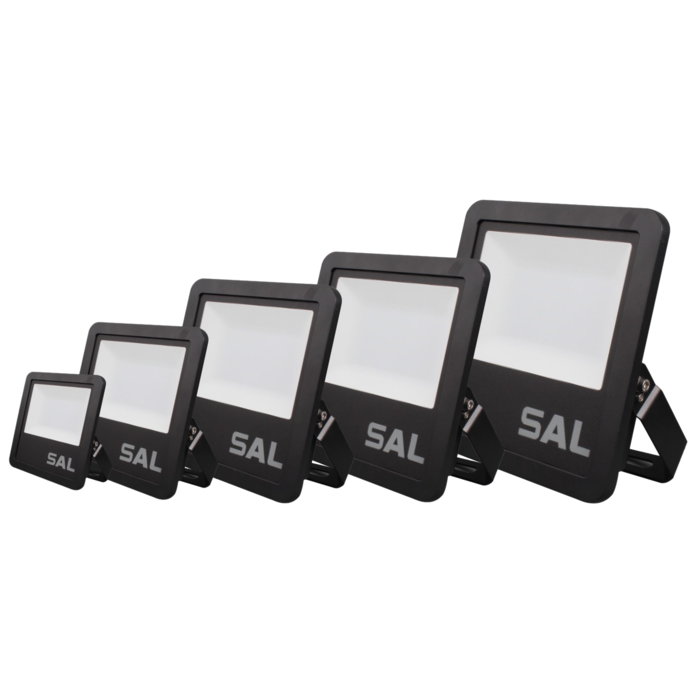

TRADESTAR SE7169TC - 70/250W

A versatile LED floodlight range with five models ranging from 70 - 250 watt, now with selectable colour temperature.

Application

Perfect for any exterior space from residential small wattage designs through to high performance commercial applications

Design Specifications

  • Integral LED control gear, non-dimmable 70, 100, 150, 200, 250 watt models

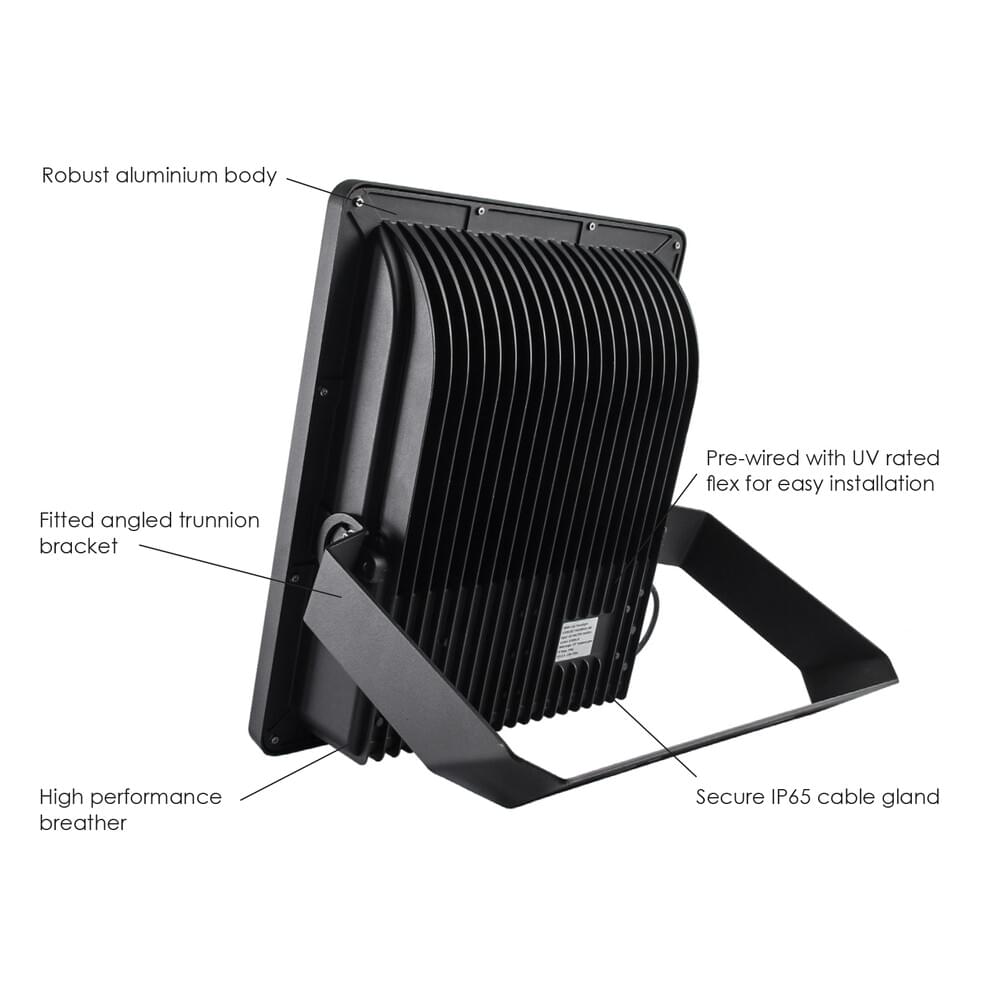

  • Robust die-cast aluminium body profile with multi-function angled trunnion bracket, colour black

  • Pre-wired with 1500mm UV rated flex for easy installation

  • IK08, IP65 rated

  • CRI >80, CCT 3000/4000/5000K and an impressive 120lm/W optical performance at 4000K

  • 100 degree wide beam distribution

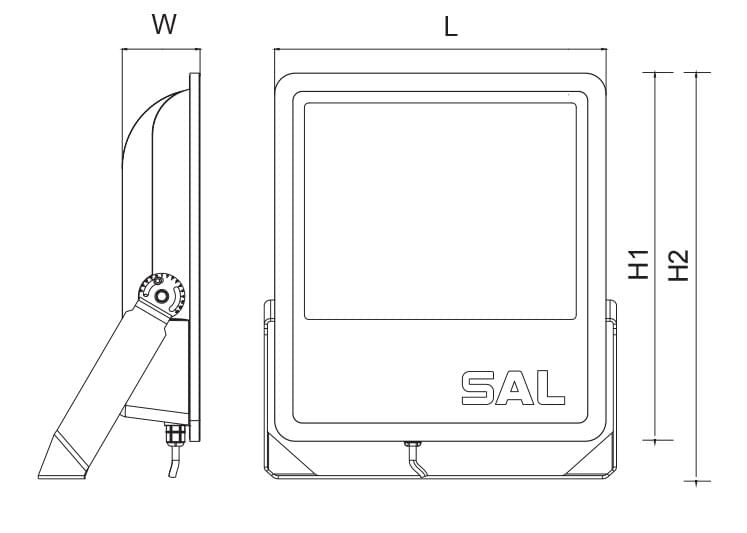

  • Dimensions - Wiring Diagrams
  • Design Options

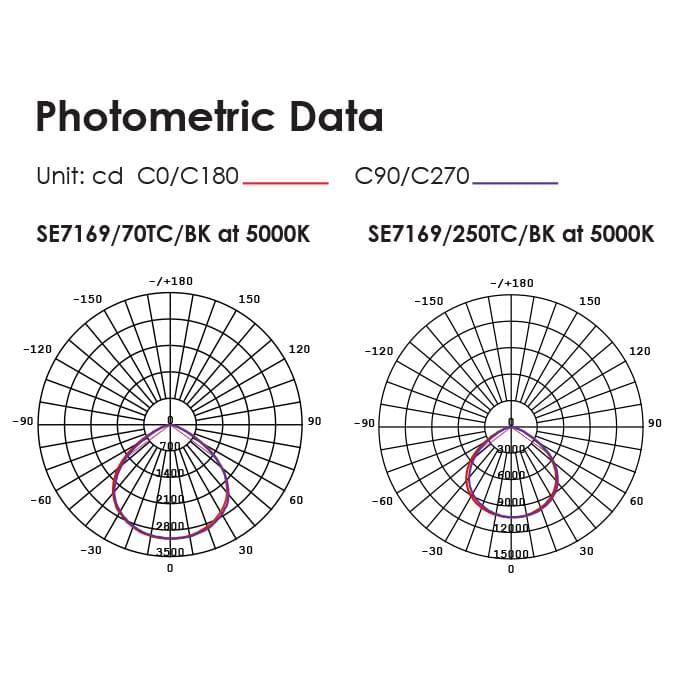

  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SE7169/70TC/BK Input Voltage240 Power70 Lumens7350/8400/7700 CCT3000/4000/5000 CRI80 Beam Angle100 Body ColourBlack Dim210(L) x 54(W) x 220(H) Mass1.9 Add to Enquiry Add Remove Remove
    Model No.SE7169/100TC/BK Input Voltage240 Power100 Lumens10500/12000/11000 CCT3000/4000/5000 CRI80 Beam Angle100 Body ColourBlack Dim240(L) x 70(W) x 250(H) Mass2.9 Add to Enquiry Add Remove Remove
    Model No.SE7169/150TC/BK Input Voltage240 Power150 Lumens15750/18000/16500 CCT3000/4000/5000 CRI80 Beam Angle100 Body ColourBlack Dim270(L) x 76(W) x 300(H) Mass3.8 Add to Enquiry Add Remove Remove
    Model No.SE7169/200TC/BK Input Voltage240 Power200 Lumens21000/24000/22000 CCT3000/4000/5000 CRI80 Beam Angle100 Body ColourBlack Dim310(L) x 81(W) x 340(H) Mass4.9 Add to Enquiry Add Remove Remove
    Model No.SE7169/250TC/BK Input Voltage240 Power250 Lumens26250/30000/27500 CCT3000/4000/5000 CRI80 Beam Angle100 Body ColourBlack Dim360(L) x 92(W) x 400(H) Mass7.1 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
