FLEXI 24V WHITE COLOUR FLH2420 - 20W/M
Roll length 5m, maximum run length 5m, 24V, high output LED Strip, IP20, strip width 10mm.
Application
A creative solution for residential and commercial interior spaces
Design Specifications
High output greater than 1700lm/m
High efficiency LED optics with self adhesive tape
Maximum run length 5 m, cuttable every 62.5 mm at the scissors symbol ✂
Heat sink required for system performance and 24V constant voltage LED driver required
Dimming options: (quick link)
Type A - Trailing edge dimming,
Type B - LED strip controller LT8915DIM/BT
with LT8914DIM/RP if required,
Type C - Analogue 1-10V
Type D - DALI 2 control
Performance
- Dimmable - OPTIONAL
- Dimmer Type - refer dimming options

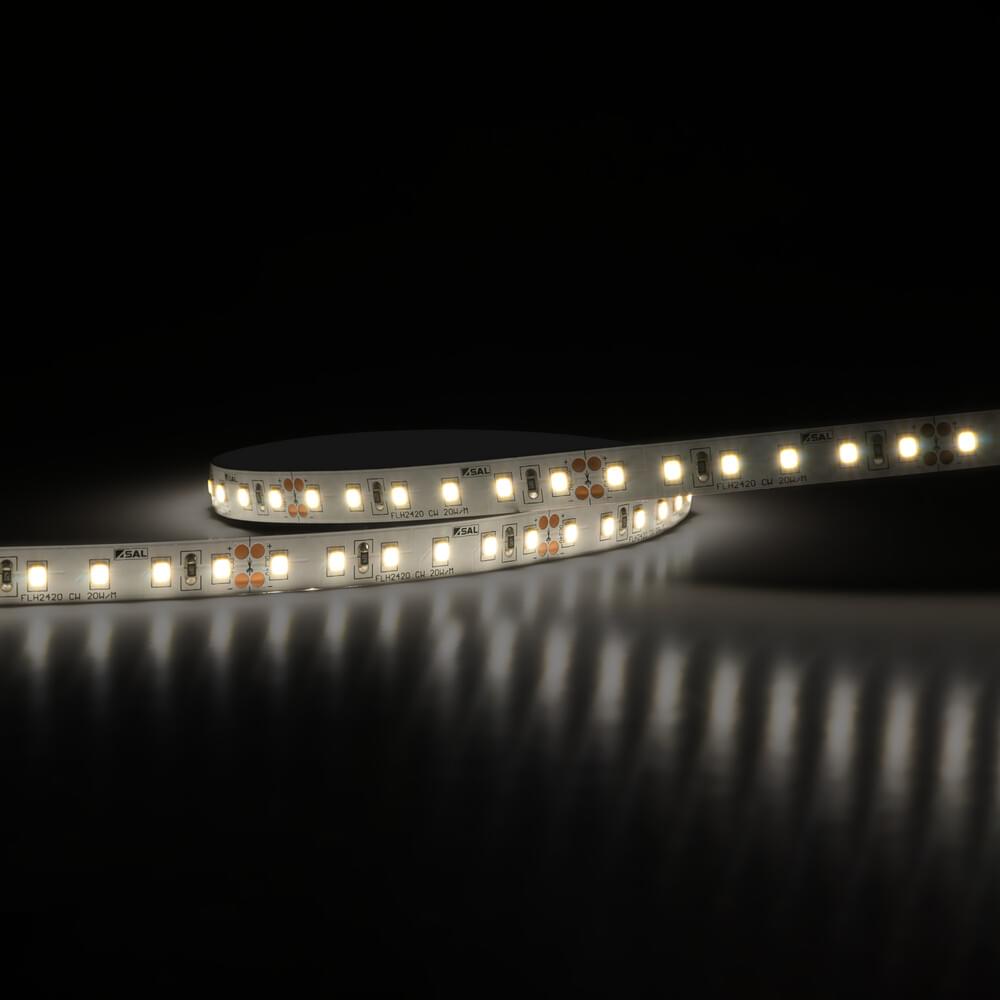

COOL WHITE4000K
COOL WHITE4000K

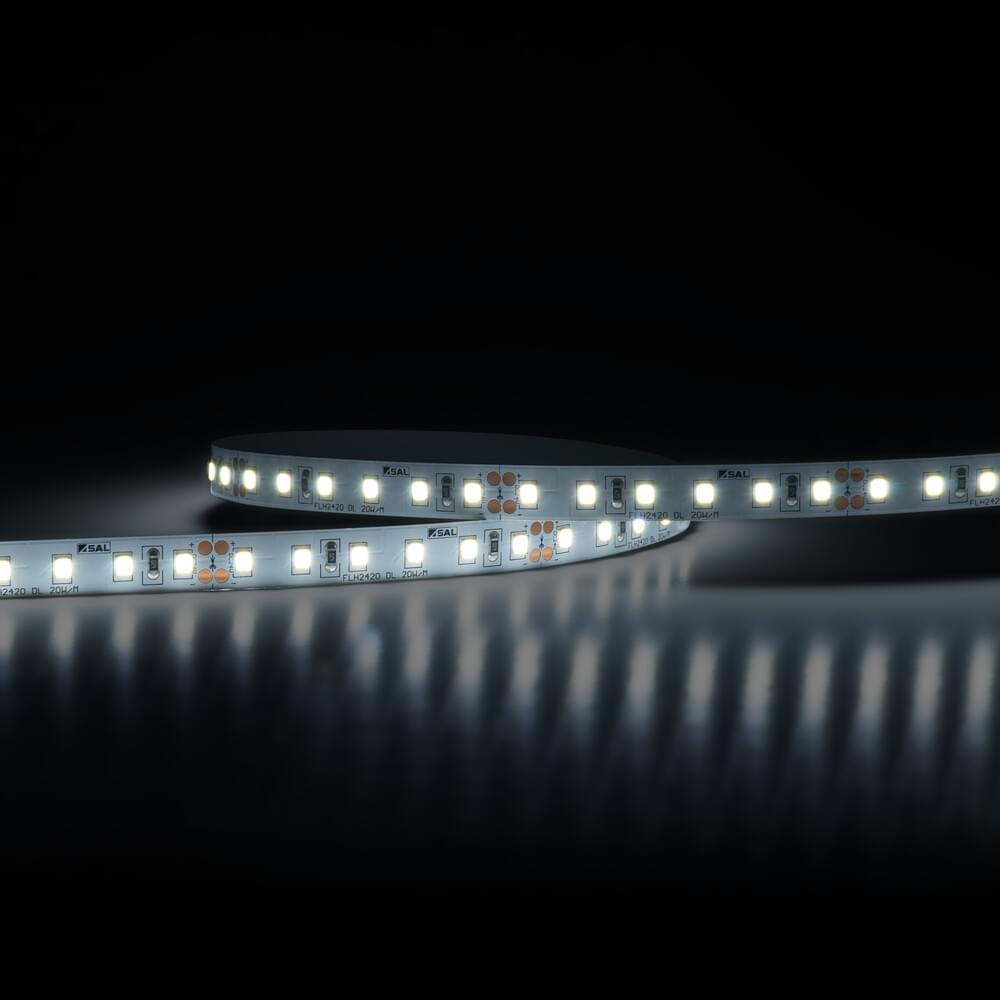

DAYLIGHT6000K
-

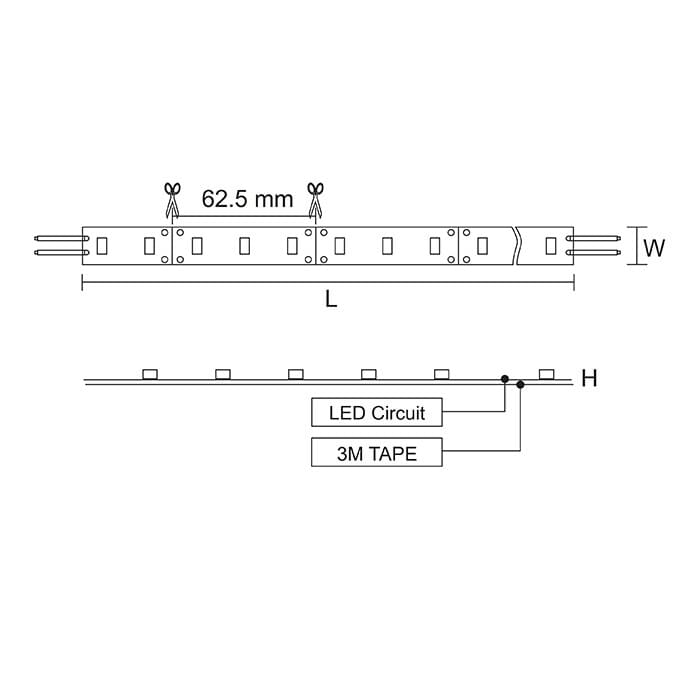

Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Watts per metre Beam Angle CRI Lumens LEDs Per Metre Cutting Interval CCT Body Colour Dim
Model No. FLH2420 WW Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 20 Beam Angle 115 CRI 80 Lumens 1700 LEDs Per Metre 96 Cutting Interval 62.5 CCT 3000 Body Colour CLEAR Dim 1000(L) x 10(W) x 2(H)
Model No. FLH2420 CW Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 20 Beam Angle 115 CRI 80 Lumens 1800 LEDs Per Metre 96 Cutting Interval 62.5 CCT 4000 Body Colour CLEAR Dim 1000(L) x 10(W) x 2(H)
Model No. FLH2420 DL Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 20 Beam Angle 115 CRI 80 Lumens 2000 LEDs Per Metre 96 Cutting Interval 62.5 CCT 6000 Body Colour CLEAR Dim 1000(L) x 10(W) x 2(H)
Model No. FLH2420WW/5M Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 20 Beam Angle 115 CRI 80 Lumens 1700 LEDs Per Metre 96 Cutting Interval 62.5 CCT 3000 Body Colour CLEAR Dim 5000(L) x 10(W) x 2(H)
Model No. FLH2420CW/5M Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 20 Beam Angle 115 CRI 80 Lumens 1800 LEDs Per Metre 96 Cutting Interval 62.5 CCT 4000 Body Colour CLEAR Dim 5000(L) x 10(W) x 2(H)
Model No. FLH2420DL/5M Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 20 Beam Angle 115 CRI 80 Lumens 2000 LEDs Per Metre 96 Cutting Interval 62.5 CCT 6000 Body Colour CLEAR Dim 5000(L) x 10(W) x 2(H)
