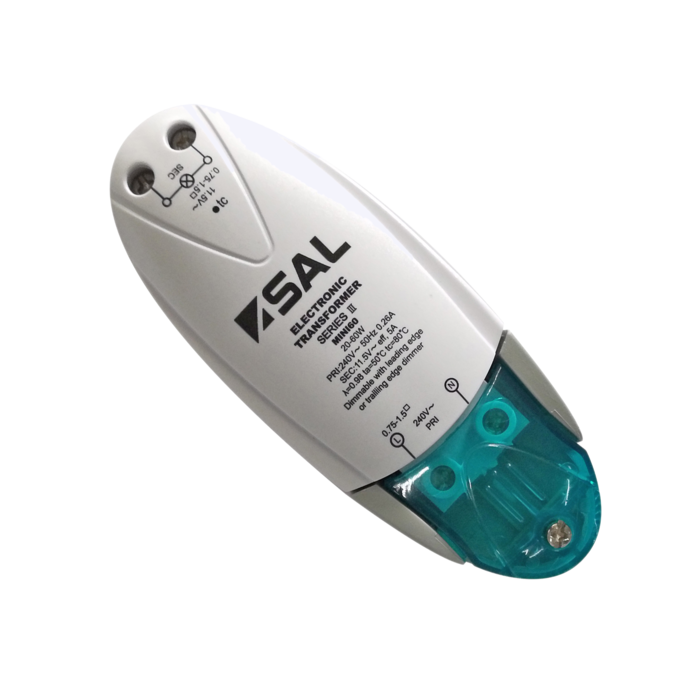

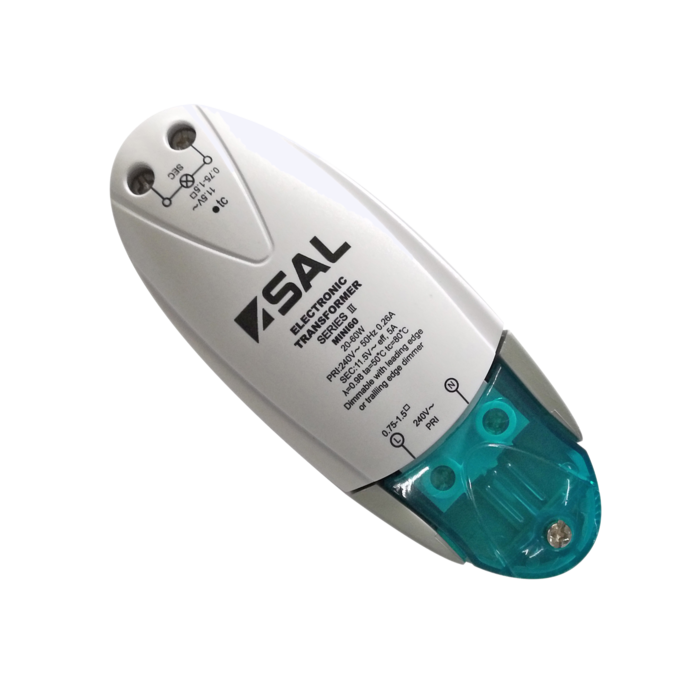

MINI 60 - 12V AC-AC
Australian approved electronic transformer 12V AC-AC
Application
Dimmable trailing or leading edge transformer for SELV lighting equipment
Design Specifications
- Overload and short circuit protection
- Overheating protection
- Safe no load operation
Dimmable with compatible trailing edge or leading edge dimmers
Hardwired termination
Minimum / Max loads -
LED 1 watt min / 20 watt max,
HALOGEN 20 watt min / 60 watt max,
Note: minimum load compatibility with a dimming device, may be subject to the inclusion of a load correction capacitor/s in the circuit.
Electrical class II, Do Not Cover
Performance
- Dimmable - YES
- Dimmer Type - TRAILING OR LEADING EDGE
-
Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Frequency Output Voltage (V/AC) Power Dimmable Dim
Model No. MINI60 Add to Enquiry Add Remove Remove Input Voltage 240 Frequency 50 Output Voltage (V/AC) 11.5 Power 60 Dimmable YES Dim 109(L) x 43(W) x 24(H)
