DIGITAL DIMMER - MASTER SDD350UM
MASTER - universal digital dimmer
Application
Smart lighting controls for residential and commercial applications
Design Specifications
Push button control for trailing or leading edge dimming, with soft start and soft off technology
Colour temperature selection functionality is achieved when used with compatible SAL downlights (S9842CS/WH)
Multiple-location dimming by connecting SDD350UM with any number of secondary dimmers SDD300US can be achieved.
Fit most popular switch plates, three complimentary mech caps provided, overheating and over current protection, full short circuit protection
Programmable minimum brightness level and memory function, compliant to AS/NZS60669.2.1
Supports ceiling sweep & exhaust fan < 60watt loads in leading edge mode only.
Performance
- Dimmable - YES
- Dimmer Type - Trailing & Leading edge
-

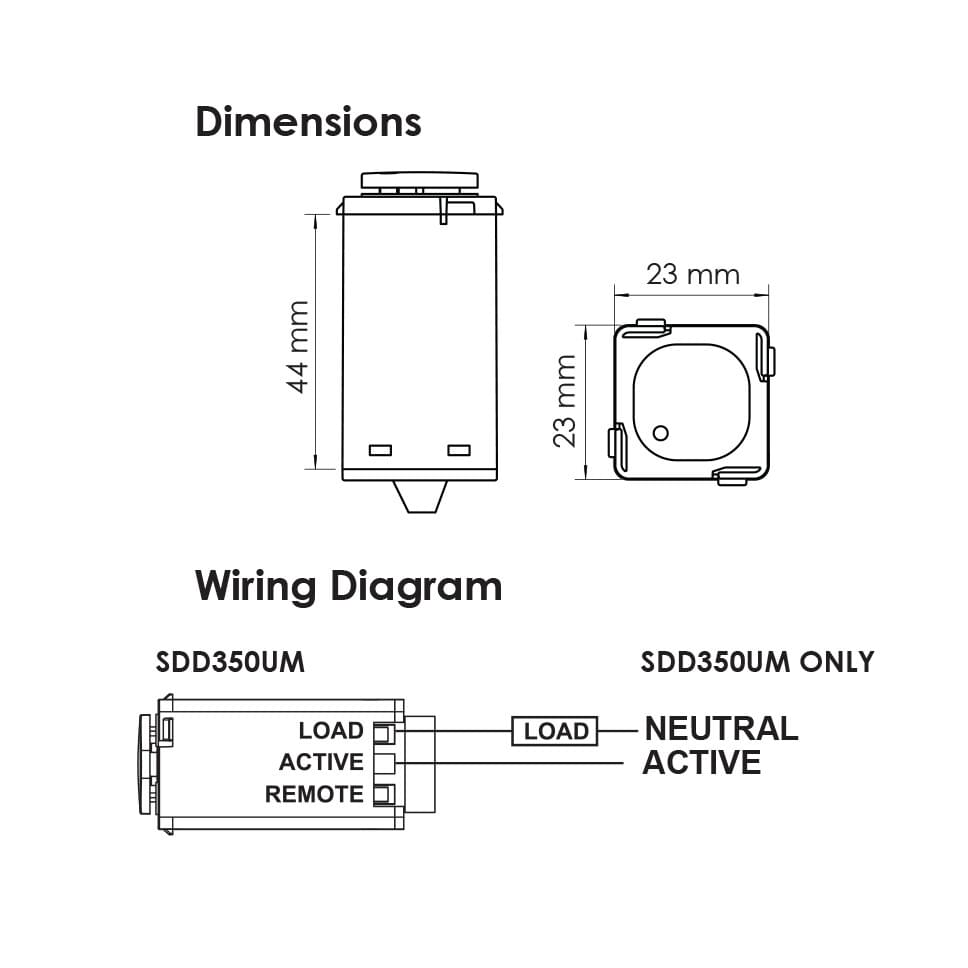

Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Dim Body Colour
Model No. SDD350UM Add to Enquiry Add Remove Remove Input Voltage 240 Power 300 Dim 44(L) x 23(W) x 23(H) Body Colour WHITE Minimum load - 5 watt
