ELV SENSOR - SMS751ELV
Microwave ELV motion corridorSTANDBY sensor IP20
Application
Versatile microwave ON/OFF sensor. SAL factory fitted sensor option for approved products only, not for individual sale
Design Specifications
Power source input: 12-24V DC, output 0-10V DC, 30mA sinking current
Detection radius max 8m, angle 360°, max 2.5hm
Power consumption <0.5W
HF system: 5.8GHz
Performance
- Dimmable - NO
- In Built Sensor - YES
- Sensor Type - MICROWAVE
-

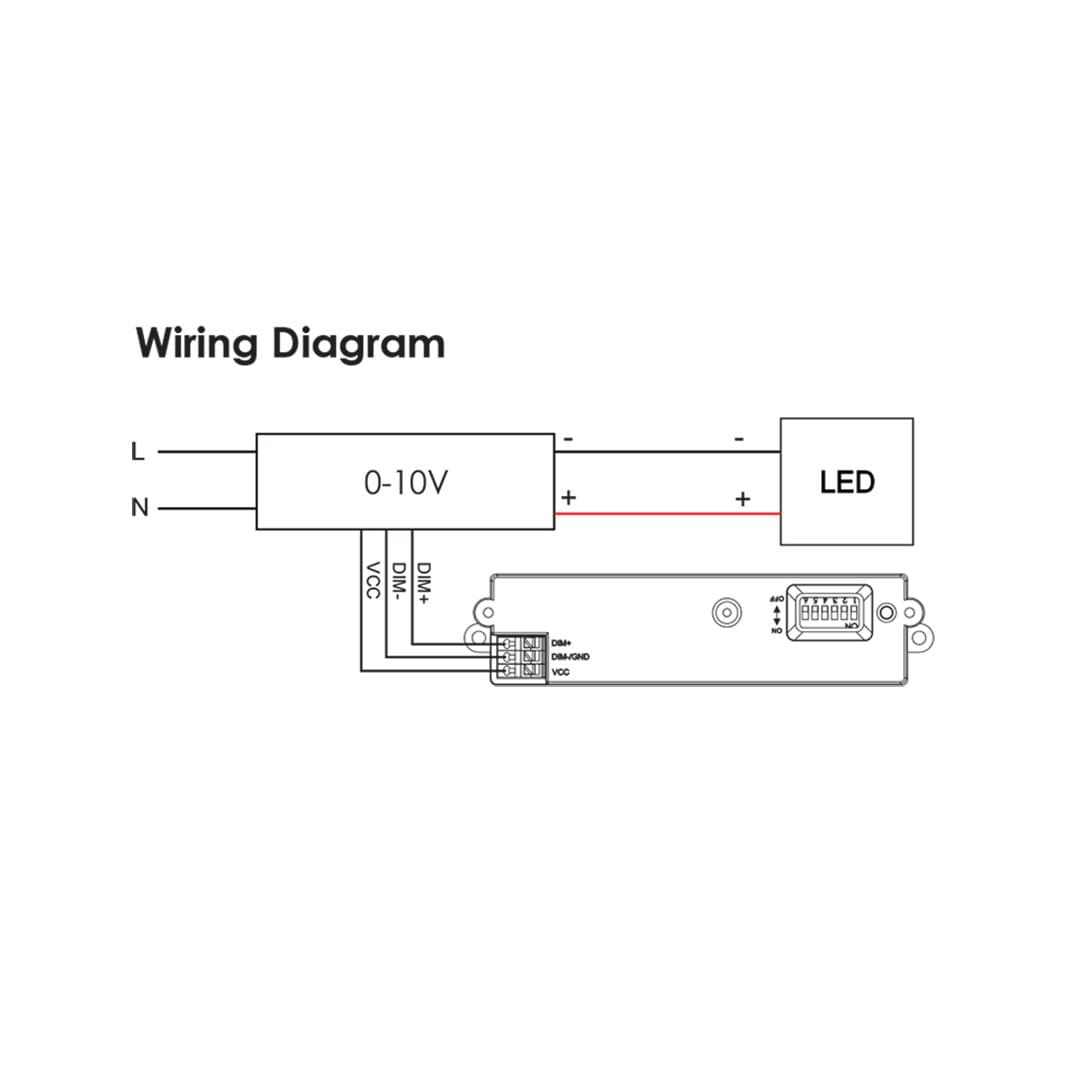

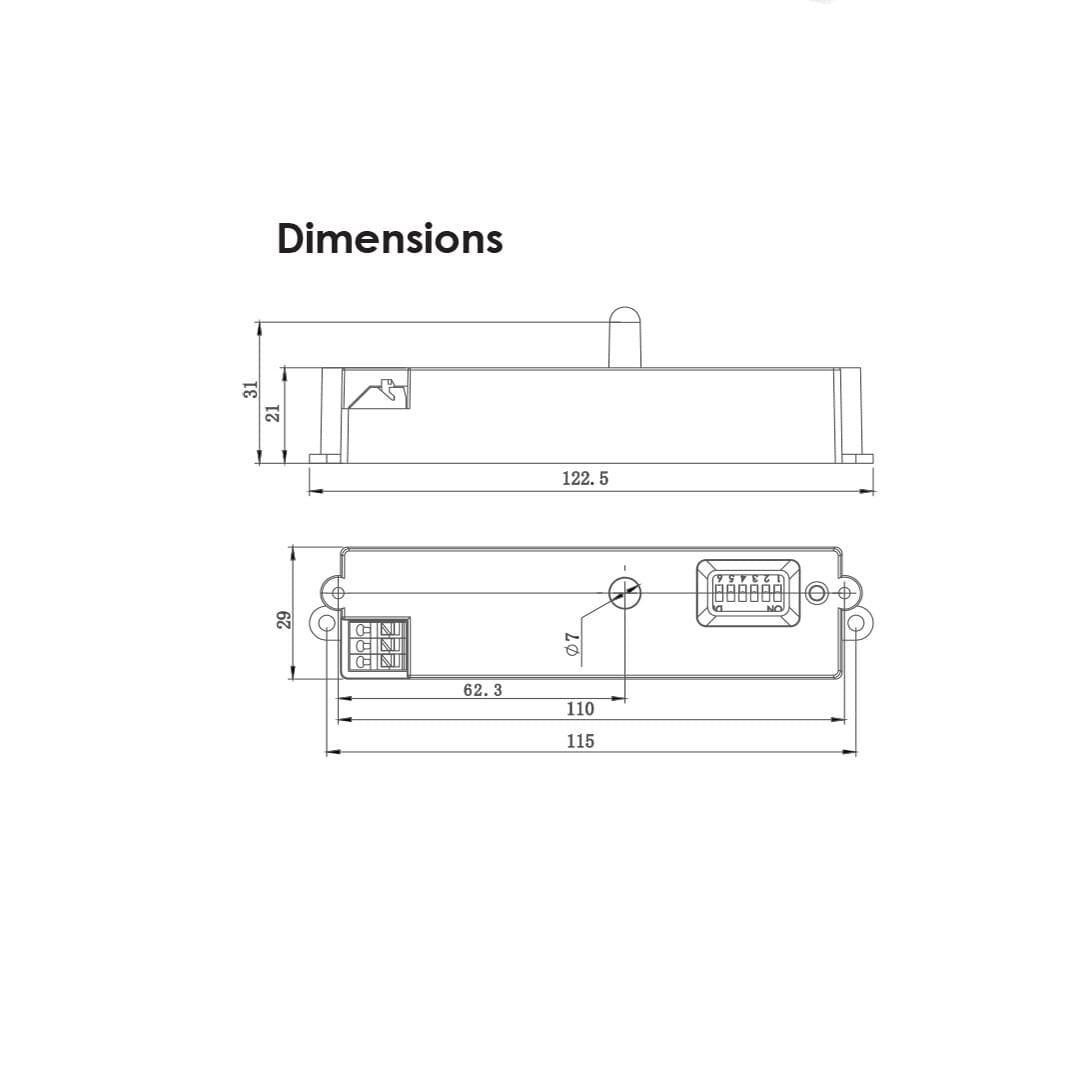

Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Body Colour
Model No. SMS751ELV Add to Enquiry Add Remove Remove Input Voltage 12 Body Colour WHITE
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
