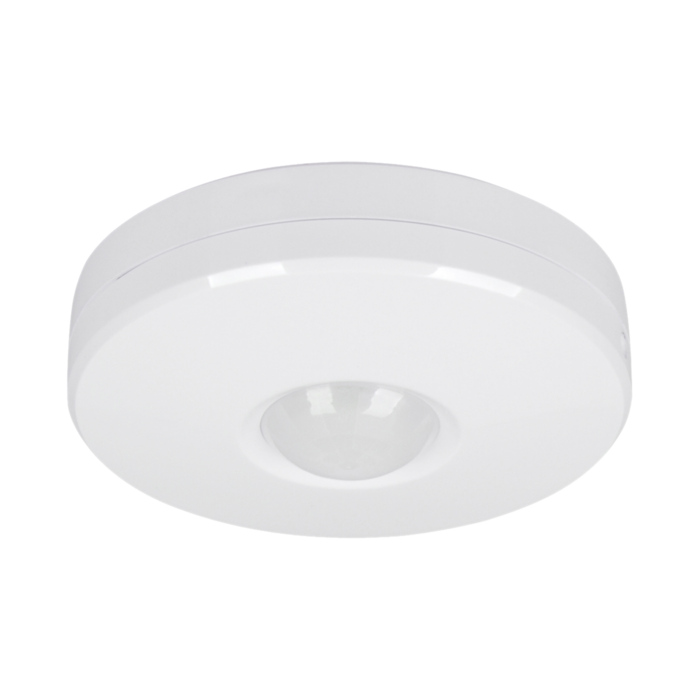

PIR SENSOR - SMS805CS

Infrared sensor - surface mount

Application

IP20 surface mount sensor designed for residential and commercial spaces

Design Specifications

Switched power 1600W incandescent, 500W, fluorescent, 200W LED
Standby power <1W

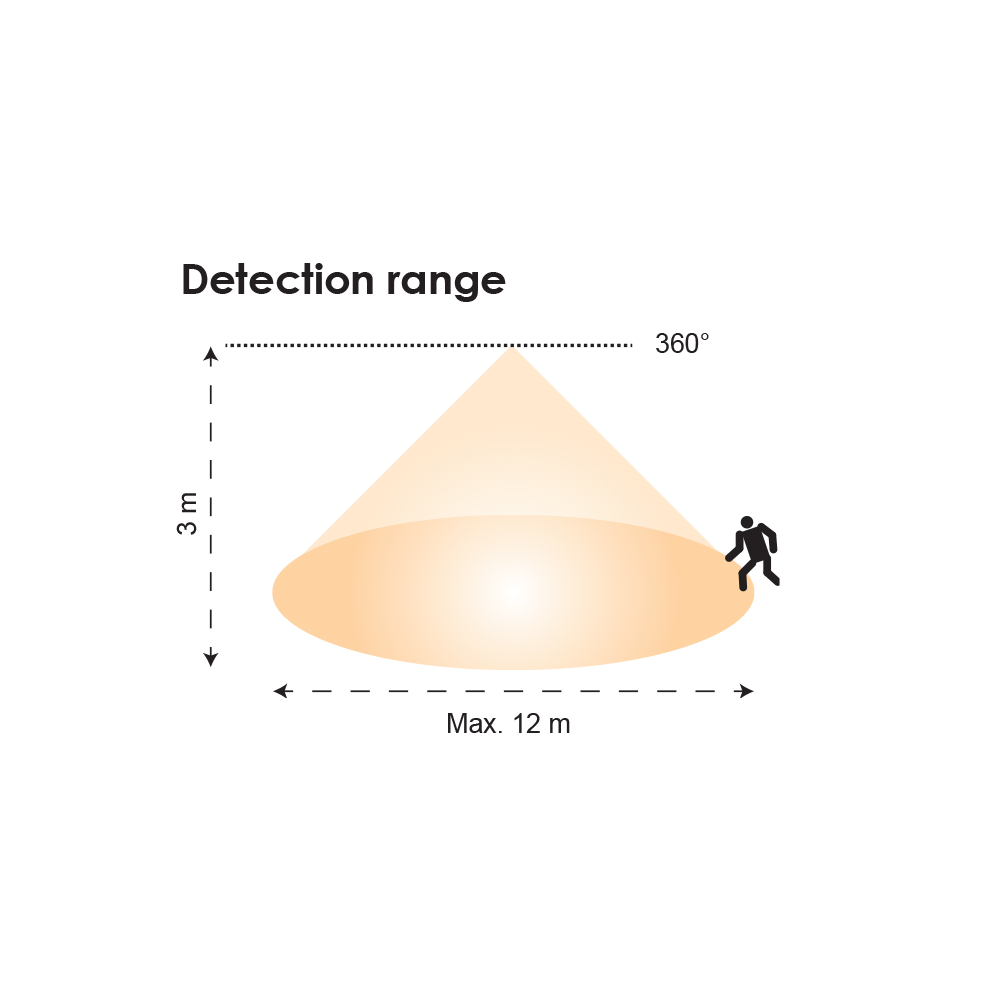

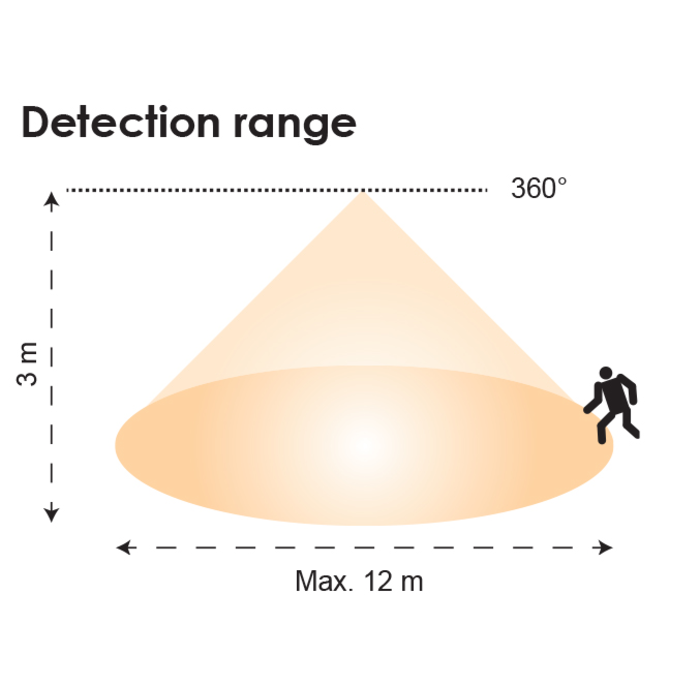

Detection distance Max. 12 m in diameter
Detection angle 360° , Duration Time / 10sec / 4min adjustable
Dawn to dusk adjustable, mounting height max. 3m
Manual override mode: When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the lamp(s) will stay on. The sensor will then return to normal detection mode During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode

Performance

Dimmable - NO
In Built Sensor - YES
Sensor Type - PIR

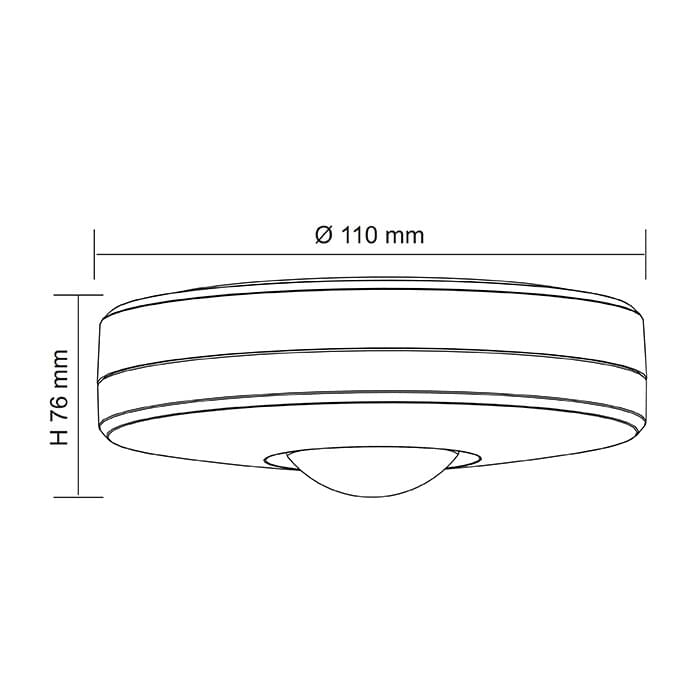

Dimensions - Wiring Diagrams
SMS805CS
Design Options
Photometric Data
FAQ
Where can I buy SAL products?

Where can I buy SAL products?

SAL distribute their products through HAMER New Zealand Electrical. To find a store near you, simply input your postcode and available locations will be provided.

Is Sunny Lighting the same as SAL National?

Is Sunny Lighting the same as SAL National?

Yes (Sunny Australia Lighting) is SAL National Pty Ltd

So what is the difference between MW, IR or PIR sensors?

So what is the difference between MW, IR or PIR sensors?

Microwave sensors detect motion by projecting microwaves, which bounce off surfaces and returns the signal to the controlling sensor; IR sensors emit in order to identify heat or movement of an object measuring only infrared radiation and a PIR sensor measures infrared light radiating from objects in its field of view
Do you have any more questions? Simply check our FAQs page or contact our customer service team.
Downloads
Installation Instructions

Datasheet

SDOC File

Project Writer

Project Name Product Code Drawing Reference Description

Technical Specifications


Product	Model No.	Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click	Input Voltage	Body Colour
	Model No. SMS805CS	Add to Enquiry Add Remove Remove	Input Voltage 240	Body Colour WHITE

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
