• LED BULKHEADS

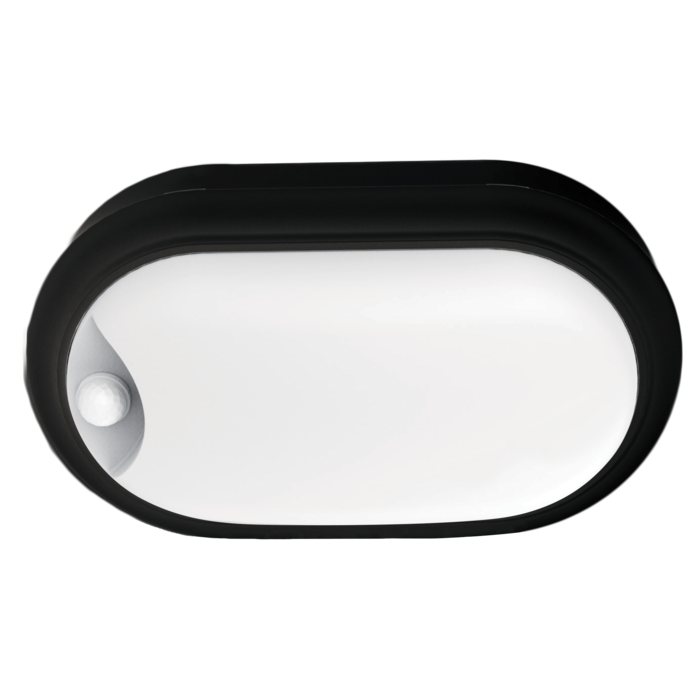

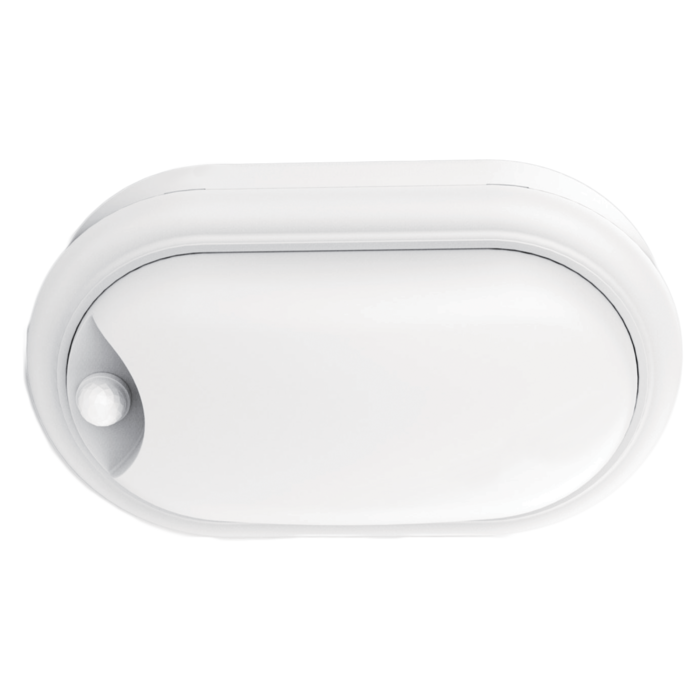

BUNKER 15 OVAL WITH SENSOR SL7271TC - 15W

LED 15 watt surface mount oval shaped bunker, selectable CCT, IP54 with PIR sensor

Application

A robust solution for residential and apartment interior or (covered eave) exterior utility spaces

Design Specifications

  • Durable UV resistant white or black polycarbonate body, opal polycarbonate diffuser

  • Integral control gear, 15 watt with PIR sensor control, fixed 30 seconds ON, 7 metres diameter detection distance at 2.5hm, daylight threshold < 20 lux

  • CCRI >80, 1400/1500/1450lm

  • Selectable CCT 3000/4000/6500K

  • Quick connect installation design

  • Double insulated, robust IK06 protection, wall or ceiling mount

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ
      • Where can I buy SAL products?

        Where can I buy SAL products?

        SAL distribute their products through HAMER New Zealand Electrical. To find a store near you, simply input your postcode and available locations will be provided.

      • Is Sunny Lighting the same as SAL National?

        Is Sunny Lighting the same as SAL National?

        Yes (Sunny Australia Lighting) is SAL National Pty Ltd

      • What does IP stand for?

        What does IP stand for?

        IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

        As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

        For more information please refer to AS 60529.


      • What is an IK rating?

        What is an IK rating?

        An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

        High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.



      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim
      Model No. SL7271TC/WH/S Add to Enquiry Add Remove Remove Input Voltage 240 Power 15 Lumens 1400/1500/1450 CCT 3000/4000/6500 CRI 80 Beam Angle 110 Body Colour WHITE Dim 233(L) x 131(W) x 68(H)
      Model No. SL7271TC/BK/S Add to Enquiry Add Remove Remove Input Voltage 240 Power 15 Lumens 1400/1500/1450 CCT 3000/4000/6500 CRI 80 Beam Angle 110 Body Colour BLACK Dim 233(L) x 131(W) x 68(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
