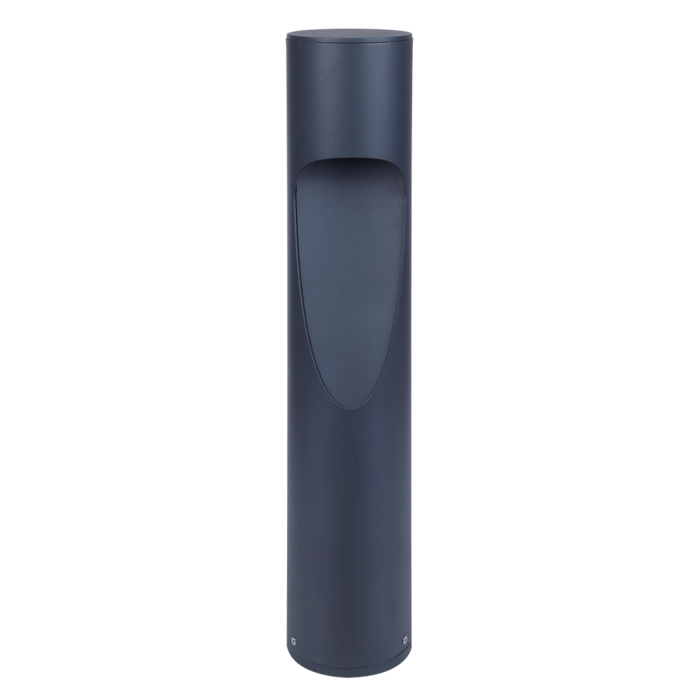

NEWLAND SL7015LTC - 10W
LED architectural post luminaire, with selectable CCT
Application
Ideal for residential or apartment exterior pathways
Design Specifications
Die-cast aluminium body, flat profile design,
base plate mounting, rag bolts includedDurable BLACK powder coated finish
Clear polycarbonate lens, pathway optical distribution 70°
Integral LED control gear 10 watt
IP65, IK08 performance

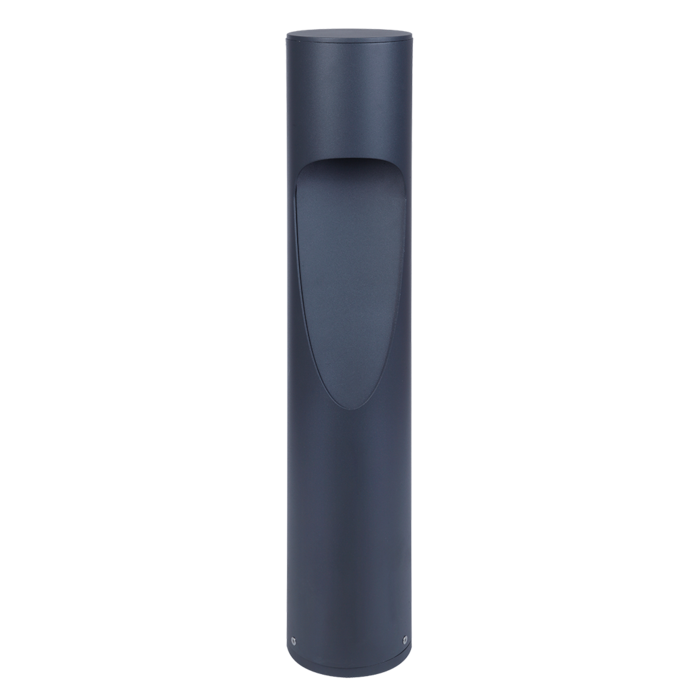

SL7015L65TC/BK - 120mm Ø, 650mm height

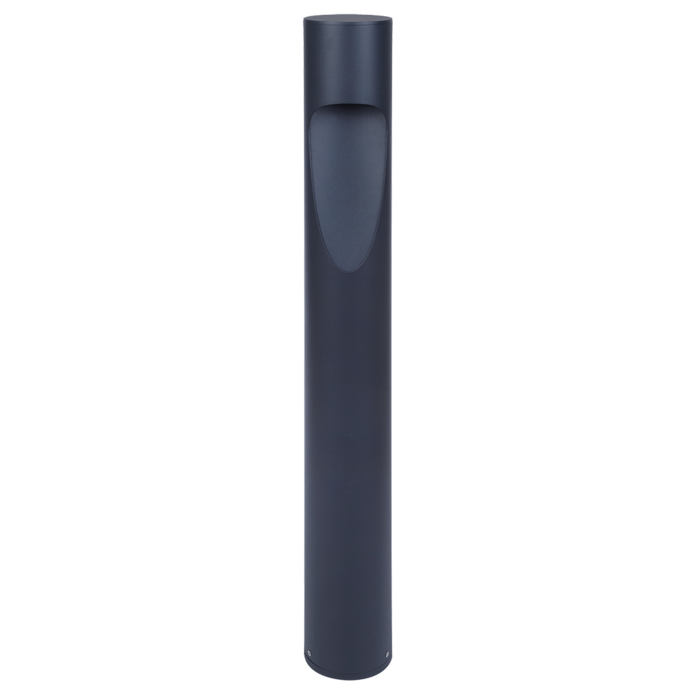

SL7015100TC/BK - 120mm Ø, 1000mm height
Performance
- Dimmable - NO
-

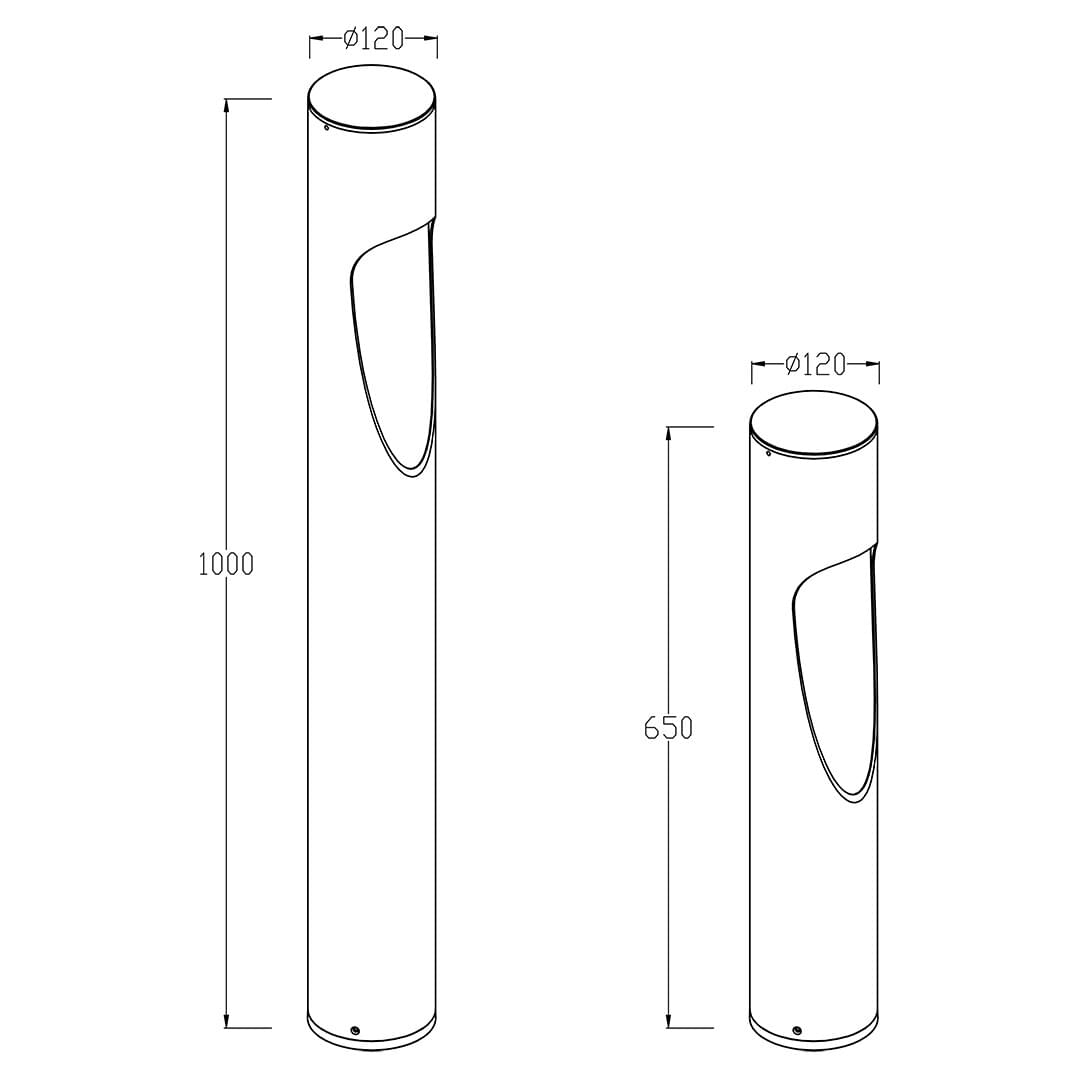

Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT Beam Angle Mass Diameter Dim Body Colour
Model No. SL7015L65TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 300/340/375 CCT 3000/4000/5000 Beam Angle 70 Mass 2.5 Diameter 120 Dim 650(H) Body Colour BLACK
Model No. SL7015L100TC/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 300/340/375 CCT 3000/4000/5000 Beam Angle 70 Mass 3.4 Diameter 120 Dim 1000(H) Body Colour BLACK
