NEWPORT SPIKE SL7261TC - 5W
IP65 MR16 LED lamp base spike luminaire with selectable CCT lamp
Application
Decorative accent solutionDesign Specifications
Machined 316L stainless steel or extruded aluminium body profile, black or silver or anodized silver finish
- Clear tempered glass cover
GU5.3 lamp base, MR16 5W TC lamp included
- 600 mm 2 core rubber flex
- 12V AC or DC driver required
SAL lamp options - MR16/7W, MR16DIM9W (excluding Stainless Steel fittings)
Performance
- Dimmable - NO
-

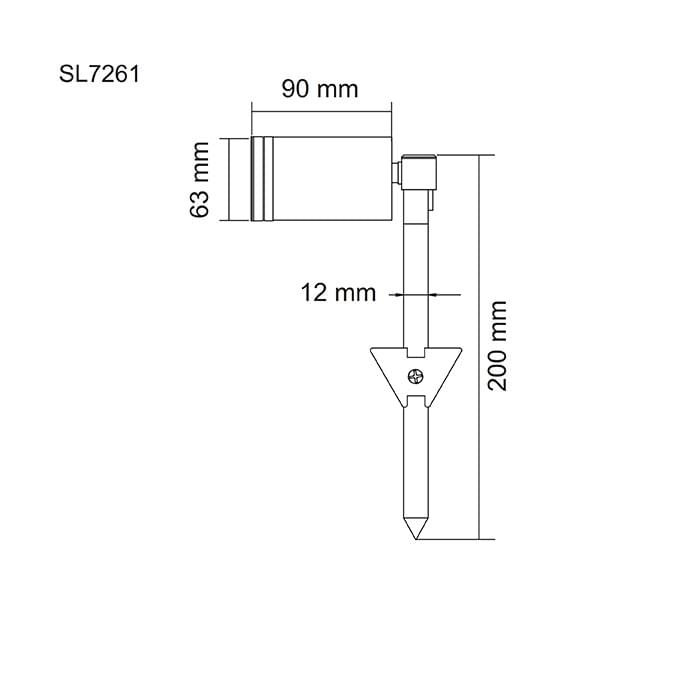

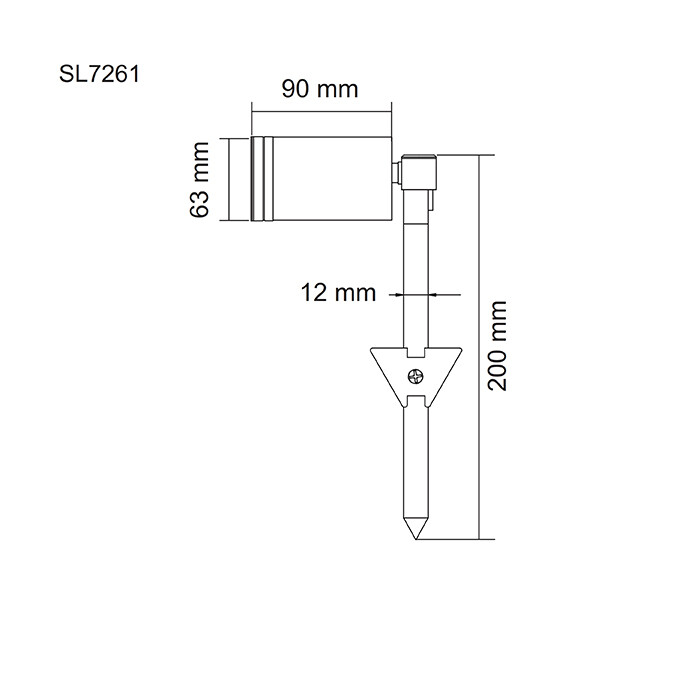

Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Input Voltage Output Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Base Type Body Colour

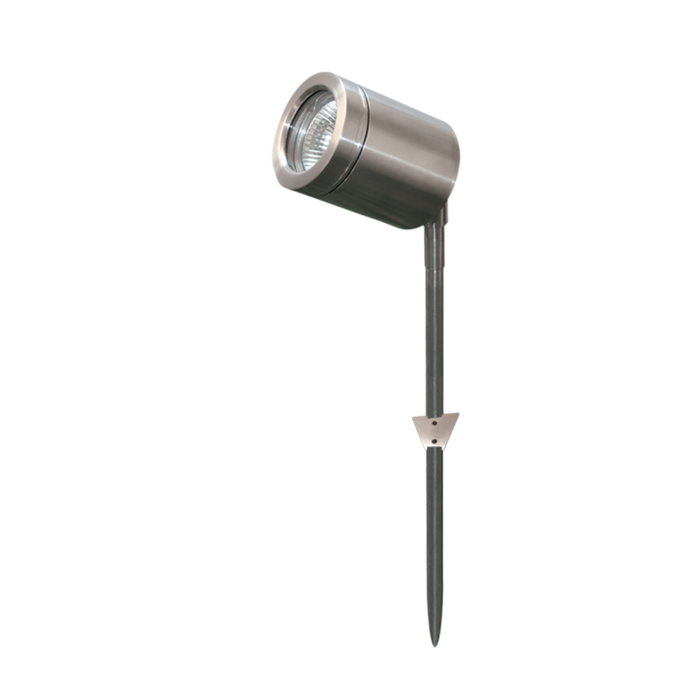

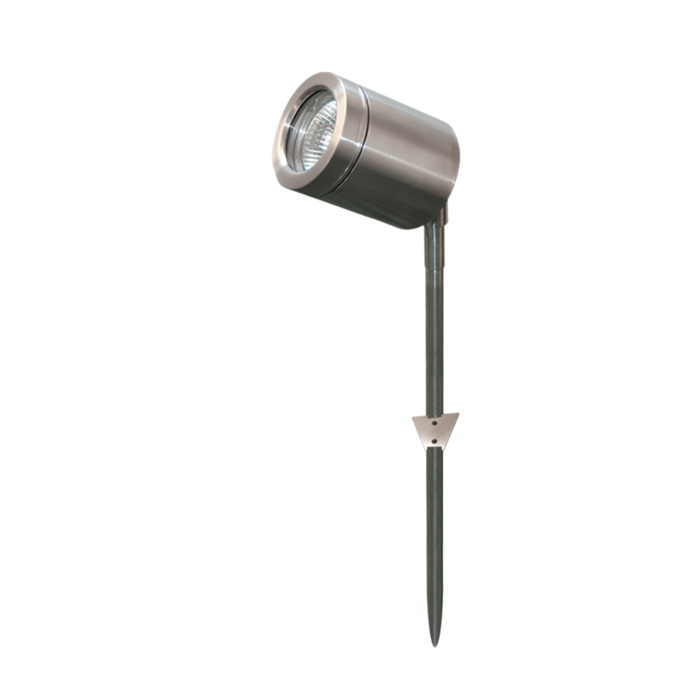

Model No. SL7261TC/SLS Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 5 Lumens 360/400/380 CCT 3000/4000/6000 CRI 80 Beam Angle 38 Mass 0.9 Diameter 63 Dim 200(H) x 90(D) Base Type GU5.3 Body Colour STAINLESS STEEL
Model No. SL7261TC/SL Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Output Voltage 12 Power 5 Lumens 360/400/380 CCT 3000/4000/6000 CRI 80 Beam Angle 38 Mass 0.43 Diameter 63 Dim 200(H) x 90(D) Base Type GU5.3 Body Colour SILVER

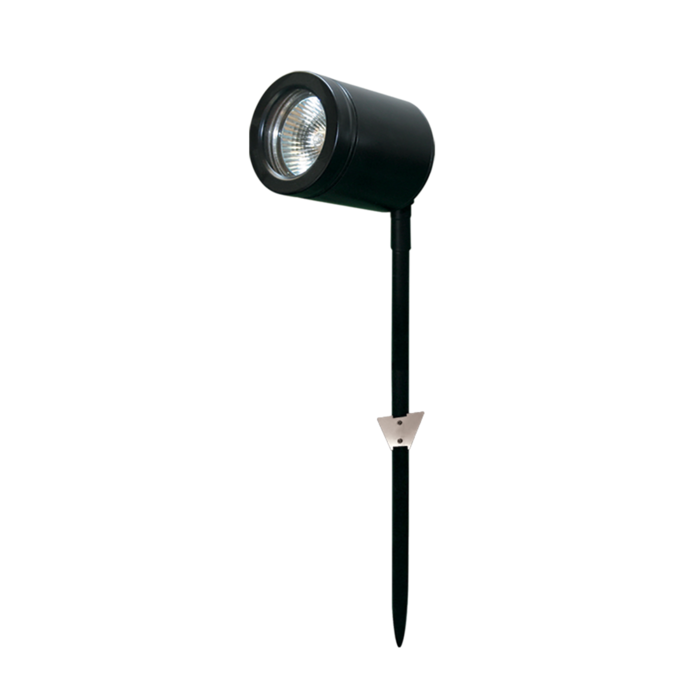

Model No. SL7261TC/BK Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 5 Lumens 360/400/380 CCT 3000/4000/6000 CRI 80 Beam Angle 38 Mass 0.43 Diameter 63 Dim 200(H) x 90(D) Base Type GU5.3 Body Colour BLACK

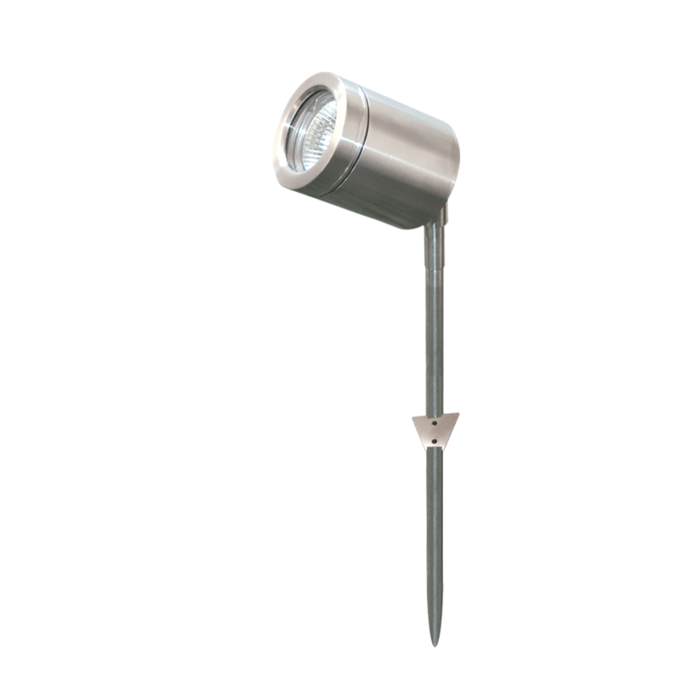

Model No. SL7261TC/AS Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 5 Lumens 360/400/380 CCT 3000/4000/6000 CRI 80 Beam Angle 38 Mass 0.43 Diameter 63 Dim 200(H) x 90(D) Base Type GU5.3 Body Colour ANODISED SILVER
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
