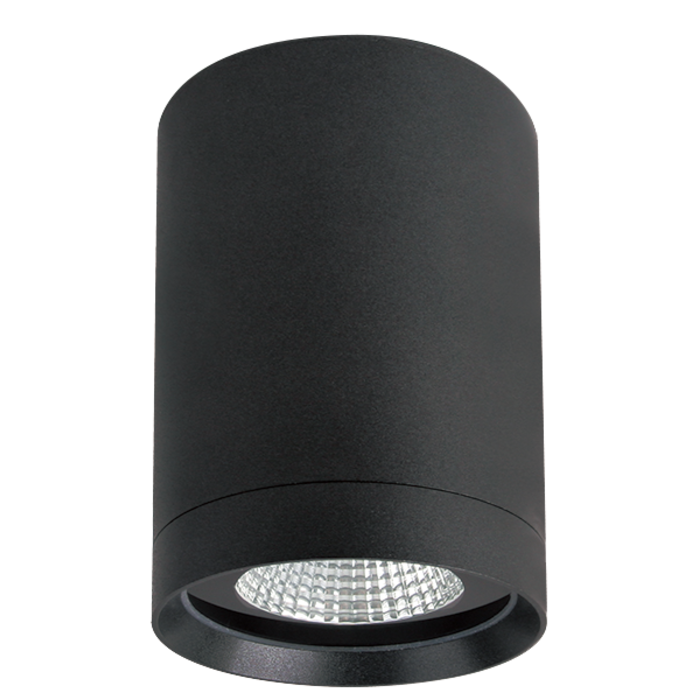

PILLAR SE7188 - 20/38W
IP65 LED architectural circular profile surface mount downlight
Application
A decorative residential exterior or interior solutionDesign Specifications
Surface mounted downlight with concealed screw fixings, standard colour black
- Clear tempered glass cover
High efficiency LED optics, standard CCT 4000K, optional 3000K and 5000K
Changeable high performance multi-reflector system, standard beam distribution 30 degree.
Integral constant current non-dimmable LED driver, 20, 28, 34, 38 watt models
Optional beam distribution SE7188/80 - 10°, 20°, 40°, 50°, SE7188/110 - 10°, 20°, 40°, 70°, SE7188/150 - 12°, 20°, 40°, 70°
Performance
- Dimmable - NO
COOL WHITE4000K

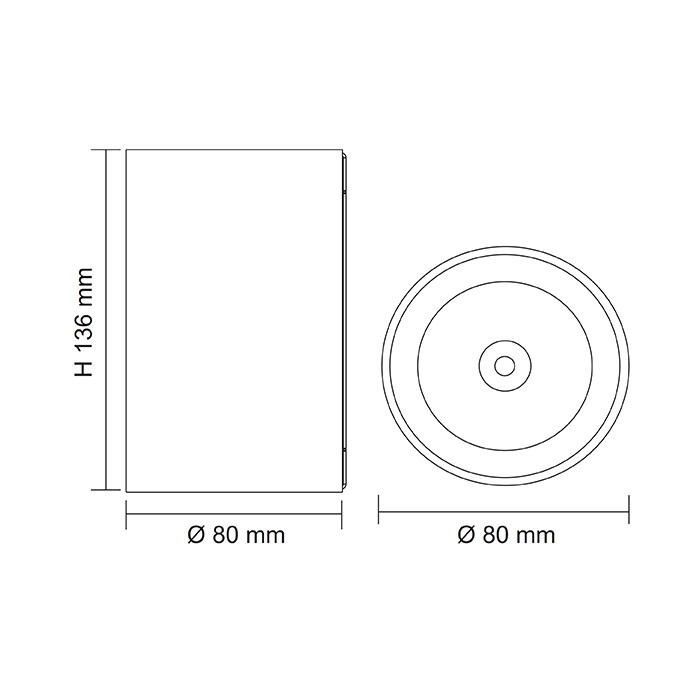

- Dimensions - Wiring Diagrams
-

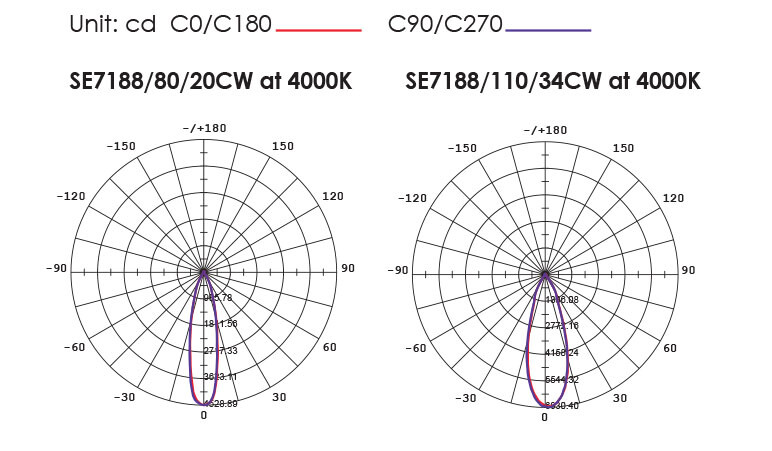

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT CRI Beam Angle Mass Diameter Dim Body Colour
Model No. SE7188/80/20CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 2000 CCT 4000 CRI 80 Beam Angle 30 Mass 0.62 Diameter 80 Dim 80(W) x 136(H) Body Colour Black
Model No. SE7188/110/25CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 2500 CCT 4000 CRI 80 Beam Angle 30 Mass 1.16 Diameter 110 Dim 110(W) x 160(H) Body Colour Black
Model No. SE7188/110/34CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 28 Lumens 3400 CCT 4000 CRI 80 Beam Angle 30 Mass 1.16 Diameter 110 Dim 110(W) x 160(H) Body Colour Black
Model No. SE7188/150/42CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 34 Lumens 4200 CCT 4000 CRI 80 Beam Angle 30 Mass 1.99 Diameter 150 Dim 150(W) x 185(H) Body Colour Black
Model No. SE7188/150/49CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 38 Lumens 4900 CCT 4000 CRI 80 Beam Angle 30 Mass 1.99 Diameter 150 Dim 150(W) x 185(H) Body Colour Black
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
