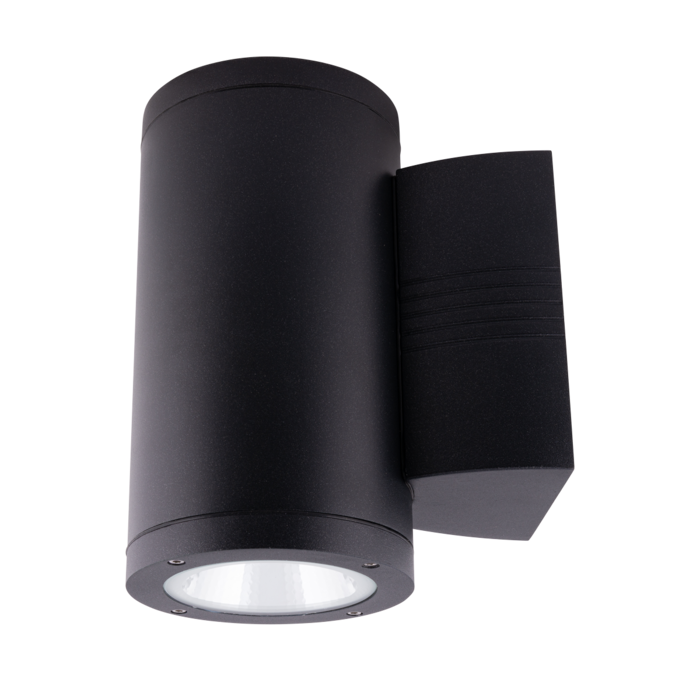

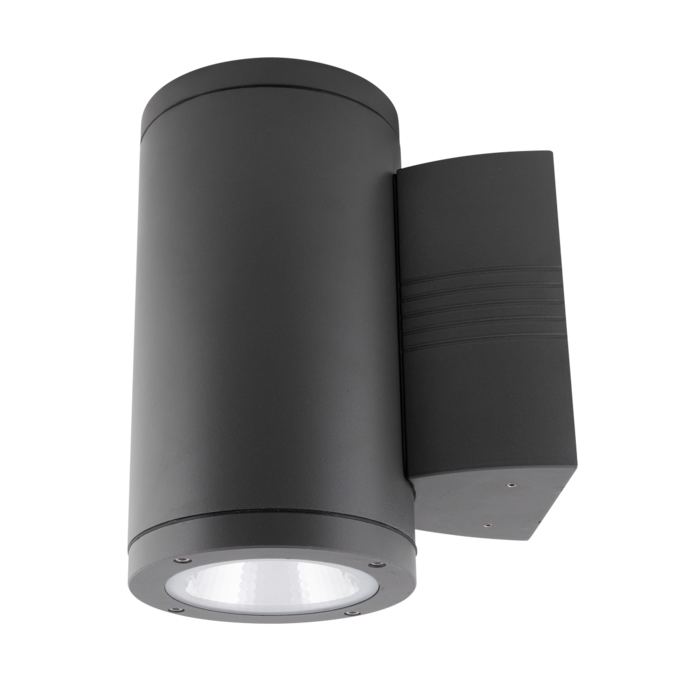

STEIN SE7148 - 32W
IP65 LED architectural wall luminaire - up and down
Application
A decorative residential / commercial exterior or interior solution
Design Specifications
- Die-cast aluminium body and powder coated body profile
- Clear tempered glass cover
High efficiency LED optics

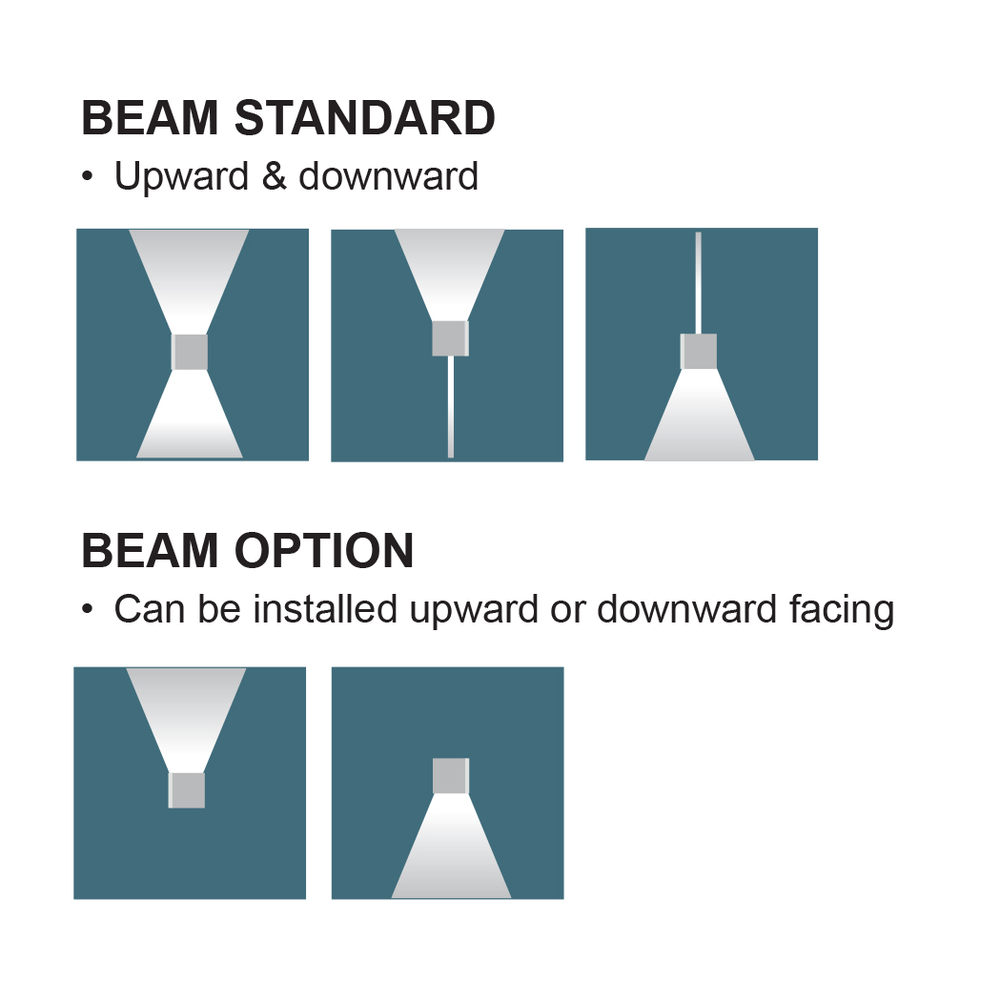

High performance multifaceted reflector system, standard beam distribution 17° UP/DOWN
Narrow beam (NB) distribution option (UP) 8° / (DOWN) 17° available
Integral non-dimmable LED driver
Performance
- Dimmable - NO
WARM WHITE3000K
COOL WHITE4000K
-

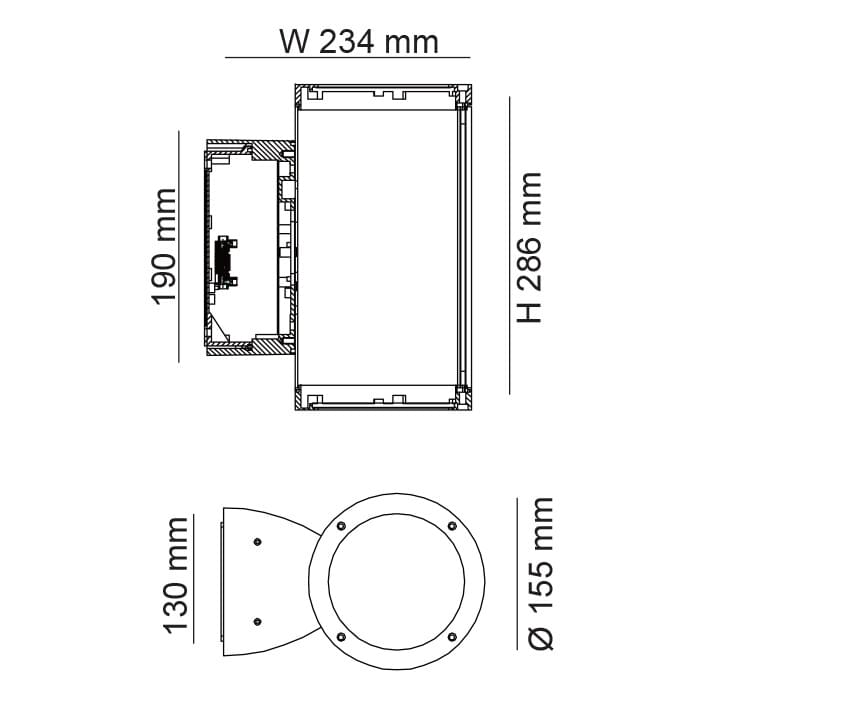

Dimensions - Wiring Diagrams
-
-

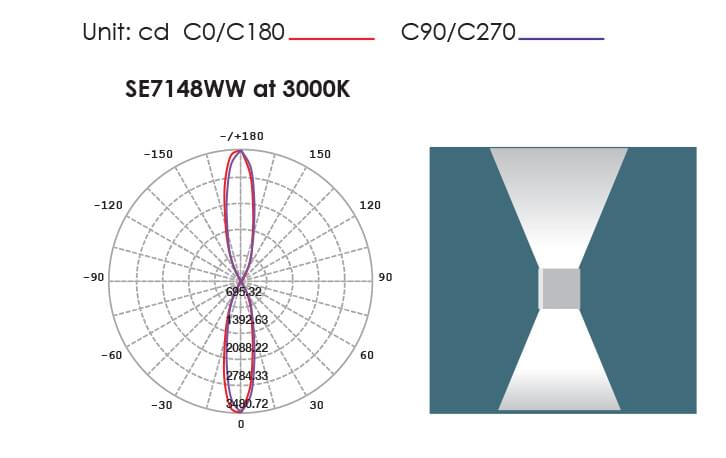

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT CRI Beam Angle Mass Dim Body Colour
Model No. SE7148WW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 32 Lumens 1275/1275 CCT 3000 CRI 80 Beam Angle 17 Mass 5.1 Dim 234(W) x 286(H) Body Colour BLACK
Model No. SE7148WW/CB Add to Enquiry Add Remove Remove Input Voltage 240 Power 32 Lumens 1275/1275 CCT 3000 CRI 80 Beam Angle 17 Mass 5.1 Dim 234(W) x 286(H) Body Colour CHARCOAL BLACK
Model No. SE7148CW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 32 Lumens 1315/1315 CCT 4000 CRI 80 Beam Angle 17 Mass 5.1 Dim 234(W) x 286(H) Body Colour BLACK
Model No. SE7148CW/CB Add to Enquiry Add Remove Remove Input Voltage 240 Power 32 Lumens 1315/1315 CCT 4000 CRI 80 Beam Angle 17 Mass 5.1 Dim 234(W) x 286(H) Body Colour CHARCOAL BLACK
Model No. SE7148NB/WW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 32 Lumens 1275/630 CCT 3000 CRI 80 Beam Angle 8.17 Dim 234(W) x 286(H) Body Colour BLACK
Model No. SE7148NB/WW/CB Add to Enquiry Add Remove Remove Input Voltage 240 Power 32 Lumens 1275/630 CCT 3000 CRI 80 Beam Angle 8.17 Dim 234(W) x 286(H) Body Colour CHARCOAL BLACK
Model No. SE7148NB/CW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 32 Lumens 1315/650 CCT 4000 CRI 80 Beam Angle 8.17 Dim 234(W) x 286(H) Body Colour BLACK
Model No. SE7148NB/CW/CB Add to Enquiry Add Remove Remove Input Voltage 240 Power 32 Lumens 1315/650 CCT 4000 CRI 80 Beam Angle 8.17 Dim 234(W) x 286(H) Body Colour CHARCOAL BLACK NOTE: Lumens (lm) displayed are per optical head, NB models beam distribution (DOWN 17° / UP 8°)
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
