COOPER SE7083TC/EM - 23W
MAINTAINED OR NON-MAINTAINED, 23 watt, LED commercial bunker luminaire, wall or ceiling mount, IK10 rated with selectable CCT, IP65
Application
A decorative architectural solution for commercial exteriorsDesign Specifications
Robust die-cast aluminium body, UV stabilised opal polycarbonate diffuser
Durable black or silver powder coat finish
- Stainless steel allen screws
High efficiency LED optics, with selectable CCT
Integral non-dimmable LED driver
Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology. Emergency spacing classification D25@C0
Performance
- Dimmable - OPTIONAL
- Dimmer Type - TRAILING EDGE
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
- Dimensions - Wiring Diagrams
-

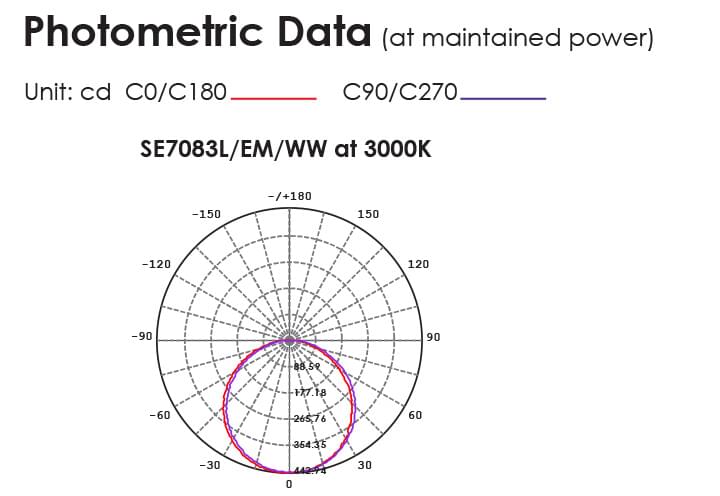

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power CCT Lumens Body Colour Diameter Dim
Model No. SE7083TC/EM/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 23 CCT 3000/4000/5700 Lumens 1400/1500/1500 Body Colour BLACK Diameter 350 Dim 130(H)
Model No. SE7083TC/EM/SL Add to Enquiry Add Remove Remove Input Voltage 240 Power 23 CCT 3000/4000/5700 Lumens 1400/1500/1500 Body Colour SILVER Diameter 350 Dim 130(H) Important notes: (1) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (2) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (3) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.
