KEW SL9721/EM - 20/35W
MAINTAINED OR NON-MAINTAINED, LED emergency weatherproof batten, 20 or 35 watt models, IK08, IP65
Application

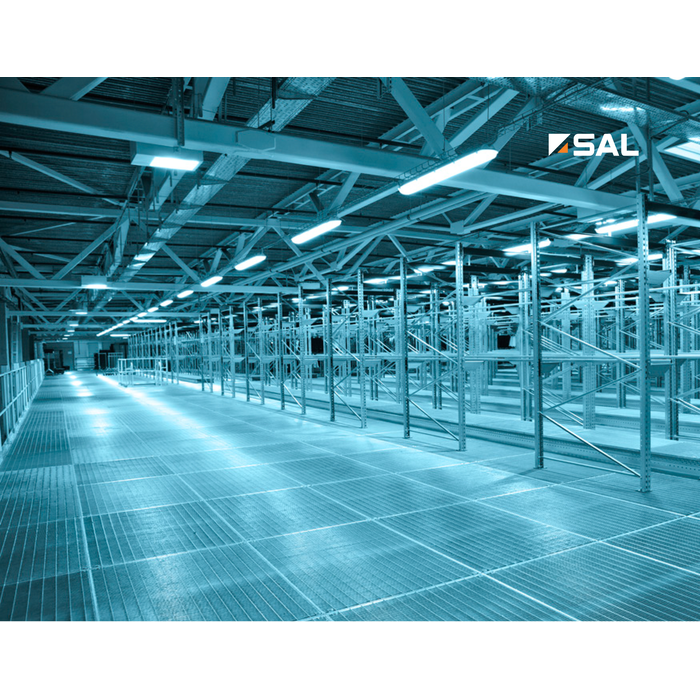

Multi-purpose, ceiling or suspension mount commercial or industrial applications
Design Specifications

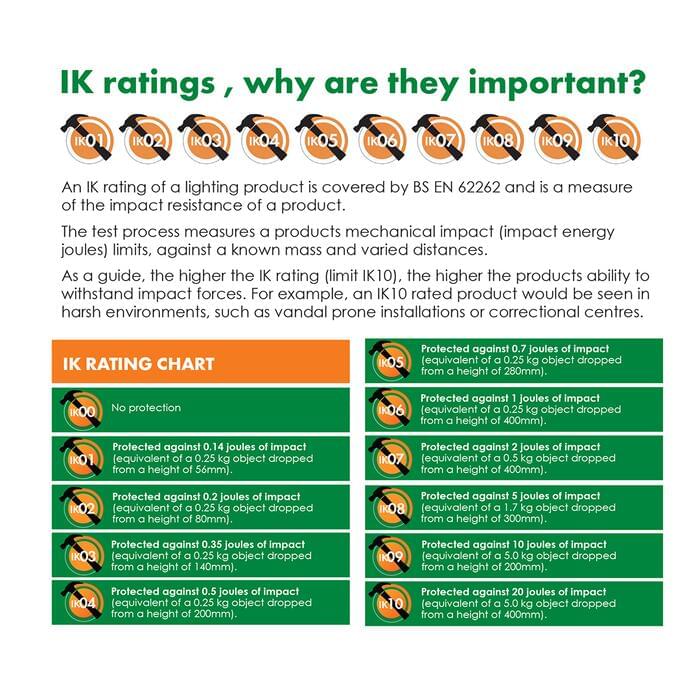

Vandal resistant design, robust polycarbonate body and UV stabilized polycarbonate diffuser and body, stainless steel clips, brackets and screws, IP65 / IK08
Integral non-dimmable LED driver, 5000K as standard, optional 3000K to order
Optional (non-dim) corridorSTANDBY function available for 35 watt EM
Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology
Emergency spacing class -
(SL9721/20EM) D50@C0, D32@C90,

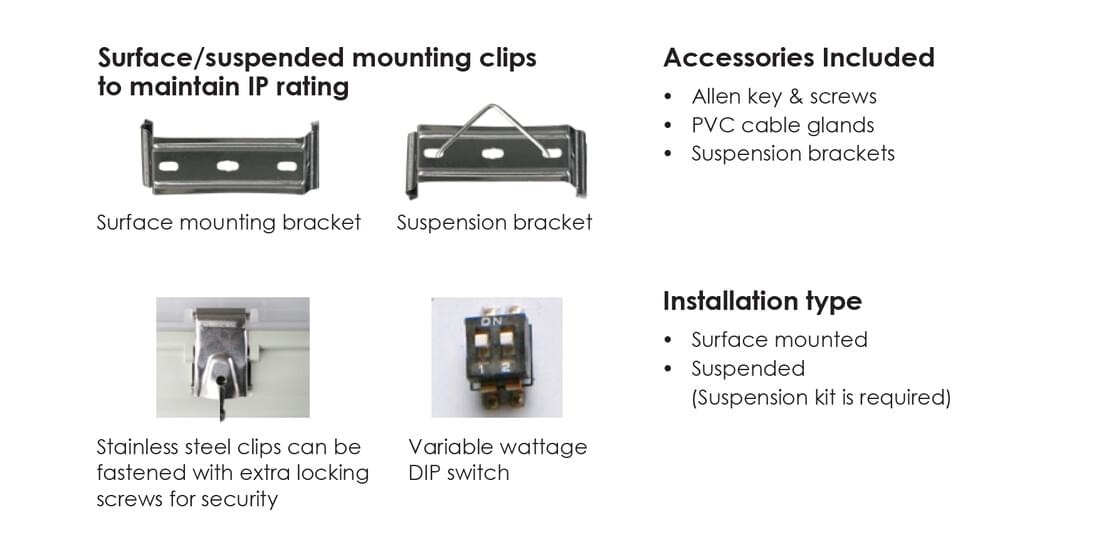

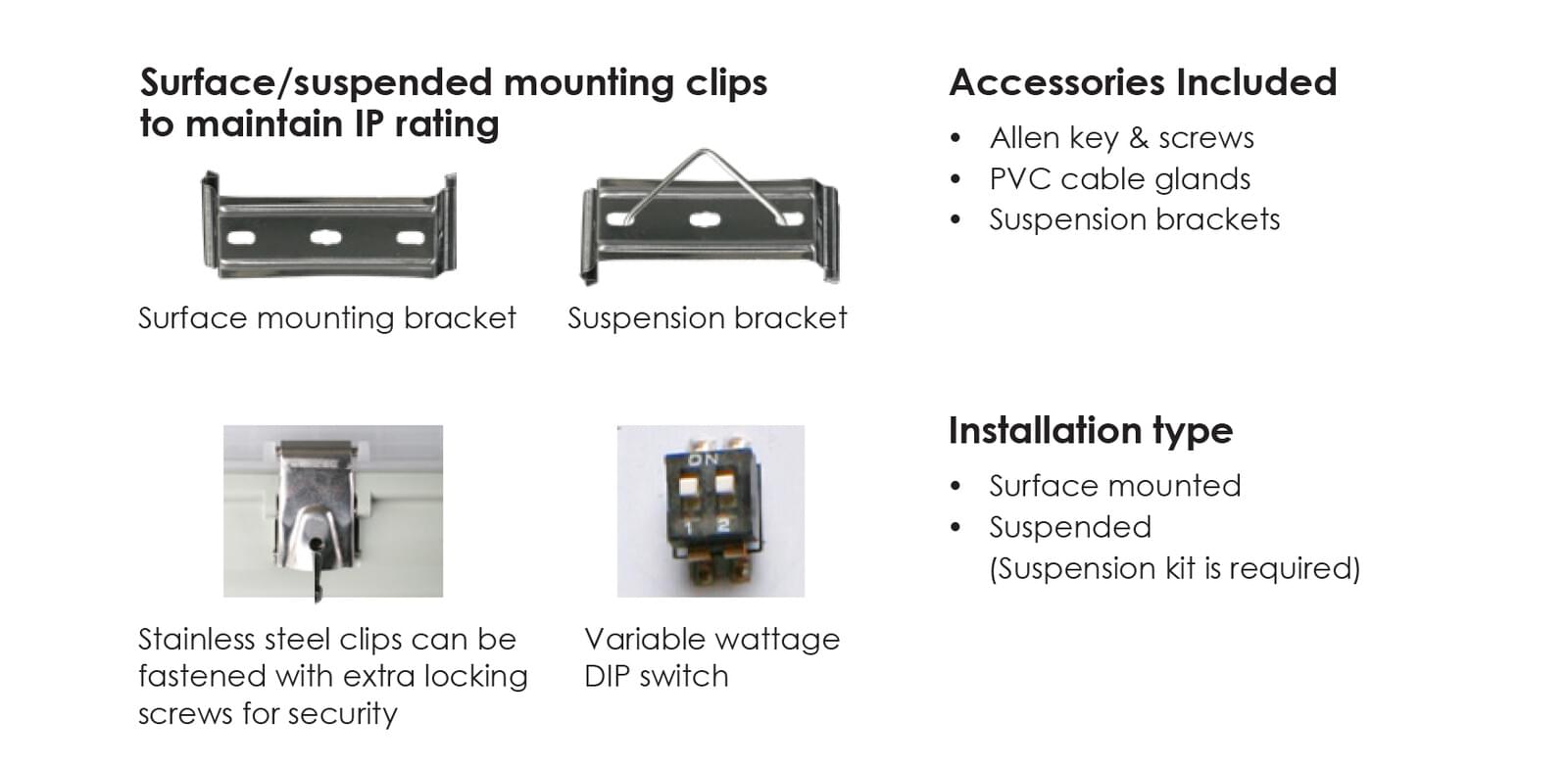

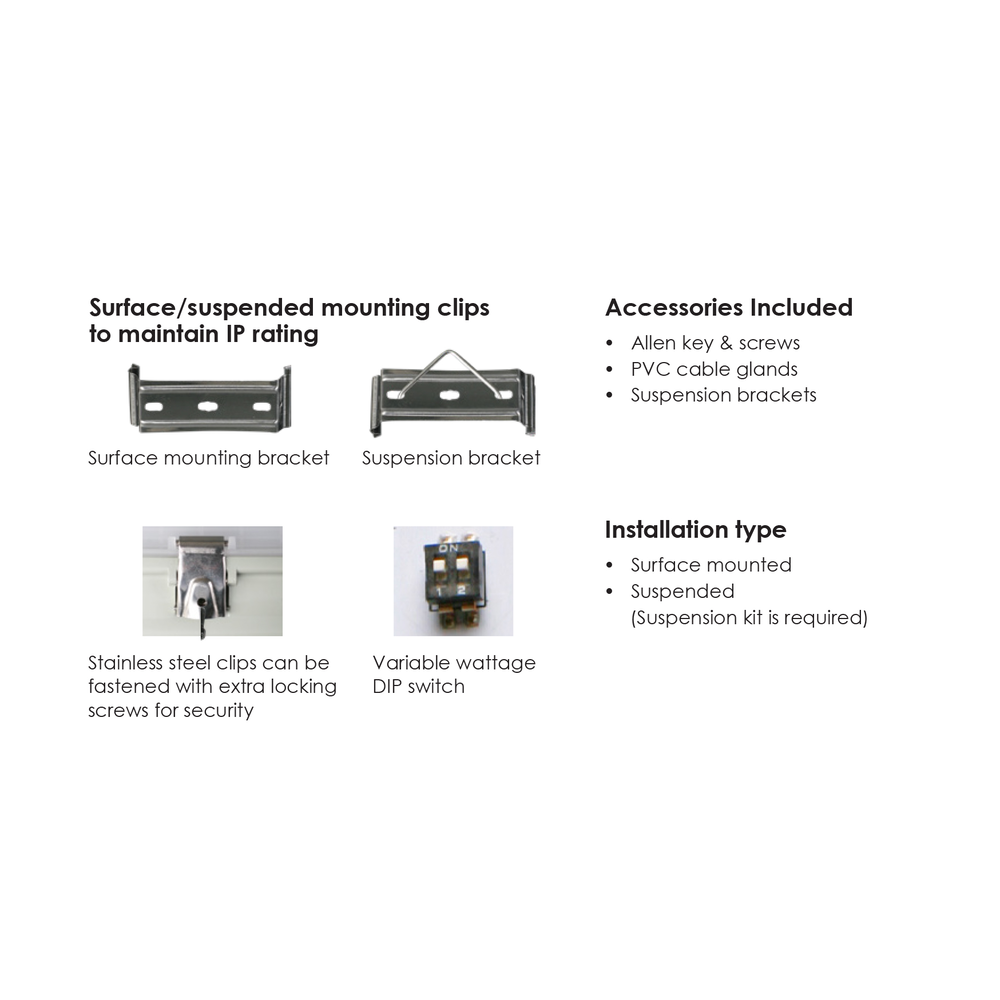

(SL9721/35EM) D63@C0, D32@C90.Accessories included - PVC cable glands and suspension brackets. Installation types - Surface mount (standard) or if Suspended (a suspension kit is required).
Performance
- Dimmable - NO
-
Dimensions - Wiring Diagrams
-
-

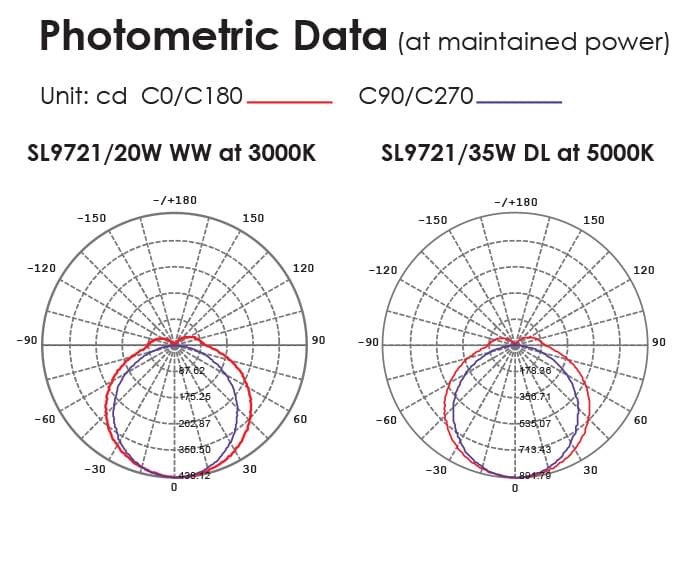

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power CCT Body Colour Dim

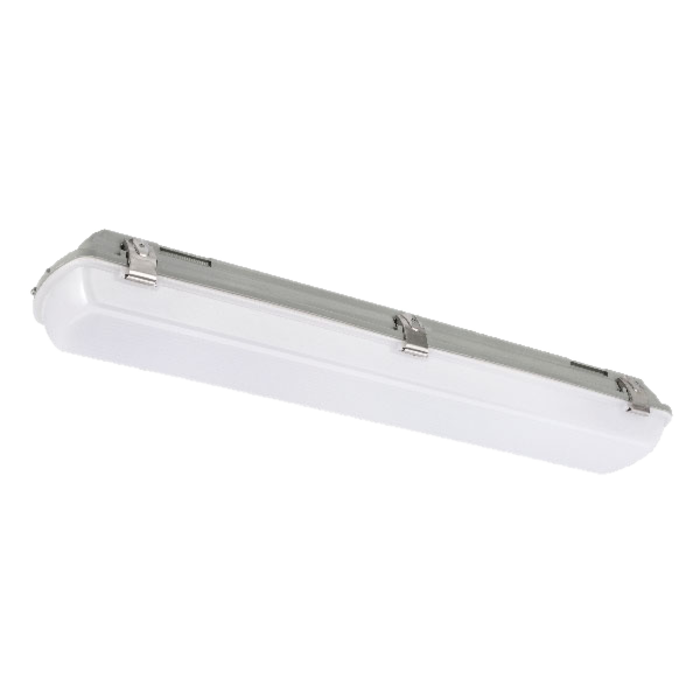

Model No. SL9721/20EM Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 CCT 5000 Body Colour GREY Dim 618(L) x 116(W) x 74(H)

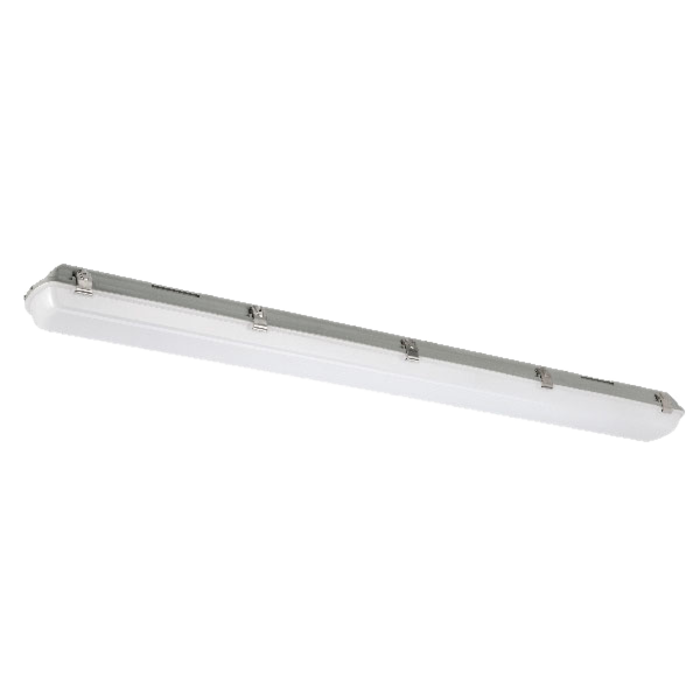

Model No. SL9721/35EM Add to Enquiry Add Remove Remove Input Voltage 240 Power 35 CCT 5000 Body Colour GREY Dim 1218(L) x 116(W) x 74(H) Important notes: (1) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (2) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (3) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.
