- LED WEATHERPROOF
KEW SL9721 - 20/35W
IP65 LED weatherproof batten 20/35 watt selectable power and sensor options
Application

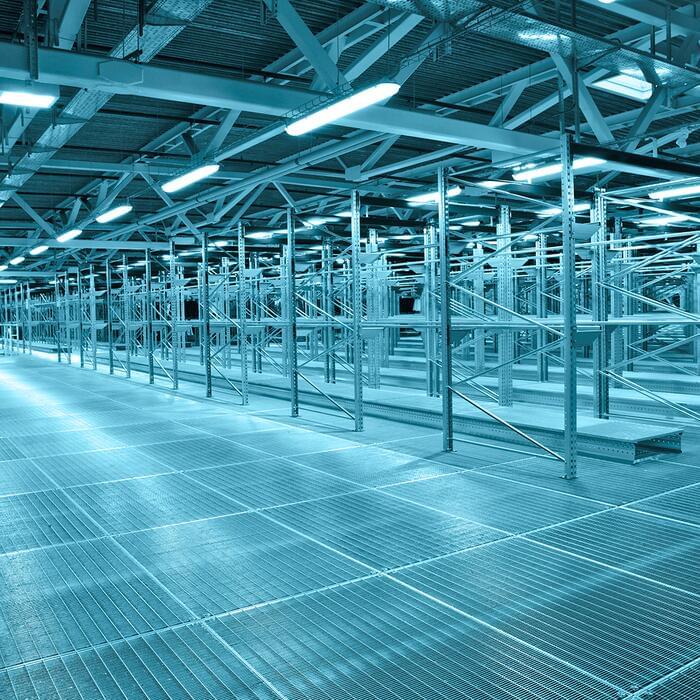

Multi-purpose ceiling mount or suspended, commercial or industrial applications
Design Specifications
Vandal resistant design, robust polycarbonate body and UV stabilized polycarbonate diffuser

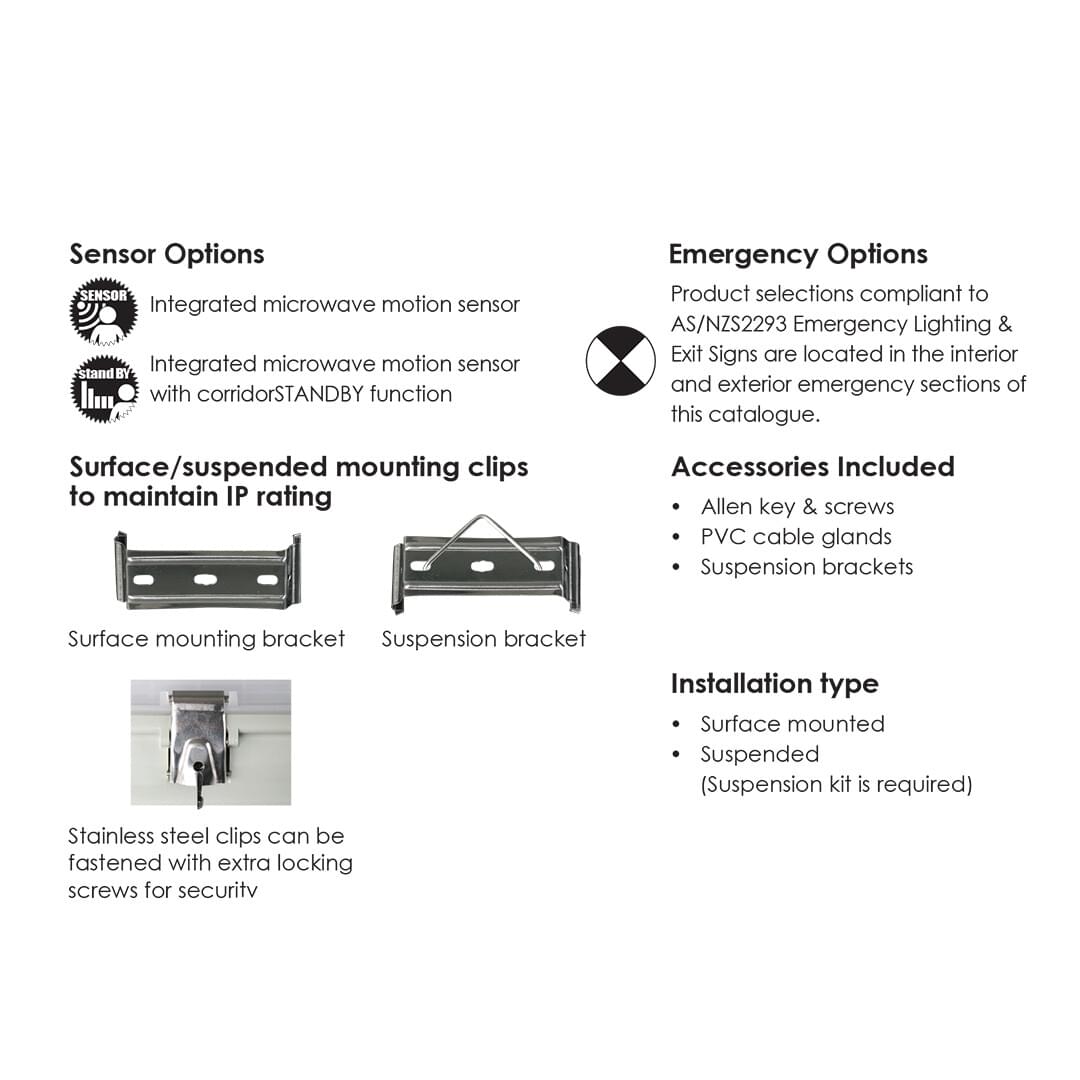

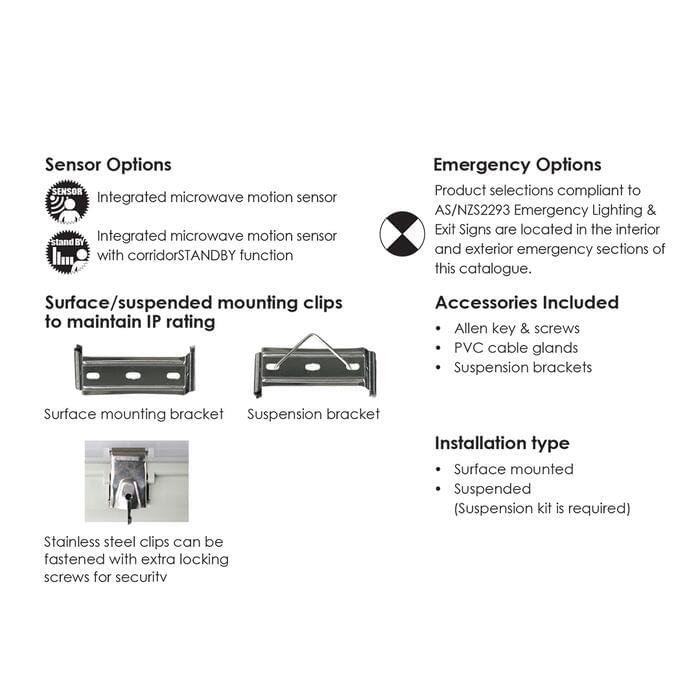

301 Stainless steel clips & screws, IP65, IK08, sensor and emergency options
Operating temperature -20°C to +40°C
Integral constant current non-dimmable LED driver
Selectable power choices of 100%, 75% or 50%
Optional corridorSTANDBY functions available.
Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this web catalogue
NOTE: Minimum ta for emergency configuations zero C°.
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Trailing edge, 1-10V, DALI, DSI
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
- Dimensions - Wiring Diagrams
-
Design Options
- Photometric Data
-
FAQ
-
Where can I buy SAL products?
Where can I buy SAL products?
SAL distribute their products through HAMER New Zealand Electrical. To find a store near you, simply input your postcode and available locations will be provided.
-
Is Sunny Lighting the same as SAL National?
Is Sunny Lighting the same as SAL National?
Yes (Sunny Australia Lighting) is SAL National Pty Ltd
-
What does IP stand for?
What does IP stand for?
IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.
As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.
For more information please refer to AS 60529.
-
What is a ta rating?
What is a ta rating?
(thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.
-
What is an IK rating?
What is an IK rating?
An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.
High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.
-
- Downloads
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CRI CCT Beam Angle Body Colour Dim IPART VEET
Model No. SL9721/20W WW Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 900/1800 CRI 80 CCT 3000 Beam Angle 120 Body Colour GREY Dim 618(L) x 116(W) x 74(H) IPART YES VEET YES
Model No. SL9721/20W DL Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 900/1800 CRI 80 CCT 5000 Beam Angle 120 Body Colour GREY Dim 618(L) x 116(W) x 74(H) IPART YES VEET YES
Model No. SL9721/20W/C Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 900/1800 CRI 80 CCT 5000 Beam Angle 120 Body Colour GREY Dim 618(L) x 116(W) x 74(H)
Model No. SL9721/35W WW Add to Enquiry Add Remove Remove Input Voltage 240 Power 35 Lumens 1800/3600 CRI 80 CCT 3000 Beam Angle 120 Body Colour GREY Dim 1215(L) x 116(W) x 74(H) IPART YES VEET YES
Model No. SL9721/35W DL Add to Enquiry Add Remove Remove Input Voltage 240 Power 35 Lumens 1800/3600 CRI 80 CCT 5000 Beam Angle 120 Body Colour GREY Dim 1215(L) x 116(W) x 74(H) IPART YES VEET YES
Model No. SL9721/35W/C Add to Enquiry Add Remove Remove Input Voltage 240 Power 35 Lumens 1800/3600 CRI 80 CCT 5000 Beam Angle 120 Body Colour GREY Dim 1215(L) x 116(W) x 74(H) Model No. SL9721 CLIPS Add to Enquiry Add Remove Remove Body Colour PLASTIC CLIPS
