• LED WEATHERPROOF

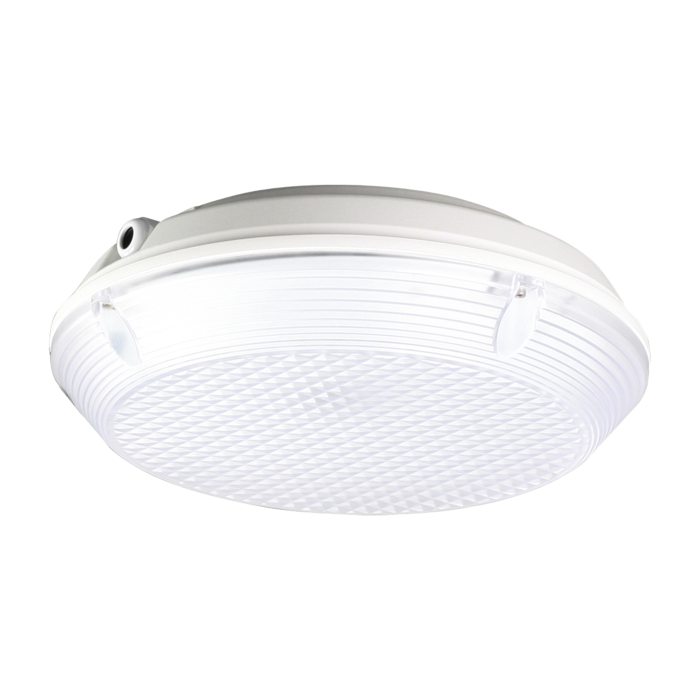

MEMPHIS ROUND SL9719RD - 22W

Vandal resistant, LED round profile, wall or ceiling mount luminaire, IK10, IP65

Application

A robust solution for industrial and commercial spaces

Design Specifications

  • Die-cast aluminium body, frosted polycarbonate diffuser, silicone gasket

  • Stainless steel allen screws

  • High efficiency LED optics

  • Integral non-dimmable LED driver

  • Designed with multi access rear or side conduit entry points

  • Optional (non-dim) corridorSTANDBY function available
    Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this web catalogue

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - TRAINING EDGE
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • COOL WHITE4000K

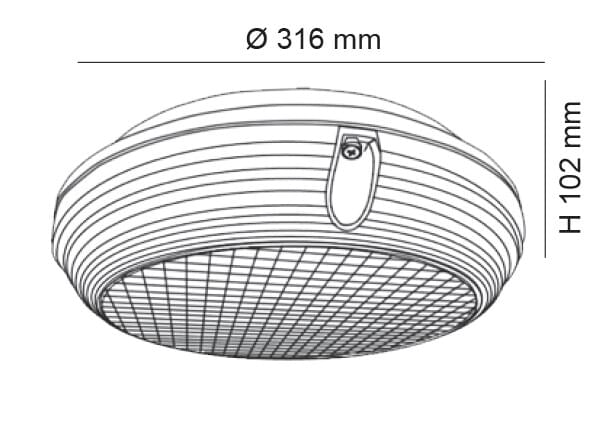

  • Dimensions - Wiring Diagrams
  • Design Options

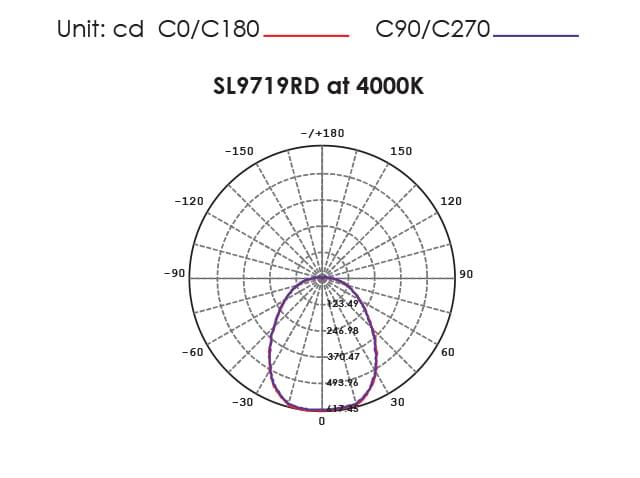

  • Photometric Data
  • FAQ
    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through HAMER New Zealand Electrical. To find a store near you, simply input your postcode and available locations will be provided.

    • Is Sunny Lighting the same as SAL National?

      Is Sunny Lighting the same as SAL National?

      Yes (Sunny Australia Lighting) is SAL National Pty Ltd

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is an IK rating?

      What is an IK rating?

      An IK rating of a lighting product is covered by EN 62262 and is a measure of the impact resistance of a product. In brief the test process measures a products mechanical impact (impact energy joules) limits against a known mass and varied distances. As a guide the higher the IK rating (limit 10) the higher the products ability to withstand impact force.

      High IK rated products (IK10) would be seen used in environments such as vandal prone installations, prisons as a guide.



    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CRI CCT Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL9719RD Input Voltage240 Power22 Lumens1700 CRI80 CCT4000 Body ColourWHITE Dim316(W) x 102(H) Add to Enquiry Add Remove Remove
    Model No.SL9719RD/C Input Voltage240 Power22 Lumens1700 CRI80 CCT4000 Body ColourWHITE Dim316(W) x 102(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
