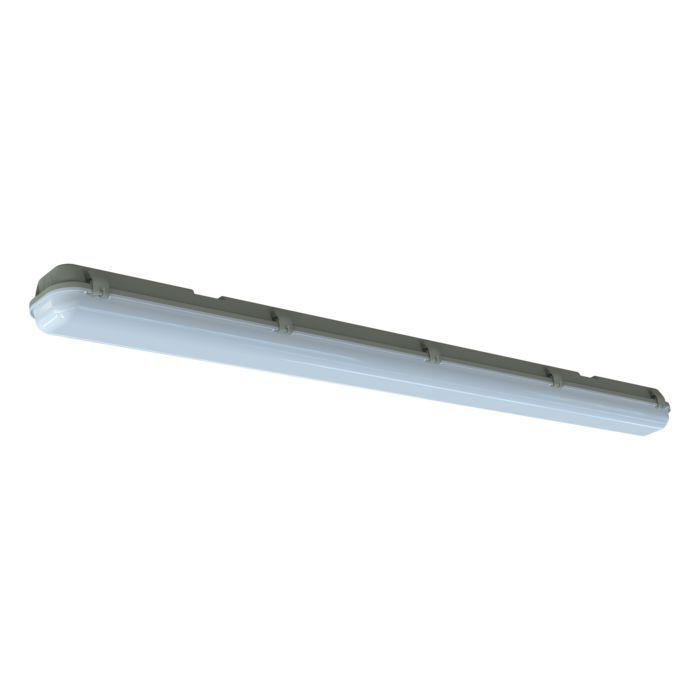

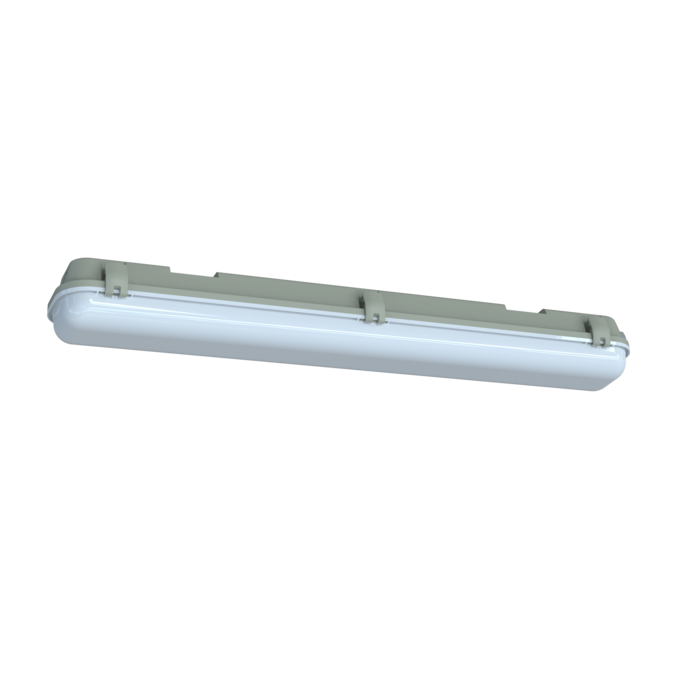

SOL-ECO SL9725TC / DP 20/40W
IP65 LED DUAL POWER weatherproof batten, with selectable CCT temperature and power
Application

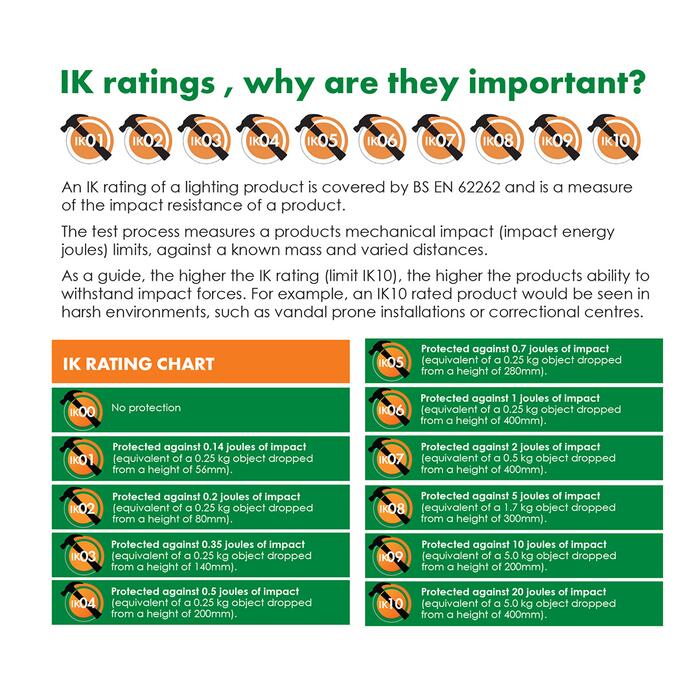

Commercial or industrial ceiling or suspended mount applications requiring IP65 and IK08 performance
Design Specifications
Selectable CCT 3000K /4000K /5700K

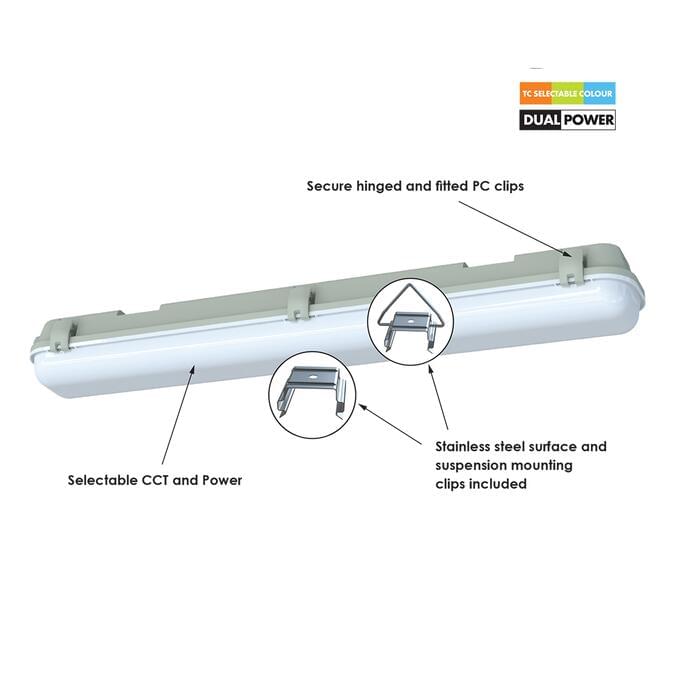

Rounded profile design, robust polycarbonate body, clips and UV stabilized polycarbonate diffuser
Integral constant current non-dimmable, dual power LED driver, 10/20 or 20/40 watt models
Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this catalogue
Installation types - Surface mount (standard), if Suspended (two off, SSI1512 wire suspension kits are required).

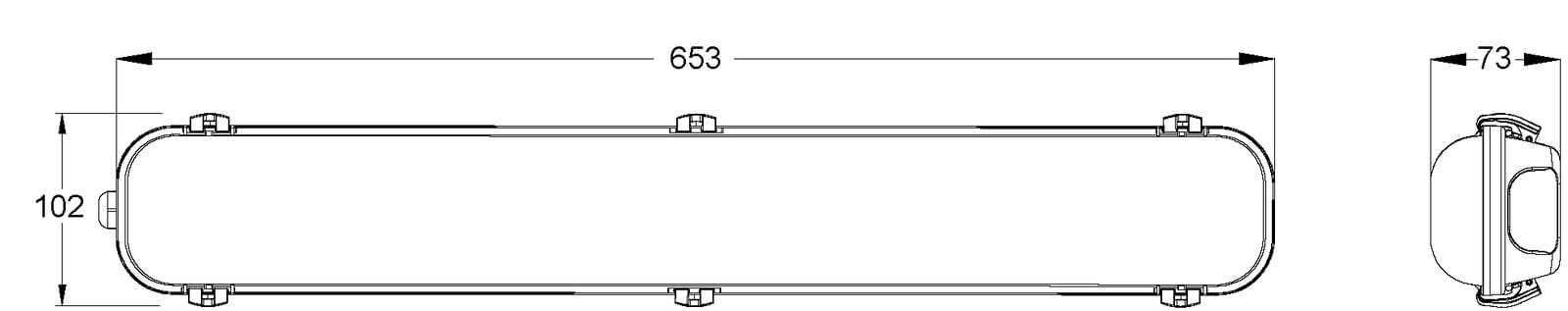

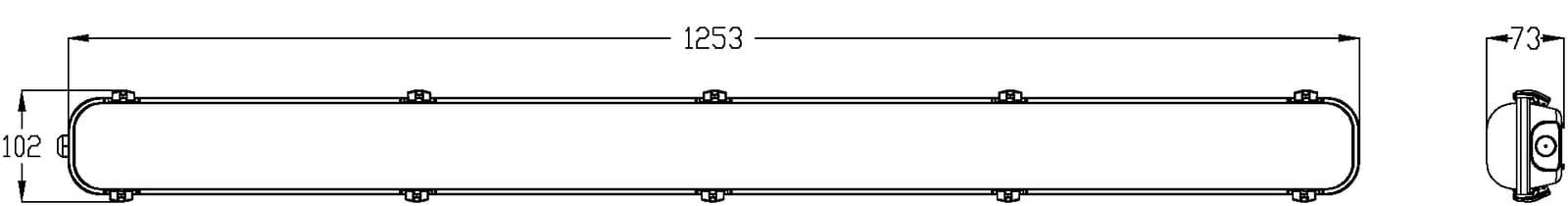

- Dimensions - Wiring Diagrams
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Multiple Wattage Lumens CRI CCT Beam Angle Body Colour Dim IPART VEET REES
Model No. SL9725/20TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Multiple Wattage 10/20 Lumens 2100/2300/2150 CRI 80 CCT 3000/4000/5700 Beam Angle 120 Body Colour GREY Dim 653(L) x 102(W) x 73(H) IPART N/A VEET N/A REES N/A
Model No. SL9725/40TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 Multiple Wattage 20/40 Lumens 4100/4500/4200 CRI 80 CCT 3000/4000/5700 Beam Angle 120 Body Colour GREY Dim 1253(L) x 102(W) x 73(H) IPART N/A VEET N/A REES N/A Note: Lumens (lm) shown are displayed at FULL power.
NOTE: Minimum ta for emergency configuations zero C°.
