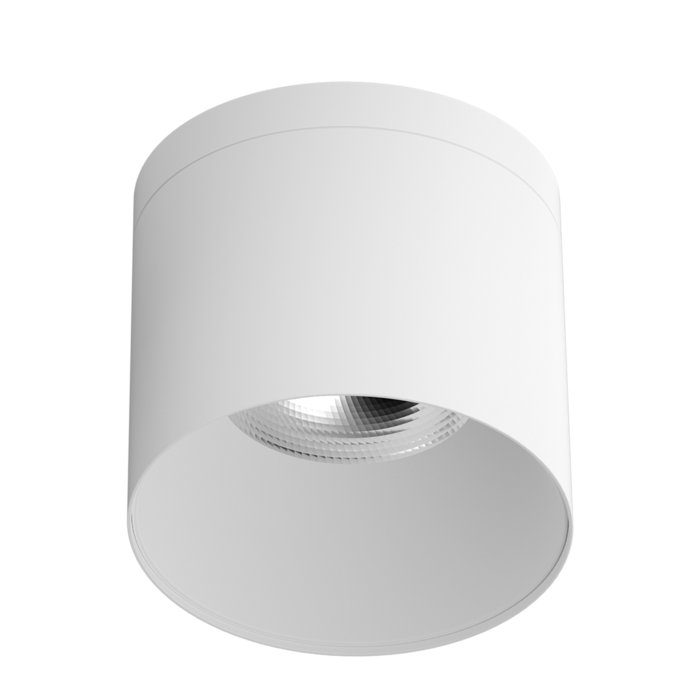

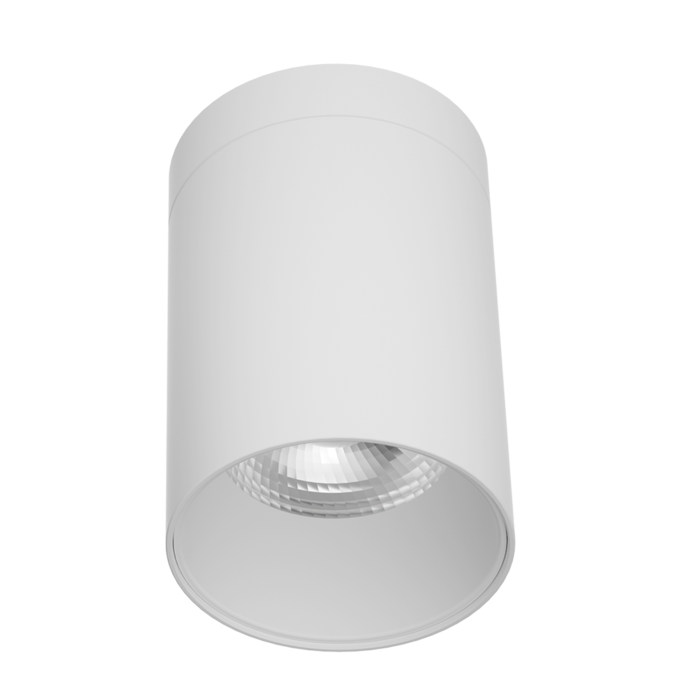

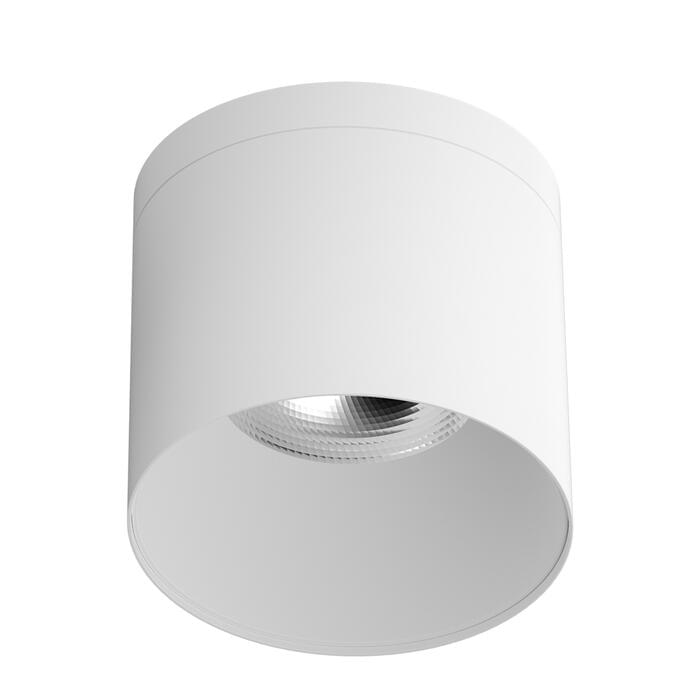

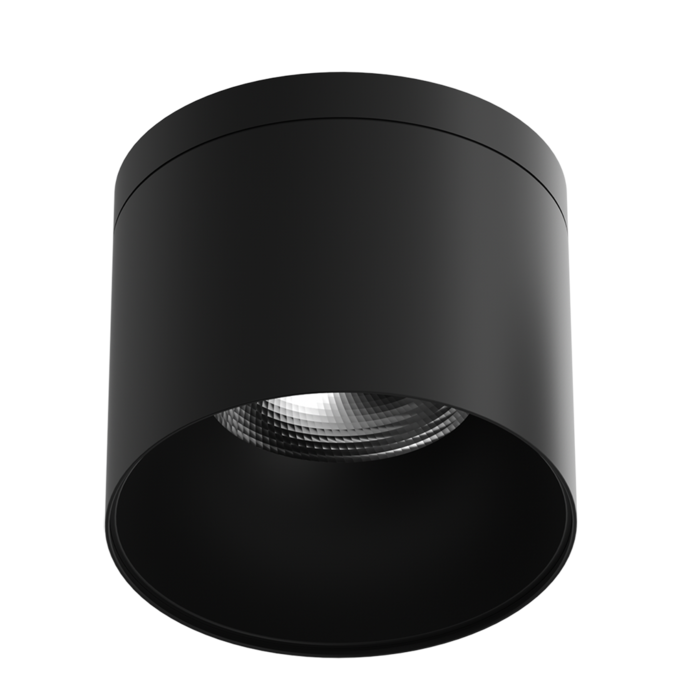

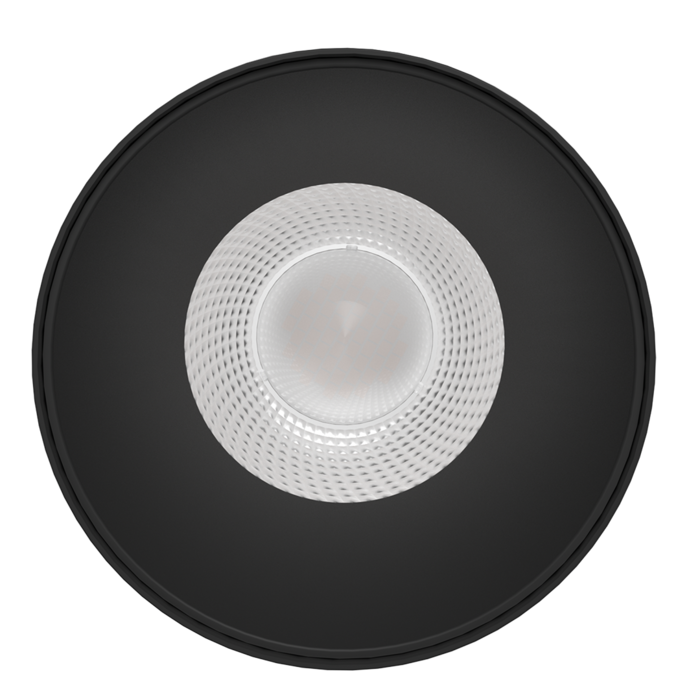

AIRLEE S9605TC - 15/40W
15 - 40 watt IP65 surface mount downlight with dimmable options
Application
Ideal for any retail, residential or commercial interior space
Design Specifications
Choice of 15, 30 or 40 watt integral control gear, with flickerCONTROLLED performance
Selectable CCT 3000 / 4000 / 5700K
Choice of black or white powdercoat finish
Robust IP65 die-cast aluminium body profile
High performance multi-faceted reflector profile, beam 60°, CRI>90
IK06 rated
Performance
- Dimmable - YES
- Dimmer Type - REFER MODEL NUMBER
- WARM WHITE3000K
- COOL WHITE4000K
- DAYLIGHT5700K

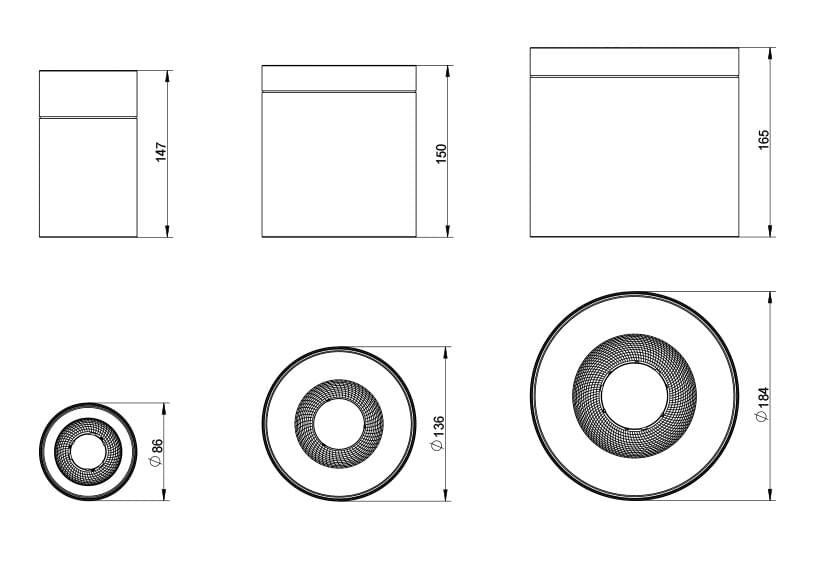

- Dimensions - Wiring Diagrams
-
- Technical Specifications
Product Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Diameter Dim Add to Enquiry - Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
Model No.S9605/85/15TC/WH Input Voltage240 Power15 Lumens1350/1500/1425 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI90 Body ColourWHITE Diameter86 Dim147(H) Add to Enquiry Add Remove Remove
Model No.S9605/85/15TC/BK Input Voltage240 Power15 Lumens1125/1275/1200 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI90 Body ColourBLACK Diameter86 Dim147(H) Add to Enquiry Add Remove Remove
Model No.S9605/135/30TC/WH Input Voltage240 Power30 Lumens3000/3300/3150 CCT3000/4000/5700 Beam Angle60 Dimmable NO CRI90 Body ColourWHITE Diameter136 Dim150(H) Add to Enquiry Add Remove Remove
Model No.S9605/135/30TC/BK Input Voltage240 Power30 Lumens2400/2700/2550 CCT3000/4000/5700 Beam Angle60 Dimmable NO CRI90 Body ColourBLACK Diameter136 Dim150(H) Add to Enquiry Add Remove Remove
Model No.S9605/185/40TC/WH Input Voltage240 Power40 Lumens4000/4400/4200 CCT3000/4000/5700 Beam Angle60 Dimmable NO CRI90 Body ColourWHITE Diameter165 Dim184(H) Add to Enquiry Add Remove Remove
Model No.S9605/185/40TC/WH Input Voltage240 Power40 Lumens3200/3600/3400 CCT3000/4000/5700 Beam Angle60 Dimmable NO CRI90 Body ColourBLACK Diameter165 Dim184(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
