• LED DOWNLIGHTS

BALMORAL S9088TC/DP - 6 / 9W

Selectable power 6 / 9 watt dimmable LED downlight with selectable CCT, IP65 ABOVE & BELOW.

Application

Ideal for any retail, residential or commercial interior space

Design Specifications

  • Durable polyamide body form

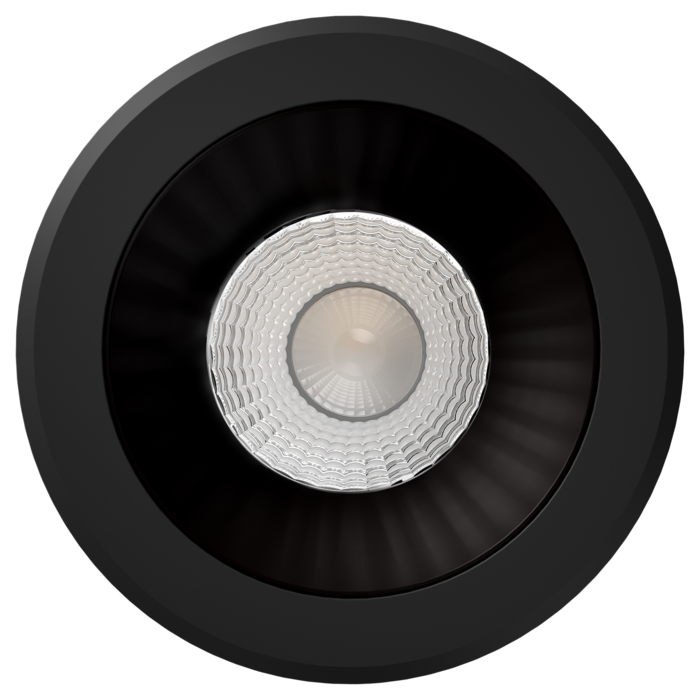

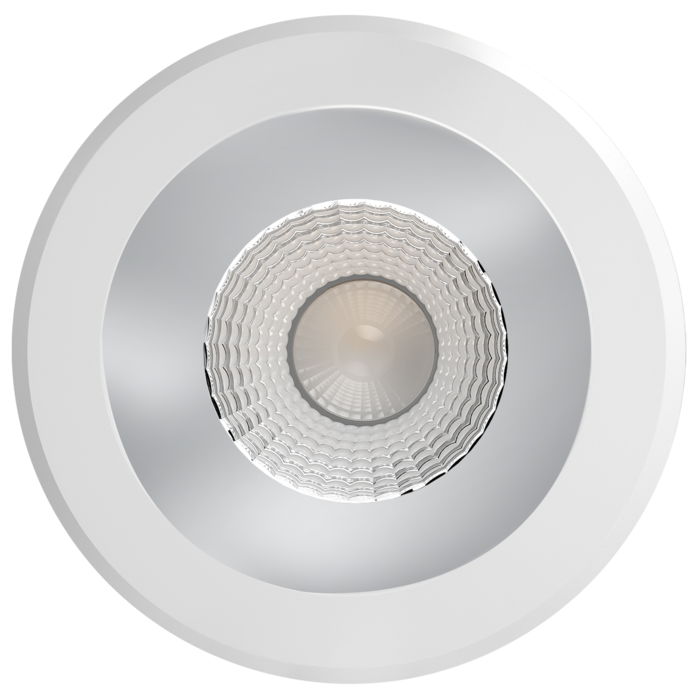

  • Stylish white body profile and white trim or black trim and reflector edge models to order

  • High performance multi-faceted reflector profile, beam 40°, UGR <19, CRI>90

  • Integral, dimmable, multi-power flickerCONTROLLED LED driver, with flex and plug for easy installation

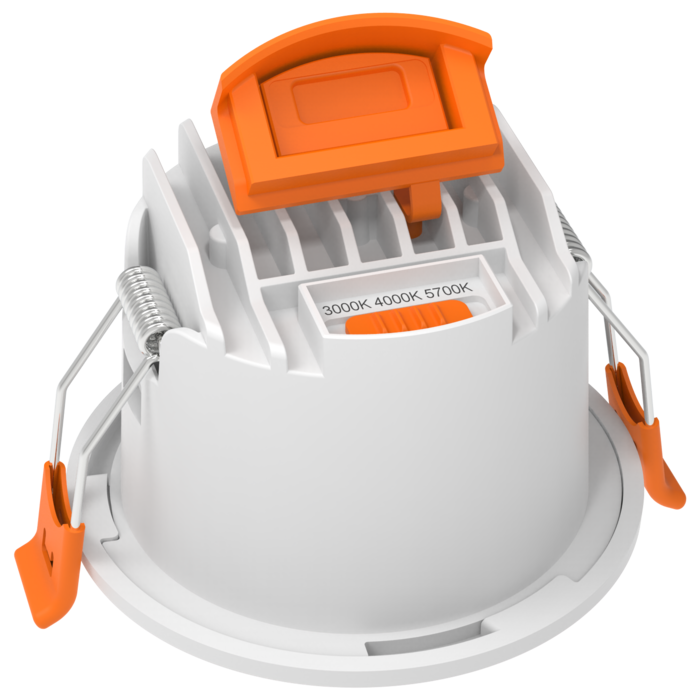

  • Selectable CCT 3000K / 4000K / 5700K

  • IC - 4 rated, double insulated, IP65 above and below the ceiling

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing Edge

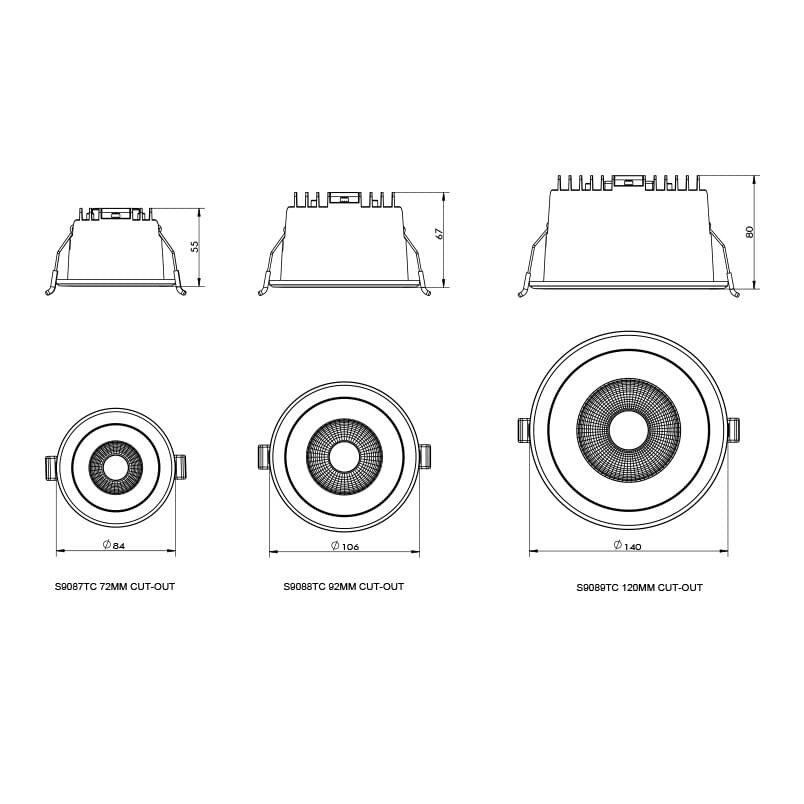

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9088TC/DP/WH Input Voltage240 Multiple Wattage6/9 Lumens750/850/800 CCT3000/4000/5700 Beam Angle40 Dimmable YES CRI90 Body ColourWHITE Cut Out92 Diameter106 Dim67(H) Add to Enquiry Add Remove Remove
    Model No.S9088TC/DP/BK Input Voltage240 Multiple Wattage6/9 Lumens700/800/750 CCT3000/4000/5700 Beam Angle40 Dimmable YES CRI90 Body ColourBLACK Cut Out92 Diameter106 Dim67(H) Add to Enquiry Add Remove Remove

    Note: Lumens (lm) displayed are at FULL power selection

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
