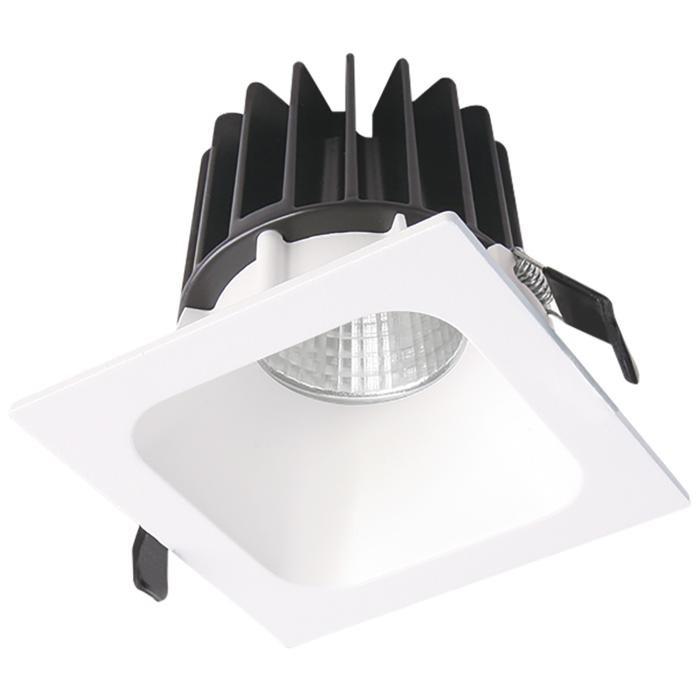

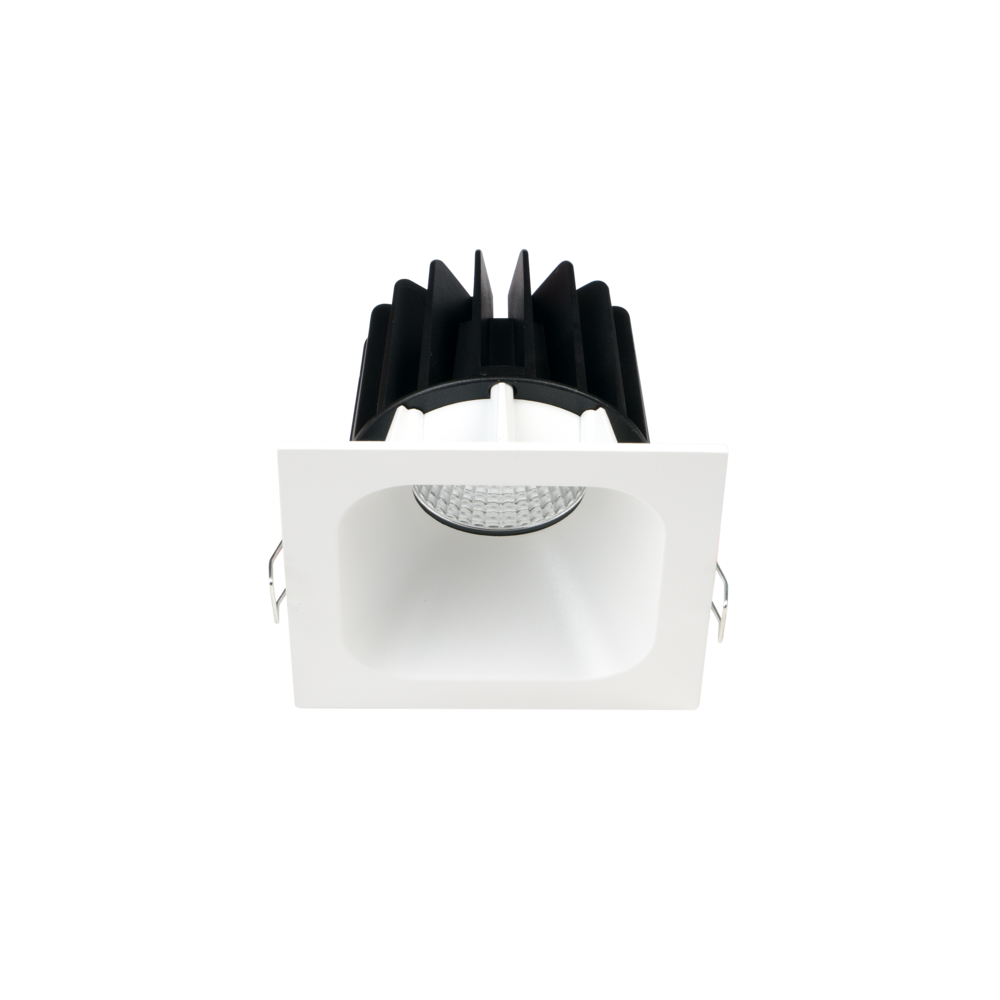

BENTO S9691 - 5/38W
Square profile IP44 LED downlight
Application
Ideal for any residential or commercial interior spaceDesign Specifications
Square bezel combined with a round body to suit a round cut out
- Deep recessed angle fitting enables precise optical control
Durable die-cast aluminium body profile, stylish
white matt powder coat finishS9691/85 and S9691/110 optional beam distributions 15/24/50. S9691/135 and S9691/160 optional beam distributions 10/20/40/70
High output LED optics with a
changeable multi-faceted reflector systemConstant current non-dimmable LED
driver (see table for options), complete with flex and plug
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Trailing edge, 1-10V, DALI/DSI (excluding S9691/135 and S9691/160)
COOL WHITE4000K
-

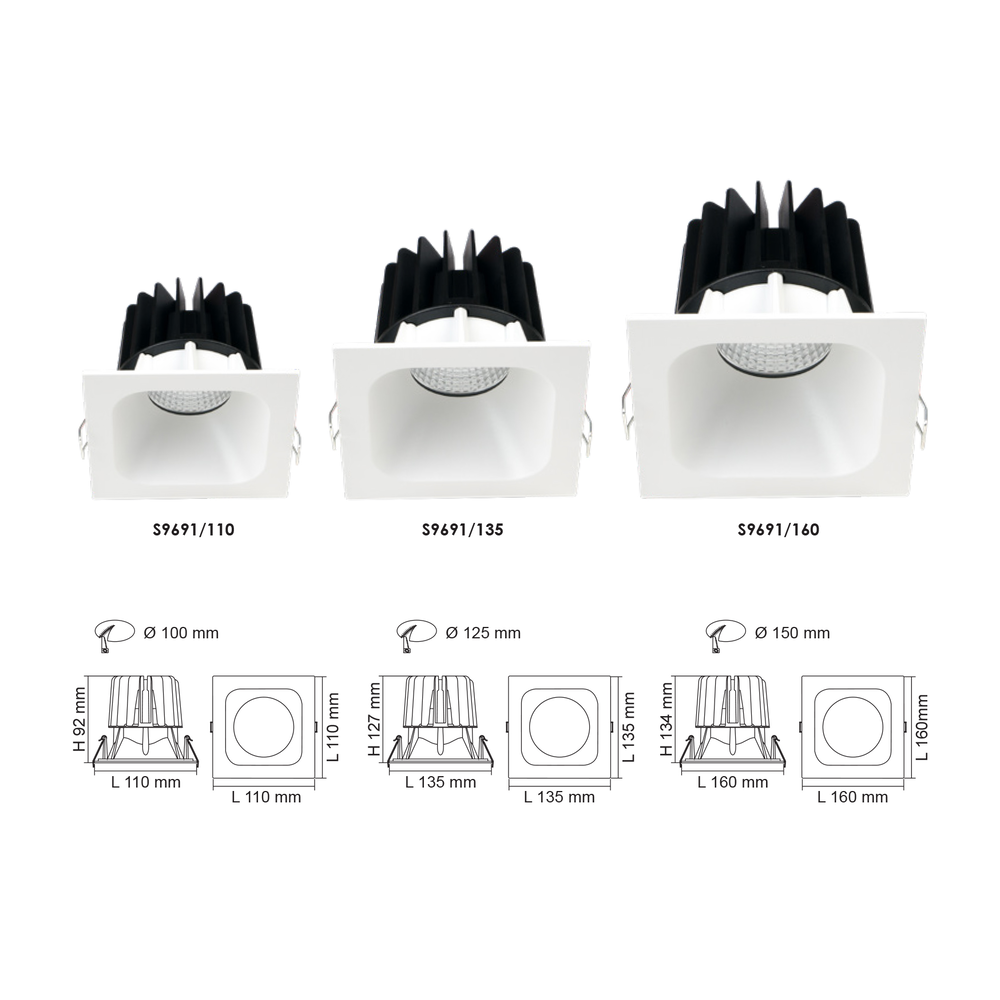

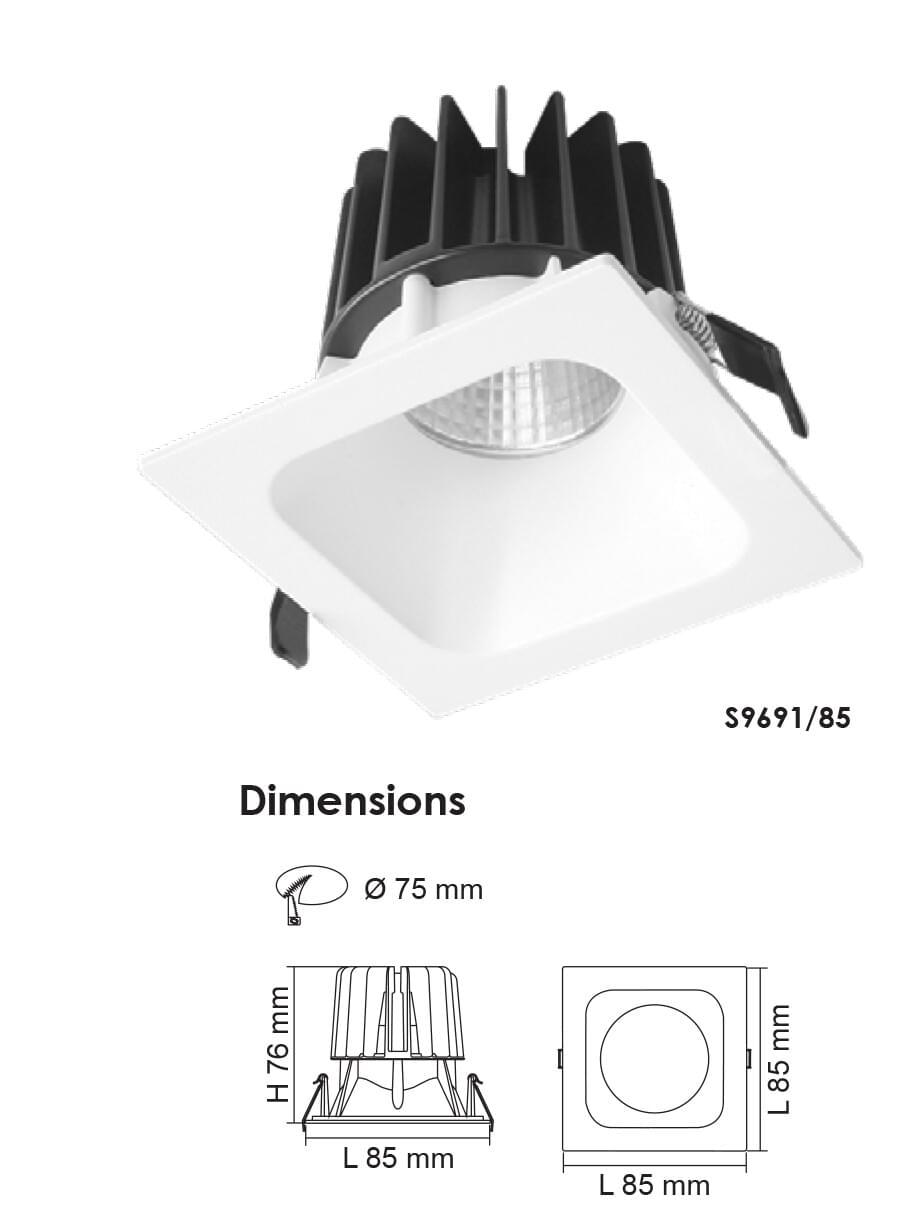

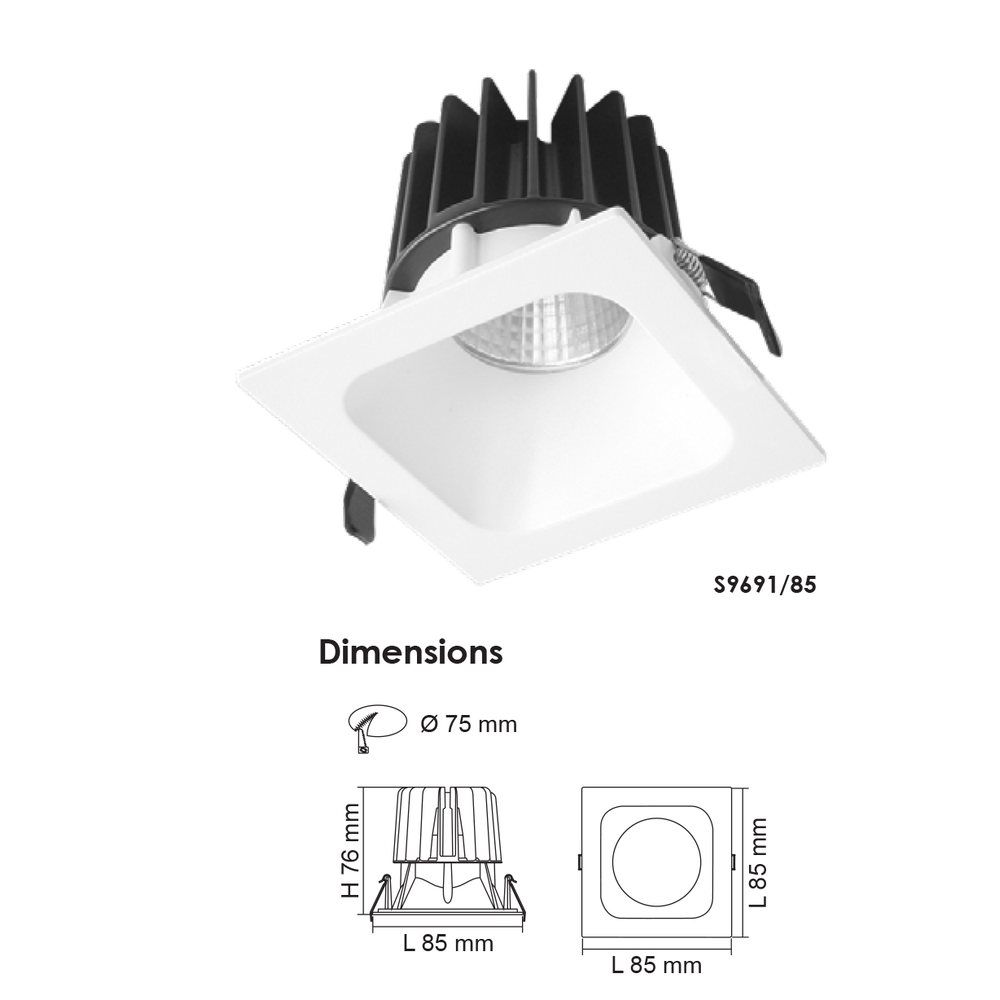

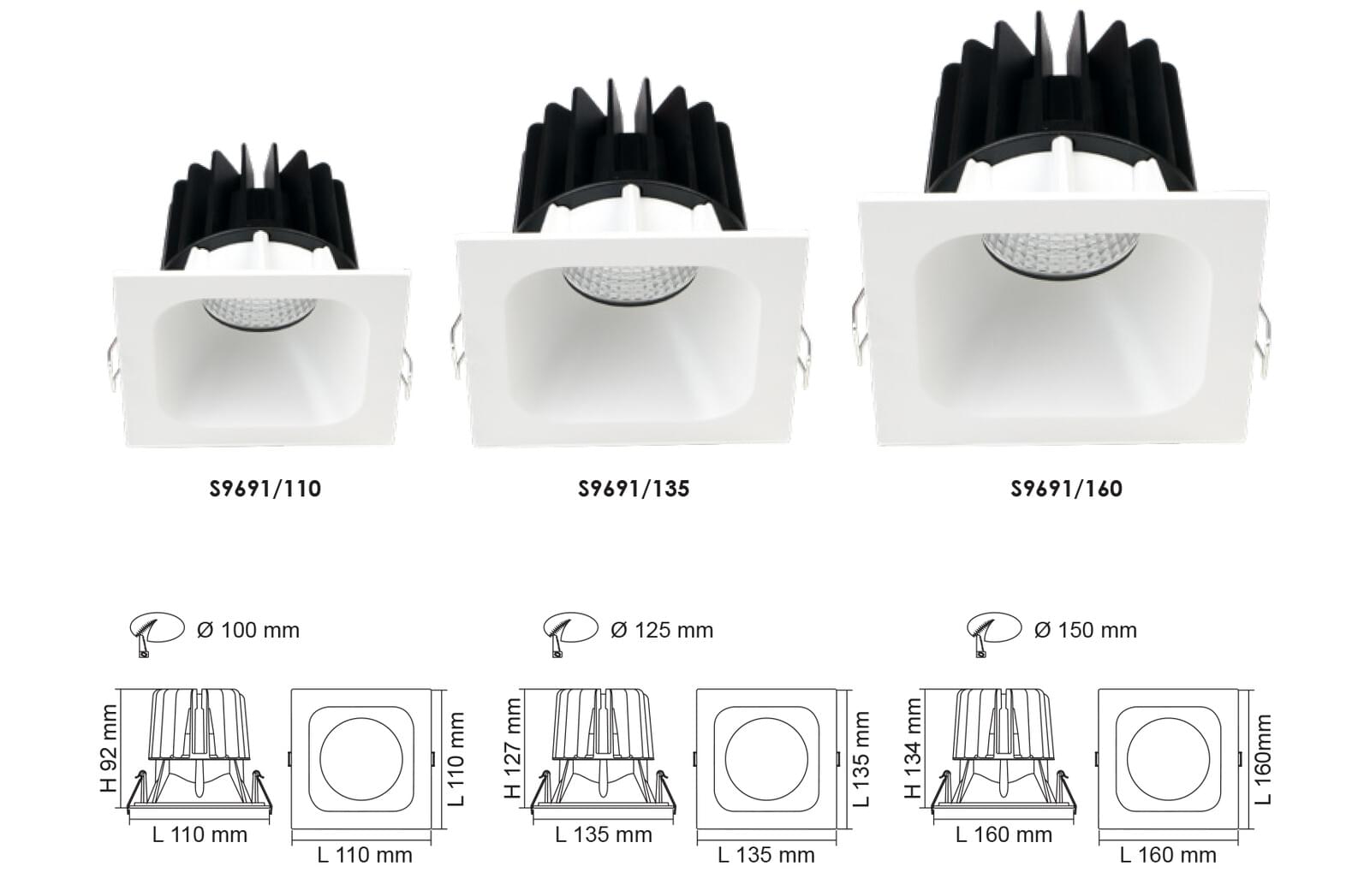

Dimensions - Wiring Diagrams
-
-

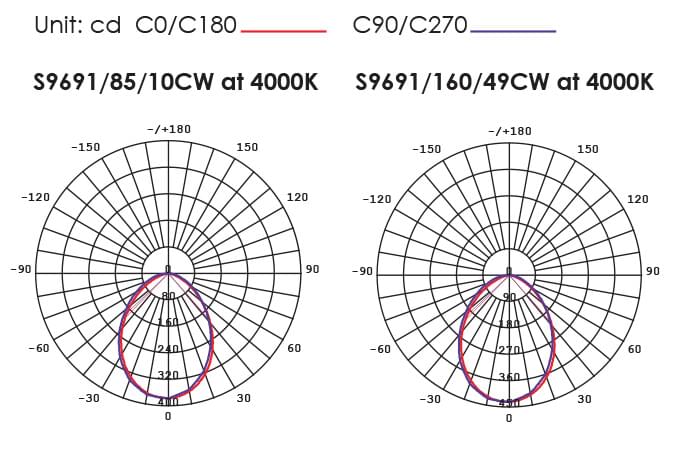

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Dim
Model No. S9691/85/7CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 5 Lumens 700 CCT 4000 Beam Angle 36 Dimmable NO CRI 80 Body Colour matt white Cut Out 75 Dim 85(W) x 76(H)
Model No. S9691/85/10CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 8 Lumens 1000 CCT 4000 Beam Angle 36 Dimmable NO CRI 80 Body Colour matt white Cut Out 75 Dim 85(W) x 76(H)
Model No. S9691/110/15CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 13 Lumens 1500 CCT 4000 Beam Angle 36 Dimmable NO CRI 80 Body Colour matt white Cut Out 100 Dim 110(W) x 92(H)
Model No. S9691/135/34CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 27 Lumens 3400 CCT 4000 Beam Angle 30 Dimmable OPTIONAL CRI 80 Body Colour matt white Cut Out 125 Dim 135(W) x 127(H)
Model No. S9691/135/42CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 34 Lumens 4200 CCT 4000 Beam Angle 30 Dimmable OPTIONAL CRI 80 Body Colour matt white Cut Out 125 Dim 135(W) x 127(H)
Model No. S9691/135/49CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 38 Lumens 4900 CCT 4000 Beam Angle 30 Dimmable OPTIONAL CRI 80 Body Colour matt white Cut Out 125 Dim 135(W) x 127(H)
Model No. S9691/160/42CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 34 Lumens 4200 CCT 4000 Beam Angle 30 Dimmable OPTIONAL CRI 80 Body Colour matt white Cut Out 150 Dim 160(W) x 134(H)
Model No. S9691/160/49CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 38 Lumens 4900 CCT 4000 Beam Angle 30 Dimmable OPTIONAL CRI 80 Body Colour matt white Cut Out 150 Dim 160(W) x 134(H) Note: IC-4 rating applicable to S9691/85 and S9691/110 only.
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
