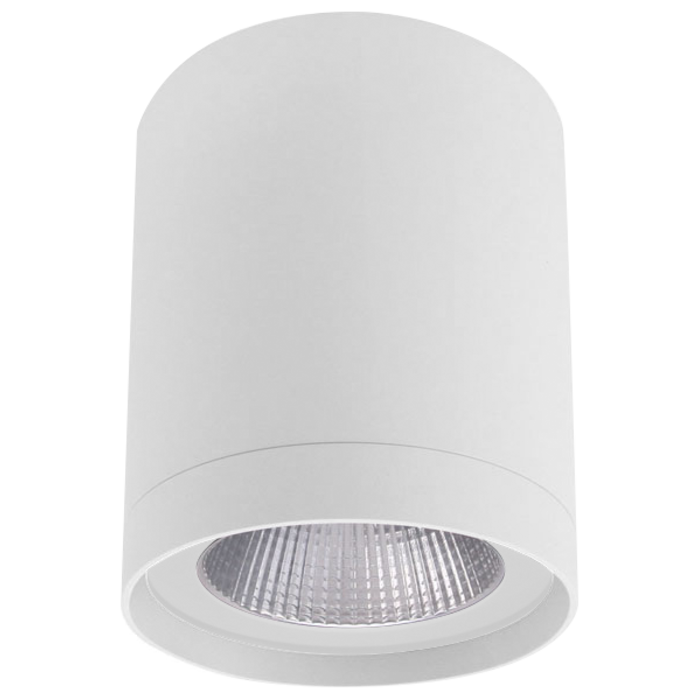

COLUMN S9603 - 20/28W
Surface mount LED downlight, with three (3) sizes to select
Application
Apartment foyers, commercial walkways, surface mount installation restrictions.
Design Specifications
Die cast aluminium body profile, concealed mounting screws and matt white powder coat finish
Deep recessed angle fitting provides excellent glare control and light distribution
High output LED optics, with a changeable multi-faceted reflector system
Integral constant current, non-dimmable LED driver, 20 watt to 28 watt capacity
Beam angle 36 standard
COOL WHITE4000K

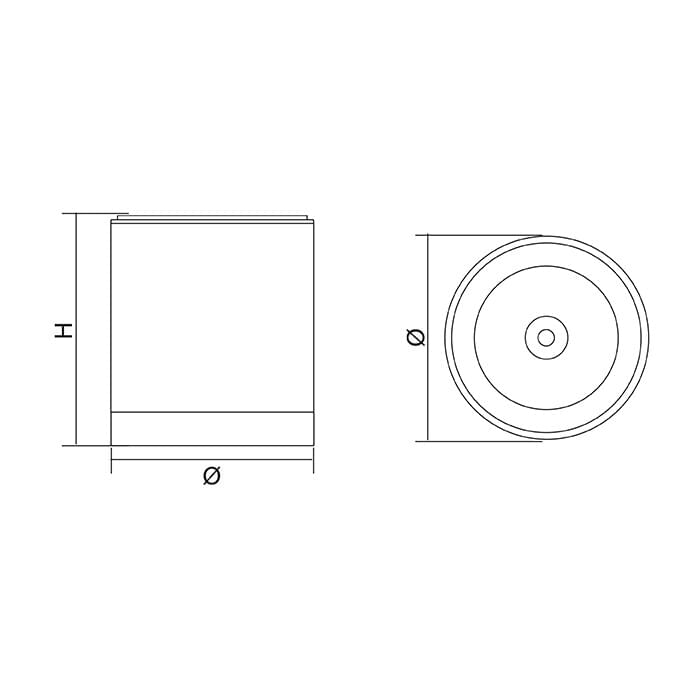

- Dimensions - Wiring Diagrams
-

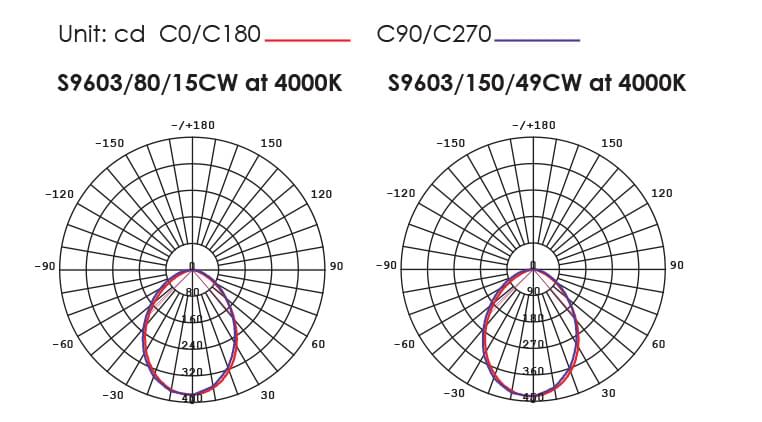

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT Beam Angle CRI Body Colour Dim
Model No. S9603/80/15CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 13 Lumens 1500 CCT 4000 Beam Angle 36 CRI 80 Body Colour matt white Dim 80(W) x 126(H)
Model No. S9603/80/20CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 2000 CCT 4000 Beam Angle 36 CRI 80 Body Colour matt white Dim 80(W) x 126(H)
Model No. S9603/110/25CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 18 Lumens 2500 CCT 4000 Beam Angle 30 CRI 80 Body Colour matt white Dim 110(W) x 148(H)

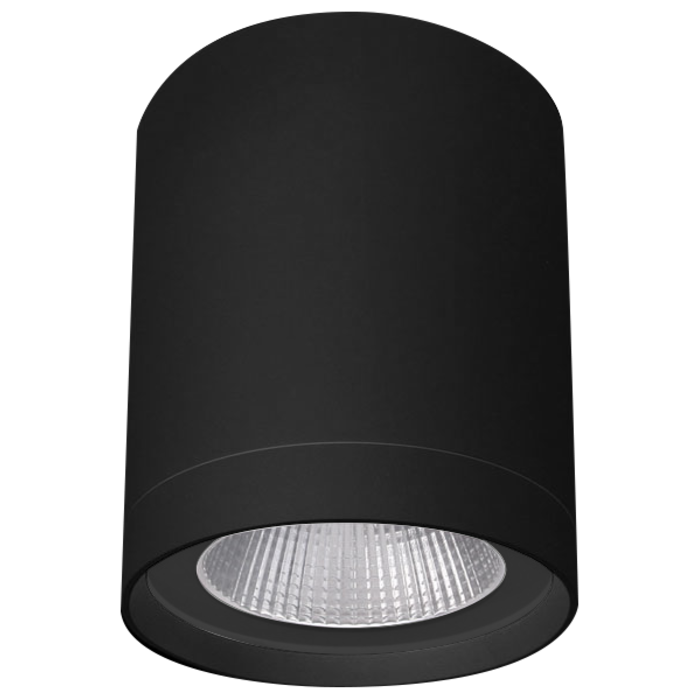

Model No. S9603/110/25WWBK Add to Enquiry Add Remove Remove Input Voltage 240 Power 18 Lumens 2500 CCT 3000 Beam Angle 30 CRI 80 Body Colour black Dim 110(W) x 148(H)
Model No. S9603/110/34CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 28 Lumens 3400 CCT 4000 Beam Angle 28 CRI 80 Body Colour matt white Dim 110(W) x 148(H) Model No. S9603/150/42CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 34 Lumens 4200 CCT 4000 Beam Angle 30 CRI 80 Body Colour matt white Dim 150(W) x 171(H)
Model No. S9603/150/49CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 38 Lumens 4900 CCT 4000 Beam Angle 30 CRI 80 Body Colour matt white Dim 150(W) x 171(H) Model No. S9603/150/62CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 52 Lumens 6200 CCT 4000 Beam Angle 30 CRI 80 Body Colour matt white Dim 150(W) x 171(H)
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
