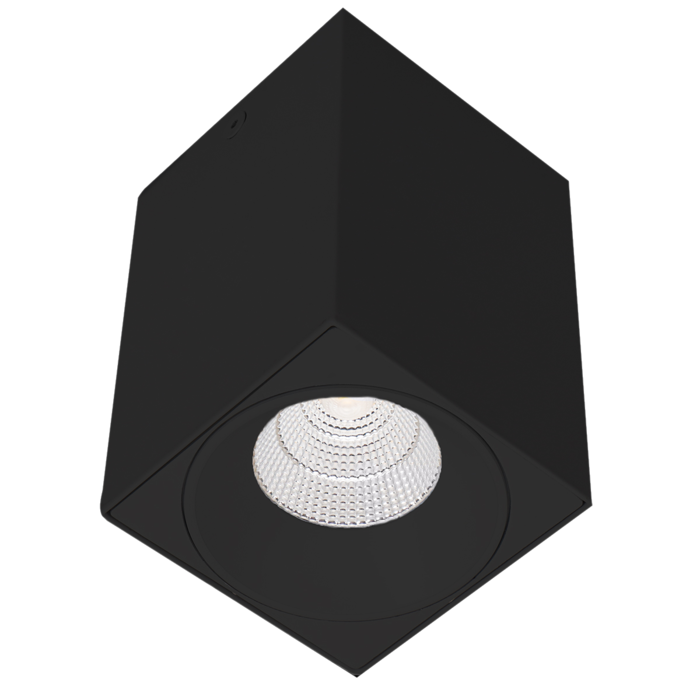

DICE S9015 - 9/15W
Surface mount square dimmable LED downlight
Application
Ideal for any residential or commercial interior spaces
Design Specifications
Aluminium body profile, concealed mounting screws and matt Black powder coat finish, optional White to order
Surface mounted architectural square profile downlight
- Durable die-cast aluminium body profile
High output LED optics, integral constant current trailing edge dimmable LED driver (excluding S9015/80GU10)
Changeable multi-faceted reflector system with a polycarbonate lens
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge
WARM WHITE3000K
COOL WHITE4000K
DAYLIGHT6000K
-

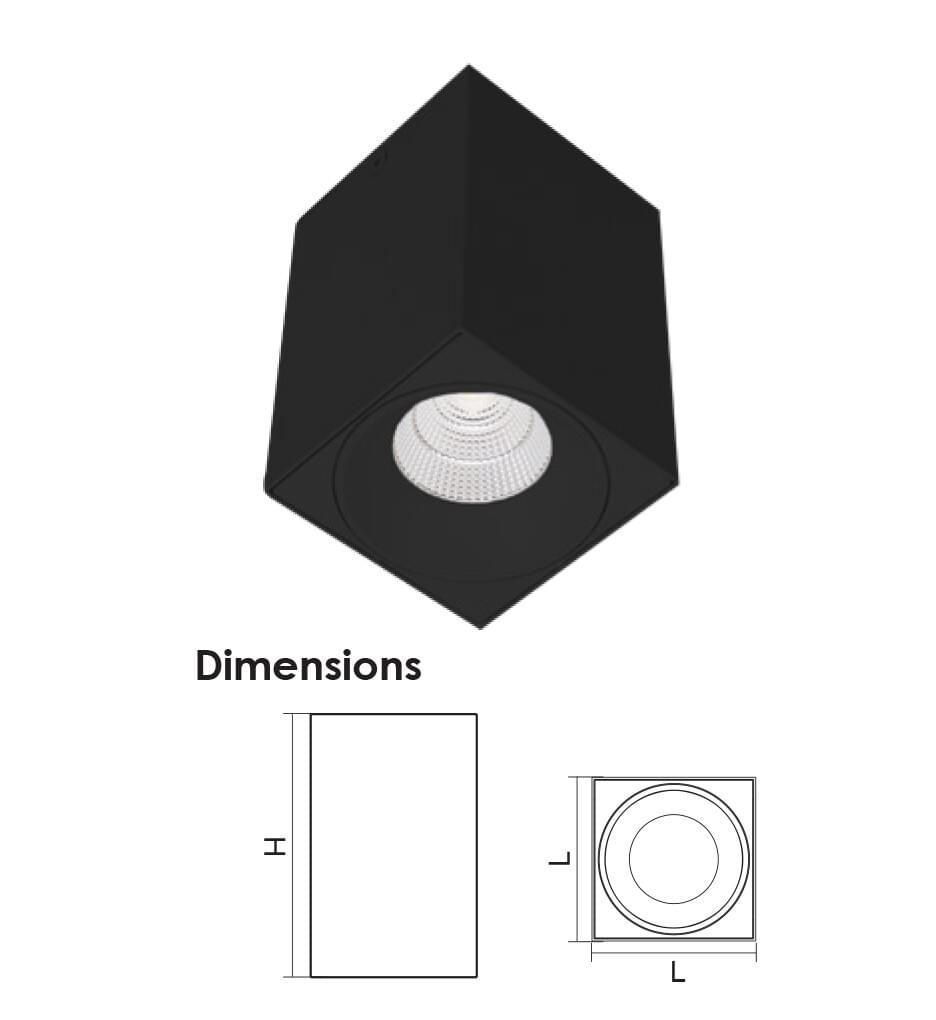

Dimensions - Wiring Diagrams
-
-

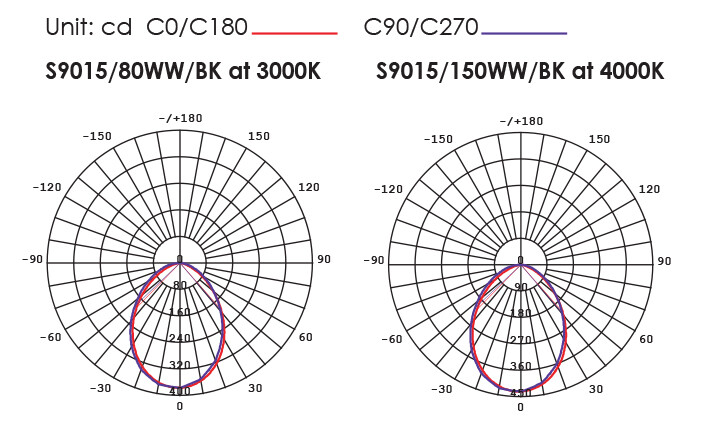

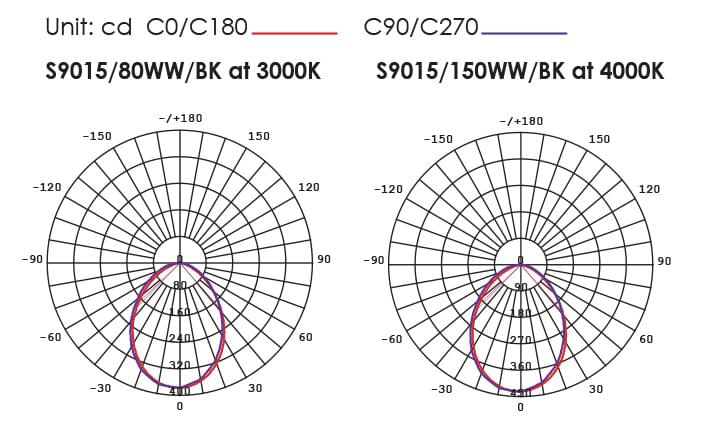

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT Beam Angle CRI Body Colour Dim
Model No. S9015/80WW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 700 CCT 3000 Beam Angle 60 CRI 80 Body Colour BLACK Dim 80(L) x 122(H)
Model No. S9015/80CW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 800 CCT 4000 Beam Angle 60 CRI 80 Body Colour BLACK Dim 80(L) x 122(H)
Model No. S9015/80DL/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 800 CCT 6000 Beam Angle 60 CRI 80 Body Colour BLACK Dim 80(L) x 122(H)
Model No. S9015/80GU10/BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour BLACK Dim 80(L) x 122(H)
Model No. S9015/150WW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 15 Lumens 1500 CCT 3000 Beam Angle 60 CRI 80 Body Colour BLACK Dim 150(L) x 247(H)
Model No. S9015/150CW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 15 Lumens 1500 CCT 4000 Beam Angle 60 CRI 80 Body Colour BLACK Dim 150(L) x 247(H)
Model No. S9015/150DL/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 15 Lumens 1500 CCT 6000 Beam Angle 60 CRI 80 Body Colour BLACK Dim 150(L) x 247(H) BEAM ANGLE - 60º optical reflector (standard) - 25º optical reflector (option) - 40º optical reflector (option) LAMP OPTIONS (S9015/80GU10), -= GU10L350 (lamp not included)--GU10L550 (lamp not included)
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
