• LED DOWNLIGHTS

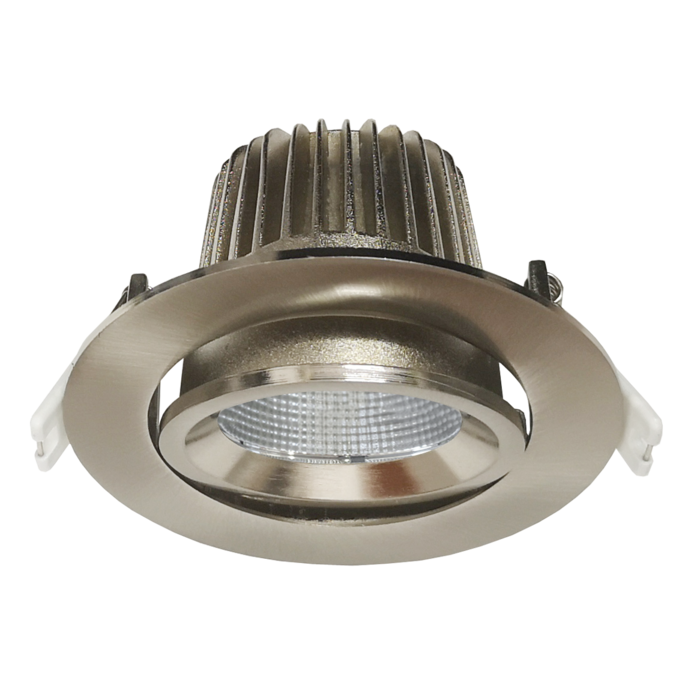

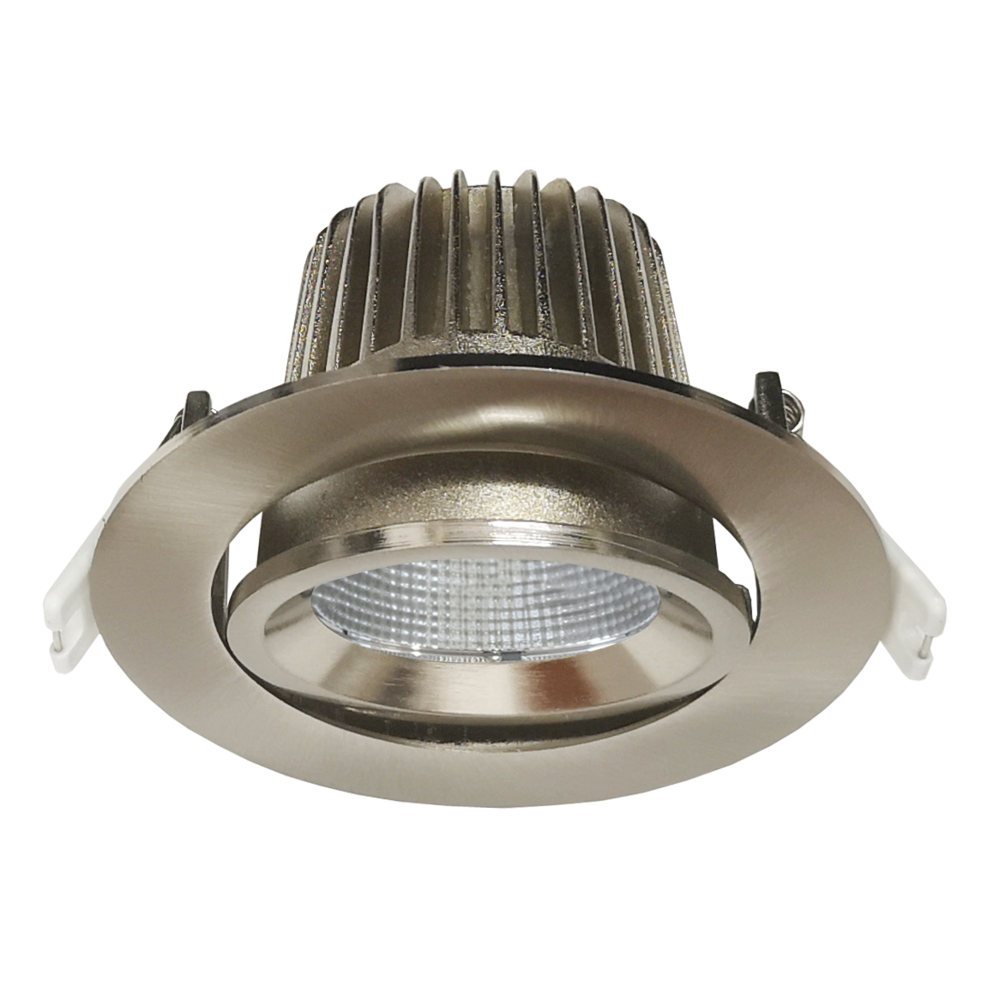

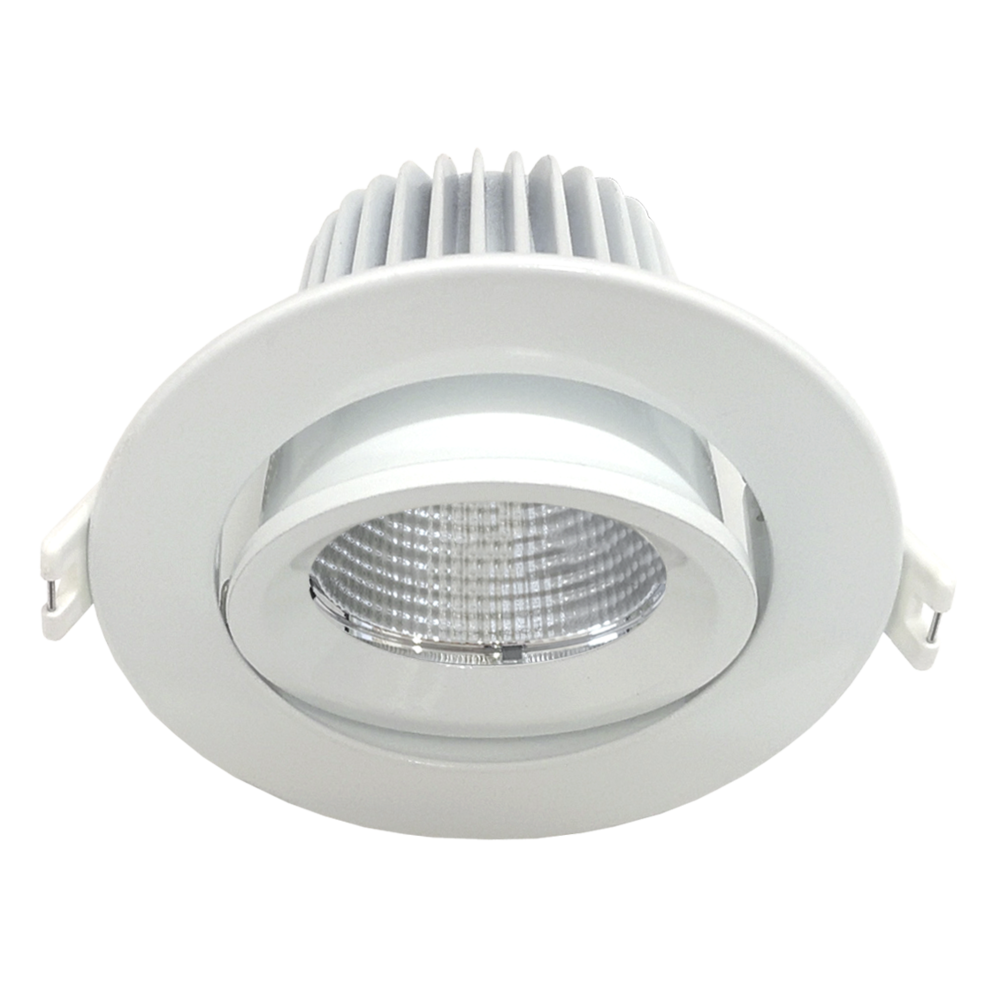

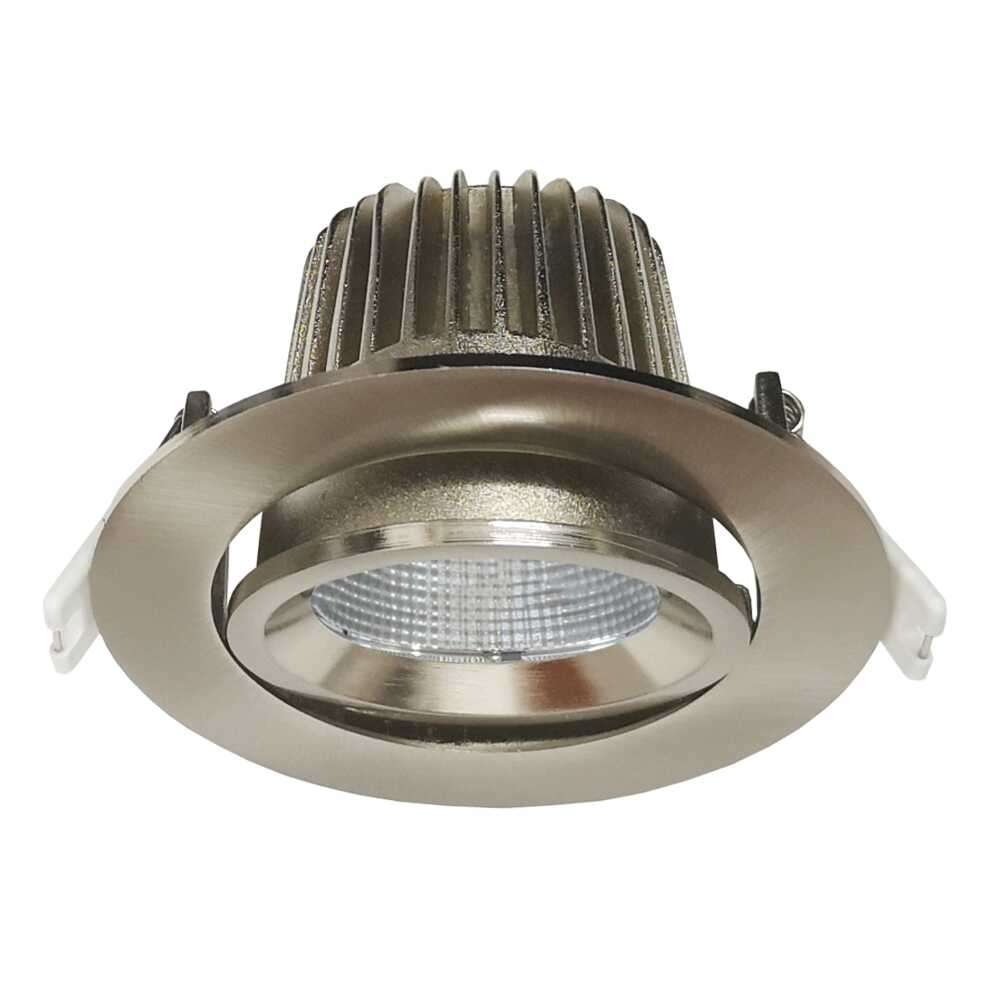

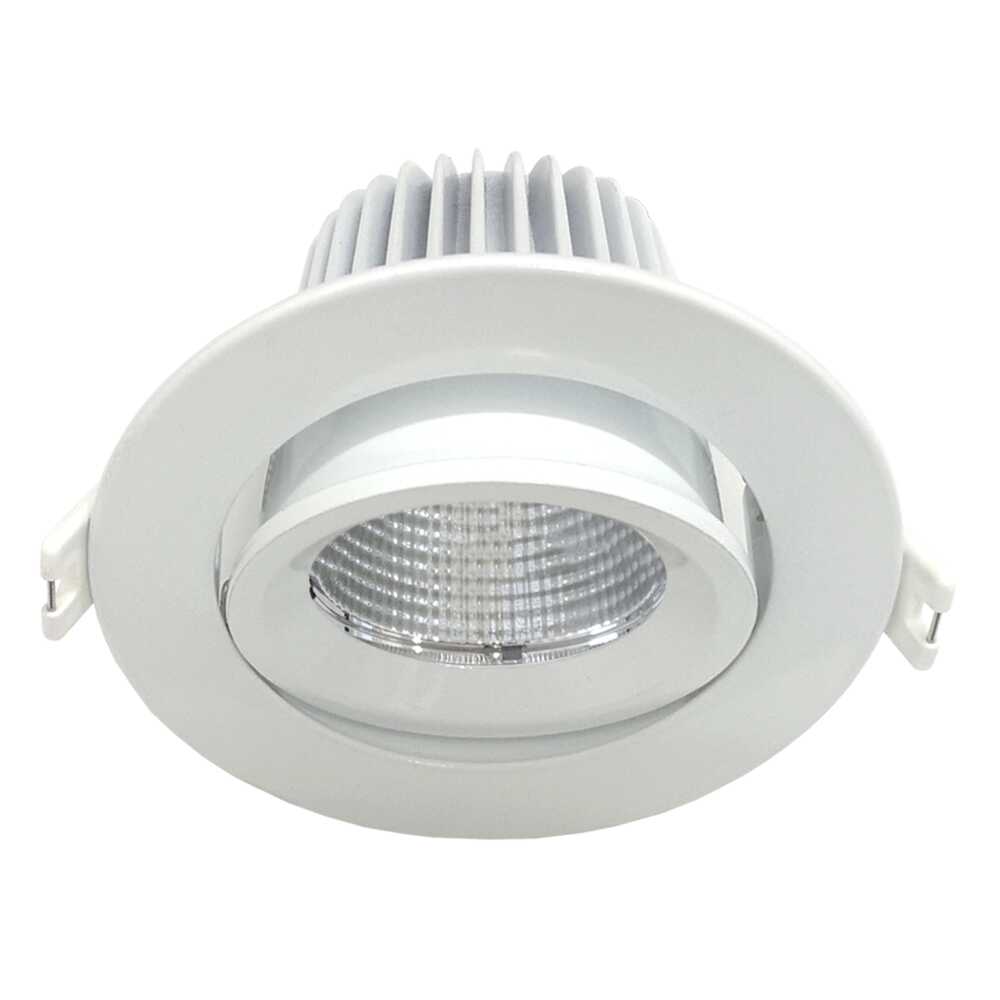

ECOSTAR S9046TC - 9W

Dimmable 9 watt gimbal LED downlight with selectable CCT

Application

Ideal for any residential or commercial interior spaces

Design Specifications

  • Durable die-cast aluminium body profile
  • Stylish powder coat finish in white or plated satin nickel

  • Versatile gimbal head with 30 degree tilt, IC- 4 rated

  • High output COB LED optics, 60 Deg standard beam, CRI > 80

  • Remote constant current trailing edge dimmable LED driver with flex and plug

  • 92mm cut-out

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI

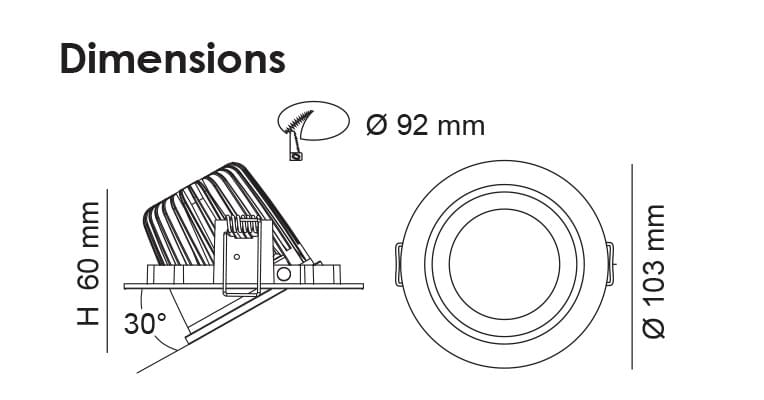

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9046TC/WH Input Voltage240 Power9 Lumens800/800/850 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI80 Body ColourWHITE Cut Out92 Dim60(H) Add to Enquiry Add Remove Remove
    Model No.S9046TC/SN Input Voltage240 Power9 Lumens800/800/850 CCT3000/4000/5700 Beam Angle60 Dimmable YES CRI80 Body ColourSATIN NICKEL Cut Out92 Dim60(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
