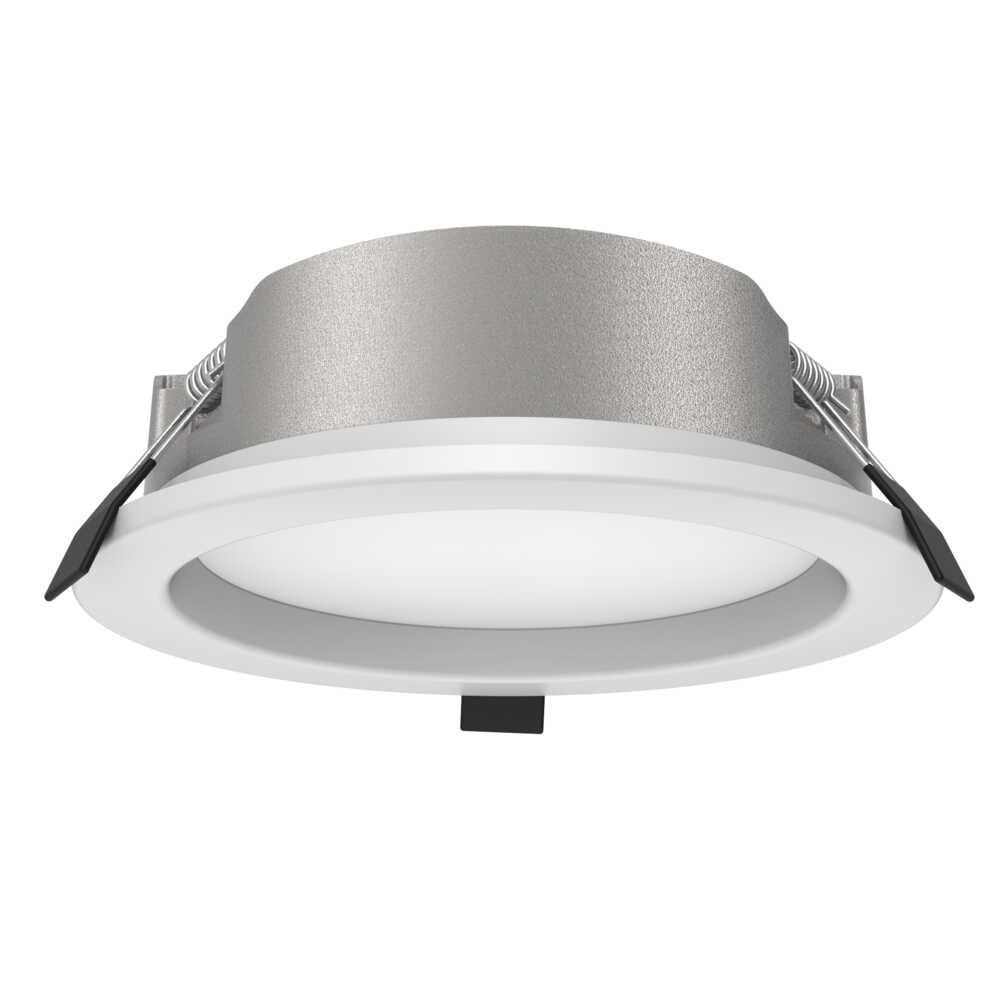

EXMOUTH S9522TC - 15W/22W

Recessed 15/22 watt LED circular shop light with selectable CCT and power

Application

Ideal for any retail or commercial interior spaces

Design Specifications

Selectable CCT 3000K / 4000K / 5500K
Selectable power 15W/22W
Durable die-cast aluminium body profile, with white or silver trim
Remote, non-dimmable LED driver, with flex and plug
High efficiency LED optics with an opal polycarbonate diffuser
Do Not Cover rated, double insulated

Performance

Dimmable - OPTIONAL
Dimmer Type - Trailing edge, 1-10V, DALI / DSI

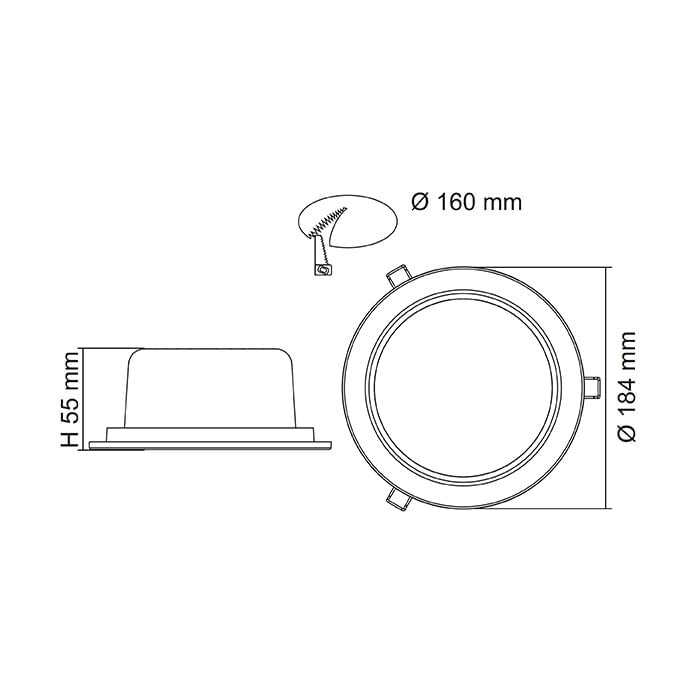

Dimensions - Wiring Diagrams
S9522TC
Design Options

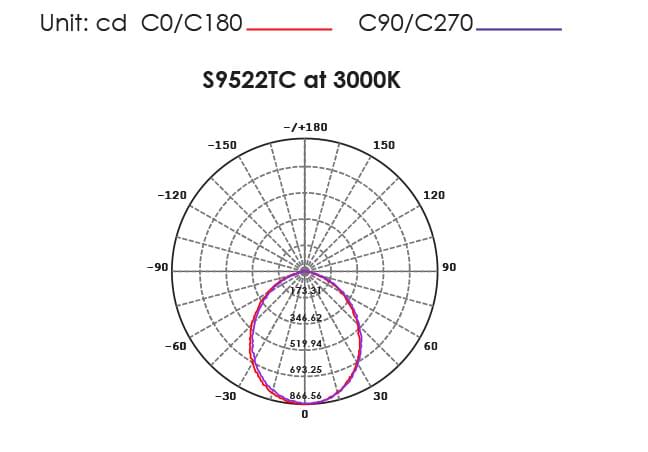

Photometric Data
FAQ
Where can I buy SAL products?

Where can I buy SAL products?

SAL distribute their products through HAMER New Zealand Electrical. To find a store near you, simply input your postcode and available locations will be provided.

Is Sunny Lighting the same as SAL National?

Is Sunny Lighting the same as SAL National?

Yes (Sunny Australia Lighting) is SAL National Pty Ltd

If I have an IC rated downlight, does it mean the same rating applies to the remote driver?

If I have an IC rated downlight, which has a remote connected driver, does it mean the same IC rating applies to the remote driver?

NO, unless the driver has an equally IC rated label. It is important to read the manufacturers installation instructions for the placement of the driver in IC rated installations, which generally prohibit the driver from being covered by thermal insulation.

Are there is restrictions to the type of insulating material covering an IC-4 rated product?

Are there is restrictions to the type of insulating material covering an IC-4 rated product?

YES, AS/NZS6058 test procedures stipulate the type of insulated material composition covering an IC-4 rated product being equivalent to formed insulation, where 200mm is equivalent to an R1 4.0 classification in accordance with AS/NZ4859.1.
Do you have any more questions? Simply check our FAQs page or contact our customer service team.
Downloads
Installation Instructions

Datasheet

SDOC File

Photometric Data

Project Writer

Project Name Product Code Drawing Reference Description

Technical Specifications


Product	Model No.	Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click	Input Voltage	Multiple Wattage	Lumens	CCT	Beam Angle	Dimmable	CRI	Body Colour	Cut Out	Diameter	Dim	IPART	REES
	Model No. S9522TC WH	Add to Enquiry Add Remove Remove	Input Voltage 240	Multiple Wattage 15/22	Lumens 1500/2100	CCT 3000/4000/5500	Beam Angle 105	Dimmable OPTIONAL	CRI 80	Body Colour WHITE	Cut Out 160	Diameter 184	Dim 55(H)	IPART YES	REES YES
	Model No. S9522TC SL	Add to Enquiry Add Remove Remove	Input Voltage 240	Multiple Wattage 15/22	Lumens 1500/2100	CCT 3000/4000/5500	Beam Angle 105	Dimmable OPTIONAL	CRI 80	Body Colour SILVER	Cut Out 160	Diameter 184	Dim 55(H)	IPART YES	REES YES

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
