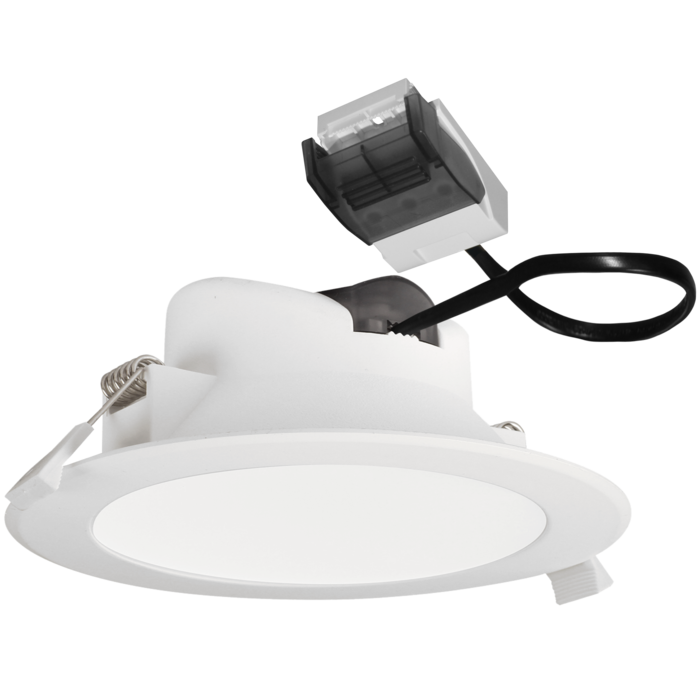

WAVE S9066TC/T 12W
Dimmable IP44 LED downlight with selectable colour temperature

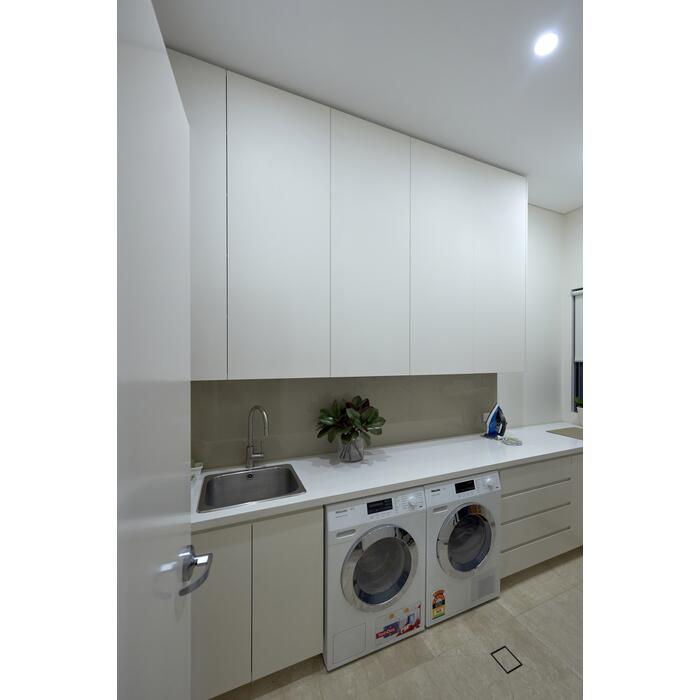

Application
Ideal for any residential or commercial interior spaceDesign Specifications
Easy selectable colour temperature with an inbuilt DIP switch, 3000K/4000K/5700K
Poly covered aluminium body, double insulation, IC - F rated
Quality opal polycarbonate diffuser
Integral constant current trailing edge dimmable LED driver with quick connect terminal block
- High efficiency SMD LED chips
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge

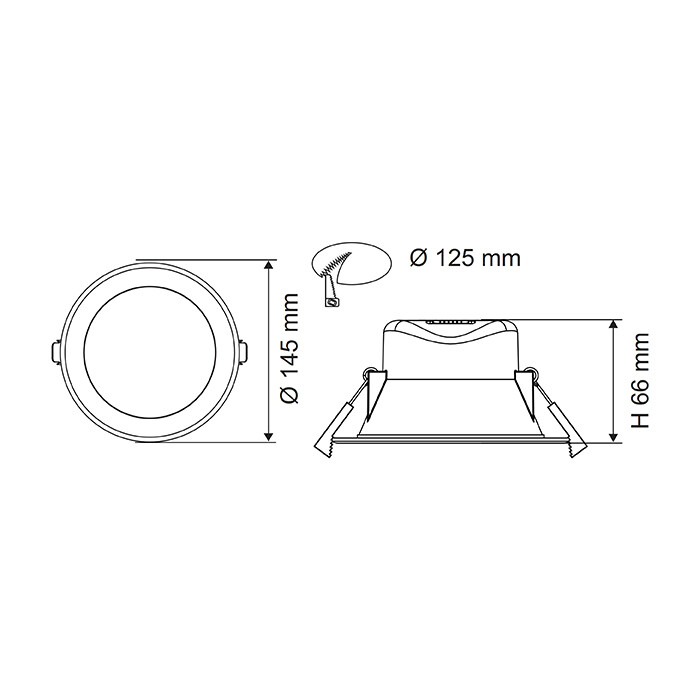

- Dimensions - Wiring Diagrams
-

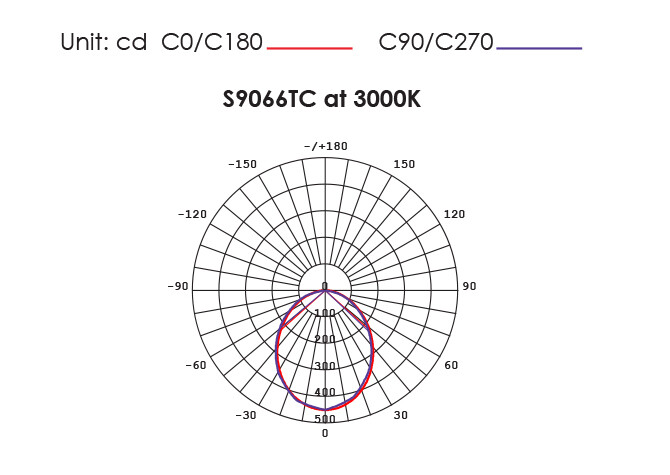

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Cut Out Diameter Dim IPART REES VEET
Model No. S9066TC/WH/T Add to Enquiry Add Remove Remove Input Voltage 240 Power 12 Lumens 1300/1450/1350 CCT 3000/4000/5700 Beam Angle 90 Dimmable YES CRI 80 Body Colour WHITE Cut Out 125 Diameter 145 Dim 66(H) IPART YES REES YES VEET YES
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
