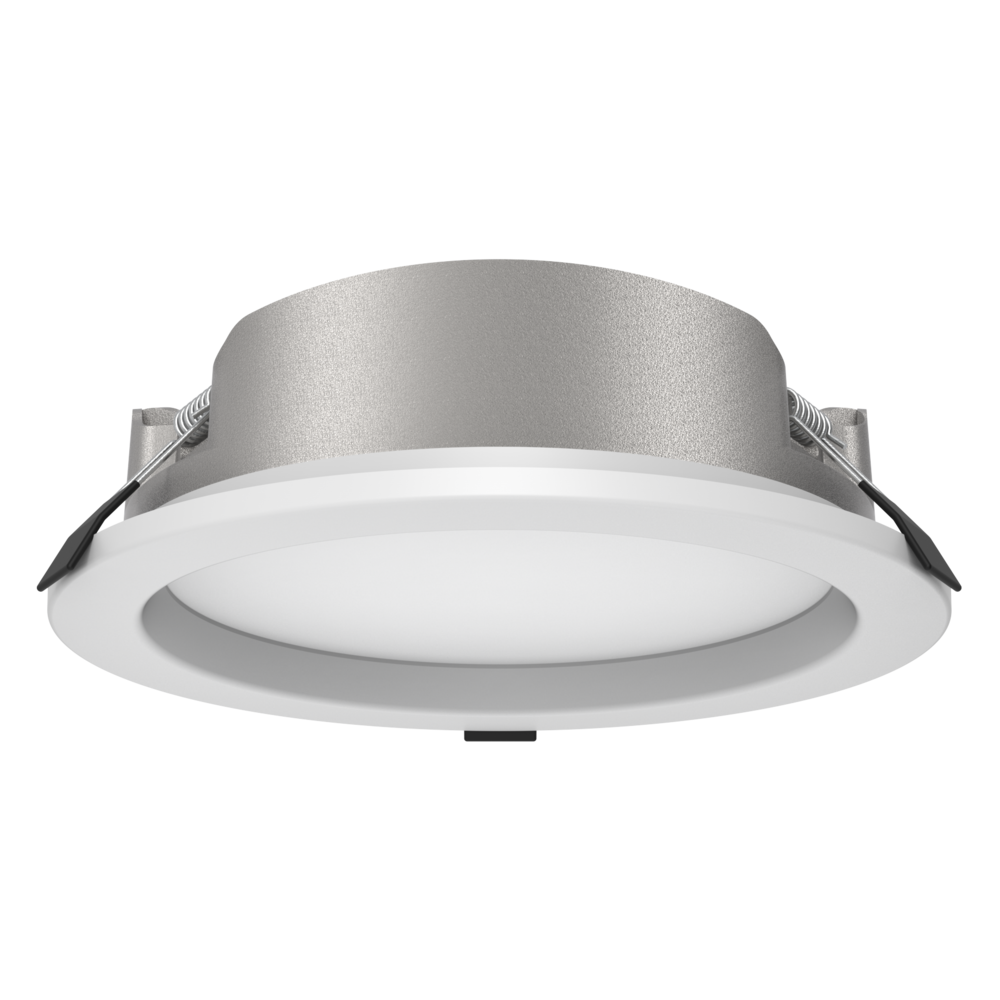

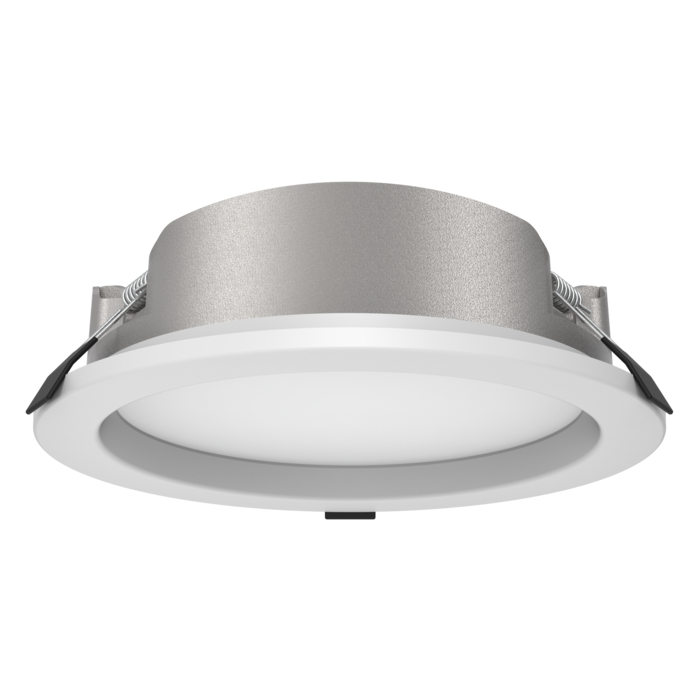

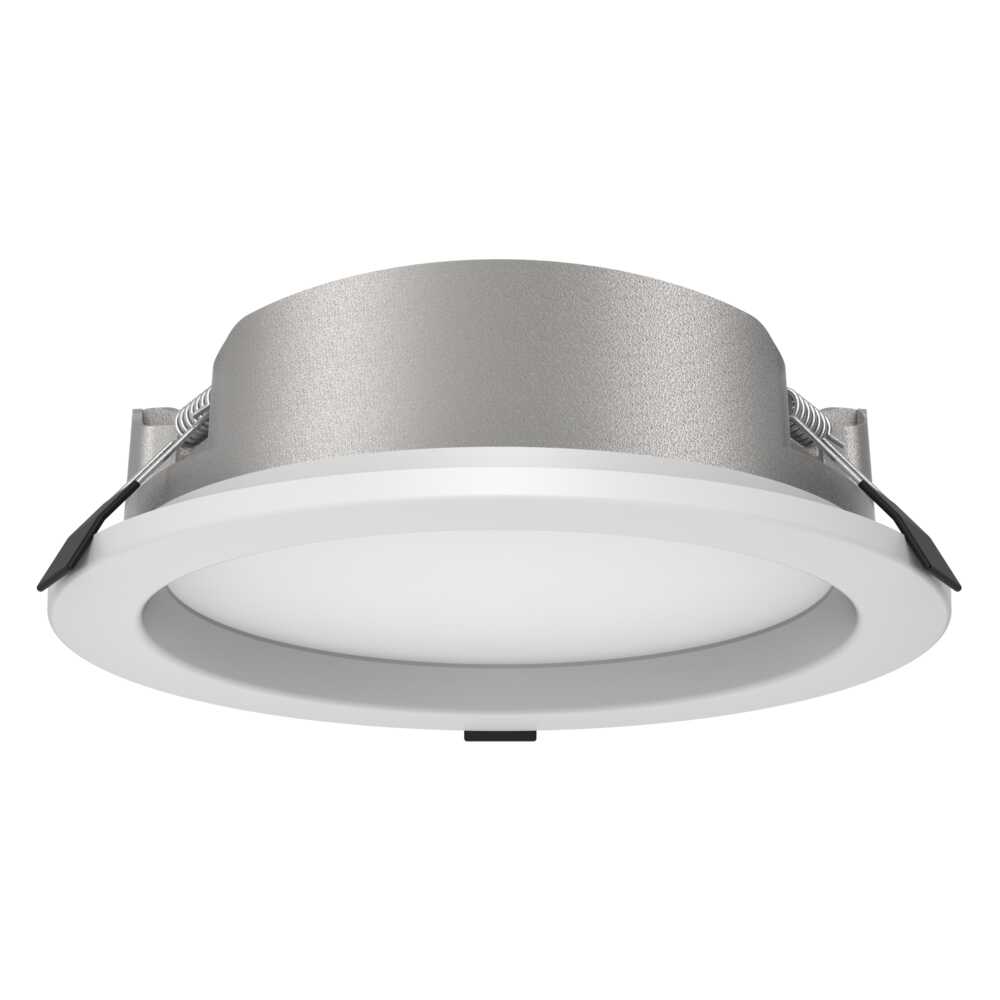

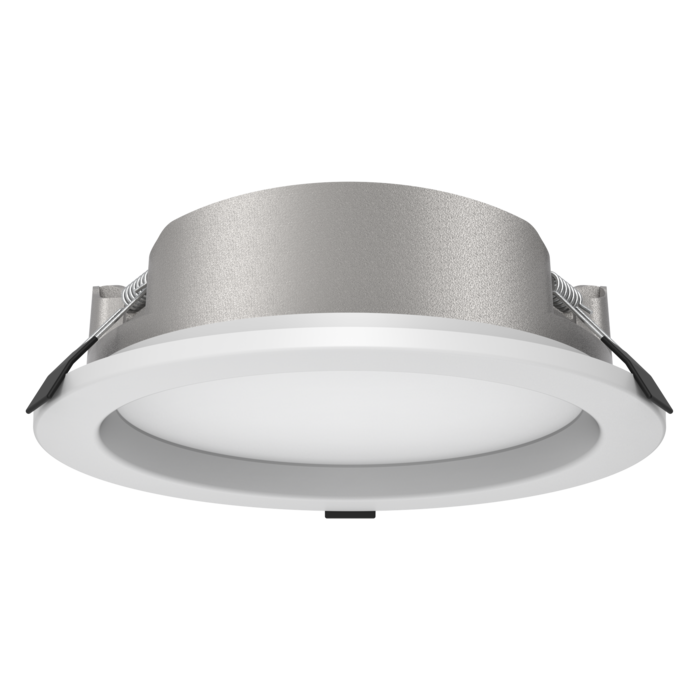

EXMOUTH S9523TC - 28/40W

Recessed 40/28 watt circular LED Shop light with selectable colour temperature and power


Ideal for any residential or commercial interior space

Design Specifications

  • Easy selectable colour temperature with an inbuilt DIP switch
  • Twin 40W / 28W power selection with the integral DIP switch, IC - F rated

  • Durable die-cast aluminium body profile, white trim

  • Constant current non-dimmable LED driver, with flex and plug

  • Stylish powder coat finish with an opal polycarbonate diffuser

  • High efficiency SMD LED chips


  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI

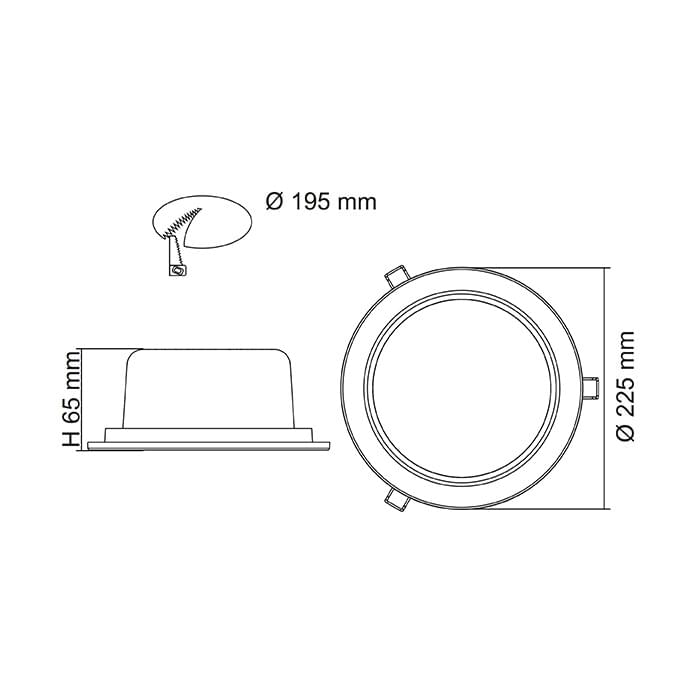

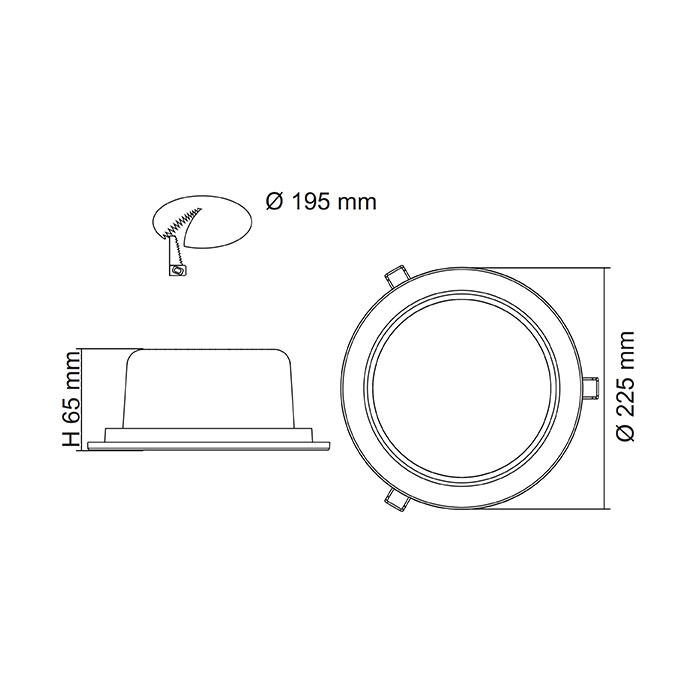

  • Dimensions - Wiring Diagrams

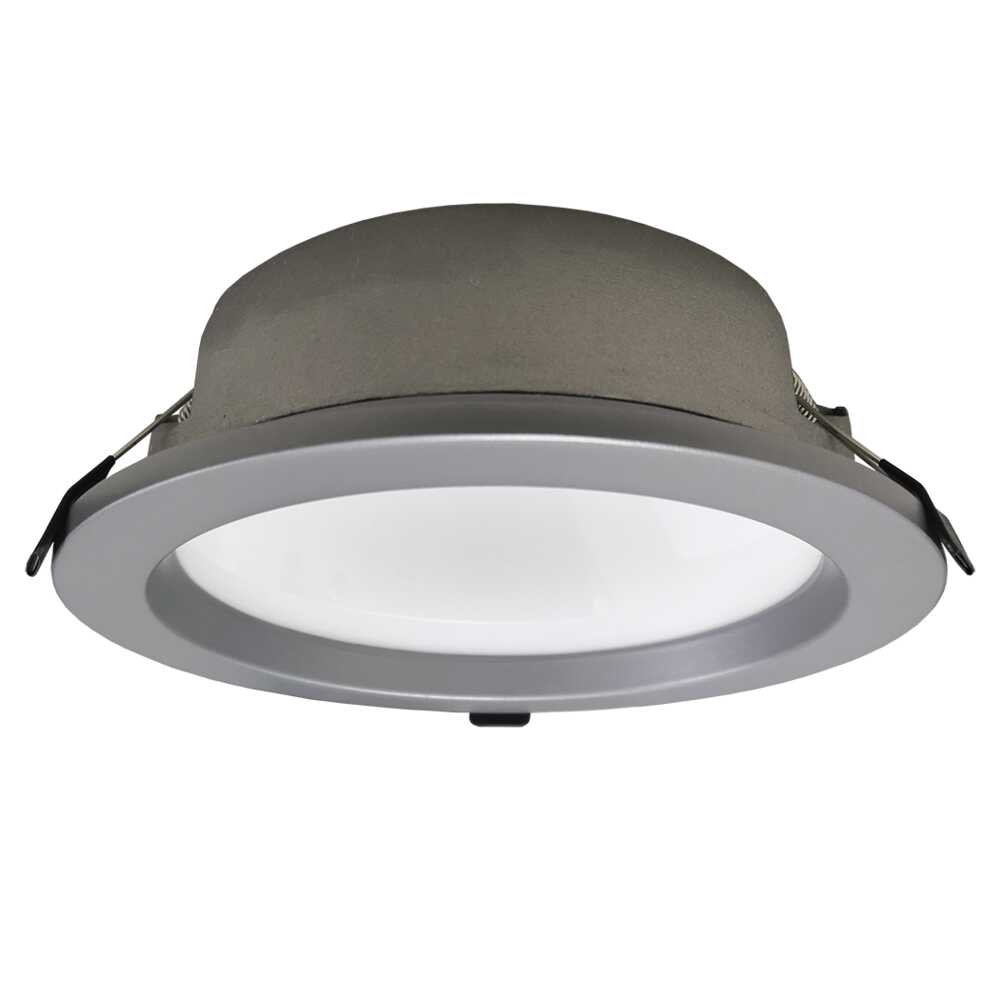

  • Design Options

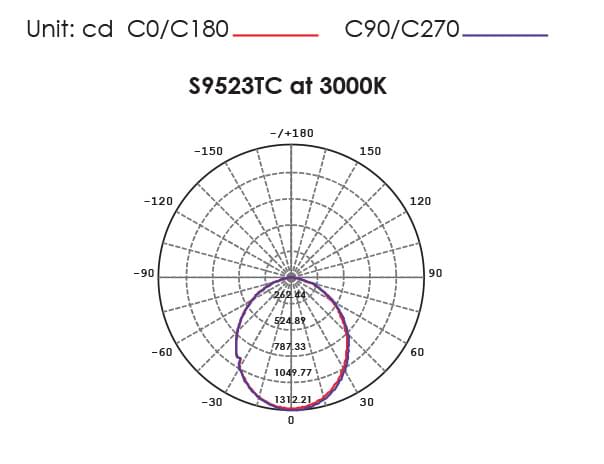

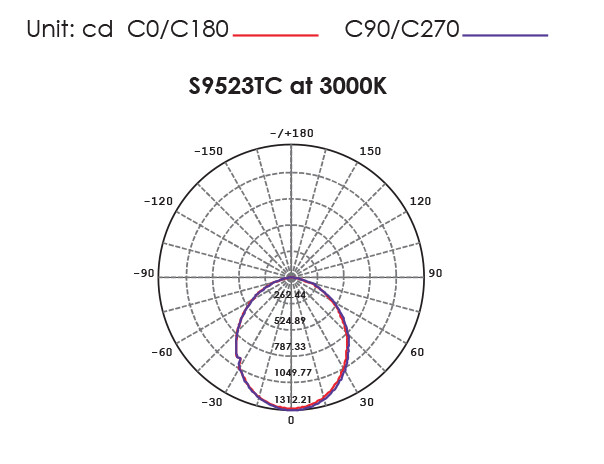

  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle Dimmable CRI Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9523TC WH Input Voltage240 Multiple Wattage28/40 Lumens2800/3800 CCT3000/4000/5500 Beam Angle105 Dimmable OPTIONAL CRI80 Body ColourWHITE Dim225(W) x 65(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
With over 250 New Zealand trade partners, finding where to buy SAL products is easy.  Search a trade partner nearby

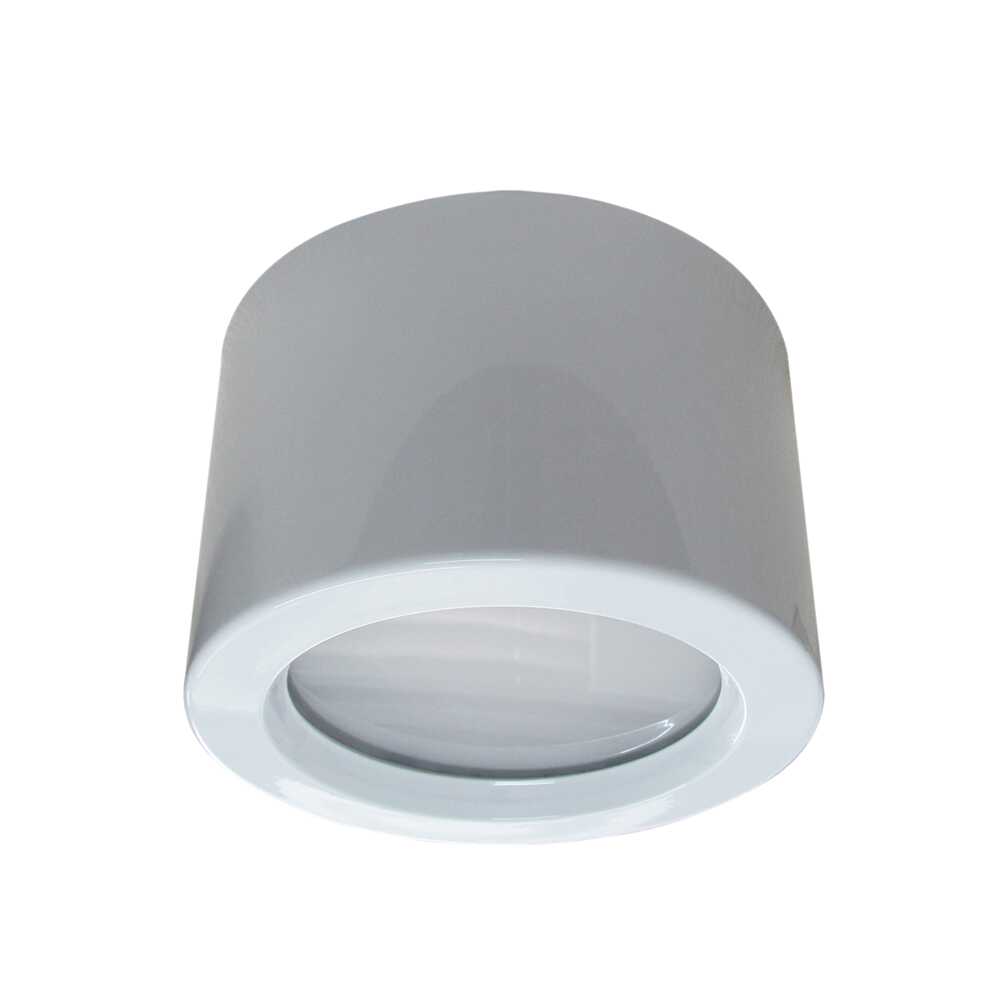

Related Products
