• LED DOWNLIGHTS

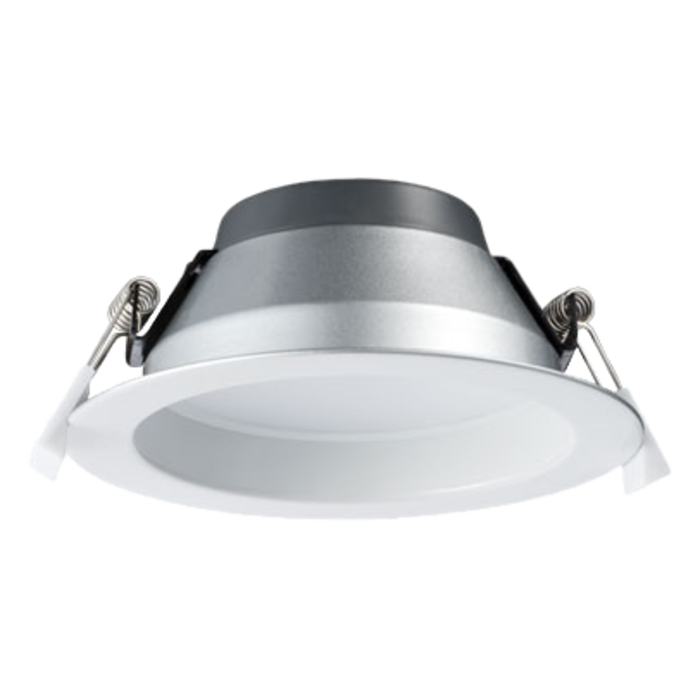

PREMIER S9073TC / DP - 13/18W

Dimmable IP64 , 18W LED downlight with selectable colour temperature and power

Application

Ideal for any commercial interior space looking for an economical lighting choice

Design Specifications

  • Premium aluminium body profile, CA90 rated

  • Stylish white powder coat finish

  • Quality opal polycarbonate diffuser

  • High efficiency SMD LED chips
  • Remote constant current trailing edge dimmable LED driver, with flex and plug

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI, DSI
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Multiple Wattage Lumens CCT Beam Angle CRI Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9073TC/WH/DP Input Voltage240 Multiple Wattage13/18 Lumens1500/1800/1600 CCT3000/4000/5700 Beam Angle90 CRI80 Body ColourWHITE Dim165(W) x 63(H) Add to Enquiry Add Remove Remove

    Note: Lumens (lm) shown are displayed at FULL power

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
