• LED DOWNLIGHTS

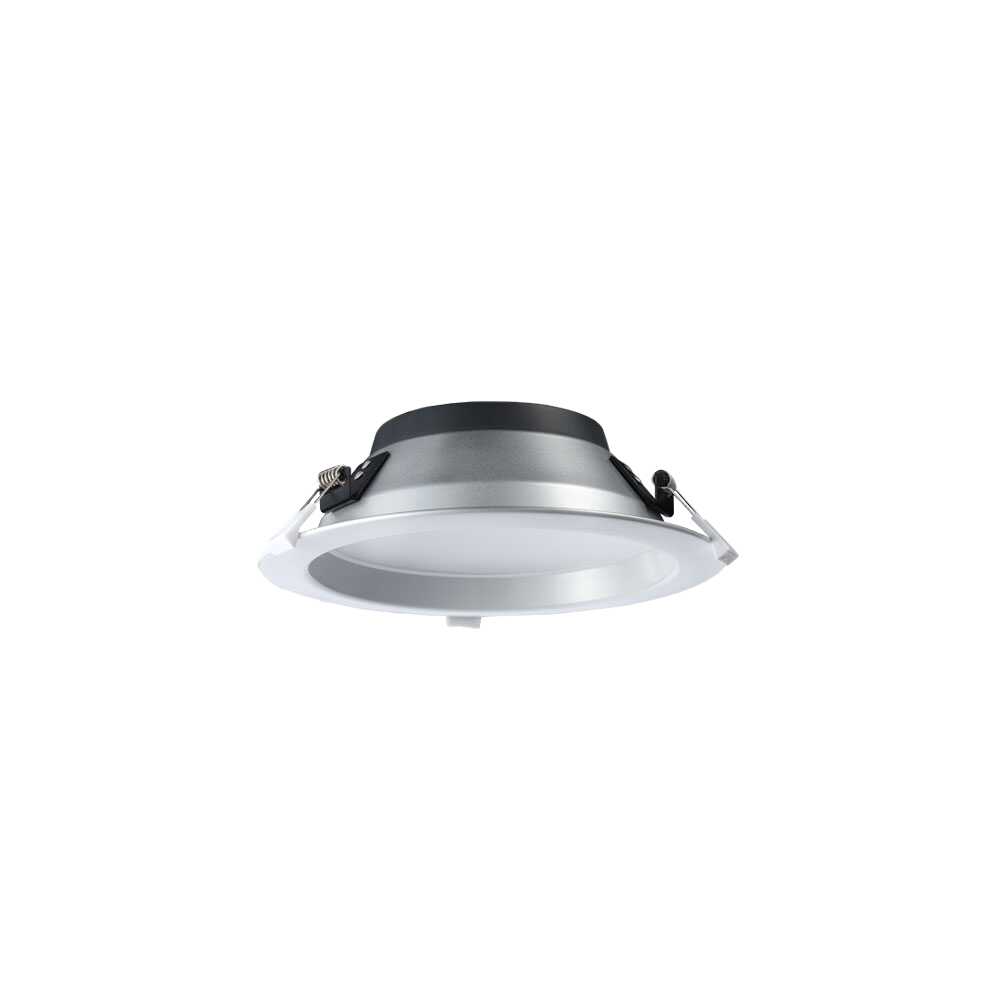

PREMIER S9074TC / HP - 10W

IP64 10W LED dimmable downlight with selectable colour temperature

Application

Ideal for any commercial interior spaces looking for an economical lighting choice

Design Specifications

  • Premium aluminium body profile, CA90 rated

  • Stylish white powder coat finish

  • Quality opal polycarbonate diffuser

  • High efficiency SMD LED chips

  • Remote constant current trailing edge dimmable LED driver, with flex and plug

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge, optional 1-10V, DALI / DSI

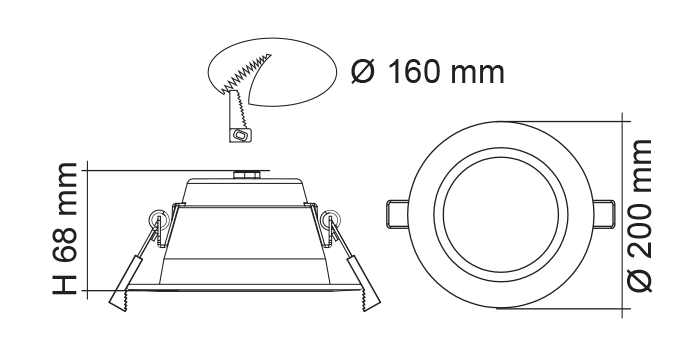

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT Beam Angle Dimmable CRI Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9074TC /WH/HP Input Voltage240 Power10 Lumens1000/1100/1000 CCT3000/4000/5700 Beam Angle90 Dimmable YES CRI80 Body ColourWHITE Dim200(W) x 68(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
