S-FIRE R MKII SEL10SF4D63 - 1.6W

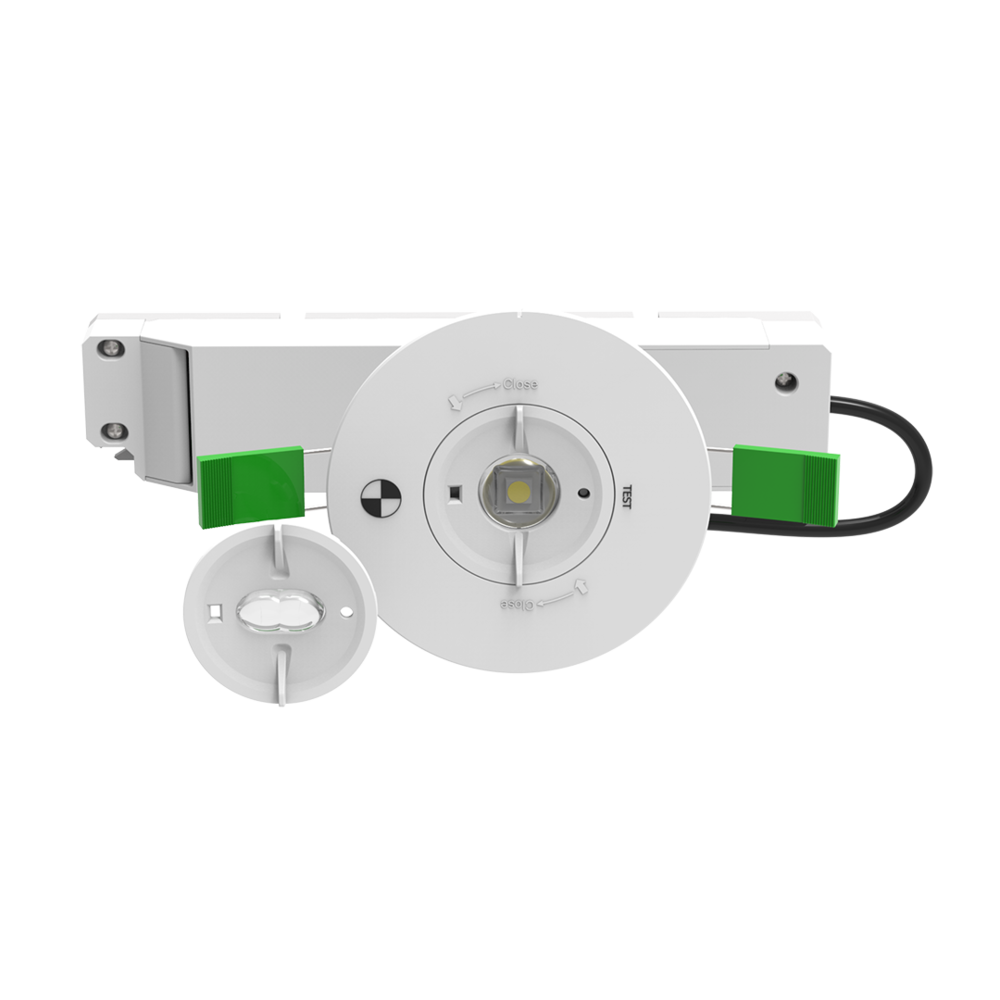

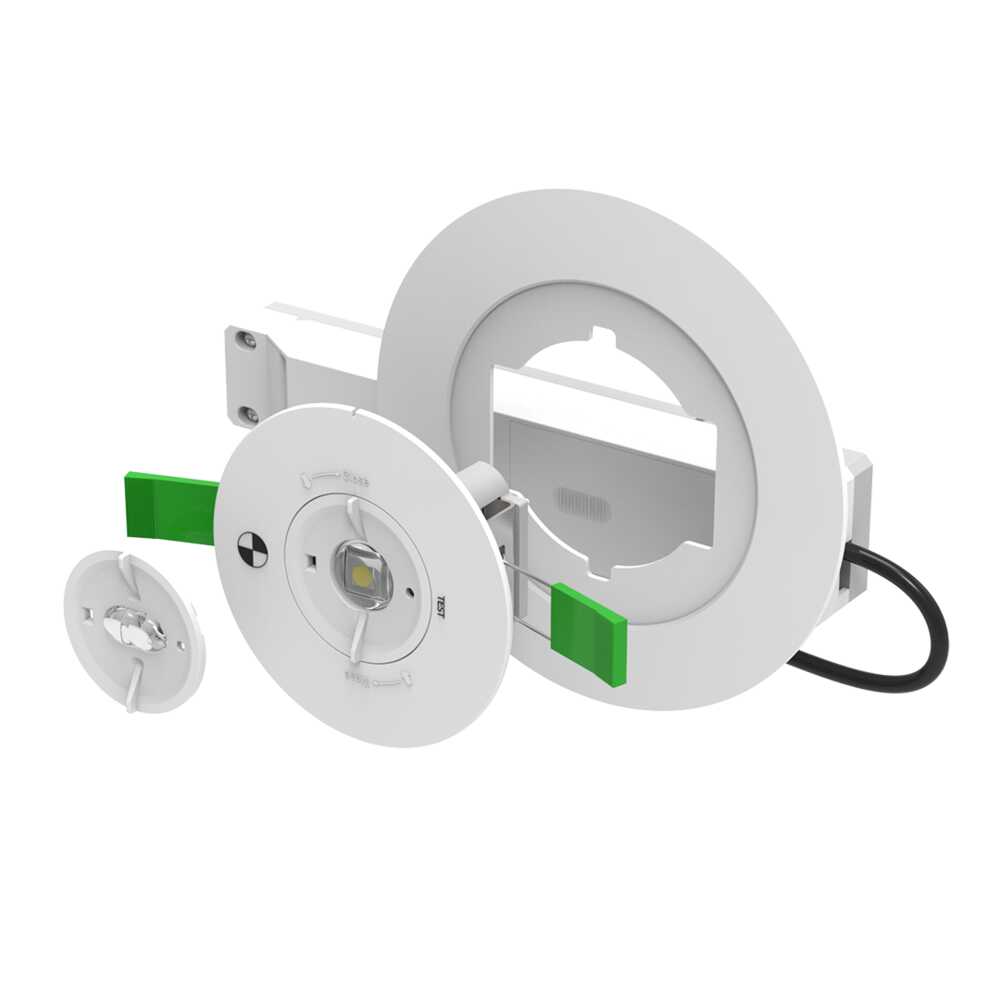

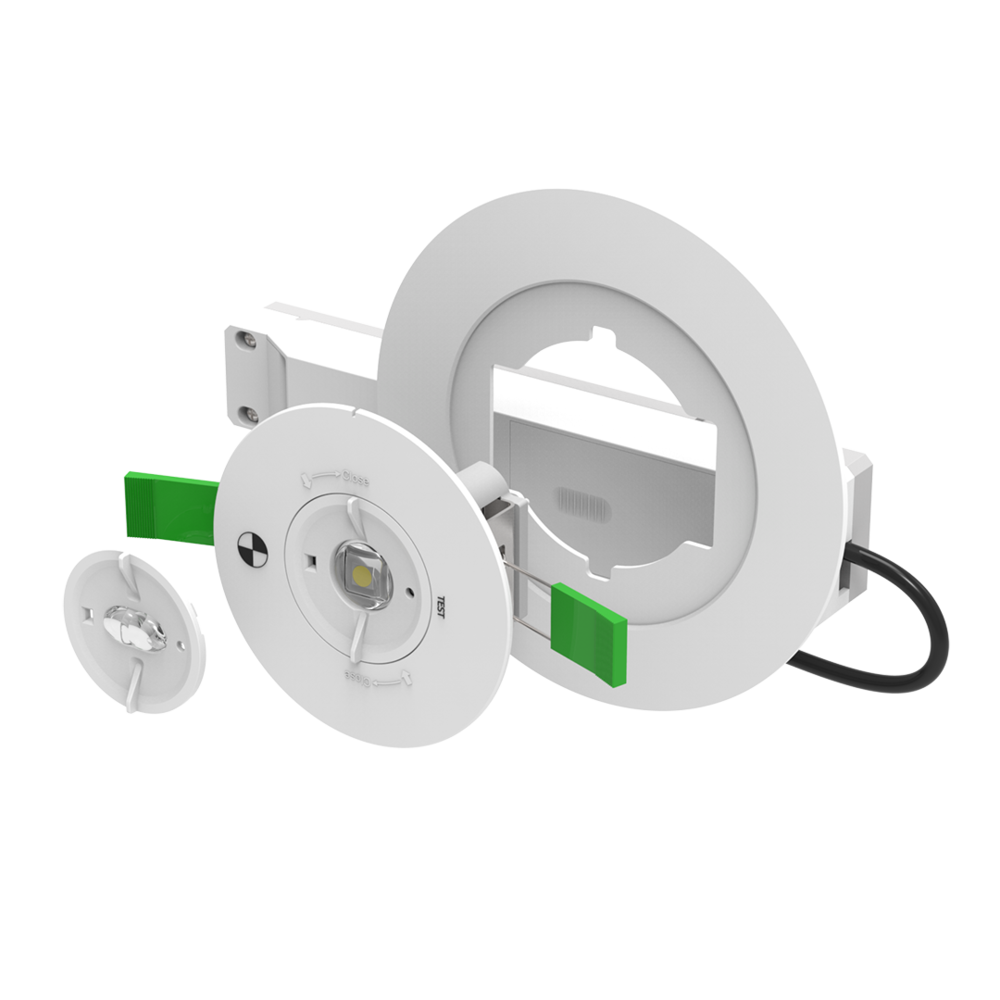

NON-MAINTAINED - LED 1.6 watt emergency luminaire with Corridor Lens and Adaptor Ring accessories
Application
A perfect choice for apartments or commercial spaces
Design Specifications
Compliant to AS/NZS2293, with an impressive D63 emergency lighting classification, non-maintained. Corridor lens accessory included: D63@C0, D6.3@C90
Polycarbonate body profile, double insulation, standard trim Ø95mm utilising a Ø70mm cut-out and the kit includes a Ø145mm adaptor ring ( Ø130mm cut-out) for retrofit applications.
1.6 watt system, LED charge status display and test switch, with remote flickerCONTROLLED control gear and high performance integral Lithium battery
1.2 m flex & 3 pin plug fitted, IC-4 rated (luminaire head only), trim colour white
Guaranteed 90 minutes emergency function.
Performance
- Dimmable - NO

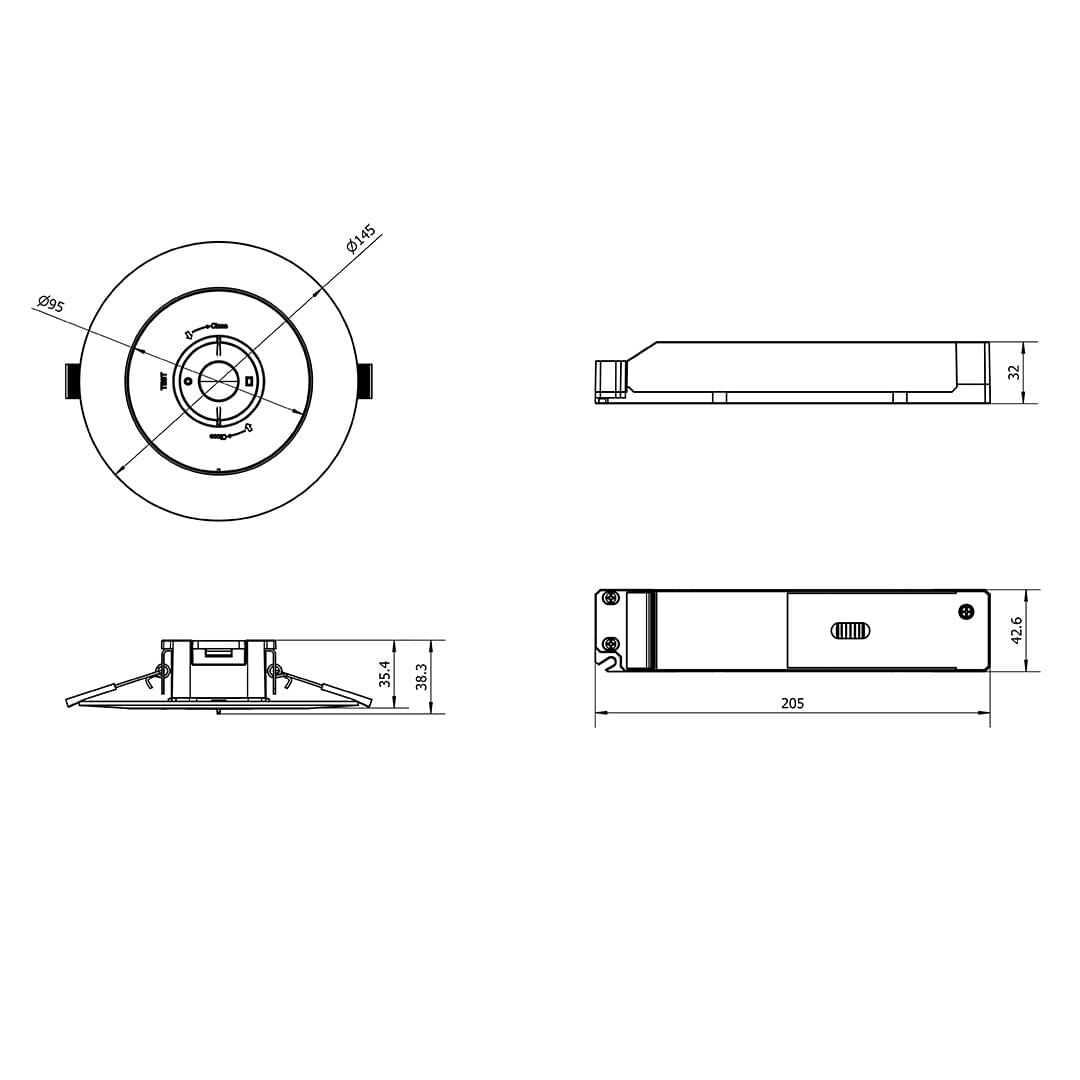

- Dimensions - Wiring Diagrams
-
- FAQ
-
What is the definition of an Emergency non-maintained fitting?
What is the definition of an Emergency non-maintained fitting?
A non-maintained emergency light is one that is only used (on) for emergency lighting, hence in the event of a mains (supply) failure, the emergency light source will be activated.
-
- Technical Specifications
Product Model No. Input Voltage Power Dimmable Body Colour Diameter Dim Mass Add to Enquiry - Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
Model No.SEL10SF4D63 Input Voltage240 Power1.6 Dimmable NO Body ColourWHITE Diameter95 Dim95(W) x 31(H) Mass0.4 Add to Enquiry Add Remove Remove Important notes: (1) Battery warranty twelve (12) months (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.
