ECOLINE EMERGENCY SL9732EM - 12/40W
MAINTAINED OR NON-MAINTAINED - Compliant to AS/NZS 2293, narrow body profile
Application
Perfect for interior commercial emergency lighting installations
Design Specifications
Narrow steel body (65mm) body profile, white powder coat finish
Designed with a large terminal block for easy installation
LiFePO4 battery technology for long life
Designed for both maintained and non-maintained systems
High efficiency LED optics, selectable CCT 3000K/4000K/5700K, integral dual power selection, LED charge status display and test switch
Guaranteed 90 minutes emergency function corridorSTANDBY functions are optional for SL9732/40EM. Note: 20EM = D40C0, D25@C90, 40EM = D50@C0, D25@C90 emergency classification
- Dimensions - Wiring Diagrams
-

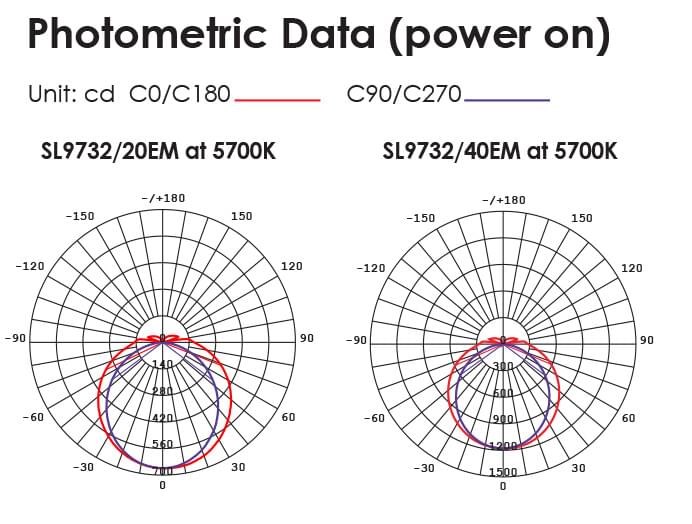

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power CRI Dim Mass IPART VEET
Model No. SL9732/20EM Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 CRI 80 Dim 600(L) x 65(W) x 65(H) Mass 1.03 IPART YES VEET YES
Model No. SL9732/40EM Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 CRI 80 Dim 1135(L) x 65(W) x 65(H) Mass 1.63 IPART YES VEET YES Important notes: (1) Battery warranty twelve (12) months (2) In the interest of transport and safety, emergency products are supplied with the battery disconnected. (3) In addition to specific emergency commissioning instructions, the battery MUST be connected at the time of installation. (4) Continual use in emergency mode greater than 240 hours without recharge, will result in battery failure and void battery warranty.
