• LED HIGHBAYS

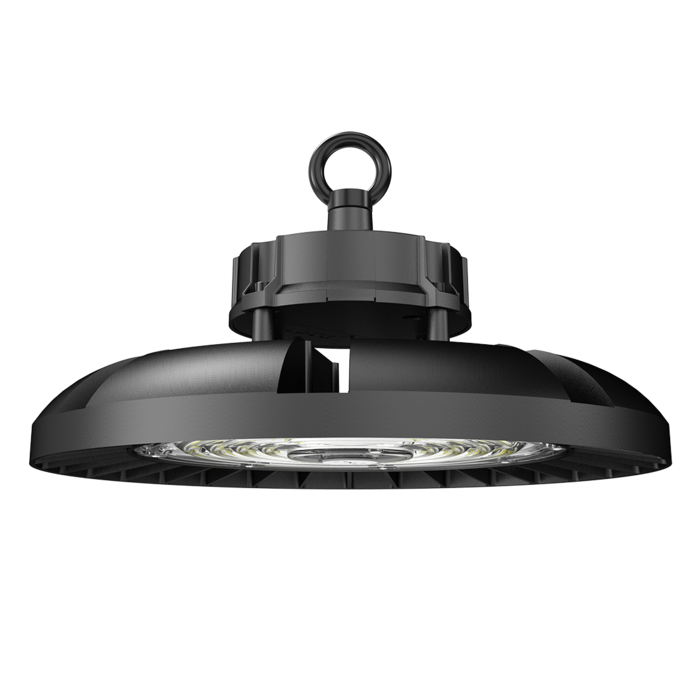

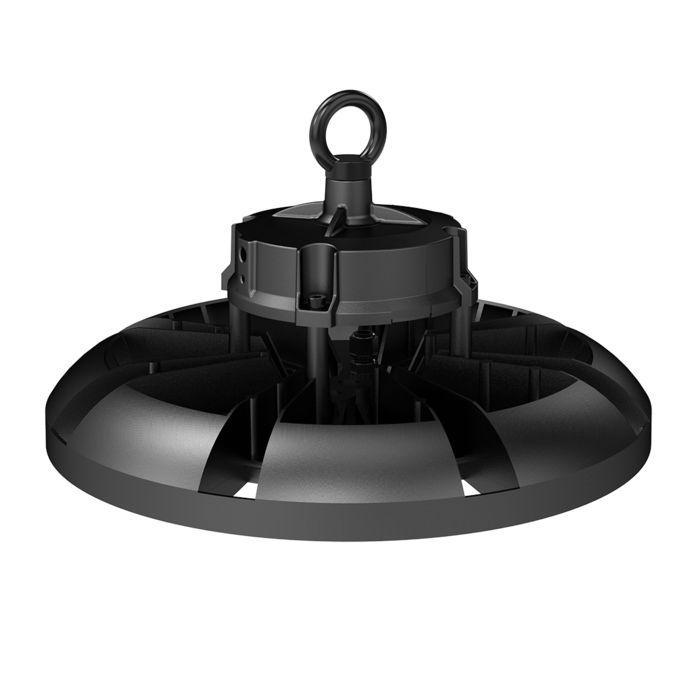

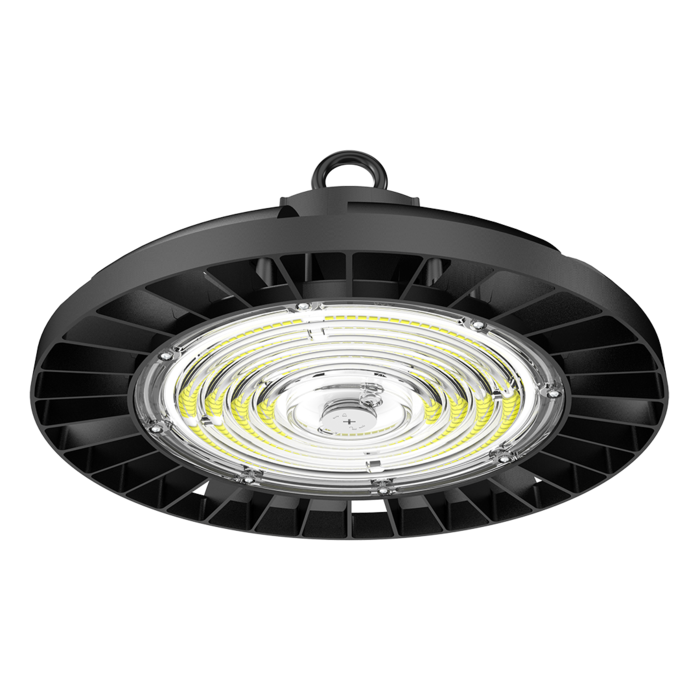

UFO SHB23MPTC2 - 150/200W

1-10V Dimmable, IP65 LED super low profile LED highbay, with selectable power, CCT and 200lm/W performance

Application

Ideal for any commercial or industrial interior spaces

Design Specifications

  • Black powder coated finish, die-cast aluminium body, super low profile design

  • Dimmable 1-10V, selectable power 90/120/150W and 120/160/200W with selectable CCT 3000/4000/5000K

  • High efficiency LED optics, clear polycarbonate lens, 90° beam distribution, SDCM <5, 200lm/W performance @ 4000K

  • Optional plug and play motion and daylight harvesting sensor available, with remote control functions

  • Integral 1-10V dimmable LED driver with surge protection, complete with flex and plug for easy installation

  • Robust design IP65 and IK08 rated, stainless safety lanyard included

Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V, optional SAL DALI (1) addressable signal converter
  • In Built Sensor - OPTIONAL

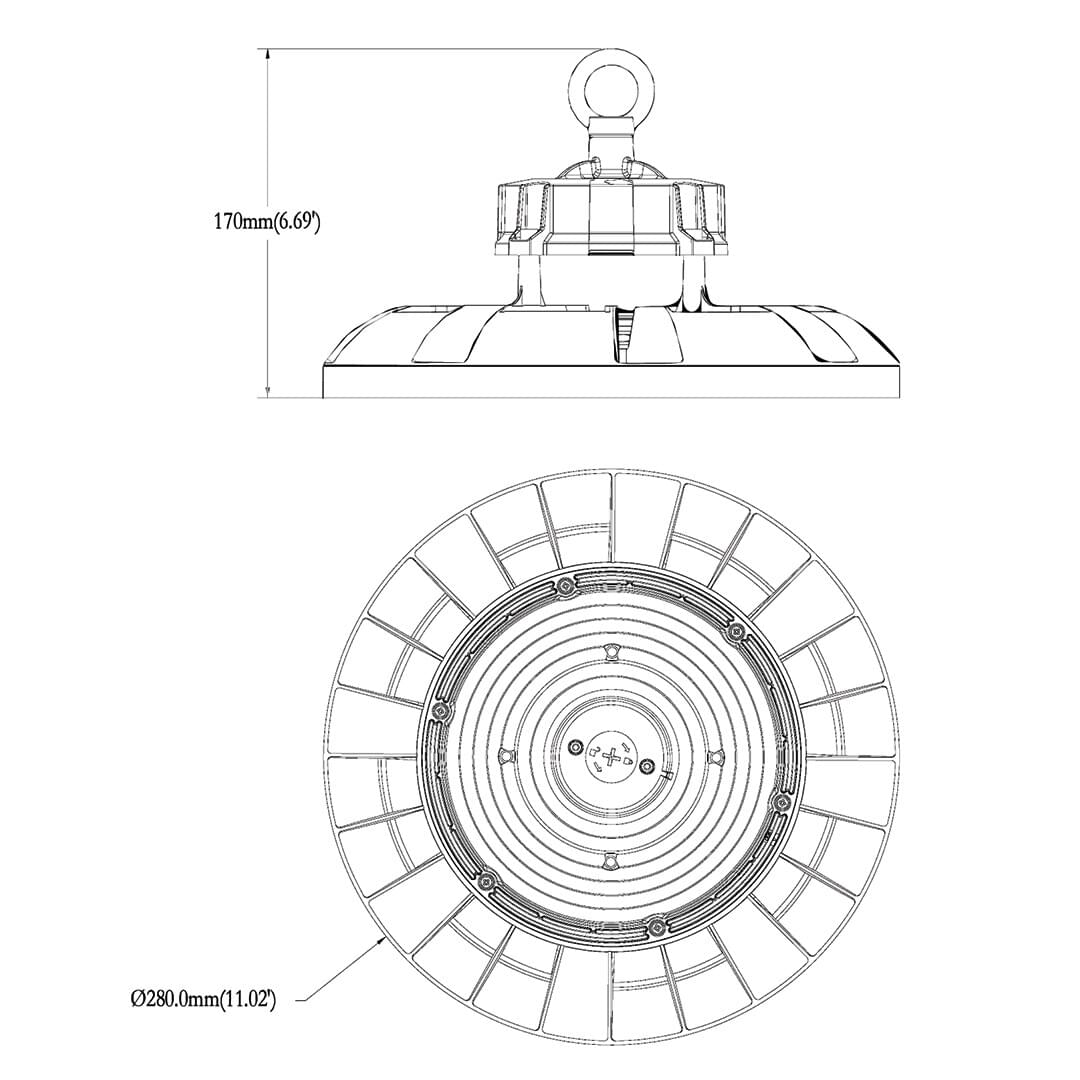

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      • Where can I buy SAL products?

        Where can I buy SAL products?

        SAL distribute their products through HAMER New Zealand Electrical. To find a store near you, simply input your postcode and available locations will be provided.

      • Is Sunny Lighting the same as SAL National?

        Is Sunny Lighting the same as SAL National?

        Yes (Sunny Australia Lighting) is SAL National Pty Ltd

      • What does IP stand for?

        What does IP stand for?

        IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

        As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

        For more information please refer to AS 60529.


      • What is a ta rating?

        What is a ta rating?

        (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.


      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body Colour Diameter Dim Mass
      		Model No. SHB23MP150TC2 Add to Enquiry Add Remove Remove Input Voltage 240 Power 150 Multiple Wattage 90/120/150 Lumens 27500/30000/28300 Beam Angle 90 CCT 3000/4000/5000 CRI 70 Body Colour BLACK Diameter 280 Dim 170(H) Mass 2

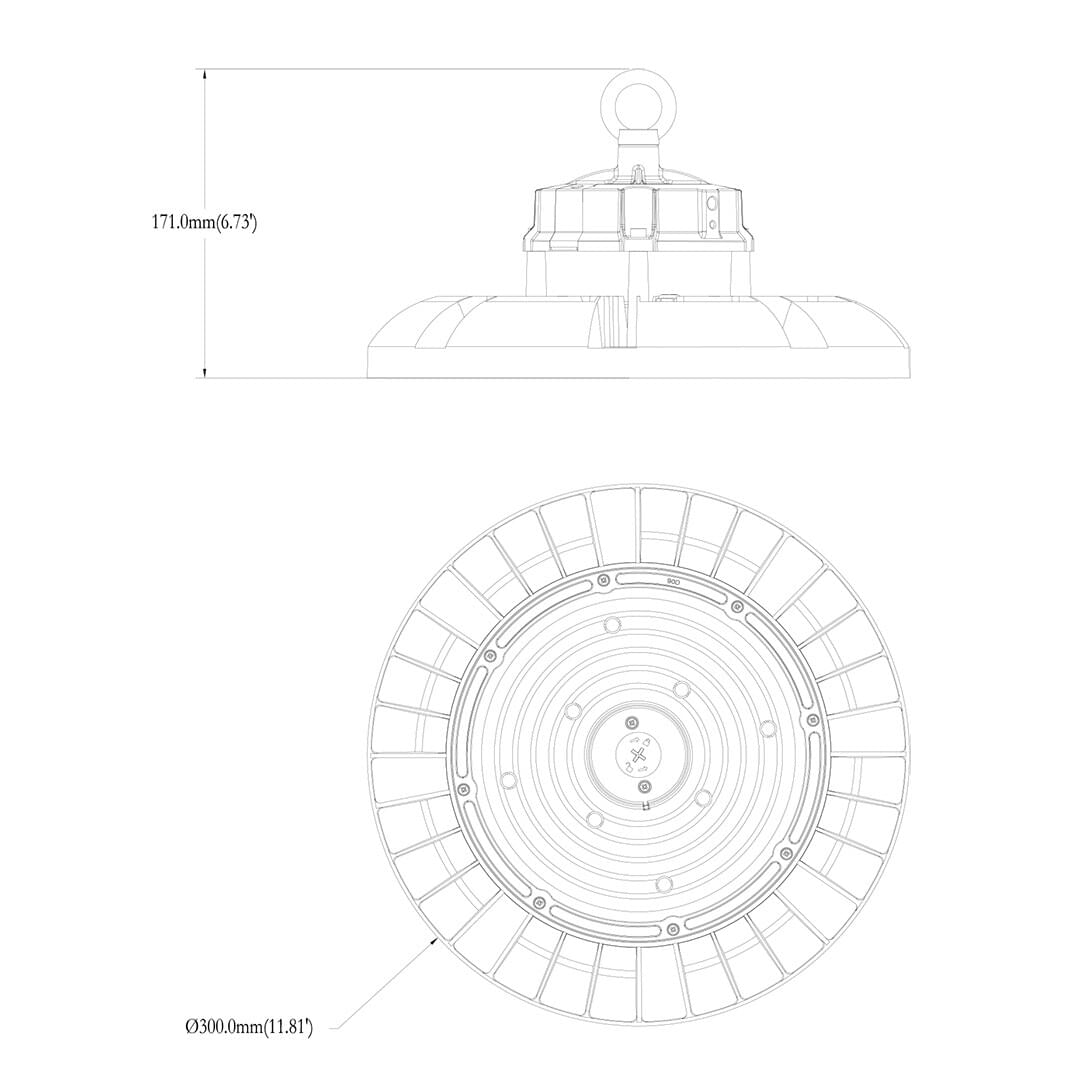

      		Model No. SHB23MP200TC2 Add to Enquiry Add Remove Remove Input Voltage 240 Power 200 Multiple Wattage 120/160/200 Lumens 36000/40000/37200 Beam Angle 90 CCT 3000/4000/5000 CRI 70 Body Colour BLACK Diameter 320 Dim 165(H) Mass 2.32

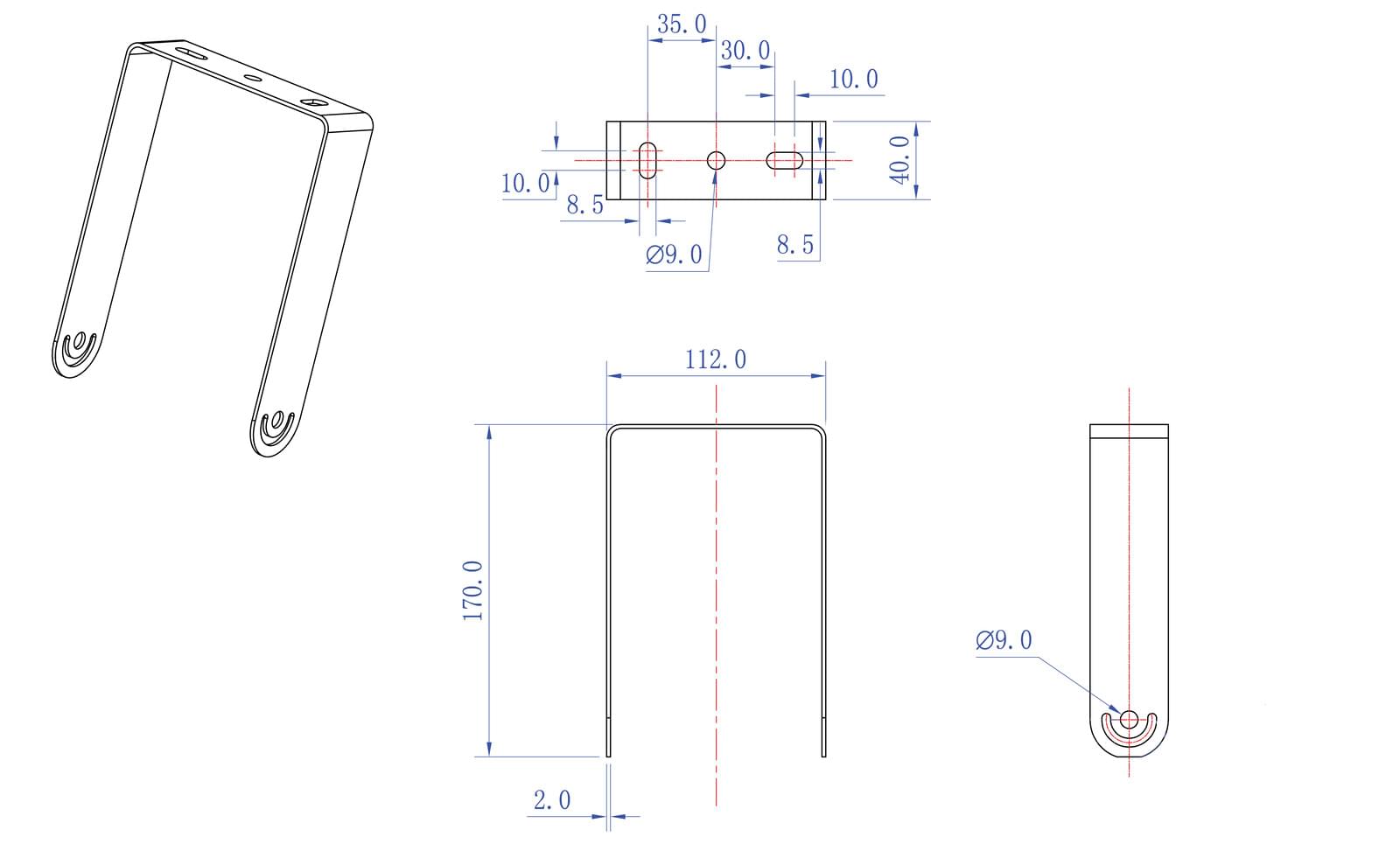

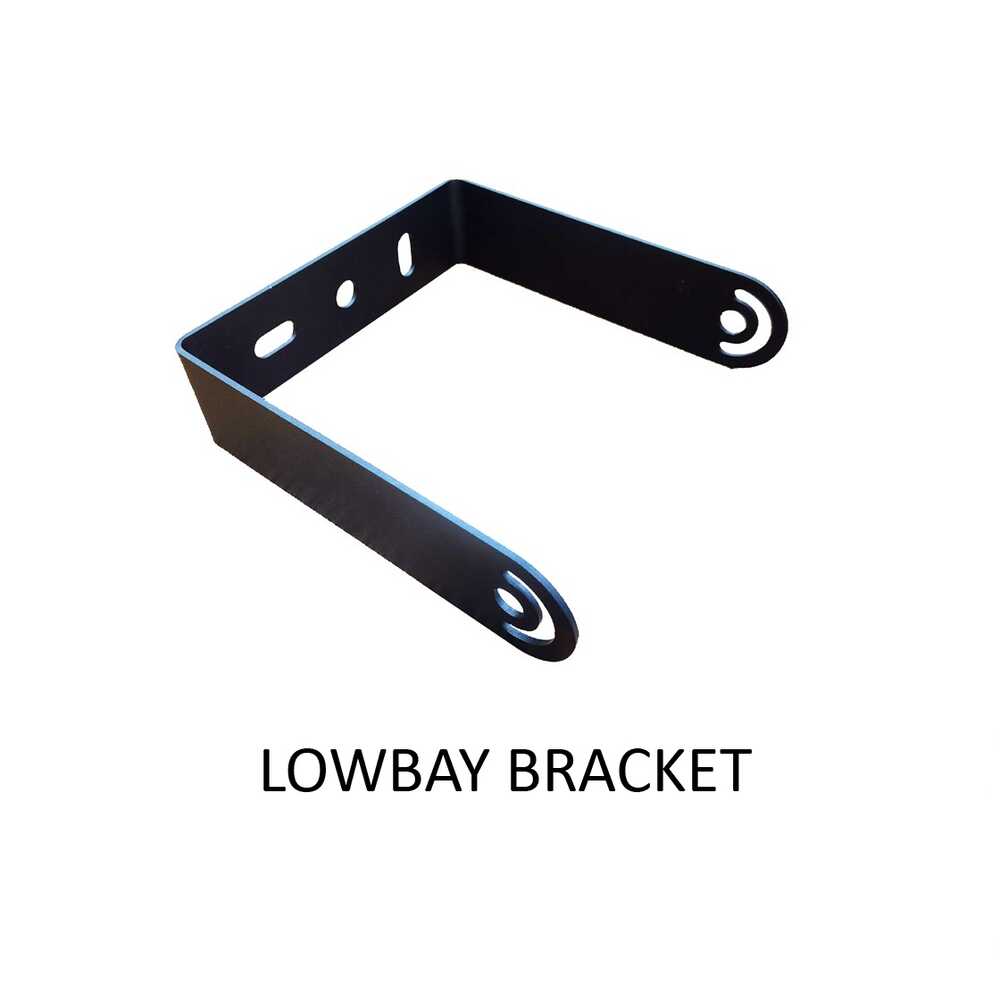

      		Model No. SHB23SE/PLB Add to Enquiry Add Remove Remove Body Colour BLACK Mass 0.26

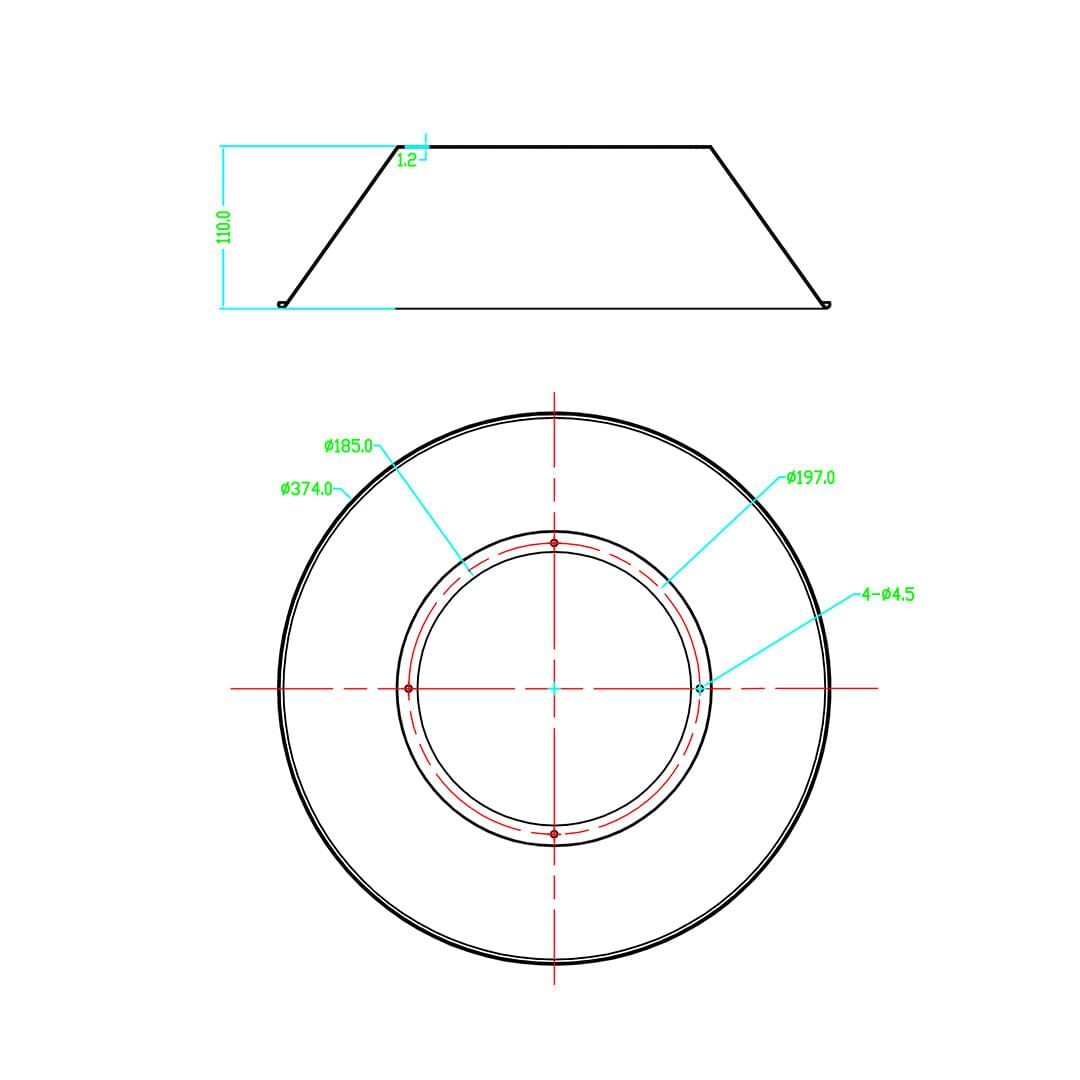

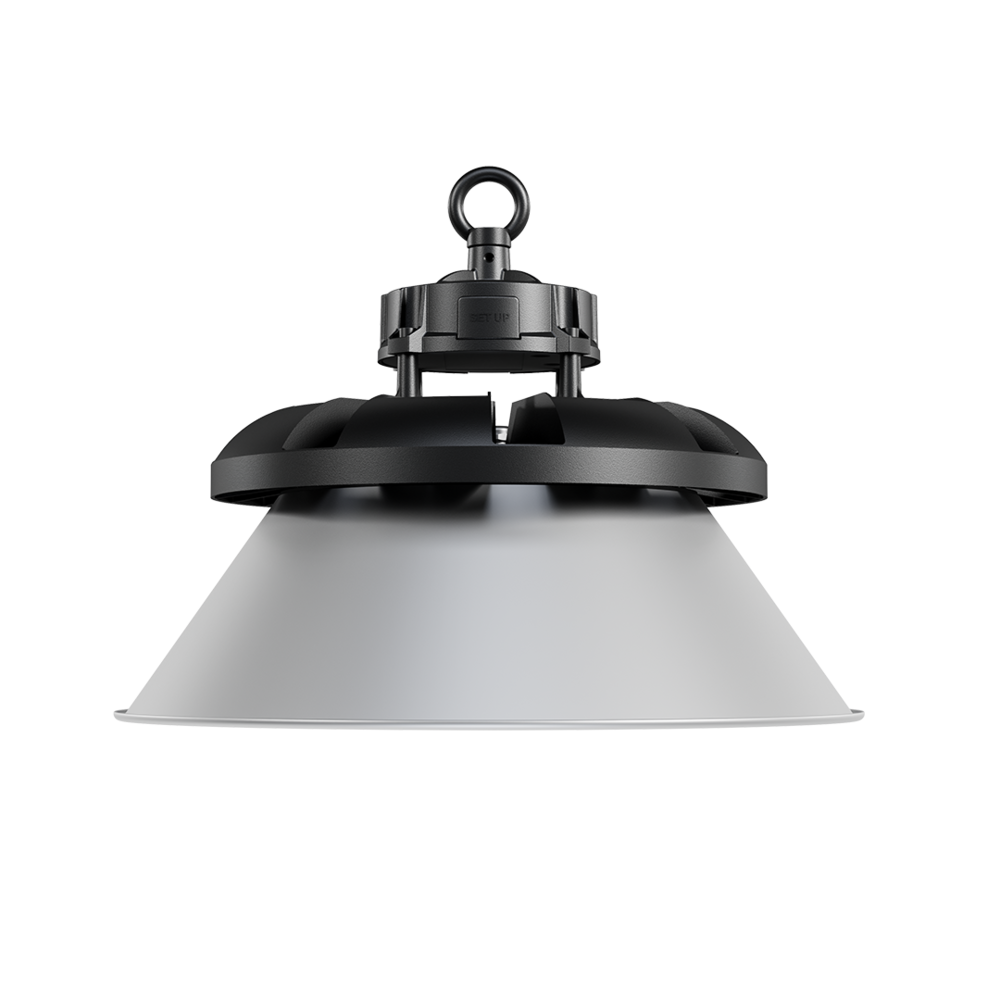

      		Model No. SHB23SE/PMR Add to Enquiry Add Remove Remove Body Colour SILVER Diameter 500 Dim 236(H) Mass 0.28

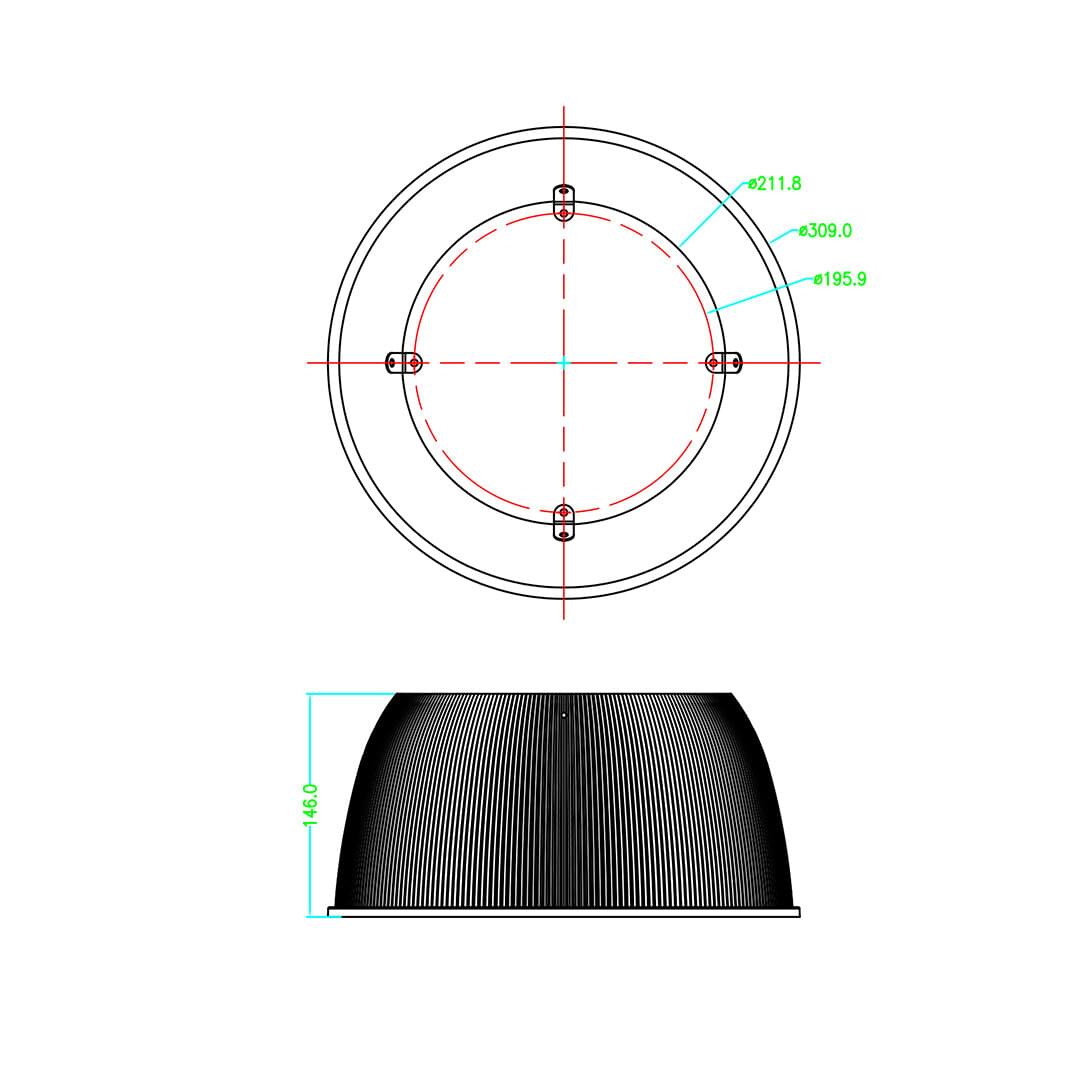

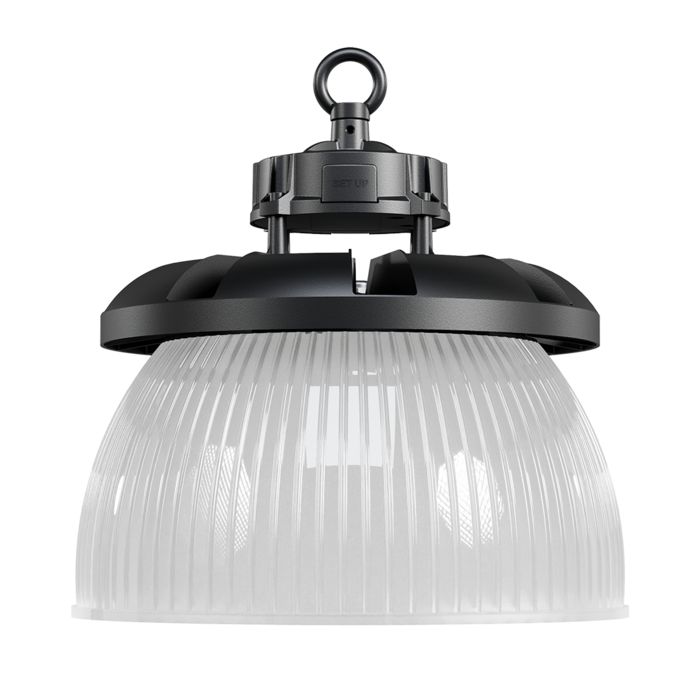

      		Model No. SHB23SE/PPR Add to Enquiry Add Remove Remove Body Colour CLEAR PC Diameter 480 Dim 250(H) Mass 0.4

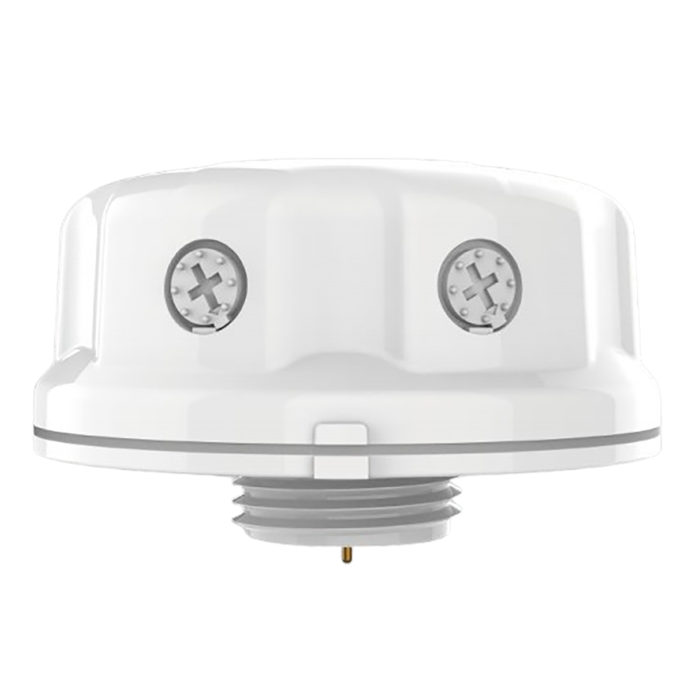

      		Model No. SHB2X/CS Add to Enquiry Add Remove Remove Body Colour WHITE Mass 0.04
      		Model No. LF-SAD010B Add to Enquiry Add Remove Remove Body Colour DALI SIGNAL CONVERTER Mass 0.06

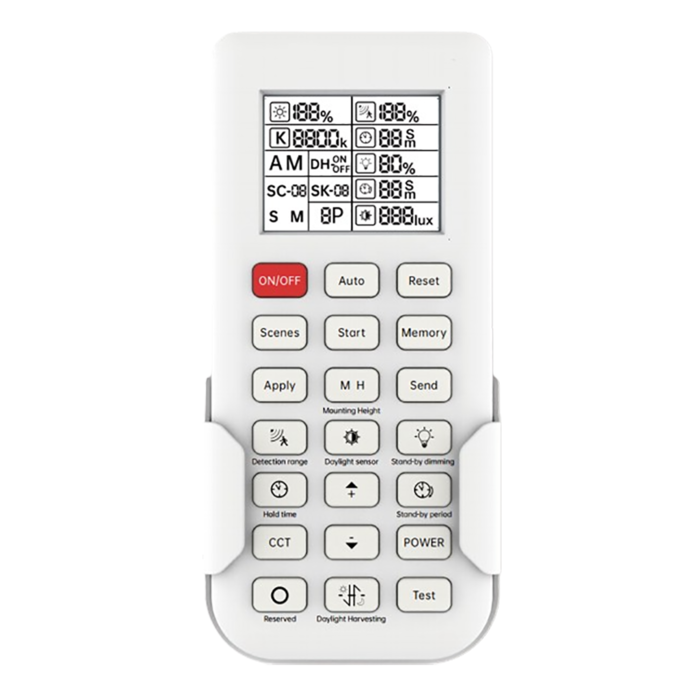

      		Model No. SHB2XS/RC Add to Enquiry Add Remove Remove Body Colour WHITE Mass 0.14

      NOTE: Lumens shown are at maximum power selection - 150TC2 (90) 17300/18000/17800lm, (120) 22300, 24000, 22800lm, (150) 27500, 30000, 28300lm - 200TC2 (120) 23000, 24000, 23800lm (160) 30000, 32000, 30600lm (200) 36000, 40000, 37200lm

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
