LEEMAN MINI S9319 1.5W
LED 1.5 watt recessed MINI square profile and square cut-out wall luminaire
Application
Residential stairs, walkways and commercial features
Design Specifications
Durable aluminium body profile
White powder coat finish or anodised silver
High efficiency SMD optics, CCT 3000K, beam distribution 86°
- Frosted glass diffuser
Suitable drivers - PLUTO EGL12V/6W, PLUTO 15DV, 30DV, 50DV
12V AC or DC driver required, suitable drivers - PLUTO EGL12V/6W PLUTO 15DV, 40DV, 60DV
Performance
- Dimmable - NO
-
-
-
WARM WHITE3000K
-
-
-

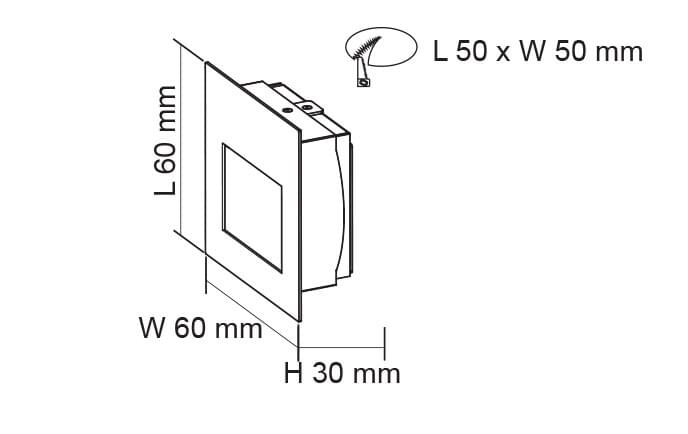

Dimensions - Wiring Diagrams
-
-

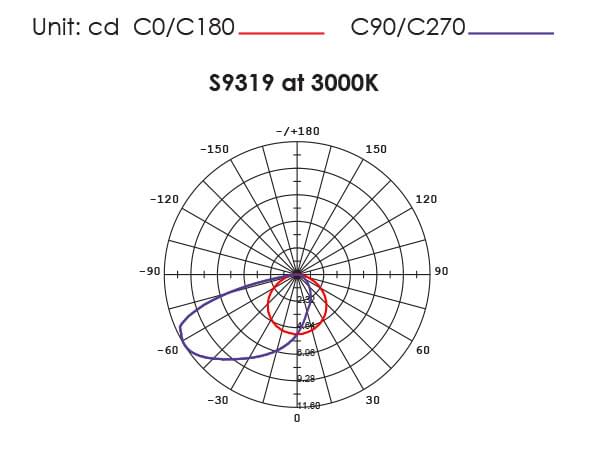

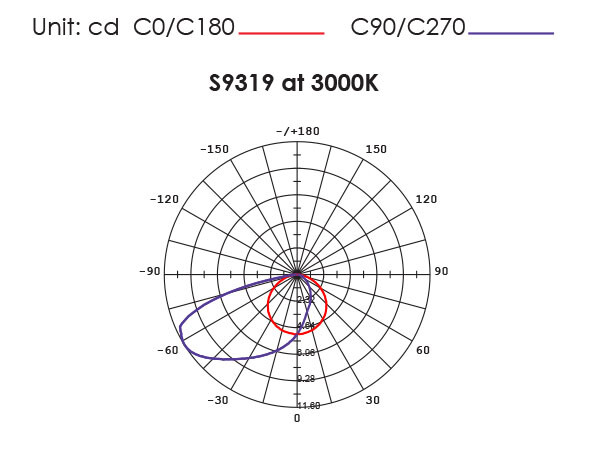

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Body Colour

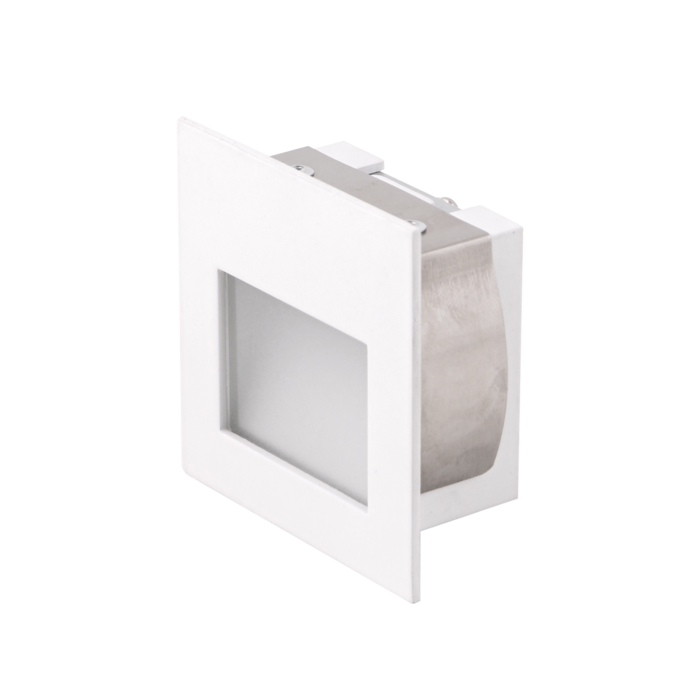

Model No. S9319 MW Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 1.5 Lumens 70 CCT 3000 CRI 80 Beam Angle 86 Dimmable NO Dim 60(L) x 60(W) x 30(H) Body Colour White

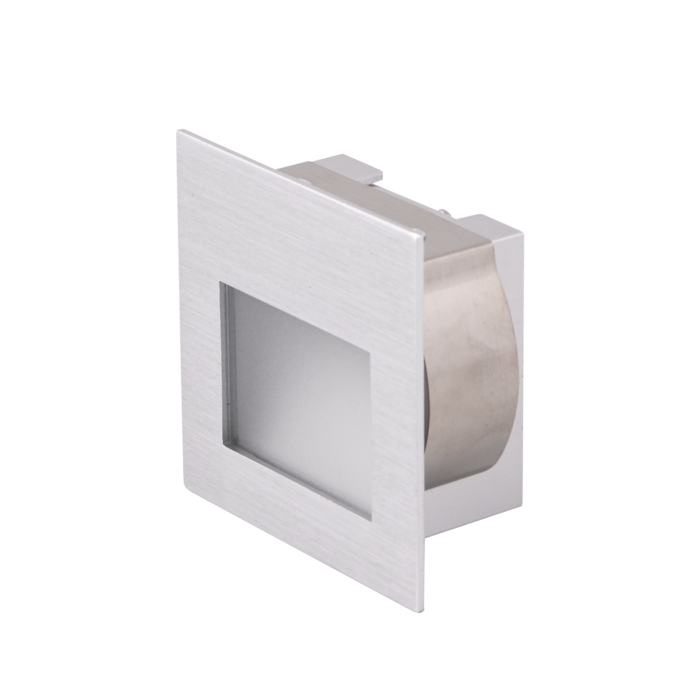

Model No. S9319 AS Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 1.5 Lumens 70 CCT 3000 CRI 80 Beam Angle 86 Dimmable NO Dim 60(L) x 60(W) x 30(H) Body Colour Anodised Silver
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
