LEEMAN S9318 1.5W
LED 1.5 watt recessed square profile wall luminaire
Application
Residential stairs, walkways and interior commercial features
Design Specifications
Durable aluminium body profile, cut-out 68 x 68mm

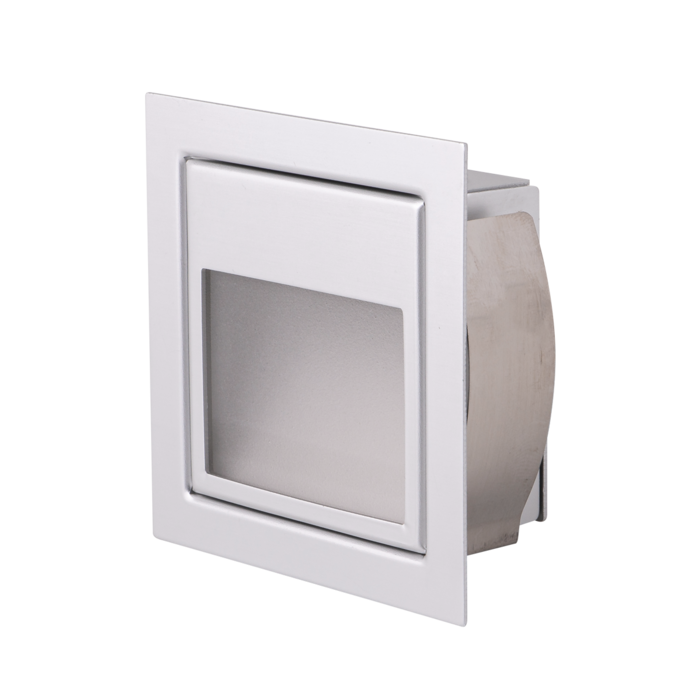

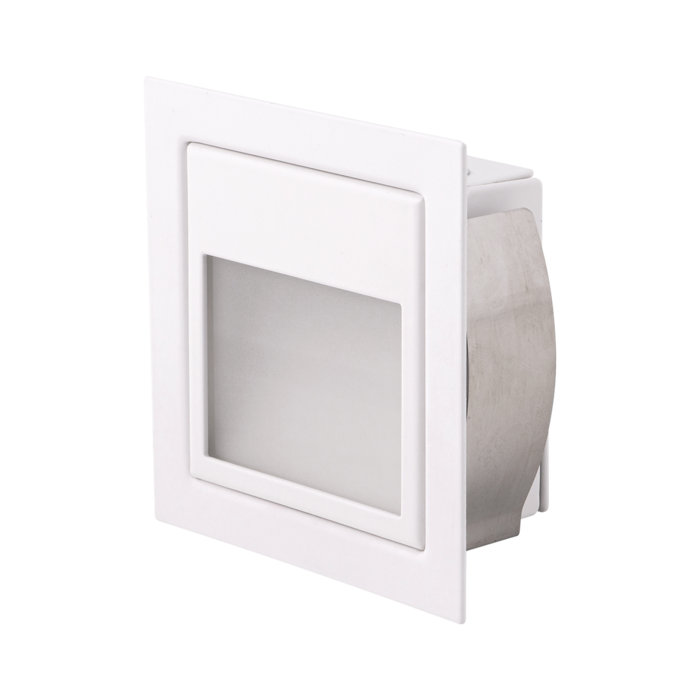

Matt white powder coat finish or anodized silver
High efficiency SMD optics, CCT 3000K, beam distribution 86°
- Frosted glass diffuser
12V AC or DC driver required, suitable drivers - PLUTO EGL12V/6W PLUTO 15DV, 40DV, 60DV
Optional pre-install wall box available
Performance
- Dimmable - NO
-
-
-
WARM WHITE3000K
-
-

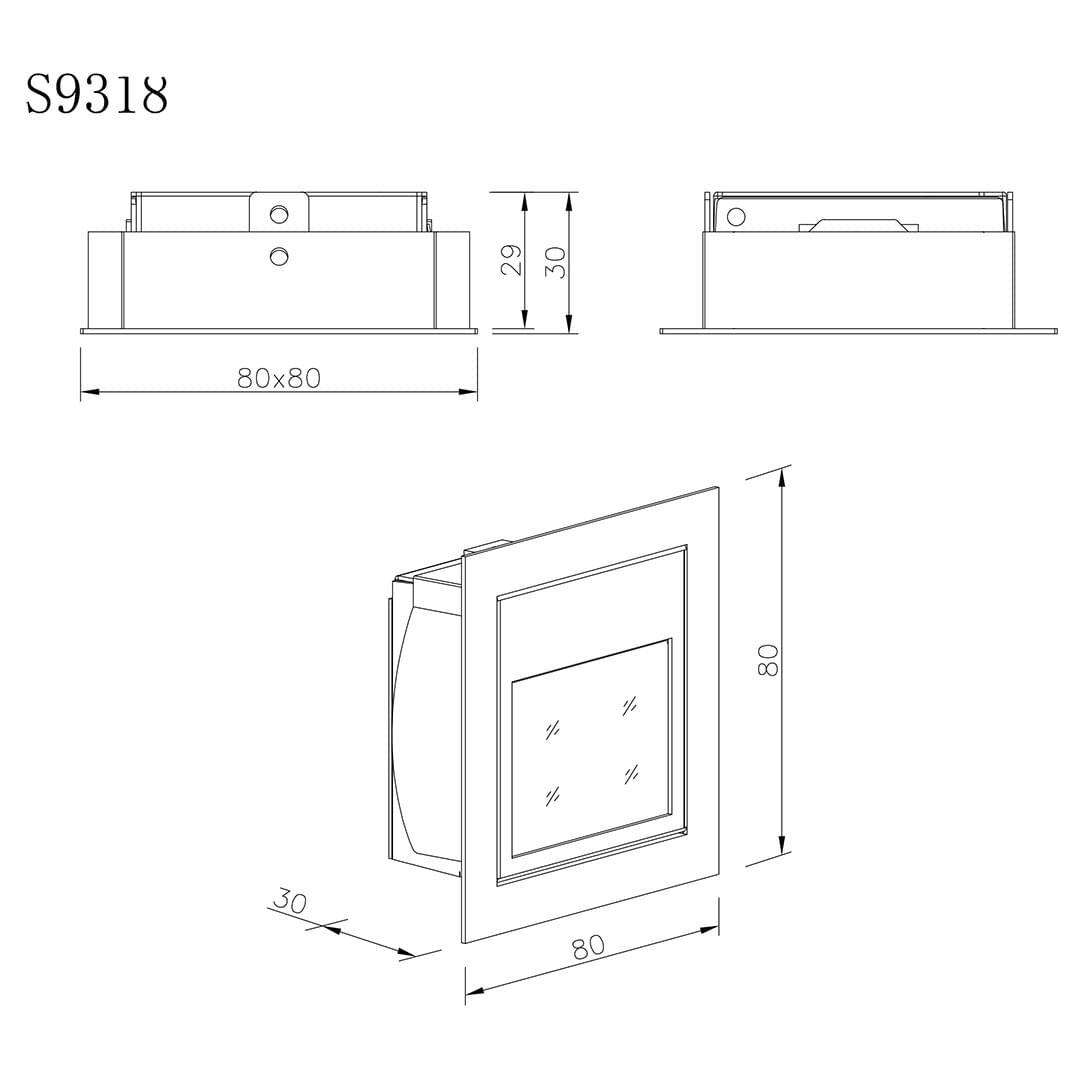

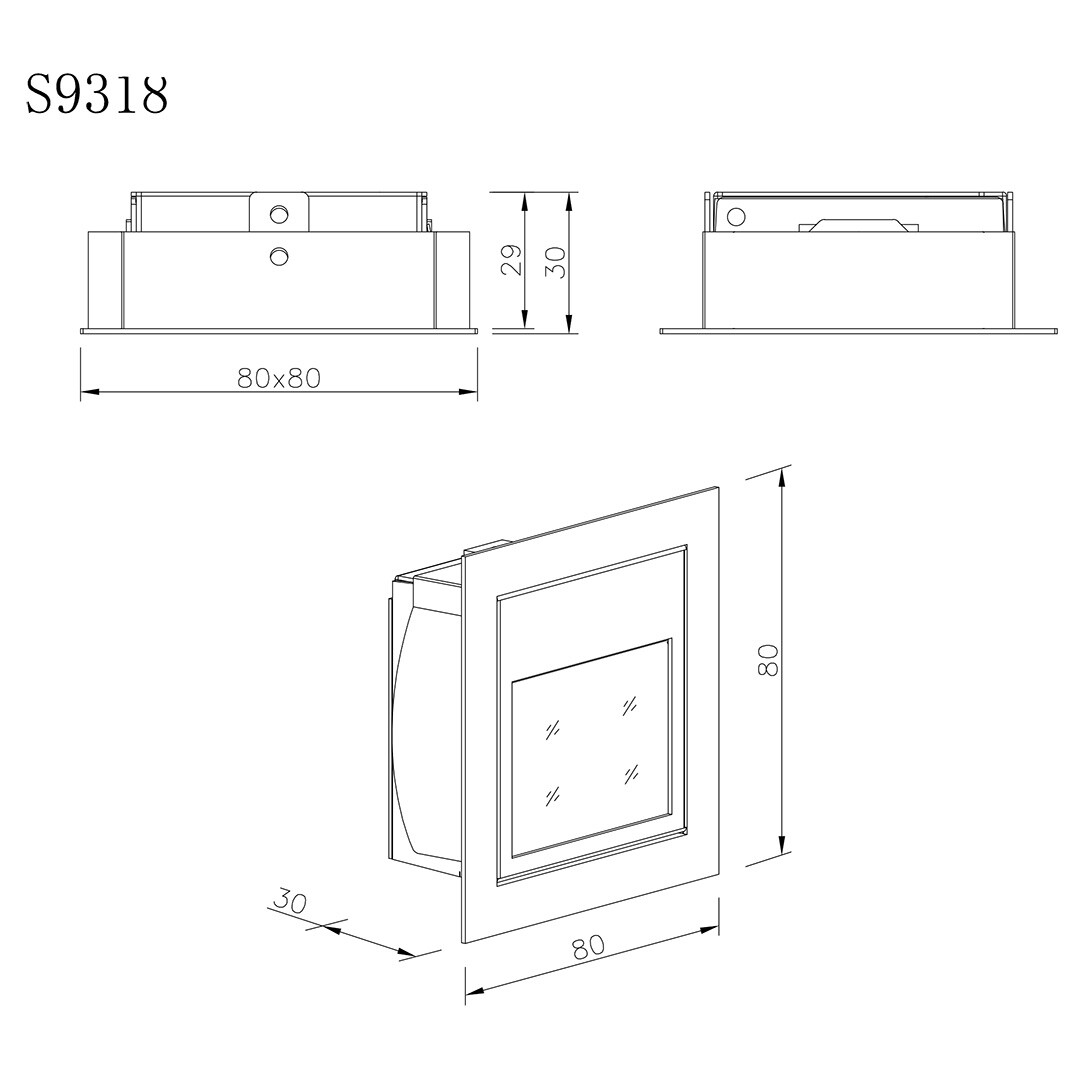

- Dimensions - Wiring Diagrams
-

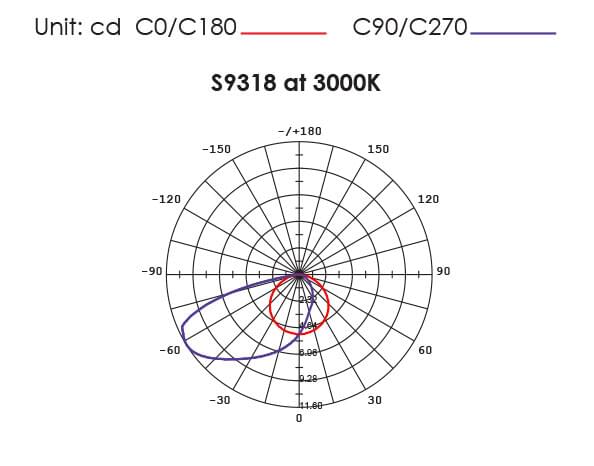

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Body Colour
Model No. S9318 AS Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 1.5 Lumens 70 CCT 3000 CRI 80 Beam Angle 86 Dimmable NO Dim 80(L) x 80(W) x 30(H) Body Colour Anodised Silver
Model No. S9318 MW Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 1.5 Lumens 70 CCT 3000 CRI 80 Beam Angle 86 Dimmable NO Dim 80(L) x 80(W) x 30(H) Body Colour White
