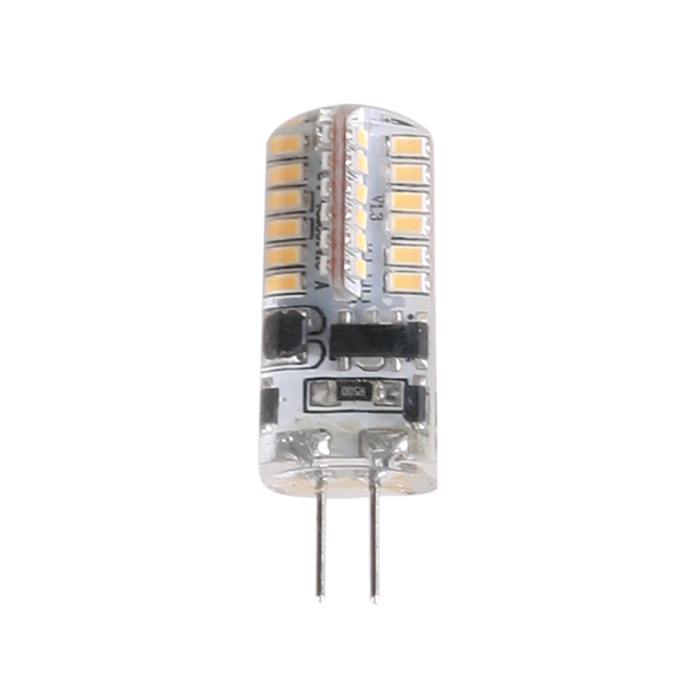

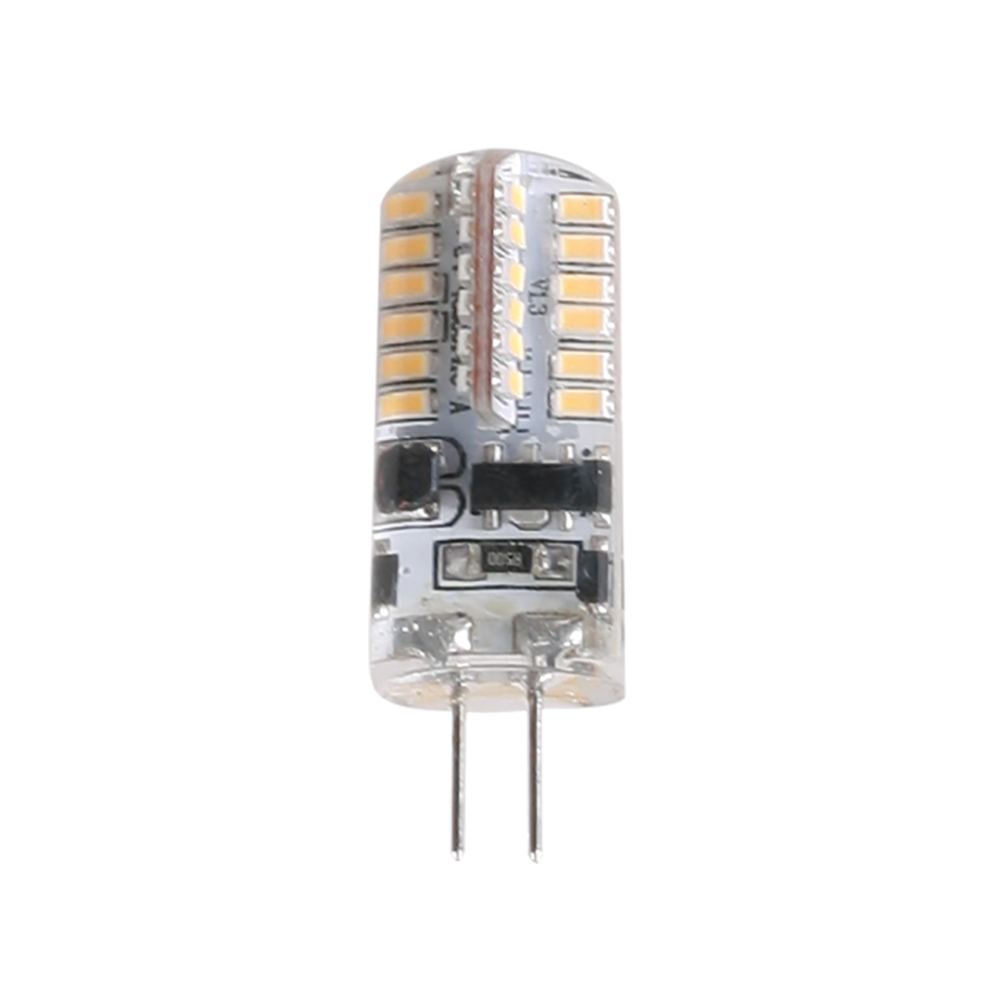

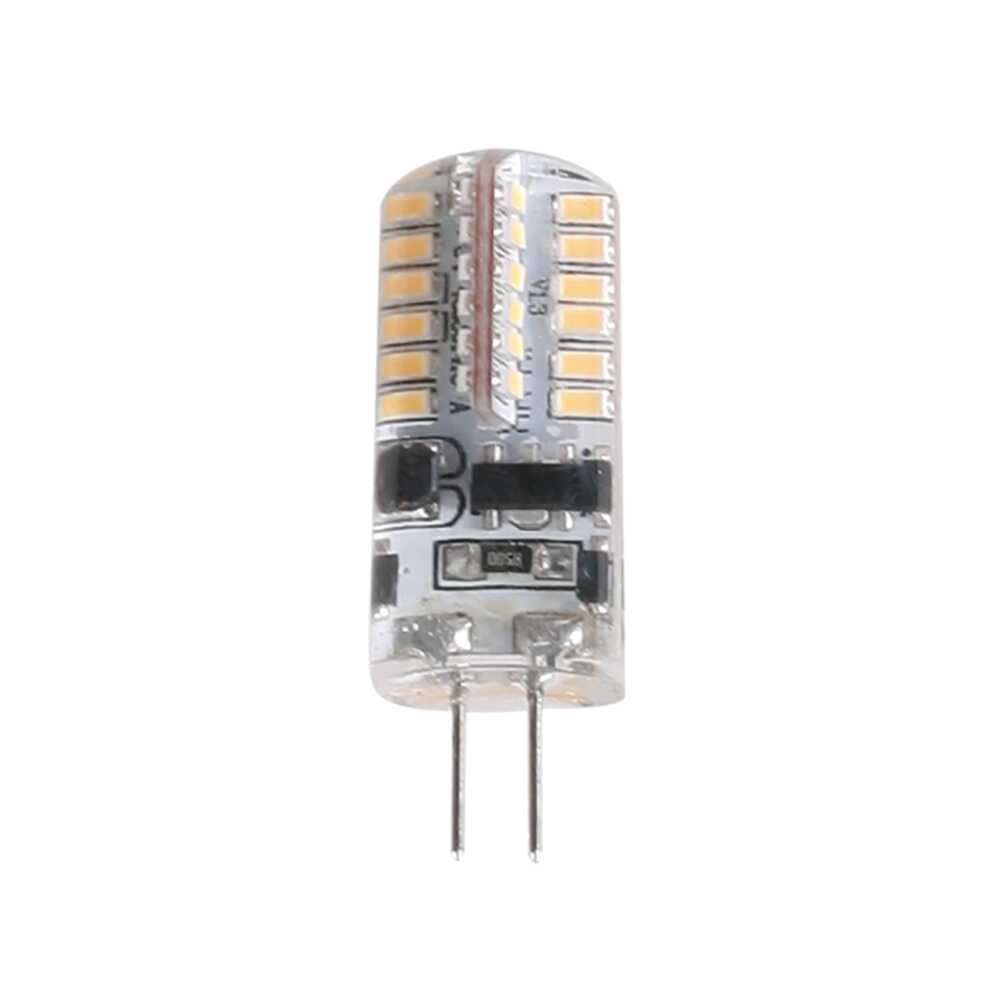

G4 SERIES G4L25 2.5W
2.5 watt LED G4 lamp
Application
Energy efficient LED lamp solutions, designed for G4 base luminaires
Design Specifications
- Transparent silicone body
- 12V AC or DC driver required
High efficiency LED optics
CCT choice of 3000K or 6000K
Beam distribution 270°
Compatible with most electronic transformers, suits most G4 lamp fittings
Performance
- Dimmable - NO
-
-
-
-
WARM WHITE3000K
-
DAYLIGHT6000K
-
-

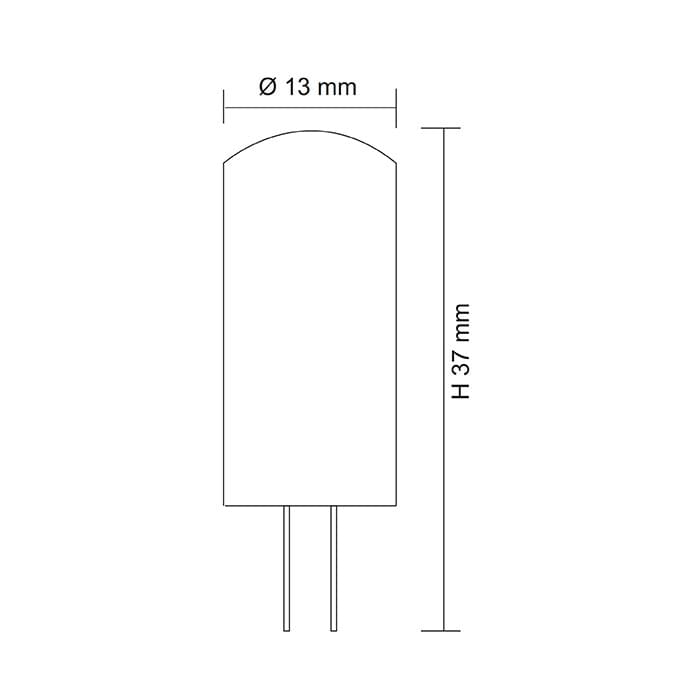

- Dimensions - Wiring Diagrams
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Height Base Type
Model No. G4L25WW Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 2.5 Lumens 160 CCT 3000 CRI 80 Beam Angle 270 Dimmable NO Diameter 13 Height 37 Base Type G4
Model No. G4L25DL Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 2.5 Lumens 180 CCT 6000 CRI 80 Beam Angle 270 Dimmable NO Diameter 13 Height 37 Base Type G4
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
