LGS10 OPAL - 10W
10 watt LED GLS style opal lamps
Application
Energy efficient LED lamp solutionsDesign Specifications
Opal polycarbonate diffuser, beam distribution 200°
Poly covered aluminium body, B22 and E27 lamp bases
High efficiency LED optics, CRI > 80
Integral non-dimmable LED driver
CCT choice of 3000K / 4000K / 6000K
1:1 size to traditional GLS lamp,
suits most GLS lamp fittings
Performance
- Dimmable - NO
WARM WHITE3000K
COOL WHITE4000K
DAYLIGHT6000K

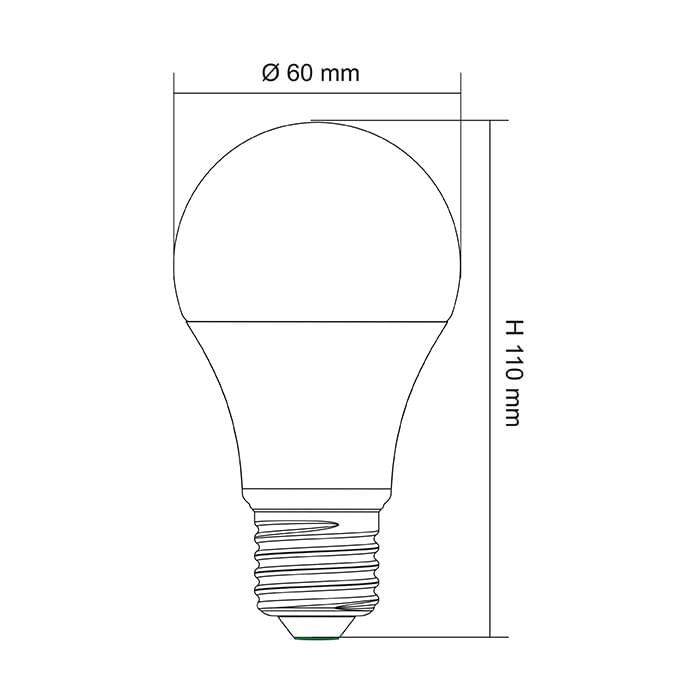

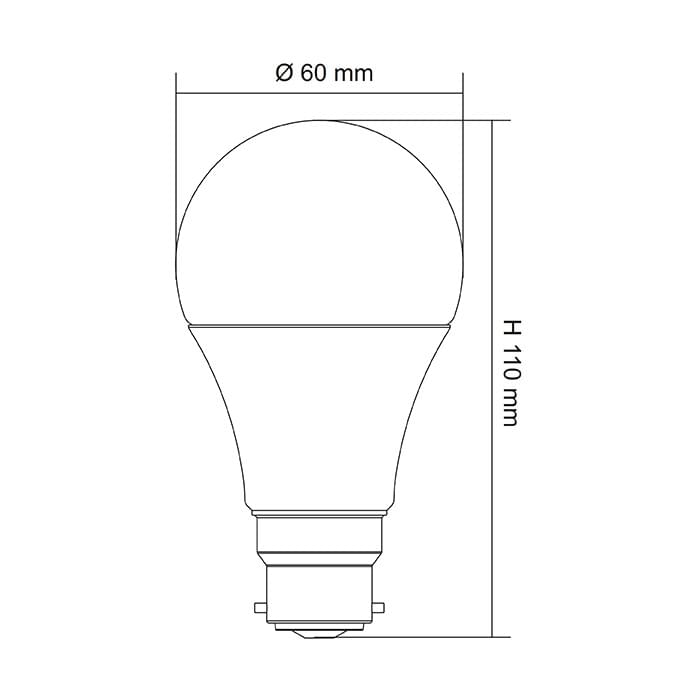

- Dimensions - Wiring Diagrams
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Length Base Type
Model No. LGS10/830B22 Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 950 CCT 3000 CRI 80 Beam Angle 240 Dimmable NO Diameter 60 Length 110 Base Type B22
Model No. LGS10/840B22 Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 1000 CCT 4000 CRI 80 Beam Angle 240 Dimmable NO Diameter 60 Length 110 Base Type B22
Model No. LGS10/860B22 Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 1050 CCT 6000 CRI 80 Beam Angle 240 Dimmable NO Diameter 60 Length 110 Base Type B22
Model No. LGS10/830E27 Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 950 CCT 3000 CRI 80 Beam Angle 240 Dimmable NO Diameter 60 Length 110 Base Type E27
Model No. LGS10/840E27 Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 1000 CCT 4000 CRI 80 Beam Angle 240 Dimmable NO Diameter 60 Length 110 Base Type E27
Model No. LGS10/860E27 Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 1050 CCT 6000 CRI 80 Beam Angle 240 Dimmable NO Diameter 60 Length 110 Base Type E27
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
