• LED LAMPS

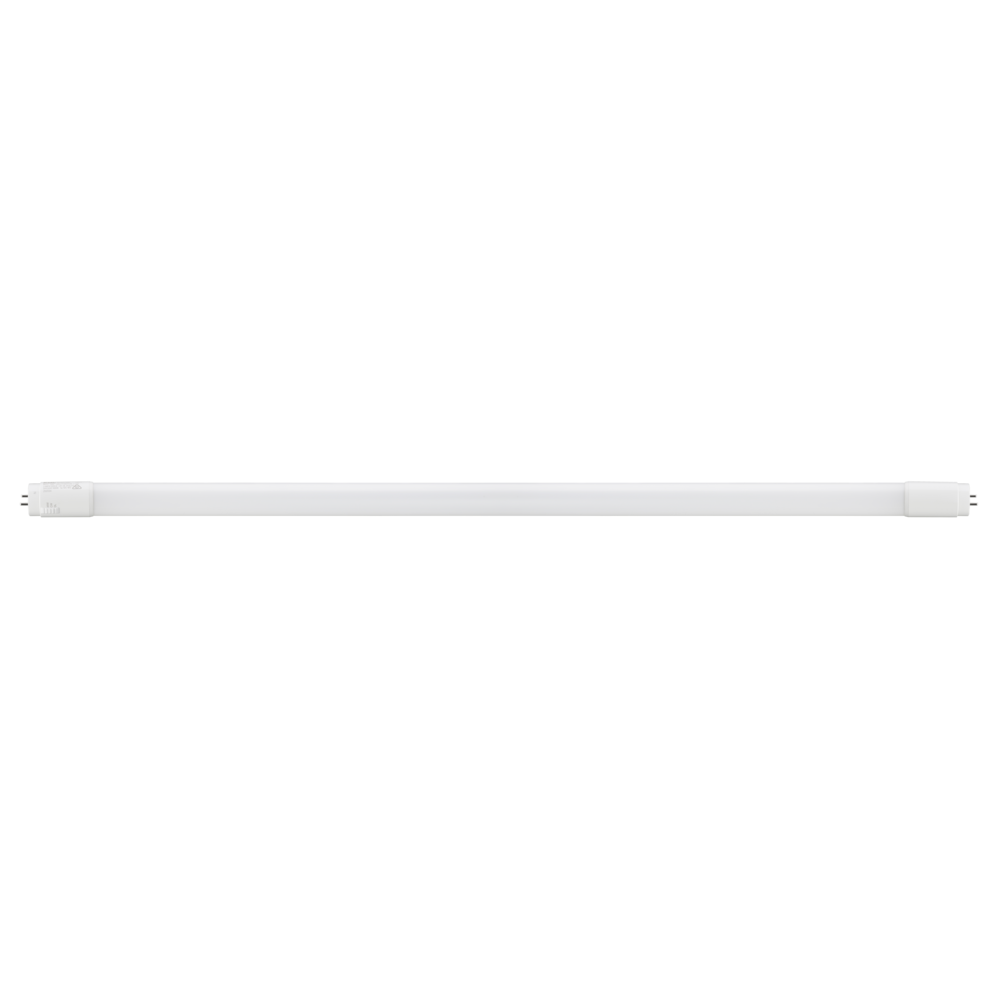

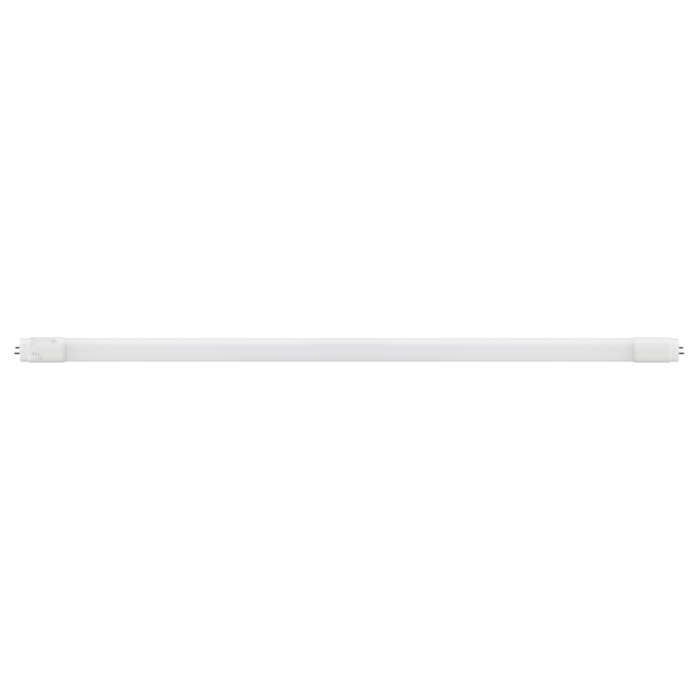

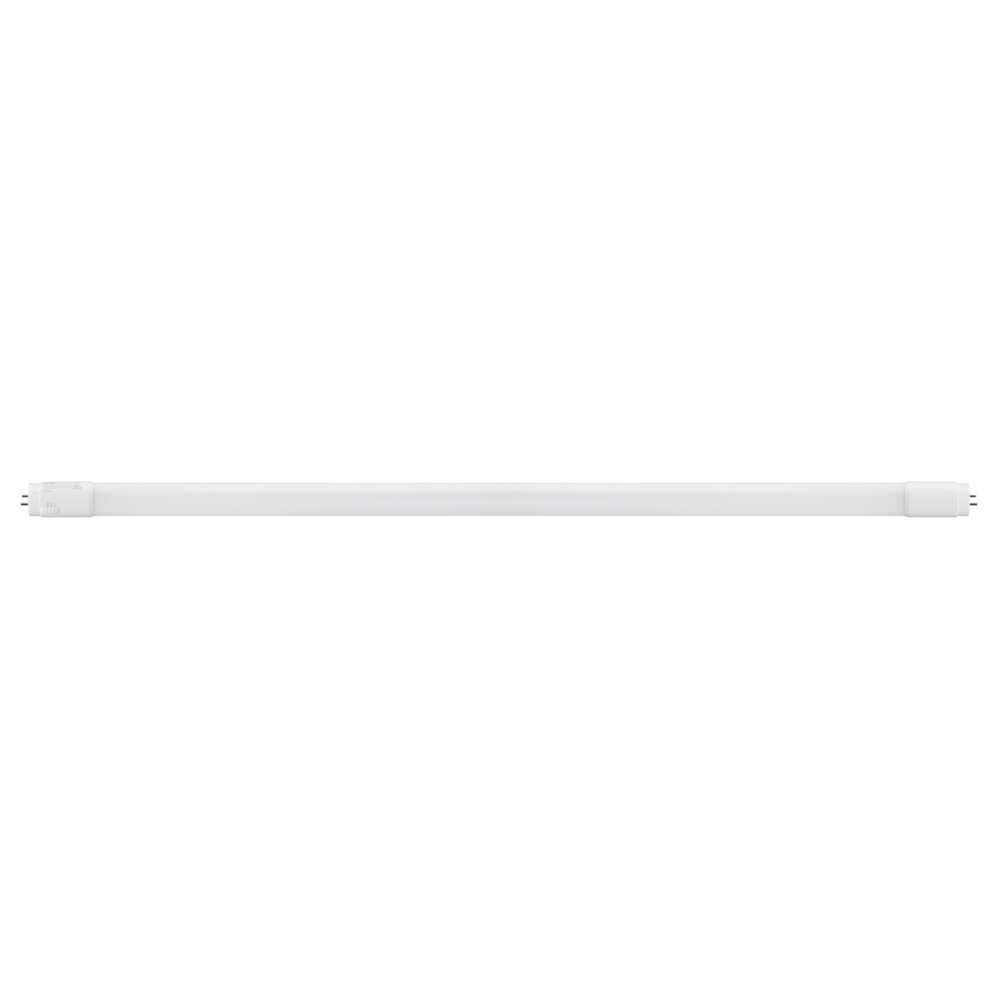

LED TUBE LT8 TC - 9/24W

LED shatter-proof tube, G13 base

Application

Energy efficient LED lamp solutions

Design Specifications

  • Fits new T8 LED fixtures or retrofit T8 fluorescent fixtures (Magnetic Ballast)

  • Traditional full glass shatter-proof poly coated body construction, G13 lamp base

  • High efficiency SMD LED chips, CRI >80, beam 320°

  • Integral non-dimmable LED driver, 9, 18 or 24 watt models

  • Colour temperature selectable 3000K / 4000K / 6000K

  • No flicker, instant start, Safety LED fuse included, double insulation

Performance

  • Dimmable - NO
LED TUBE LT8 TC
LED TUBE LT8 TC
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.LT8/60TC Input Voltage240 Power9 Lumens900/1100/1000 CCT3000/4000/6000 CRI80 Beam Angle320 Dimmable NO Dim589(L) Base TypeG13 Add to Enquiry Add Remove Remove
    Model No.LT8/120TC Input Voltage240 Power18 Lumens1800/2200/2000 CCT3000/4000/6000 CRI80 Beam Angle320 Dimmable NO Dim1198(L) Base TypeG13 Add to Enquiry Add Remove Remove
    Model No.LT8/150TC Input Voltage240 Power24 Lumens2300/2500/2400 CCT3000/4000/6000 CRI80 Beam Angle320 Dimmable NO Dim1500(L) Base TypeG13 Add to Enquiry Add Remove Remove

    Warning: The luminaire that these LED tubes are installed in may need to be converted in accordance with AS/NZS60598.2.1:2014 by a suitably qualified person. In all instances any electronic components (i.e. driver, electronic ballast, capacitor) must be removed from the circuit. Refer installation instructions for more details, in particular the orientation of the lamp ACTIVE supply.

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
