LT SERIES LT407TC - 7W

7 watt LED SMD tubular lamps, with selectable colour temperature

Application

Energy efficient LED lamp solutions

Design Specifications

  • Opal polycarbonate diffuser
  • Poly covered aluminium body

  • High efficiency SMD LED chips, beam 200 degree

  • Integral non-dimmable LED driver

  • Selectable colour temperature 3000K / 4000K / 6000K, CRI > 80

  • Suits most CFL lamp fitting, lamp bases B22, E27, B15, E14, double insulation

Performance

  • Dimmable - NO
LT SERIES LT407TC
LT SERIES LT407TC
LT SERIES LT407TC
LT SERIES LT407TC
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

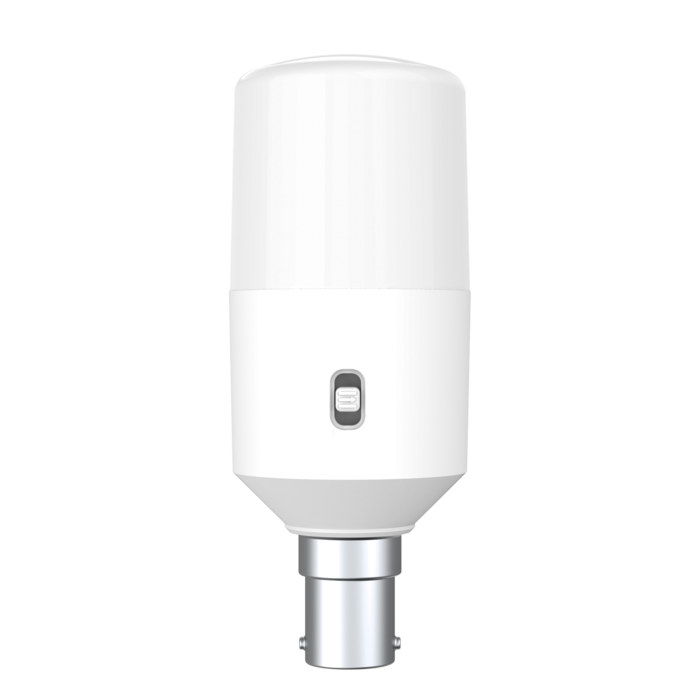

    Model No.LT407TC/B15 Input Voltage240 Power7 Lumens650/700/650 CCT3000/4000/6000 CRI80 Beam Angle200 Dimmable NO Dim98(L) x 40(W) Base TypeB15 Add to Enquiry Add Remove Remove

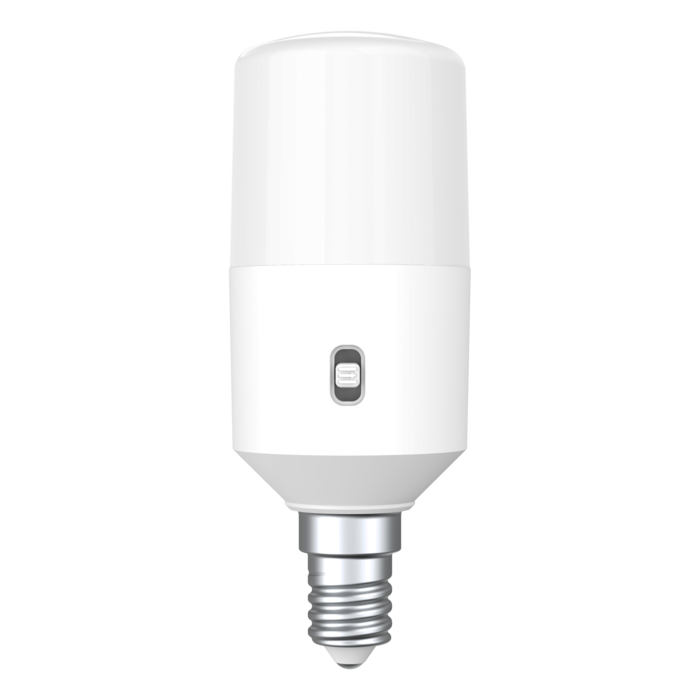

    Model No.LT407TC/E14 Input Voltage240 Power7 Lumens650/700/650 CCT3000/4000/6000 CRI80 Beam Angle200 Dimmable NO Dim101(L) x 40(W) Base TypeE14 Add to Enquiry Add Remove Remove

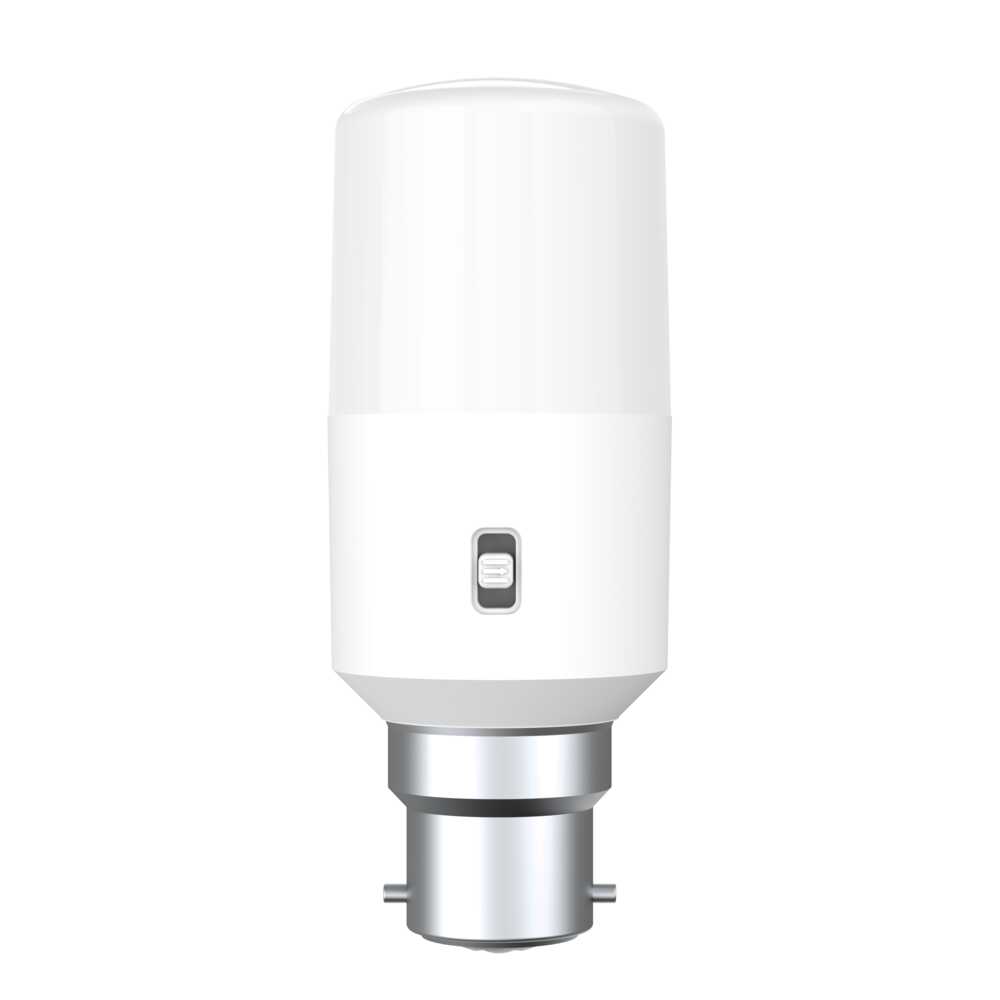

    Model No.LT407TC/B22 Input Voltage240 Power7 Lumens650/700/650 CCT3000/4000/6000 CRI80 Beam Angle200 Dimmable NO Dim101(L) x 40(W) Base TypeB22 Add to Enquiry Add Remove Remove

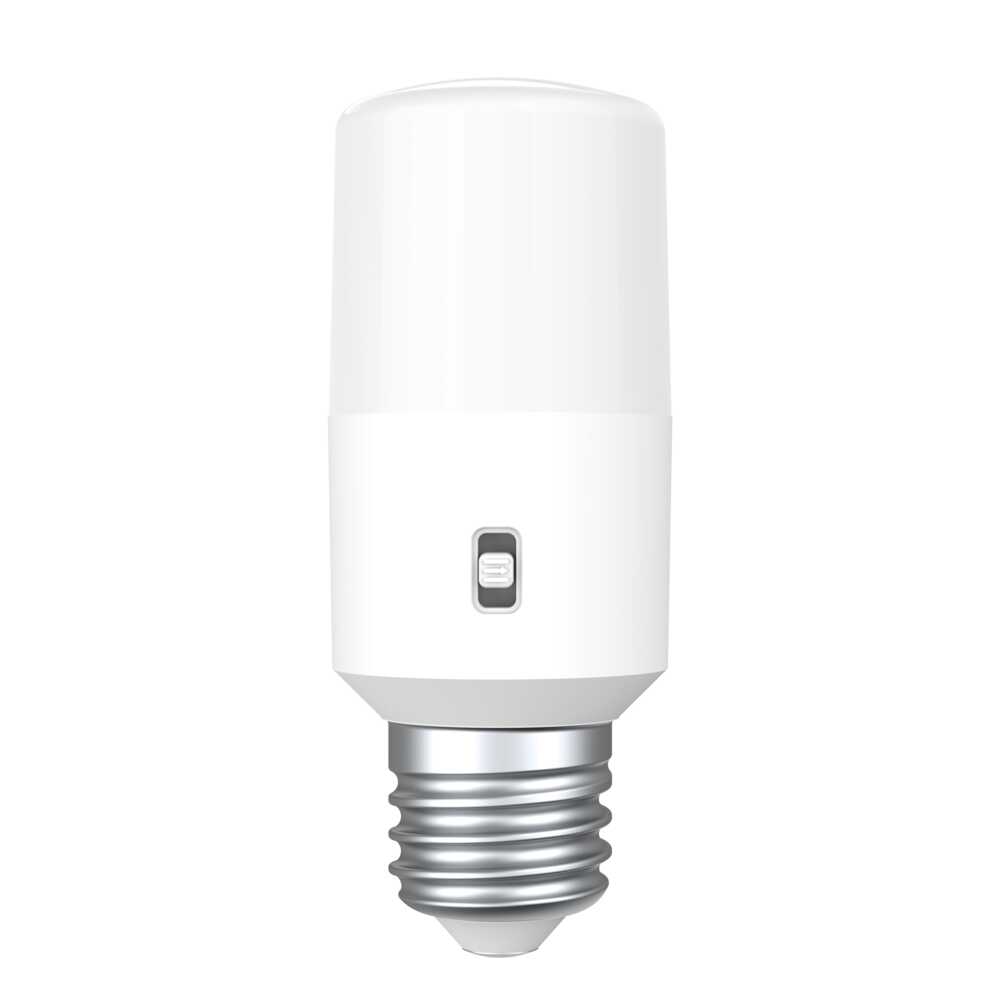

    Model No.LT407TC/E27 Input Voltage240 Power7 Lumens650/700/650 CCT3000/4000/6000 CRI80 Beam Angle200 Dimmable NO Dim102(L) x 40(W) Base TypeE27 Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
