• LED LAMPS

MR16CC7KIT DIMMABLE - 7W

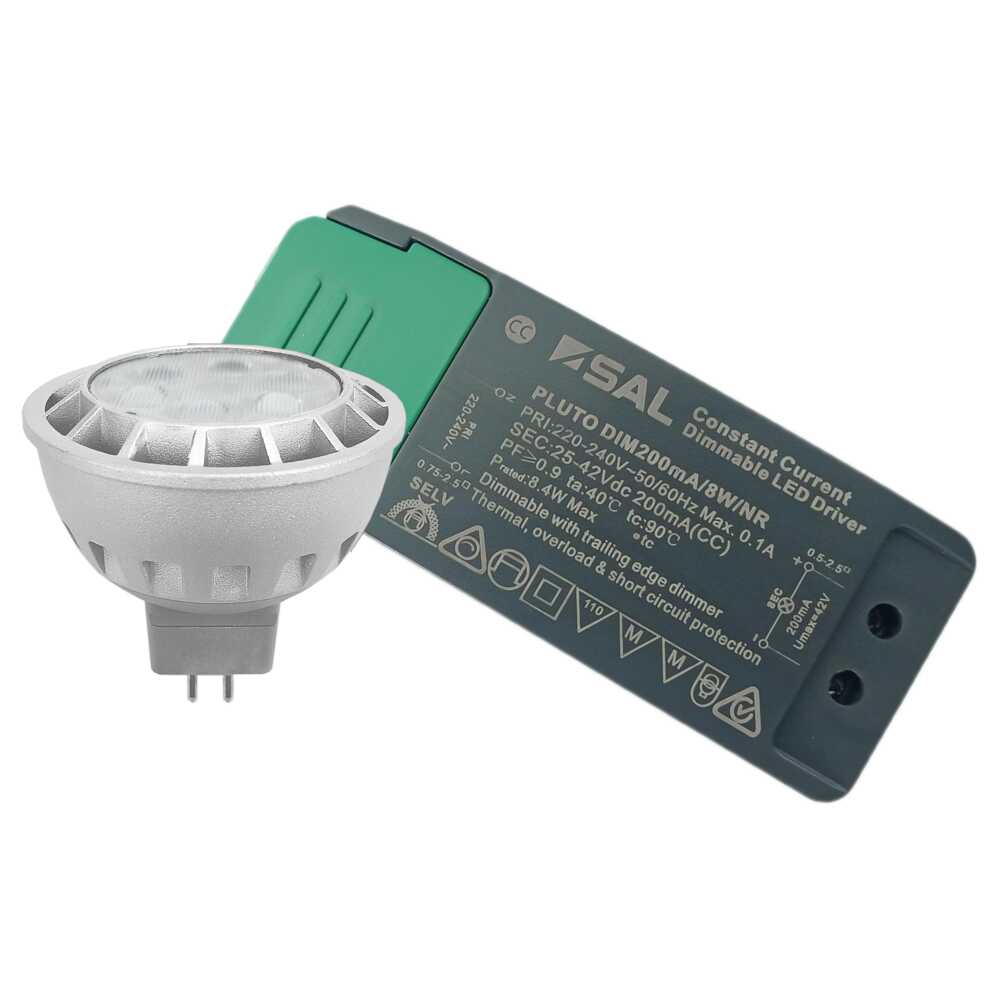

Dimmable 7 watt - MR16 profile shape LED lamp complete with driver, flex and plug

Application

Ideal for any residential interior space

Design Specifications

  • Shockproof frosted polycarbonate lens

  • Die-cast aluminium lamp body

  • High efficiency LED optics, CRI >80

  • Kit includes lamp, constant current (trailing edge) dimmable driver, flex and plug. Mix and match with your choice of downlight profile, ordered separately. Replacement lamp is only - SAL CC7KIT/LAMP.

  • Beam distribution 60°, CCT 3000K

  • Lamp base GU5.3, mandatory replacement lamp SAL CC7KIT/LAMP

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing Edge
  • WARM WHITE3000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Length Height Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.MR16CC7KIT/WW Input Voltage240 Power7 Lumens650 CCT3000 CRI80 Beam Angle60 Dimmable YES Diameter50 Length100 Height23 Base TypeGU5.3 Add to Enquiry Add Remove Remove
    Model No.CC7KIT/LAMP Input Voltage Power7 Lumens650 CCT3000 CRI80 Beam Angle60 Dimmable YES Diameter50 Length Height Base TypeGU5.3 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
