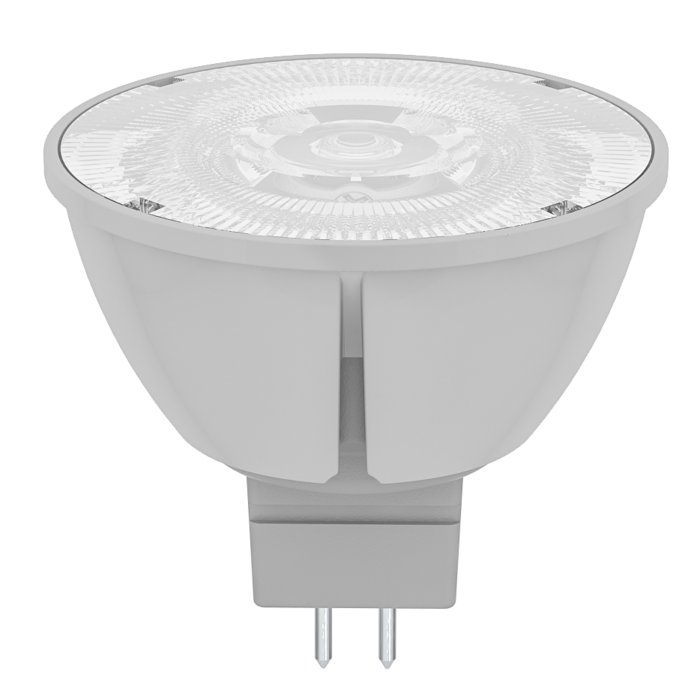

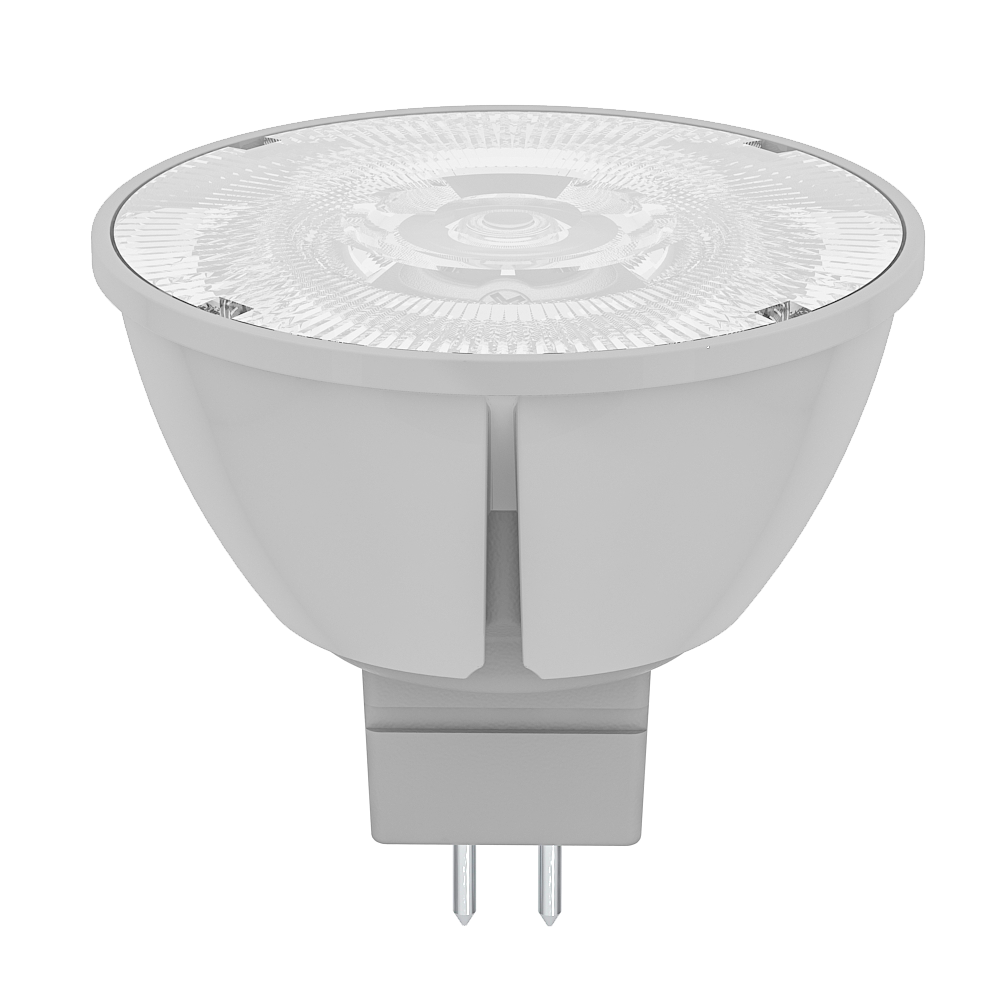

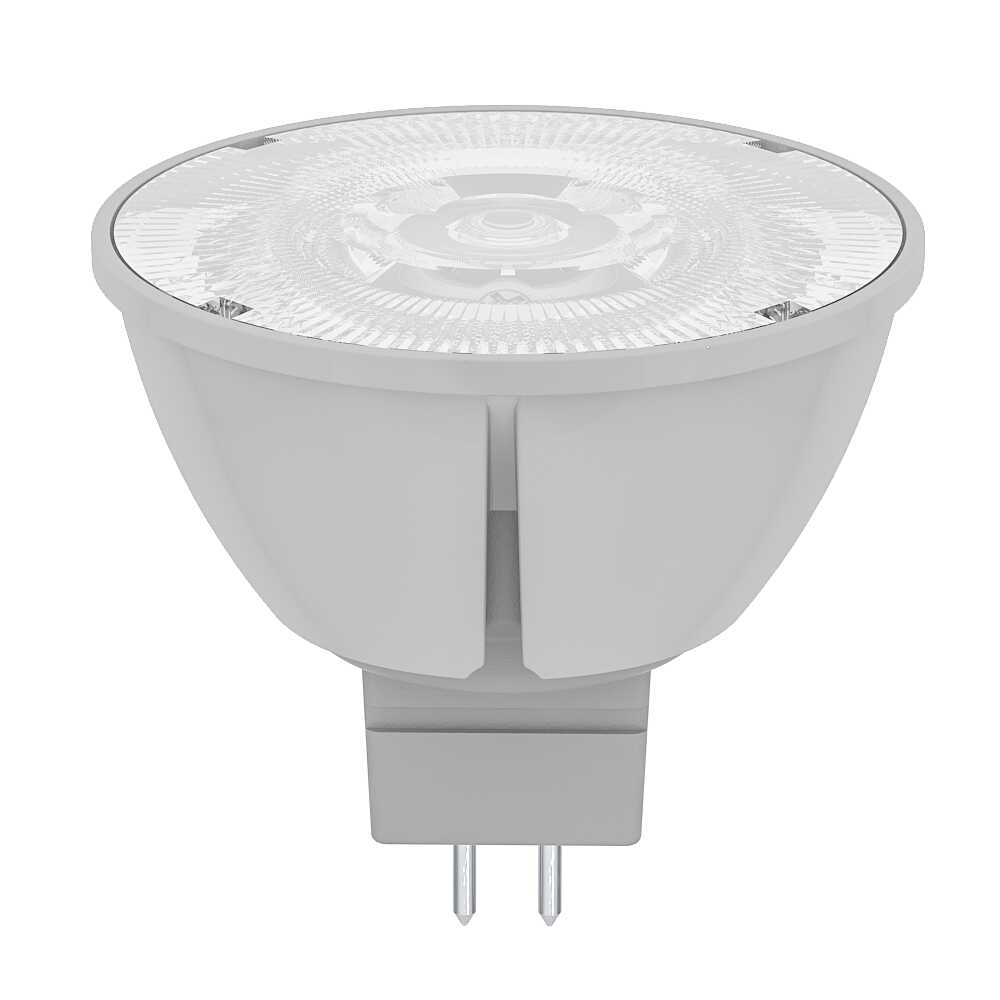

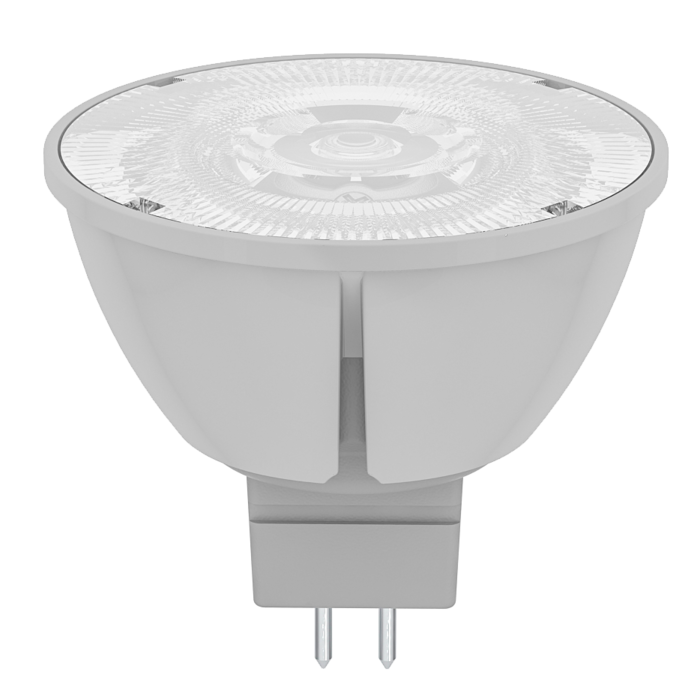

MR16DIM DIMMABLE 9W
Dimmable 9 watt - MR16 profile LED 12V AC-DC
Application
Ideal for any residential interior space
Design Specifications
Shockproof frosted polycarbonate lens
Die cast grey aluminium body
High efficiency LED optics, CRI>80
Dimmable only with SAL MINI60 driver
Beam distribution 60°, CCT choice of 3000K / 4000K / 5700K
Lamp base GU5.3
Performance
- Dimmable - YES
- Dimmer Type - SAL MINI60 only
-
-
-
-
-
-
WARM WHITE3000K
-
COOL WHITE4000K
-
DAYLIGHT5700K
-
-
-
Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Base Type
Model No. MR16DIM9WW Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 9 Lumens 550 CCT 3000 CRI 80 Beam Angle 60 Dimmable YES Base Type GU5.3
Model No. MR16DIM9CW Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 9 Lumens 550 CCT 4000 CRI 80 Beam Angle 60 Dimmable YES Base Type GU5.3
Model No. MR16DIM9DL Add to Enquiry Add Remove Remove Input Voltage 12 Input Voltage 12 Power 9 Lumens 550 CCT 5700 CRI 80 Beam Angle 60 Dimmable YES Base Type GU5.3
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
