• LED LAMPS

LED MR16 TC - 4/6W

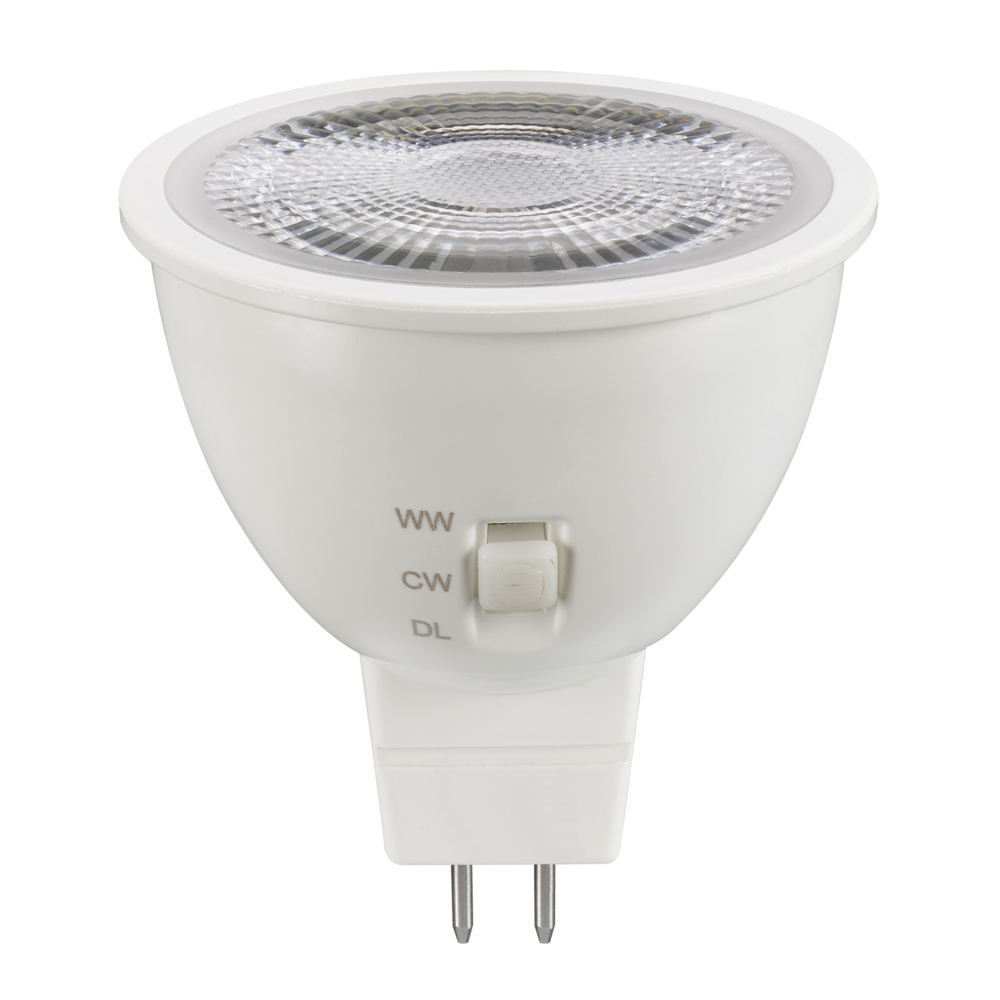

Non-dimmable 4 watt / 6 watt - MR 16 profile shape LED, with selectable colour temperature

Application

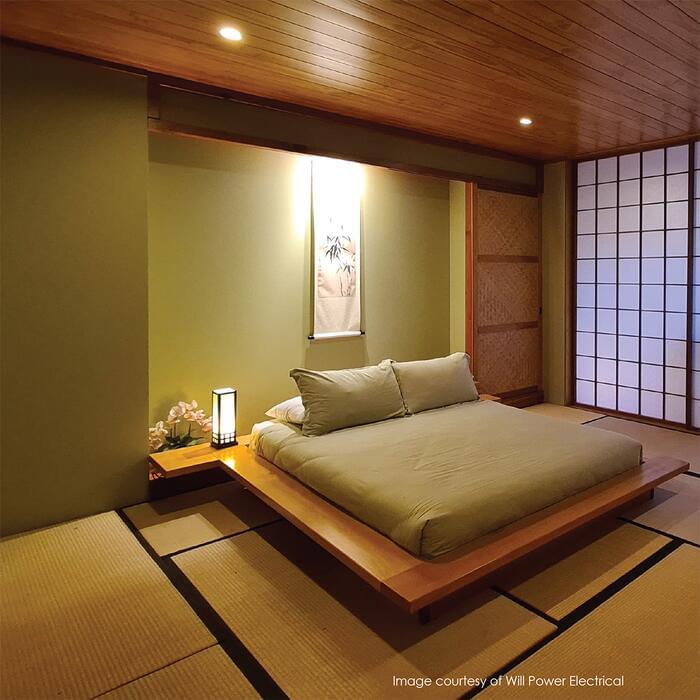

Ideal for any residential interior space

Design Specifications

  • Shockproof frosted polycarbonate lens

  • Die-cast aluminium body

  • High efficiency SMD LED chips

  • Recommended driver is the SAL MINl60

  • Beam distribution 38 degree

  • Selectable colour temperature 3000K/4000K/6000K, lamp base GU5.3

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

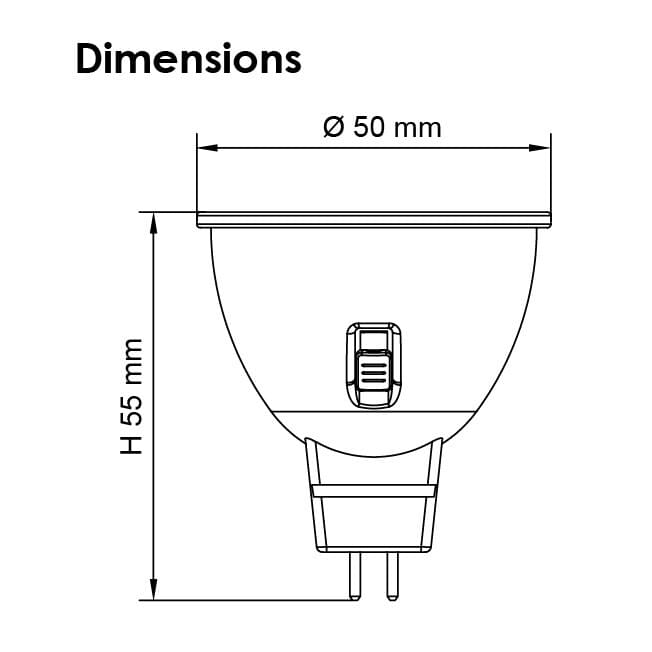

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click

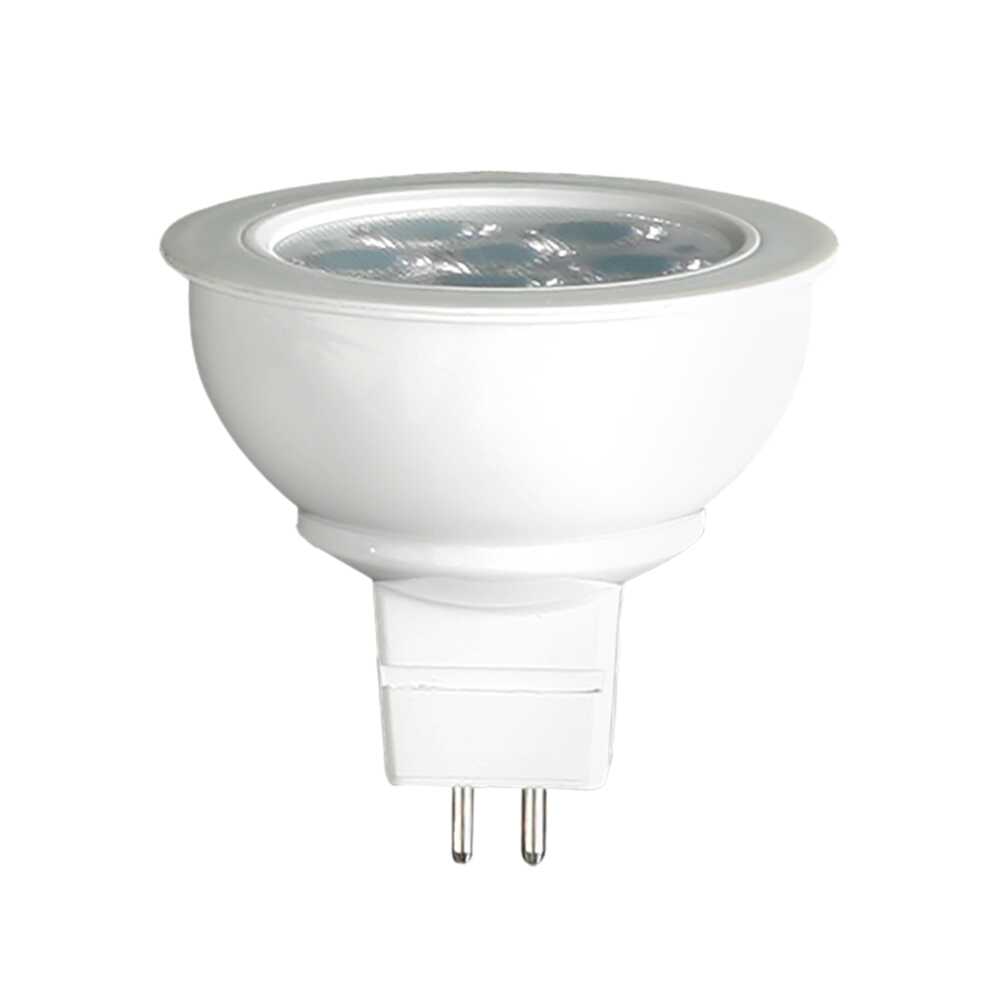

    Model No.MR16/5W/TC Input Voltage12 Input Voltage12 Power4 Lumens360/400/380 CCT3000/4000/6000 CRI80 Beam Angle38 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove
    Model No.MR16/7W/TC Input Voltage12 Input Voltage12 Power6 Lumens500/600/550 CCT3000/4000/6000 CRI80 Beam Angle38 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.
