R SERIES DIMMABLE LR63/D - 7W
7 watt LED directional filament and dimmable reflector lamps
Application
Perfect for residential spaces
Design Specifications
120° beam distribution
Mirror reflector, glass body profile
High efficiency filament LED
Integral dimmable LED driver
CCT choice of 2700K / 6000K, CRI > 80
1:1 size to traditional R lamp, suits most R lamp fittings
Performance
- Dimmable - YES
- Dimmer Type - Trailing Edge
WARM WHITE2700K
DAYLIGHT6000K
-

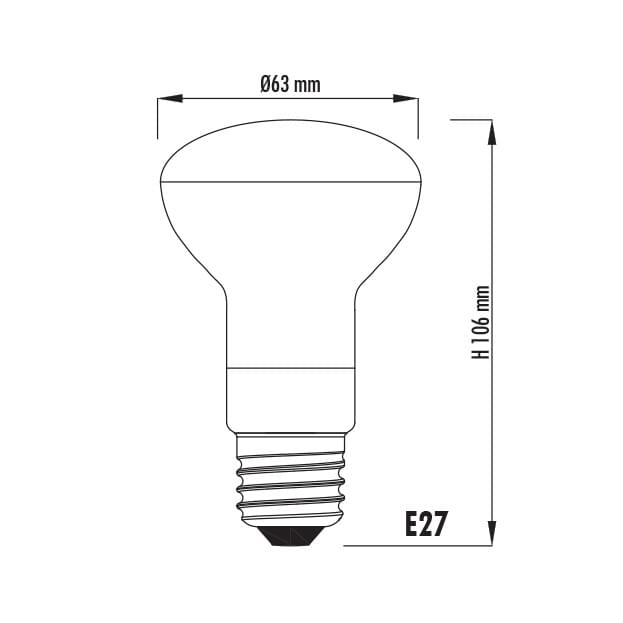

Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Height Base Type
Model No. LR63WW/D Add to Enquiry Add Remove Remove Input Voltage 240 Power 7 Lumens 600 CCT 2700 CRI 80 Beam Angle 120 Dimmable YES Diameter 63 Height 106 Base Type E27
Model No. LR63DL/D Add to Enquiry Add Remove Remove Input Voltage 240 Power 7 Lumens 800 CCT 6000 CRI 80 Beam Angle 120 Dimmable YES Diameter 63 Height 106 Base Type E27
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
