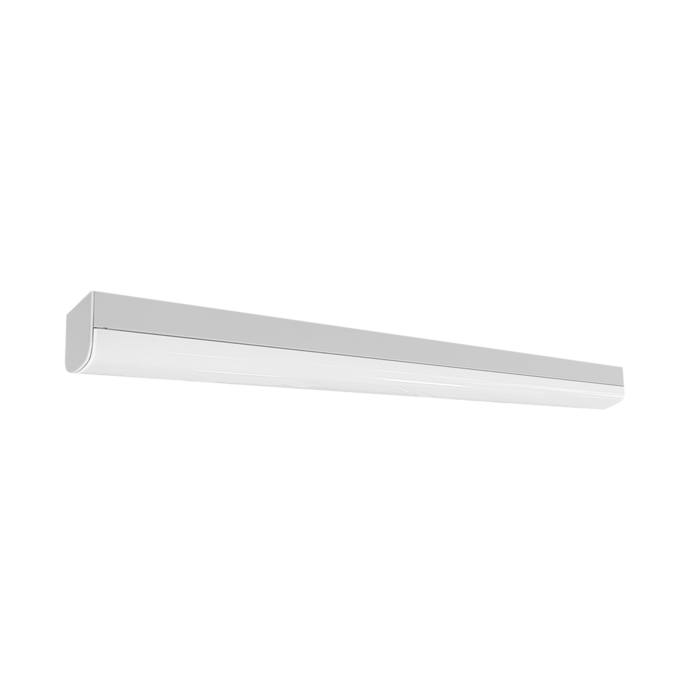

ECOLINE EXTRA SL9737TC/DP - 10/50W
LED WIDE (90mm) diffused batten with selectable colour temperature, dual power with emergency and sensor options
Application
Extra wide 90mm conventional style linear LED batten design for commercial services
Design Specifications
Quality white powder coat finish with a robust opal polycarbonate diffuser
Selectable power with flickerCONTROL technology
Large terminal block for easier installation
Selectable colour temperature 3000K/4000K/5700K
High efficiency SMD LED, CRI >80, 120° beam distribution
Optional sensor, dimming and emergency configurations
Performance
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
WARM WHITE3000K
COOL WHITE4000K
DAYLIGHT5700K
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Multiple Wattage Lumens CCT CRI Beam Angle Dimmable Dim Body Colour

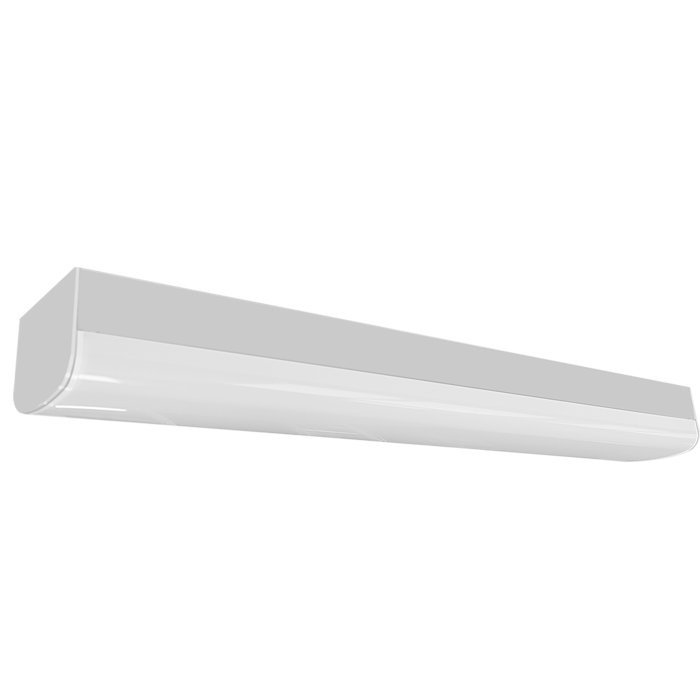

Model No. SL9737/20TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 10/20 Lumens 2400/2600/2400 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Dimmable NO Dim 610(L) x 90(W) x 66(H) Body Colour WHITE
Model No. SL9737/40TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 20/40 Lumens 4550/5200/4950 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Dimmable NO Dim 1225(L) x 90(W) x 66(H) Body Colour WHITE
Model No. SL9737/50TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 25/50 Lumens 5600/6450/5950 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Dimmable NO Dim 1519(L) x 90(W) x 66(H) Body Colour WHITE

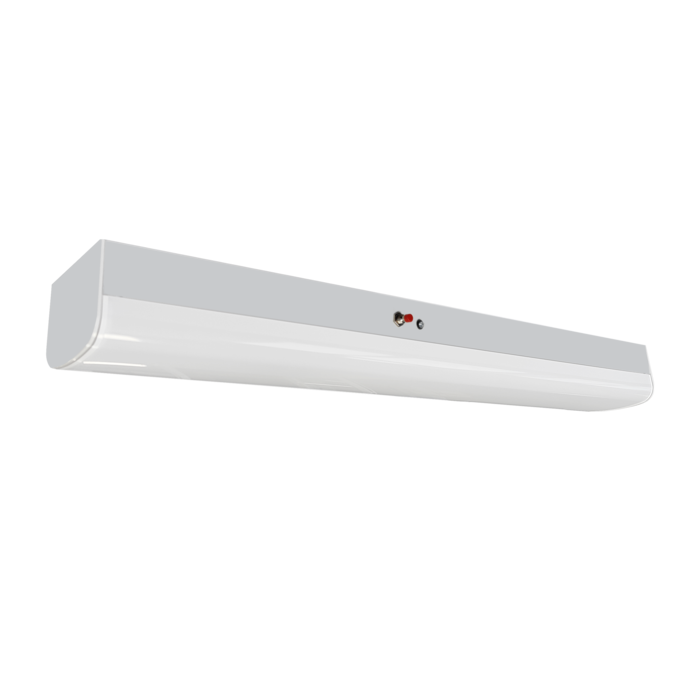

Model No. SL9737/20TC/DP/EM Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 10/20 Lumens 2400/2600/2400 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Dimmable NO Dim 610(L) x 90(W) x 66(H) Body Colour WHITE
Model No. SL9737/40TC/DP/EM Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 20/40 Lumens 4550/5200/4950 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Dimmable NO Dim 1225(L) x 90(W) x 66(H) Body Colour WHITE
Model No. SL9737/50TC/DP/EM Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 25/50 Lumens 5600/6450/5950 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Dimmable NO Dim 1519(L) x 90(W) x 66(H) Body Colour WHITE
Model No. SL9737/20TC/DP/S Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 10/20 Lumens 2400/2600/2400 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Dimmable NO Dim 610(L) x 90(W) x 66(H) Body Colour WHITE
Model No. SL9737/40TC/DP/S Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 20/40 Lumens 4550/5200/4950 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Dimmable NO Dim 1225(L) x 90(W) x 66(H) Body Colour WHITE
Model No. SL9737/50TC/DP/S Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 25/50 Lumens 5600/6450/5950 CCT 3000/4000/5700 CRI 80 Beam Angle 100 Dimmable NO Dim 1519(L) x 90(W) x 66(H) Body Colour WHITE NOTE: lumens (lm) shown are at FULL power setting
