STD TC TUBELINE DIFFUSE - 9/36W
Conventional LED tube diffuse battens 9 - 36 watt
Application
Conventional LED interior battens ideal for residential and commercial service spaces
Design Specifications
- Pressed steel base with PVC body
- Large terminal block, easy installation
High efficiency LED T8 tubes fitted, beam distribution 120°, CRI >80, with selectable CCT lamps included, 3000K/4000K/6000K
Safety HRC fuse installed
Performance
- Dimmable - NO
-

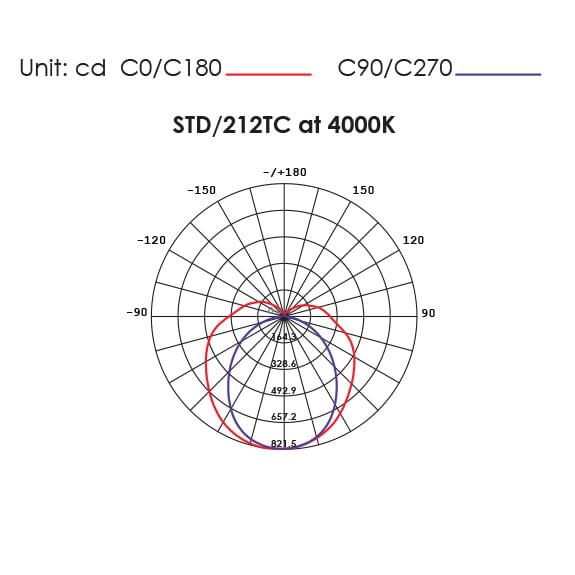

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CRI Beam Angle Dimmable Dim Body Colour

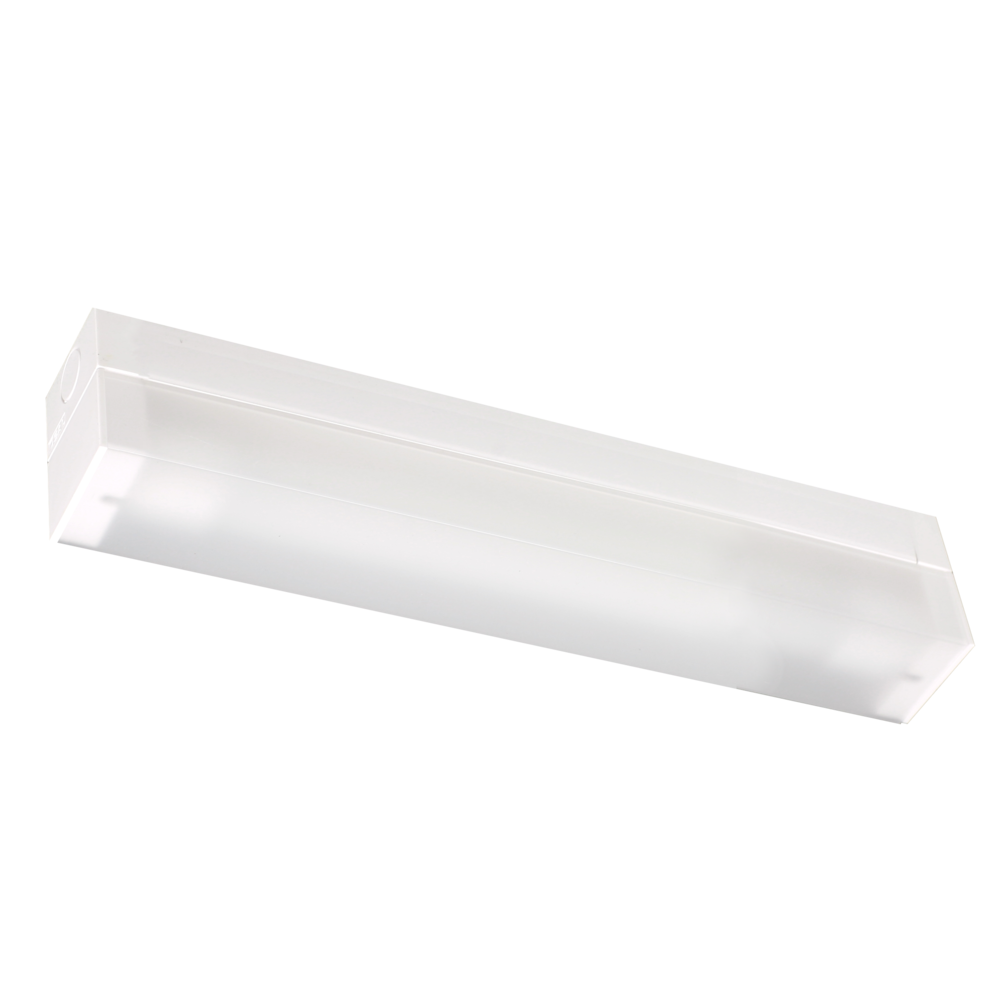

Model No. STD/106TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 900/1100/1000 CRI 80 Beam Angle 120 Dimmable NO Dim 625(L) x 65(W) x 77(H) Body Colour WHITE

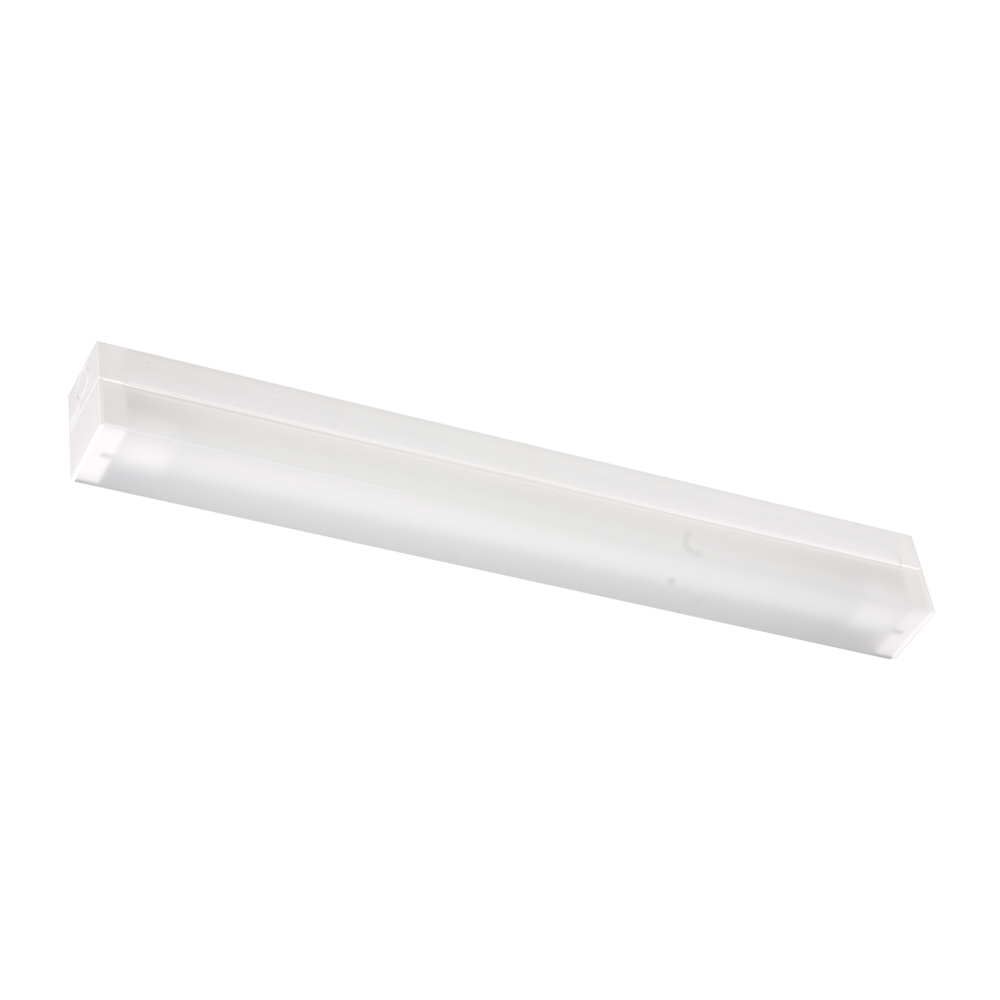

Model No. STD/112TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 18 Lumens 1800/2200/2000 CRI 80 Beam Angle 120 Dimmable NO Dim 1225(L) x 65(W) x 77(H) Body Colour WHITE

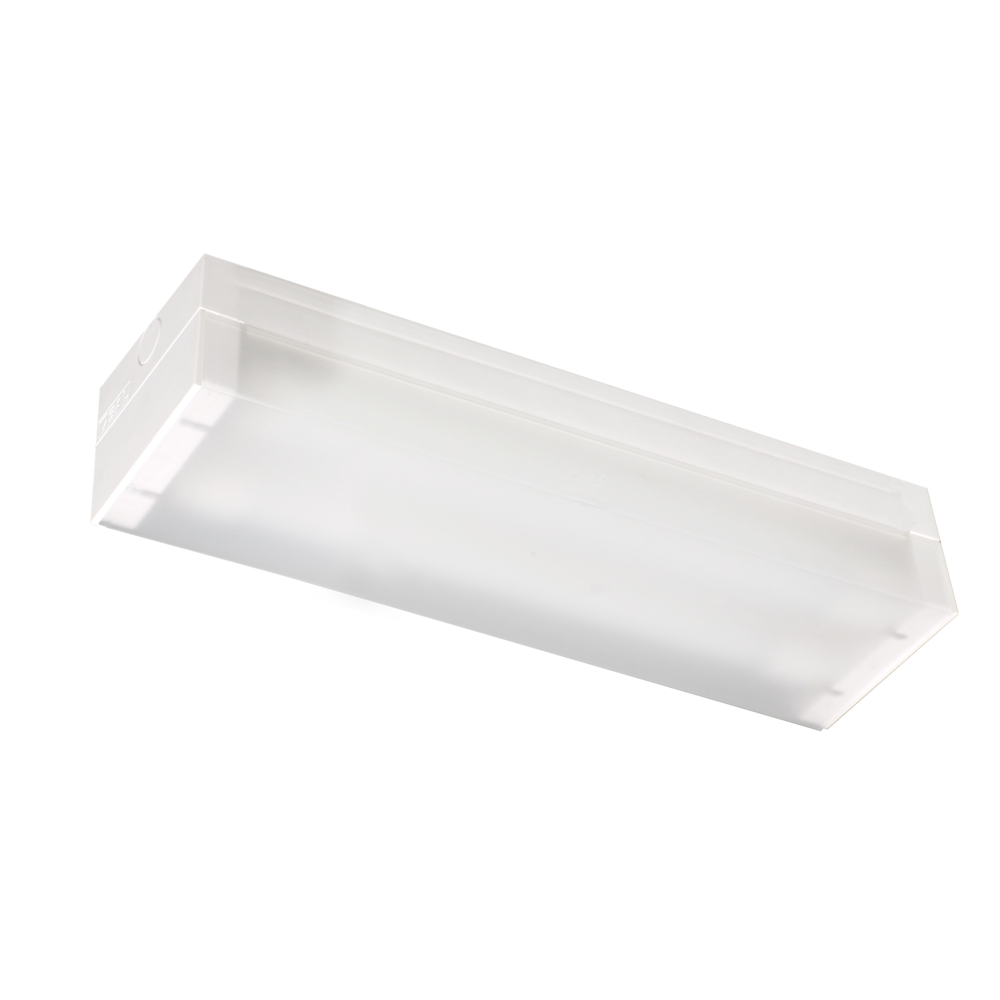

Model No. STD/206TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 18 Lumens 1800/2200/2000 CRI 80 Beam Angle 120 Dimmable NO Dim 625(L) x 110(W) x 77(H) Body Colour WHITE

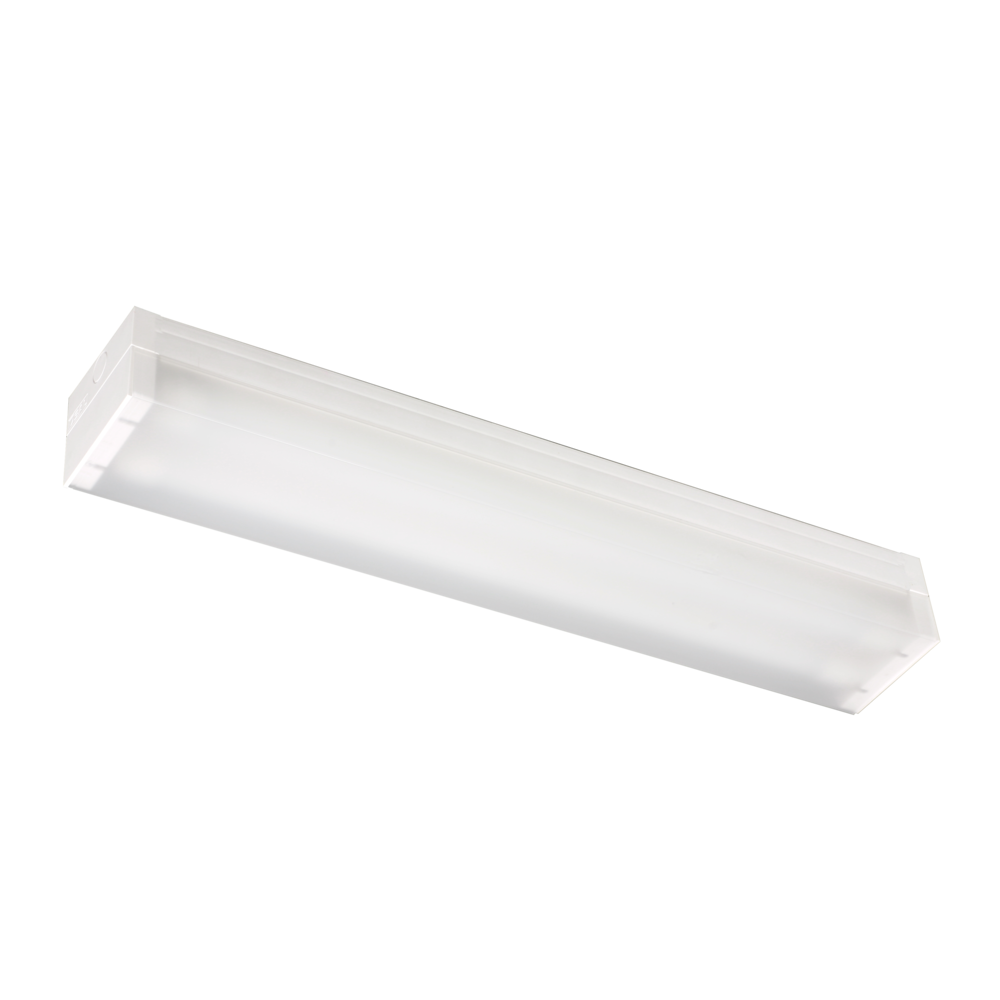

Model No. STD/212TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 36 Lumens 3600/4400/4000 CRI 80 Beam Angle 120 Dimmable NO Dim 1225(L) x 110(W) x 77(H) Body Colour WHITE IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
