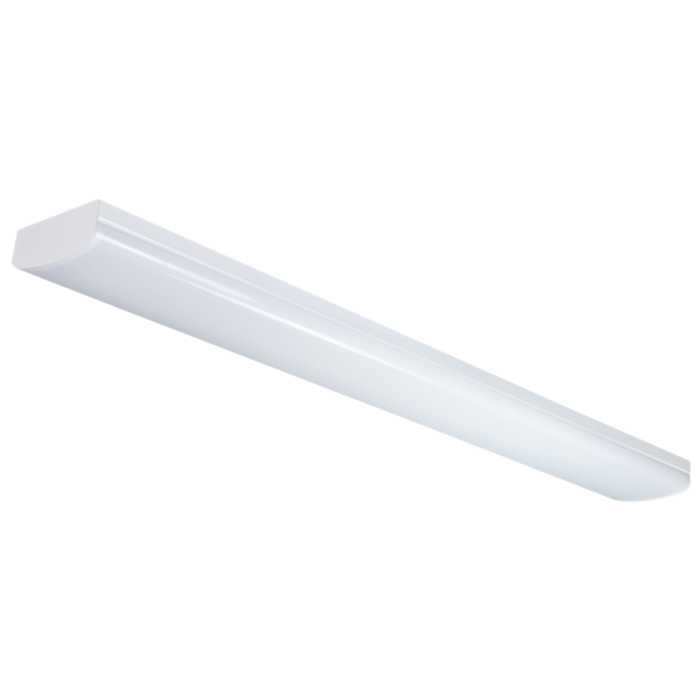

WIDELINE S9733L - 20/65W
LED wide diffused batten 20-65 watt with selectable CCT
Application
Low profile design suitable for residential apartments and commercial service spaces
Design Specifications
Wide pressed steel base with opal polycarbonate diffuser
Quality white powder coated finish
High efficiency LED optics, CRI>80, beam distribution 120 degree
Integral constant current non-dimmable LED driver
Selectable CCT 3000K, 4000K, 5700K
Large terminal block for easy installation, for suspension mounting use (2) SAL SSY1512
Performance
- Dimmable - NO
WARM WHITE3000K
COOL WHITE4000K
DAYLIGHT5700K
-

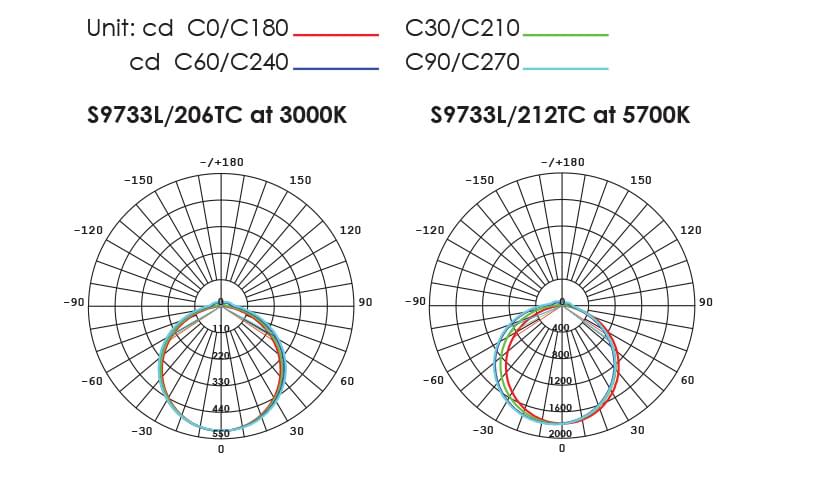

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT CRI Beam Angle Dim Body Colour IPART
Model No. S9733L/206TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 20 Lumens 1800/2000/1800 CCT 3000/4000/5700 CRI 80 Beam Angle 120 Dim 610(L) x 160(W) x 60(H) Body Colour WHITE IPART YES
Model No. S9733L/212TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 38 Lumens 3700/3800/3700 CCT 3000/4000/5700 CRI 80 Beam Angle 120 Dim 1144(L) x 160(W) x 60(H) Body Colour WHITE IPART YES
Model No. S9733L/215TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 65 Lumens 5400/5800/5400 CCT 3000/4000/5700 CRI 80 Beam Angle 120 Dim 1495(L) x 160(W) x 60(H) Body Colour WHITE IPART YES
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
