• LED OYSTERS

FRISBEE SL2104TC - 8/25W

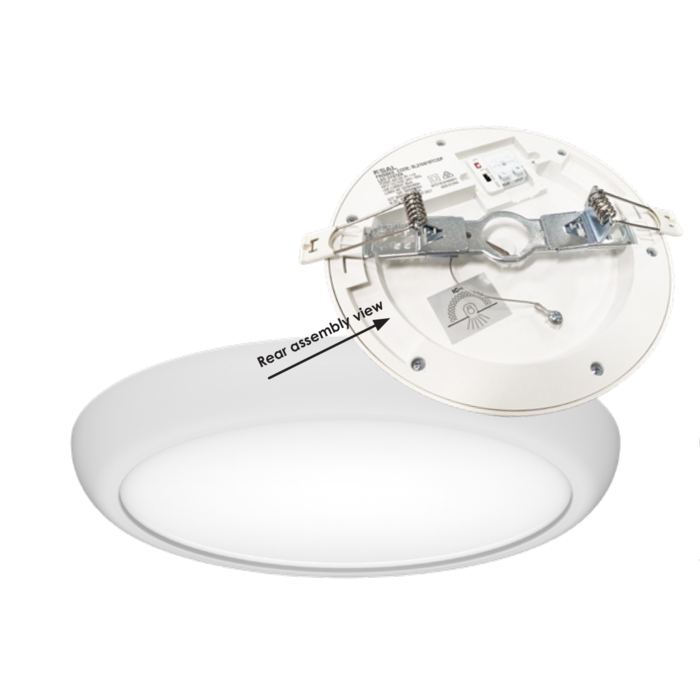

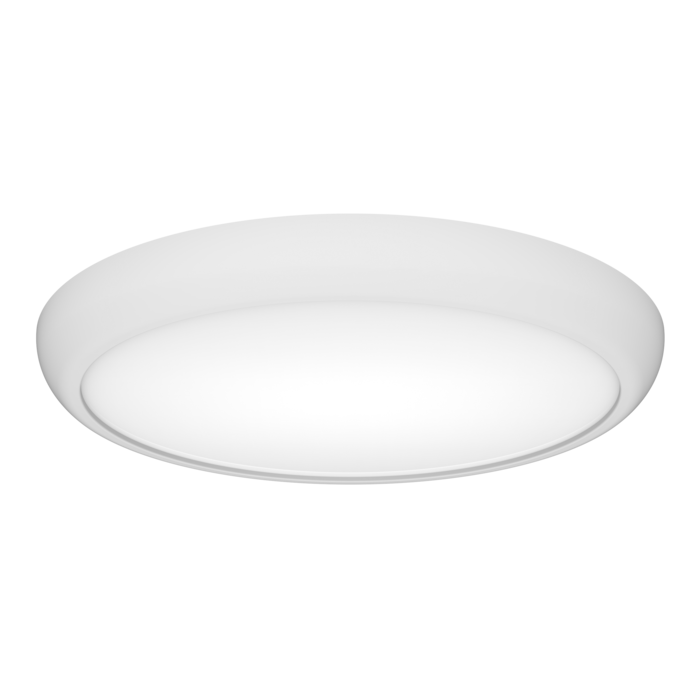

Low profile recessed or surface mount oyster with selectable colour temperature and power

Application

A creative design for residential or commercial spaces

Design Specifications

  • Low profile design

  • Durable white polyamide body profile with an opal polycarbonate diffuser

  • High efficiency SMD LED chips, choice of selectable power 8/12W, 12/18W, 18/25W and colour temperature 3000K/4000K/6000K

  • Integral constant current non-dimmable driver

  • Flexible cut-out sizes to suit retrofit recessed applications - SL2104/18TC 80-100mm, SL2104/22TC 120-200mm, SL2104/30TC 150-270mm

  • Double insulation

  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

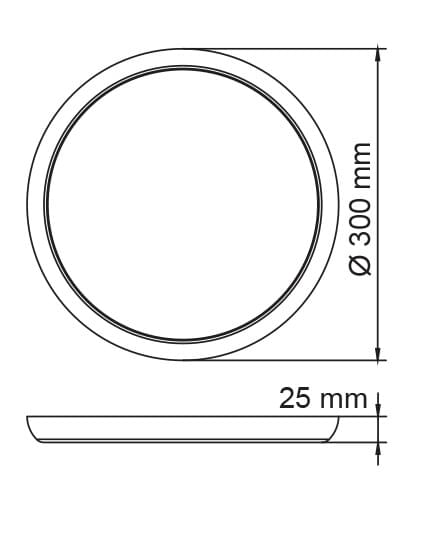

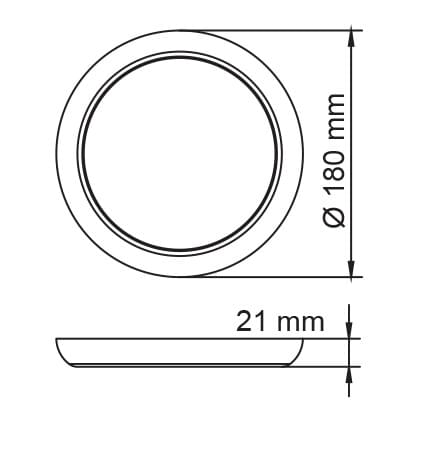

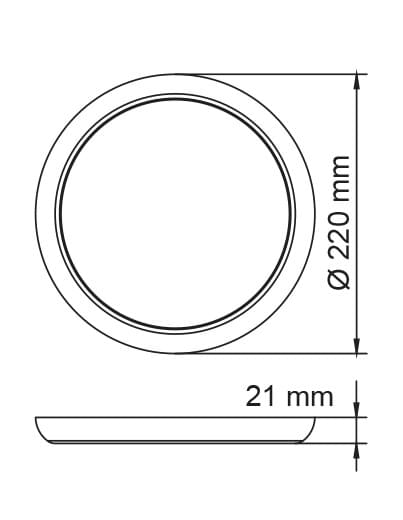

  • Dimensions - Wiring Diagrams
  • Design Options

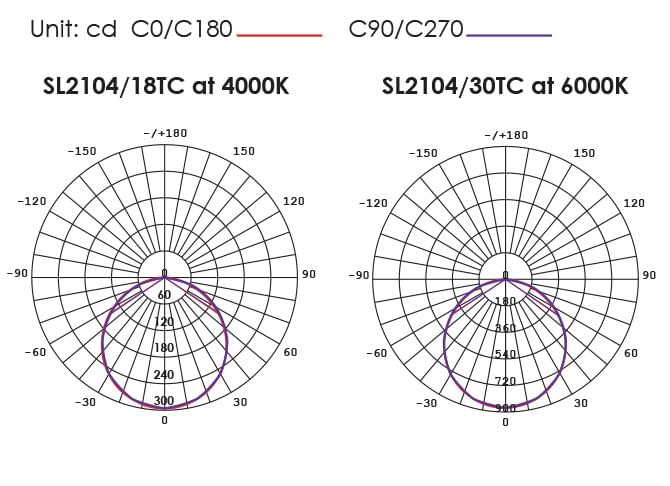

  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL2104/18TC/DP Input Voltage240 Multiple Wattage8/12 Lumens780/840/840 CCT3000/4000/6000 CRI80 Beam Angle110 Body ColourWHITE Dim180(W) x 21(H) Add to Enquiry Add Remove Remove
    Model No.SL2104/22TC/DP Input Voltage240 Multiple Wattage12/18 Lumens1260/1350/1350 CCT3000/4000/6000 CRI80 Beam Angle110 Body ColourWHITE Dim220(W) x 21(H) Add to Enquiry Add Remove Remove
    Model No.SL2104/30TC/DP Input Voltage240 Multiple Wattage18/25 Lumens1875/2000/2000 CCT3000/4000/6000 CRI80 Beam Angle110 Body ColourWHITE Dim300(W) x 25(H) Add to Enquiry Add Remove Remove

    Lumens (lm) shown are at full power setting

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
