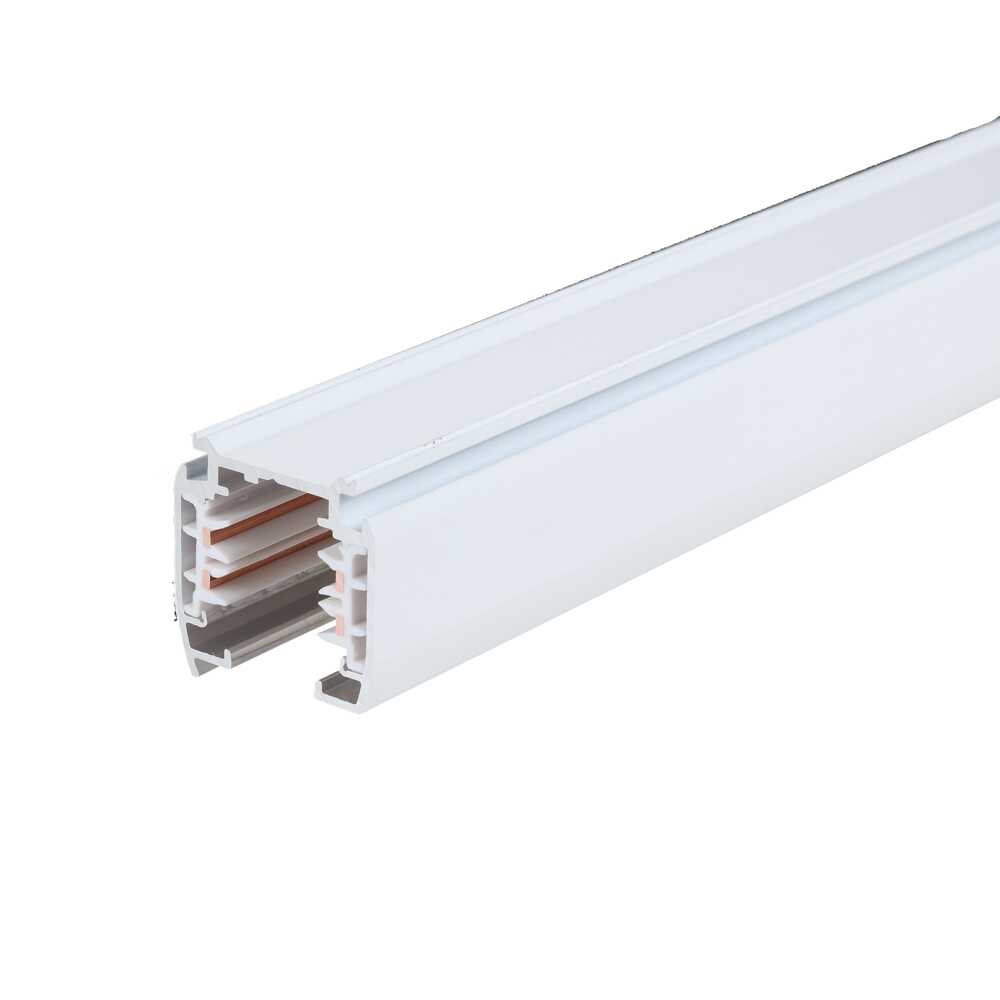

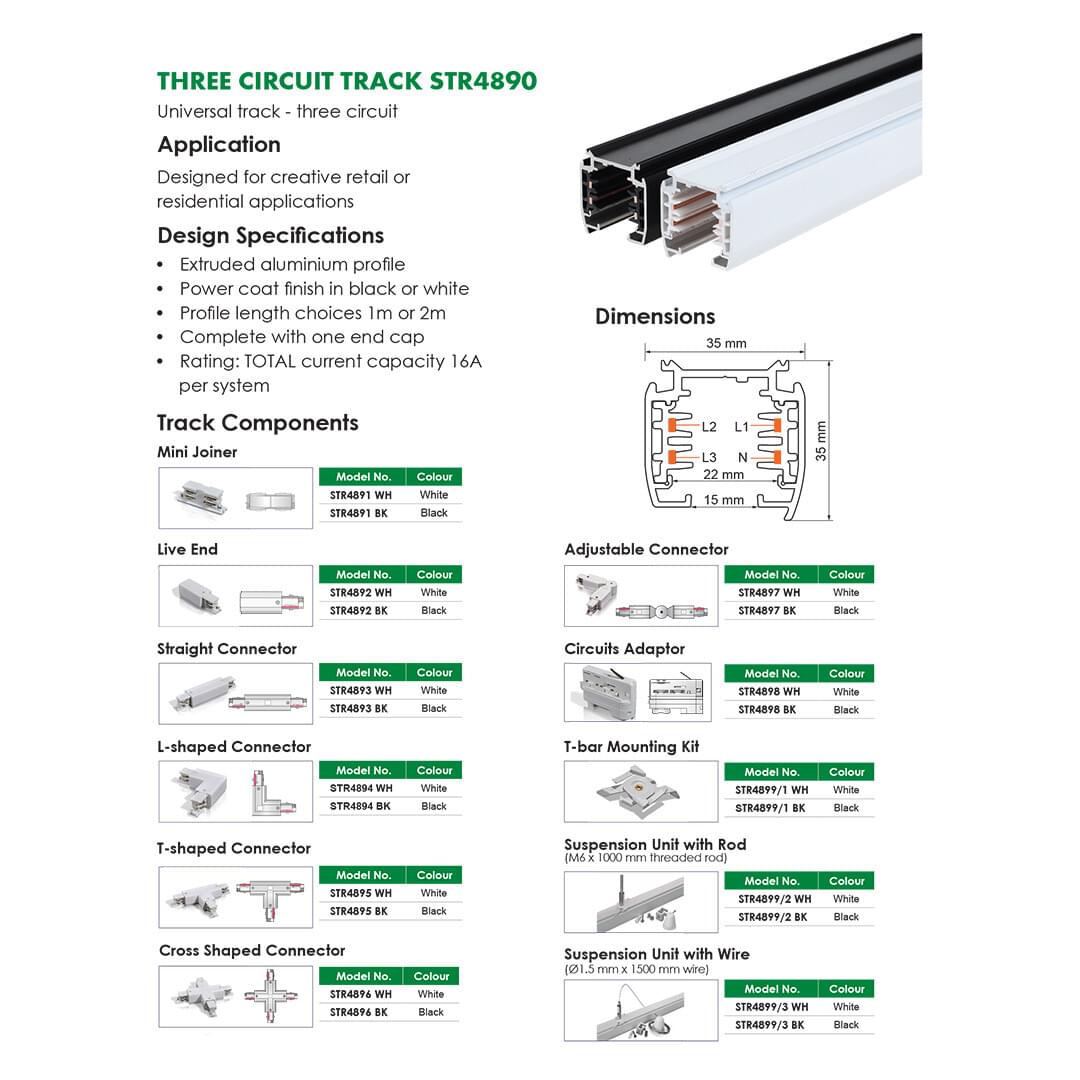

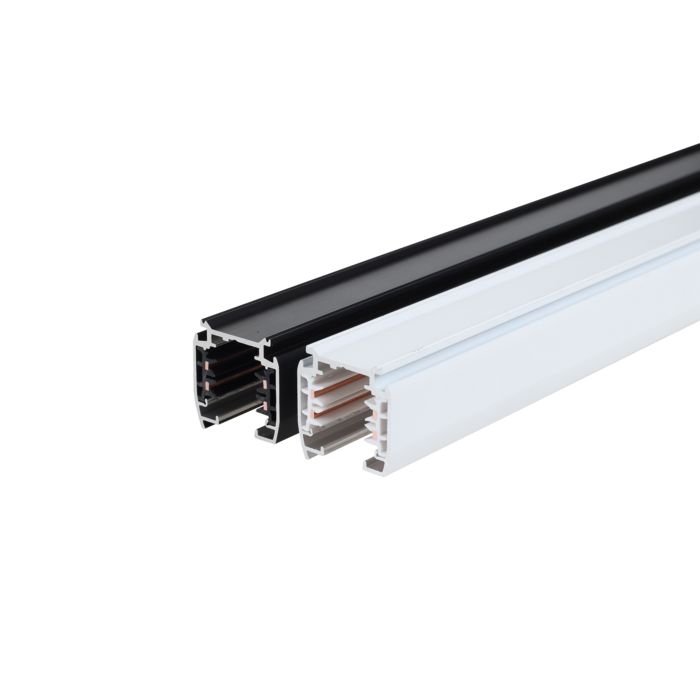

THREE CIRCUIT TRACK - STR4890
Universal track - three circuit
Application
Designed for creative retail or residential applications
Design Specifications
Extruded aluminium profile
Power coat finish in black or white
Profile length choices 1m or 2m
Complete with one end cap, a complimentary live end is available to order
Rating: TOTAL current capacity 16A per system.
Maximum (mass) load limit per track adaptor is 2kg
-

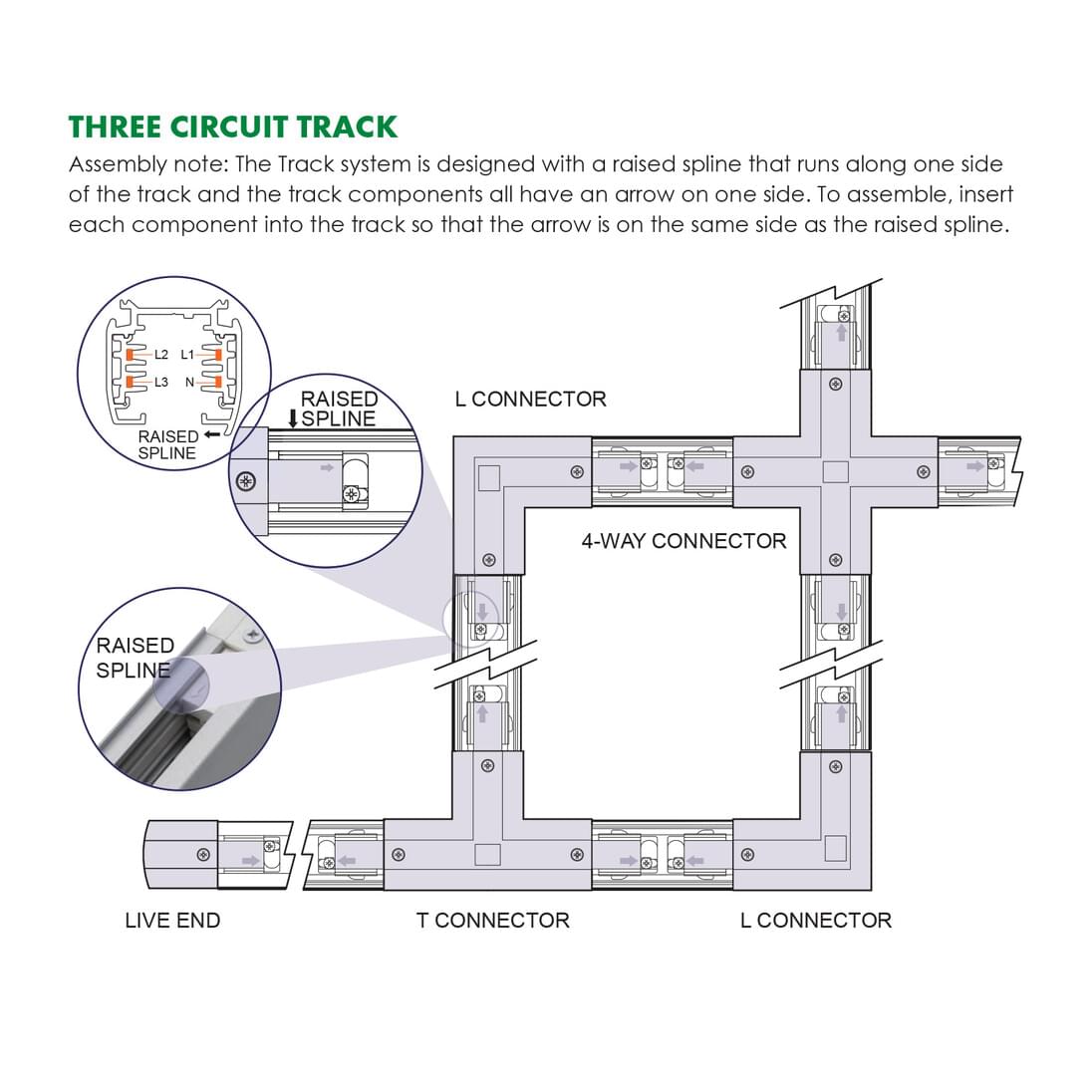

Dimensions - Wiring Diagrams
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Body Colour Dim
Model No. STR4890/1WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White Dim 1000(L)
Model No. STR4890/1BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour Black Dim 1000(L)
Model No. STR4890/2WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White Dim 2000(L)
Model No. STR4890/2BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour Black Dim 2000(L)

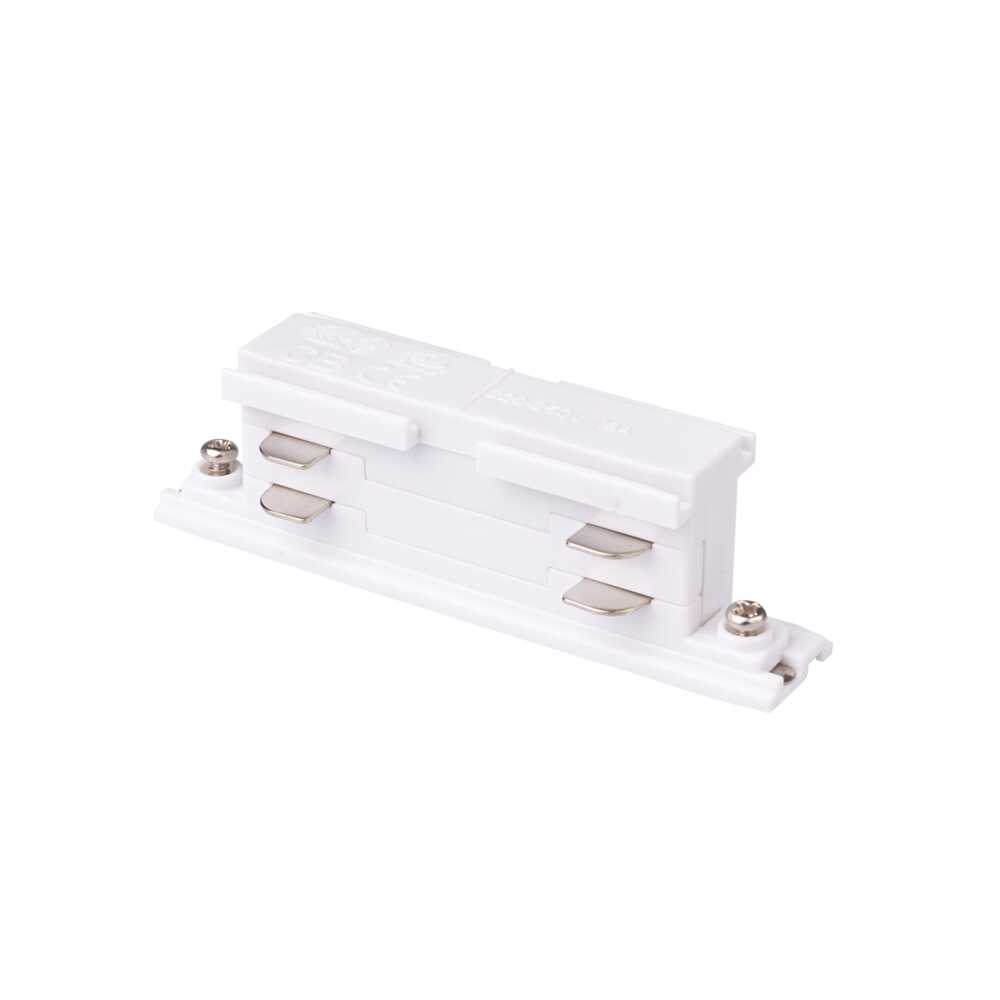

Model No. STR4891WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White

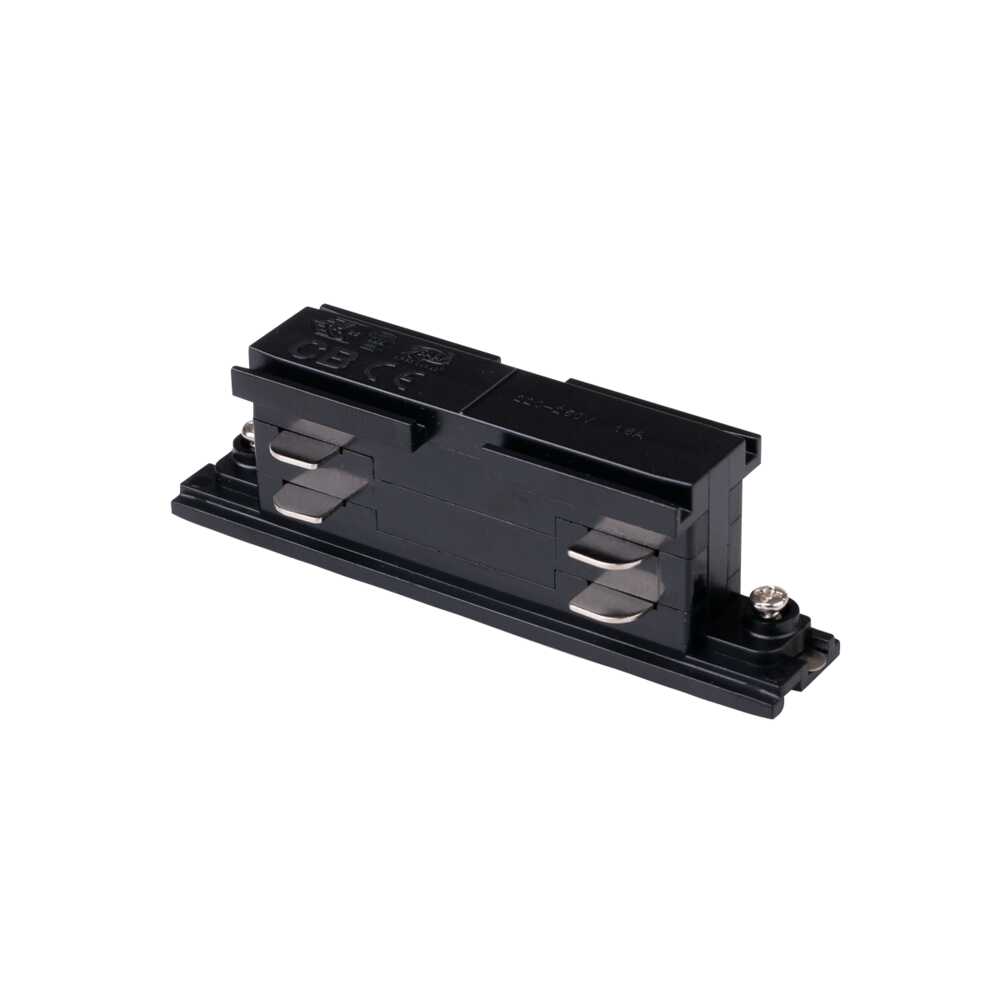

Model No. STR4891BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour Black

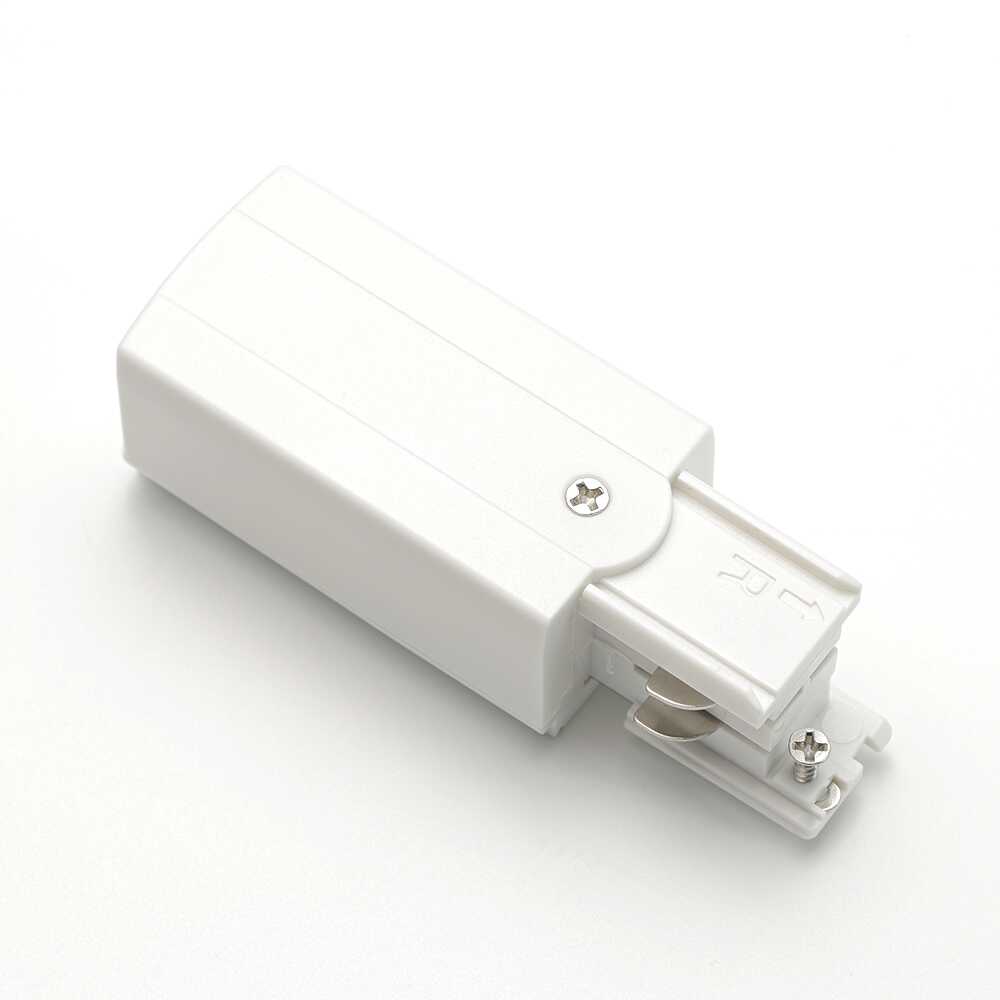

Model No. STR4892WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White

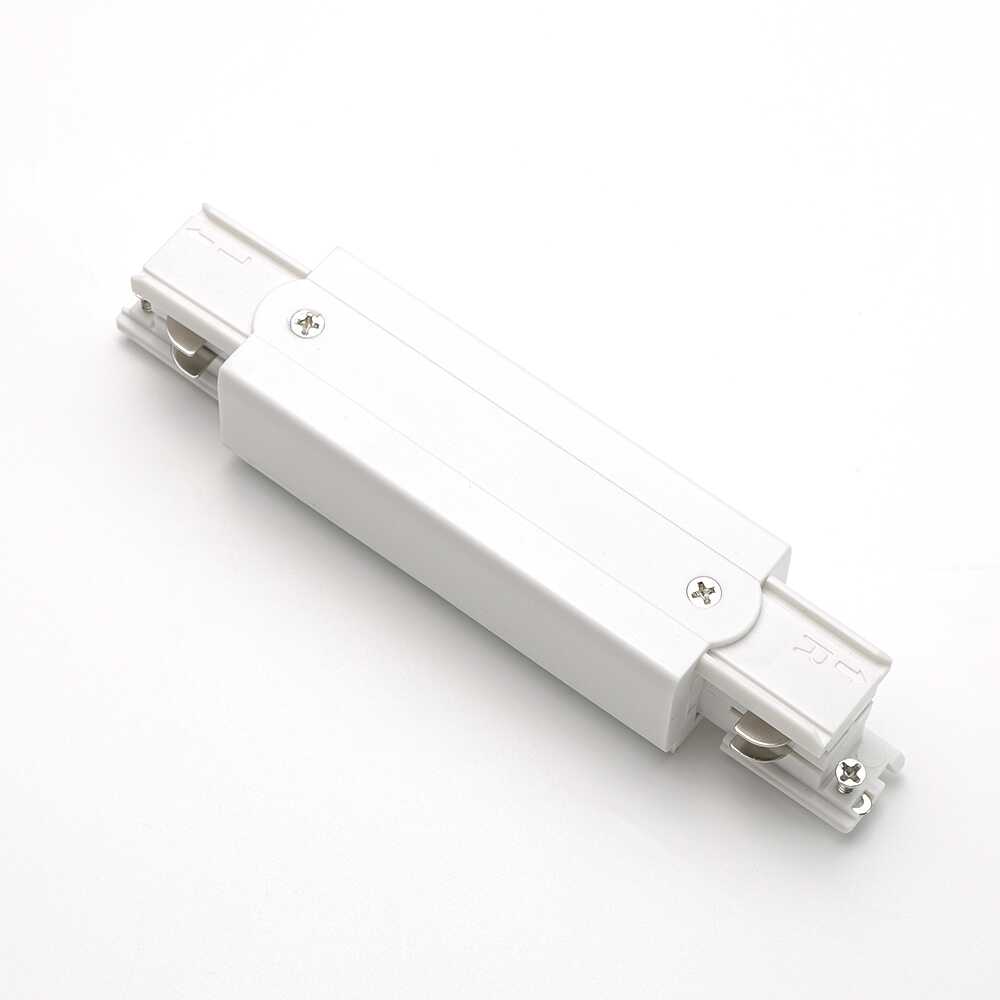

Model No. STR4893WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White

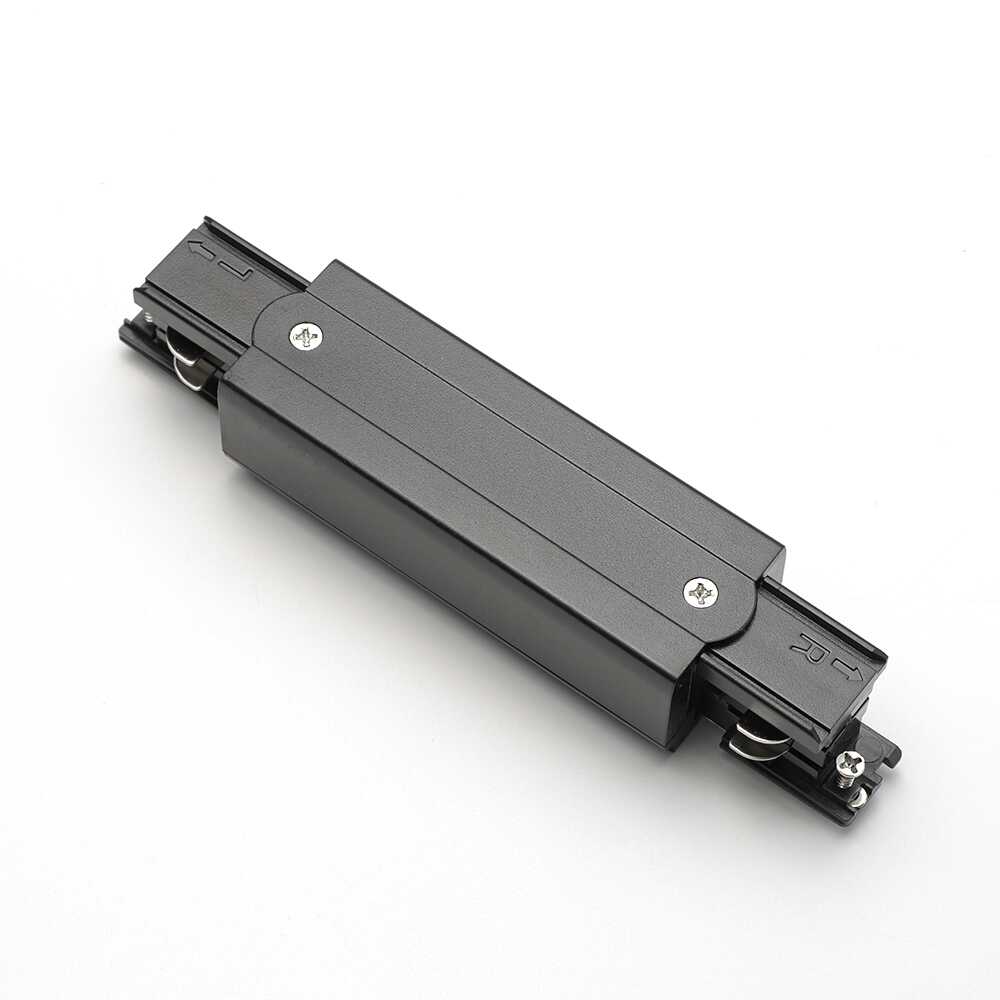

Model No. STR4893BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour Black

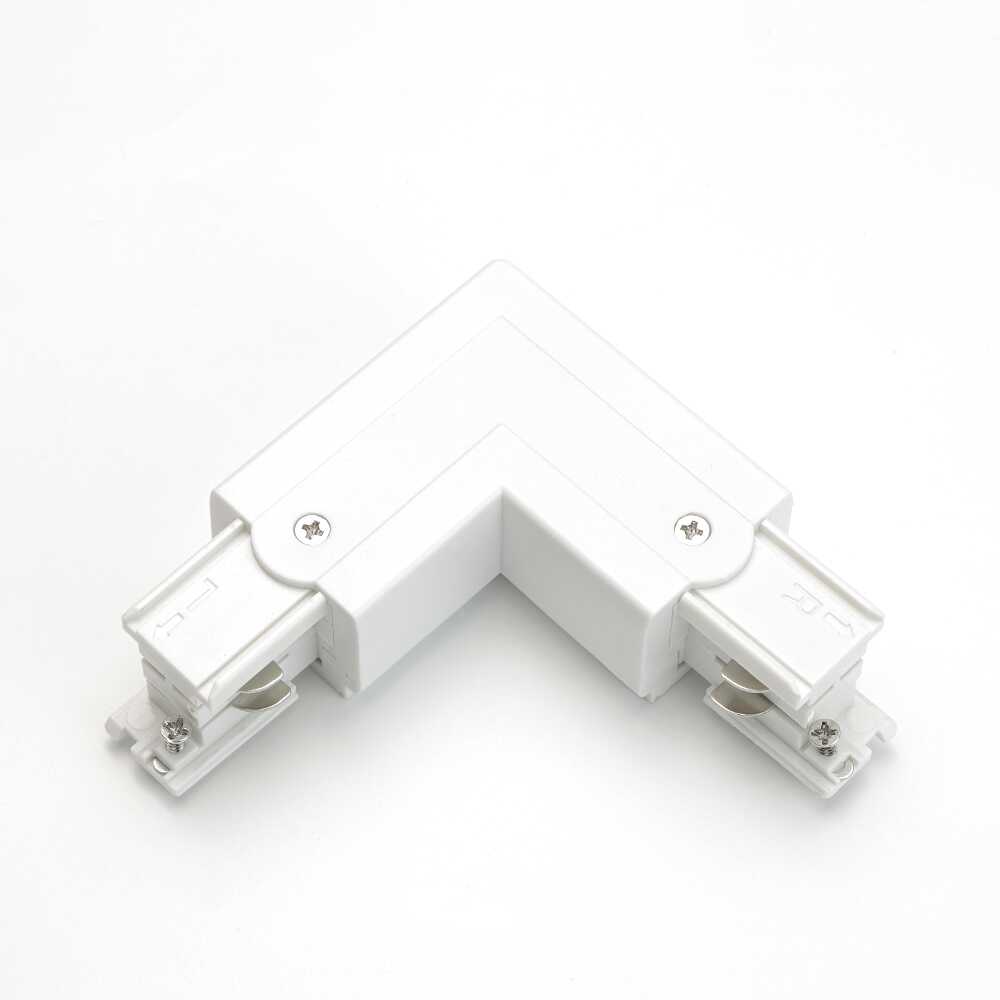

Model No. STR4894WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White

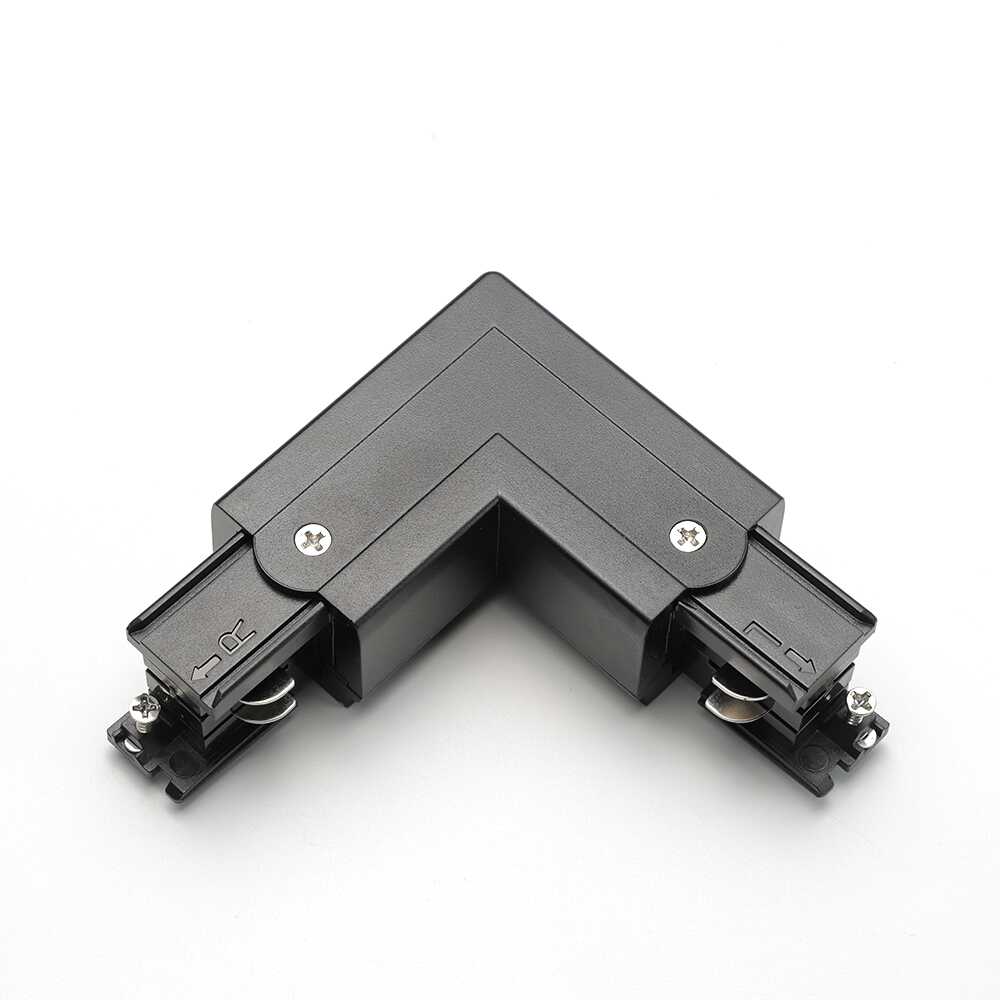

Model No. STR4894 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour Black

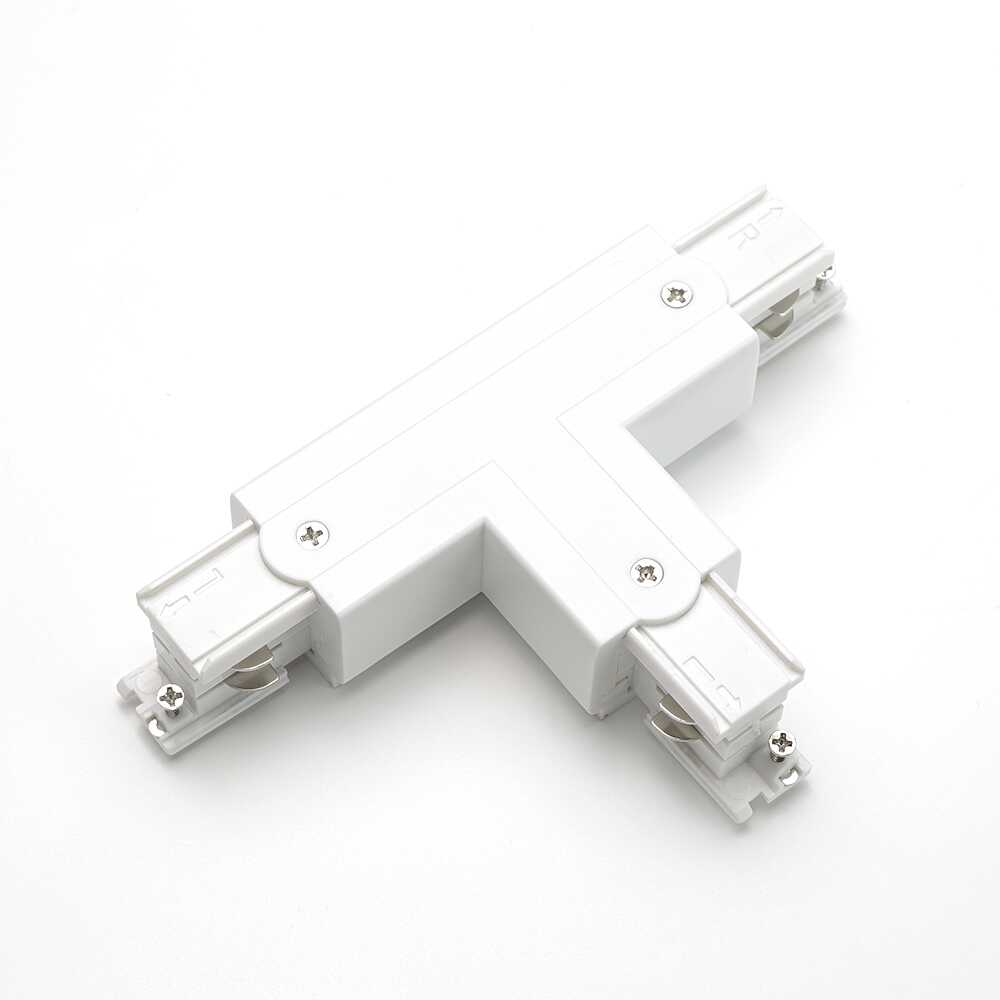

Model No. STR4895 WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White

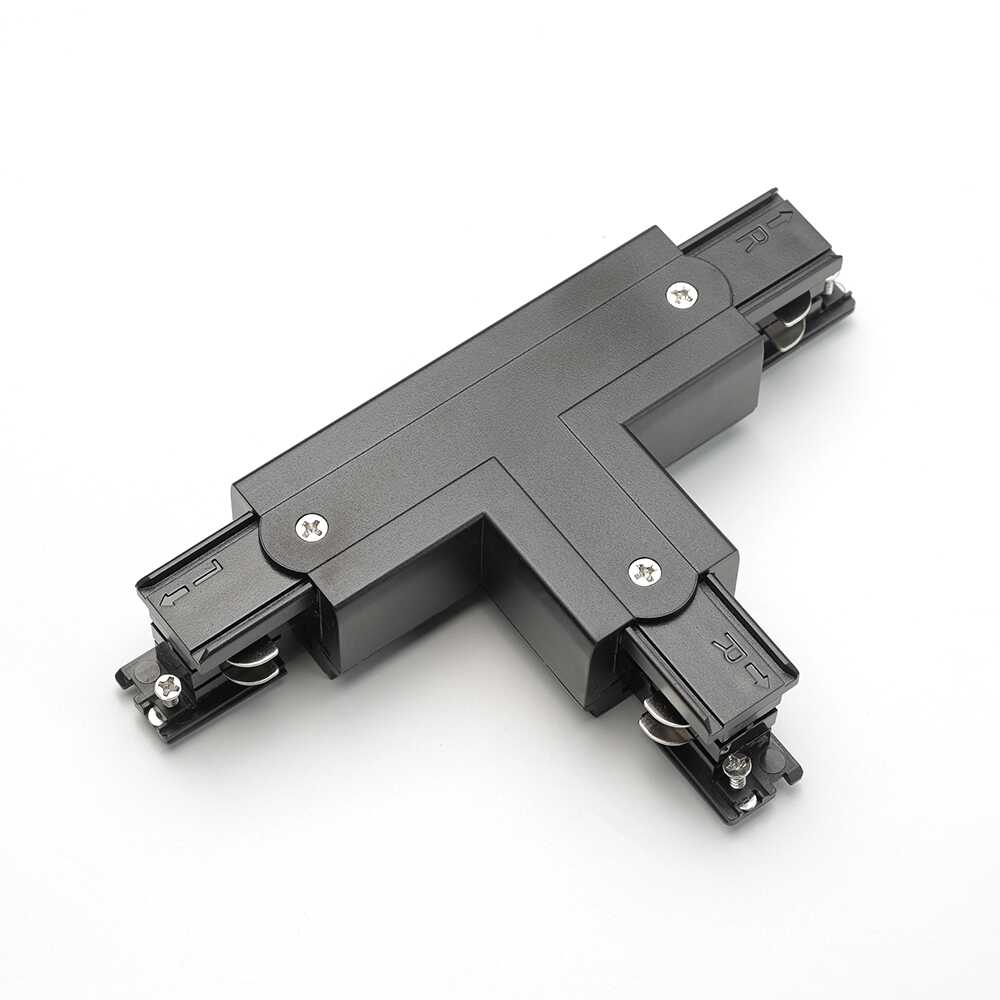

Model No. STR4895 BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour Black

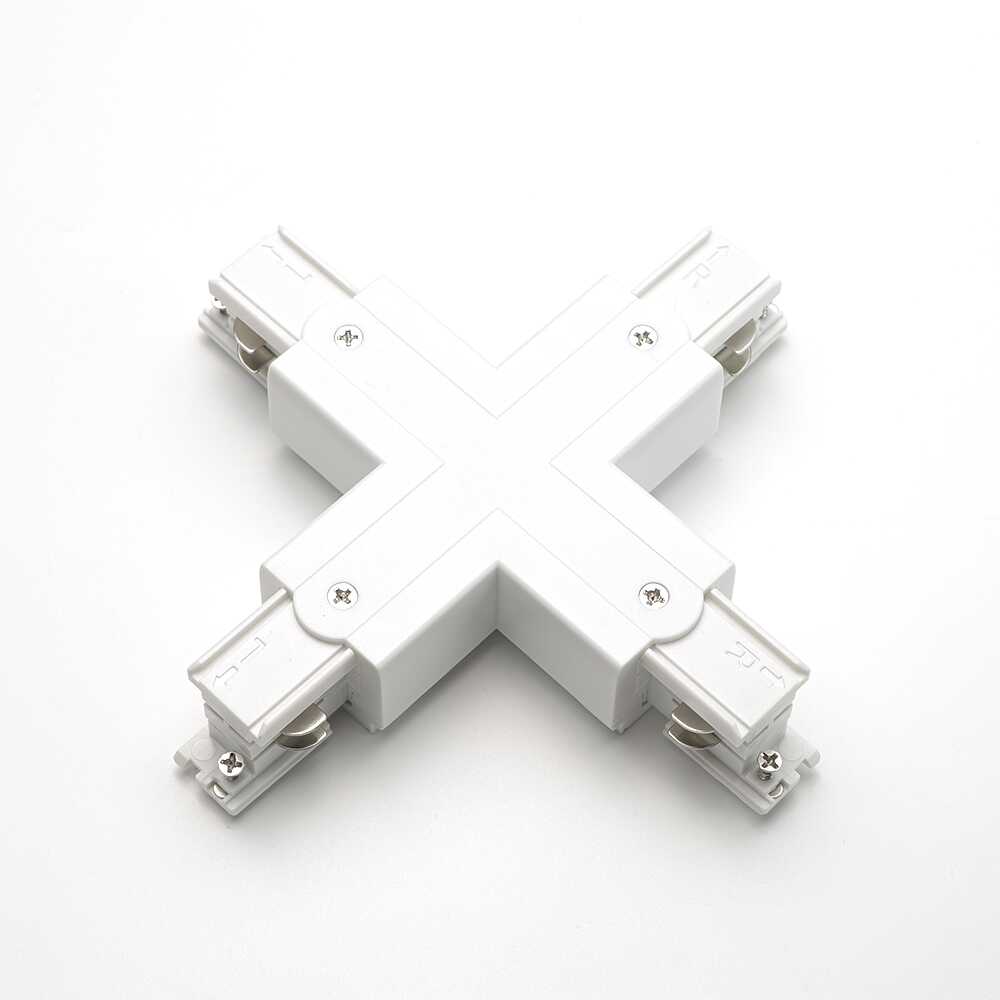

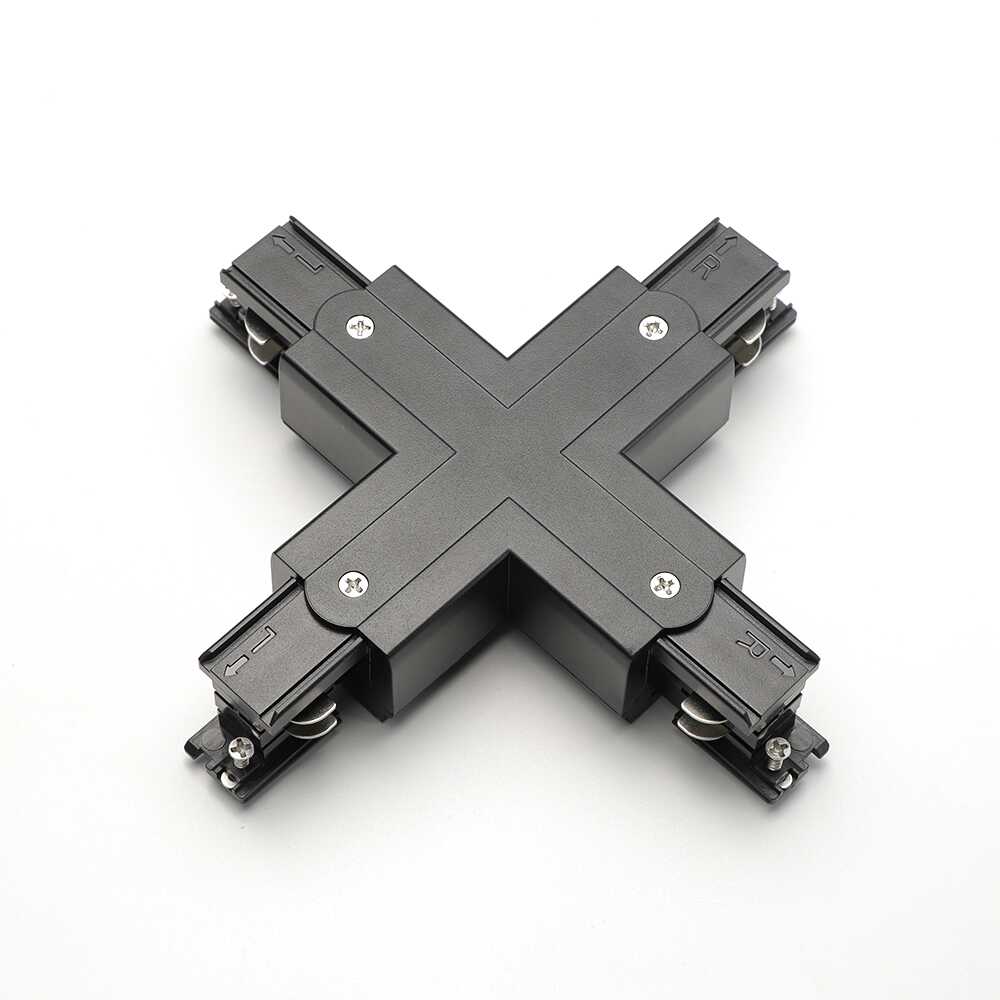

Model No. STR4896WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White
Model No. STR4896BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour Black

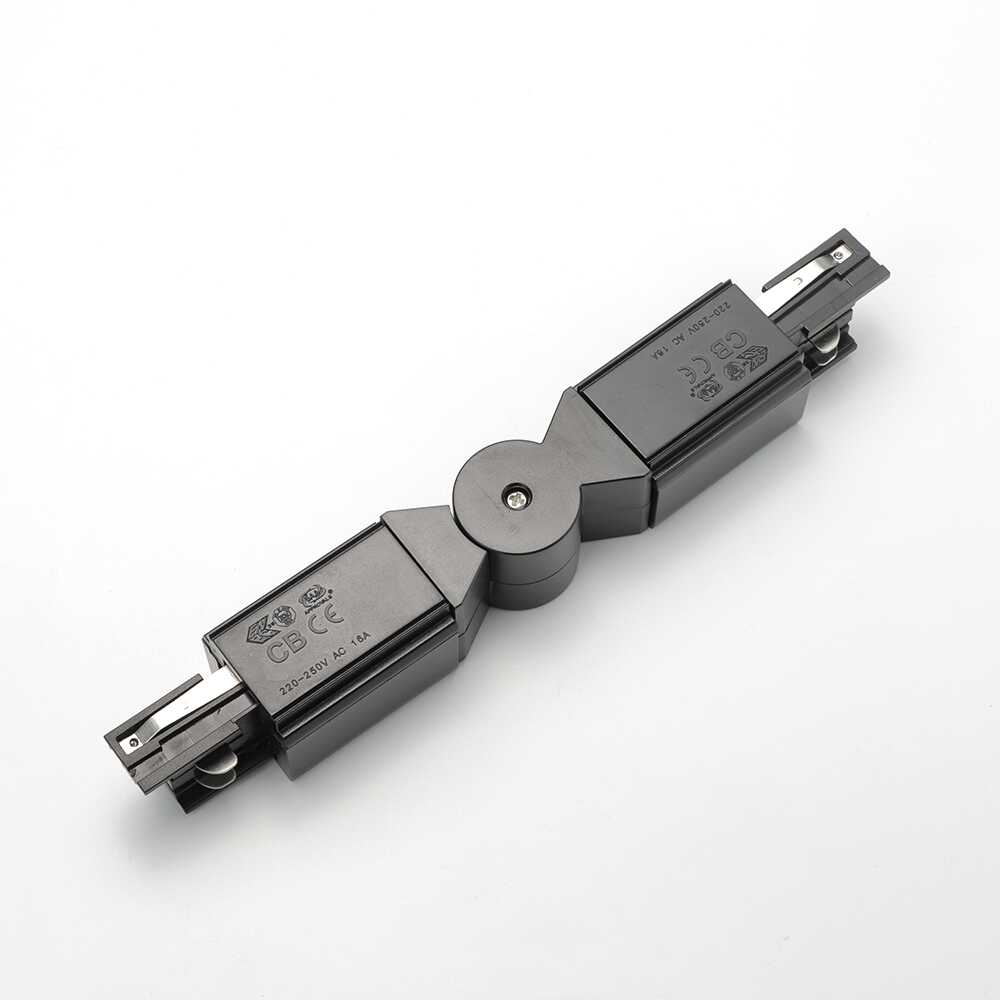

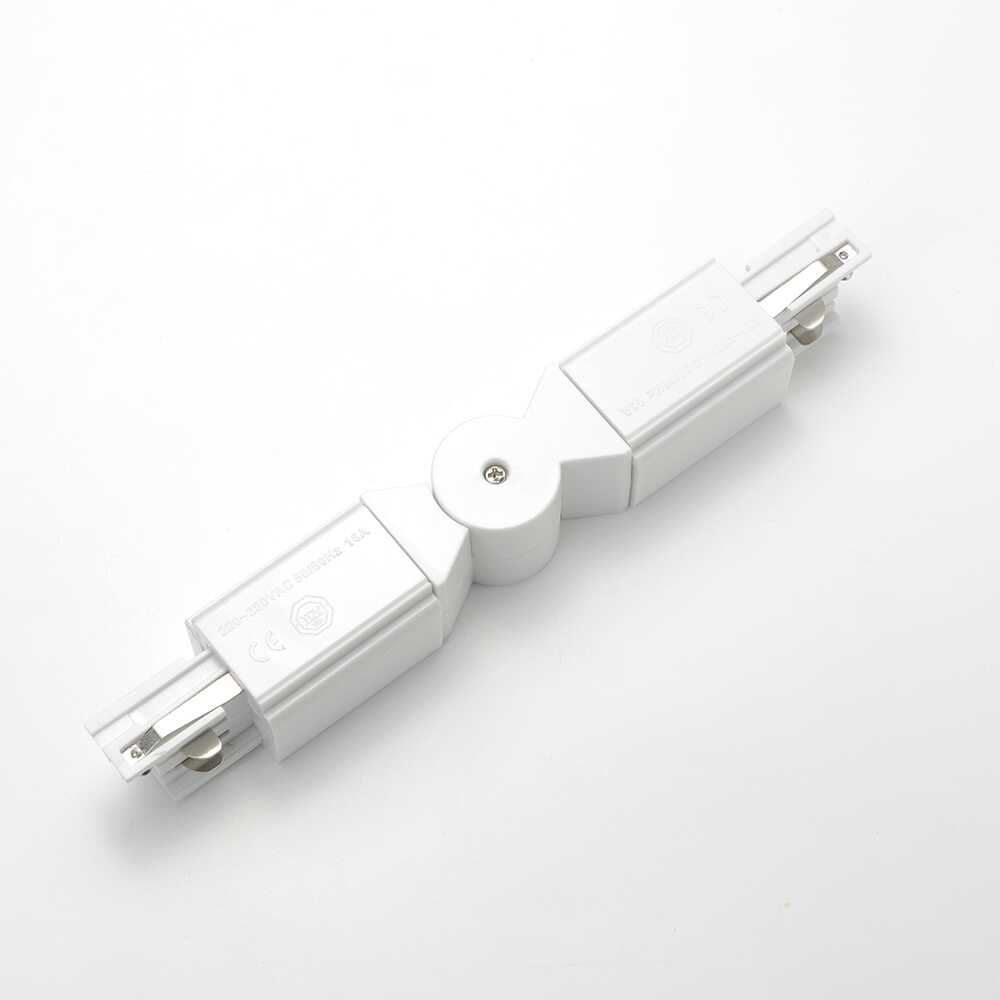

Model No. STR4897WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White
Model No. STR4897BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour Black

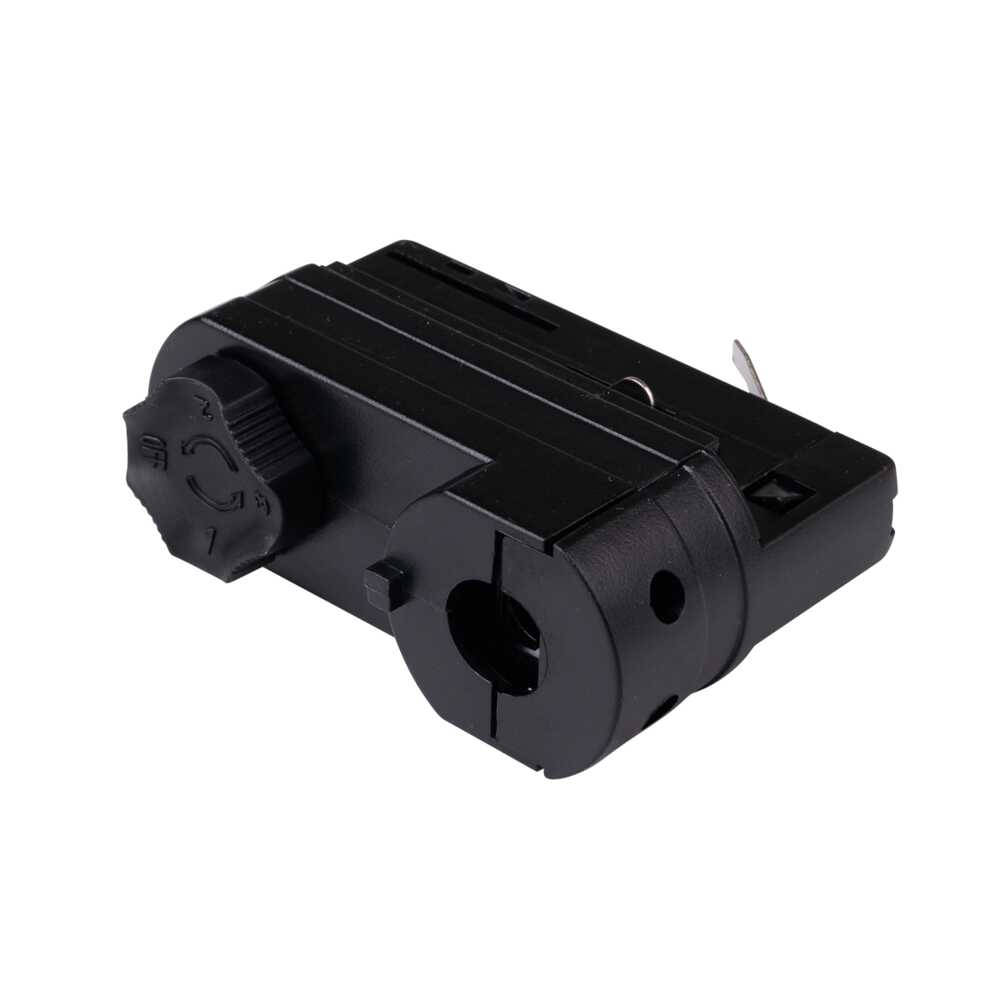

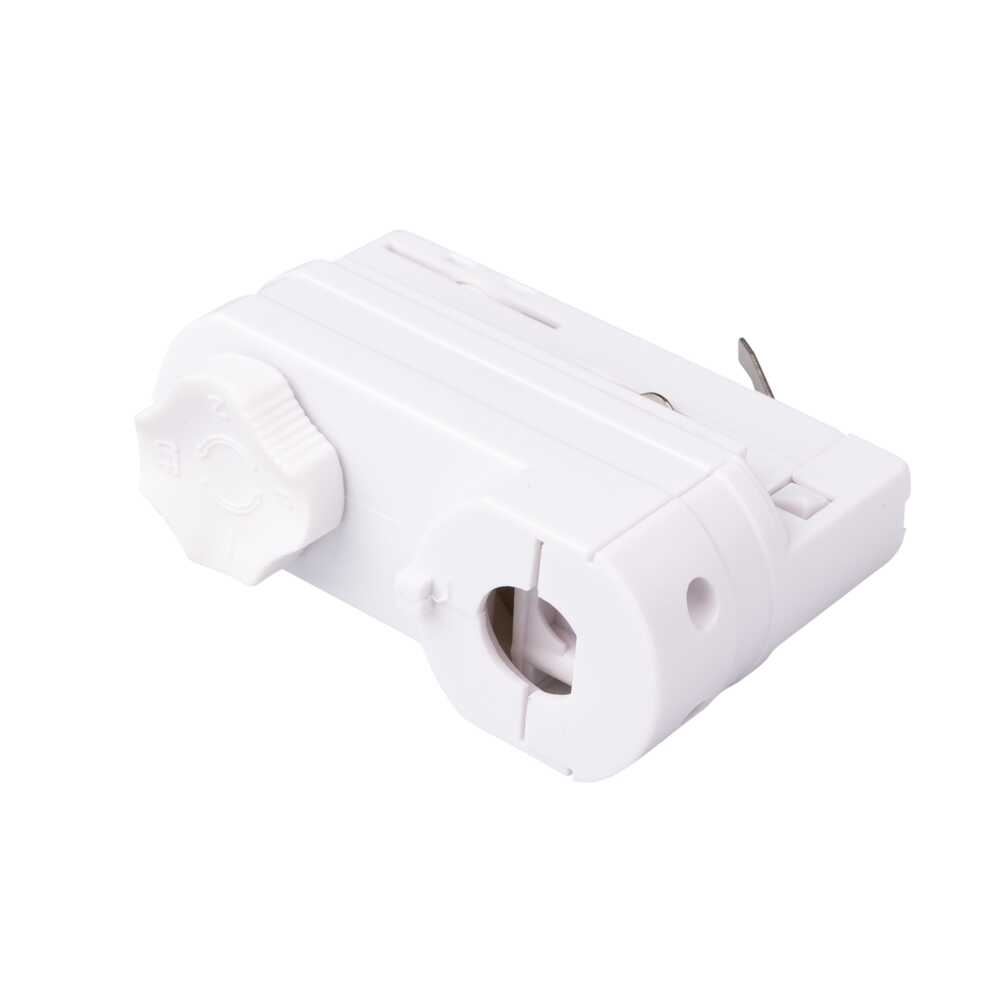

Model No. STR4898WH Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour White
Model No. STR4898BK Add to Enquiry Add Remove Remove Input Voltage 240 Body Colour Black

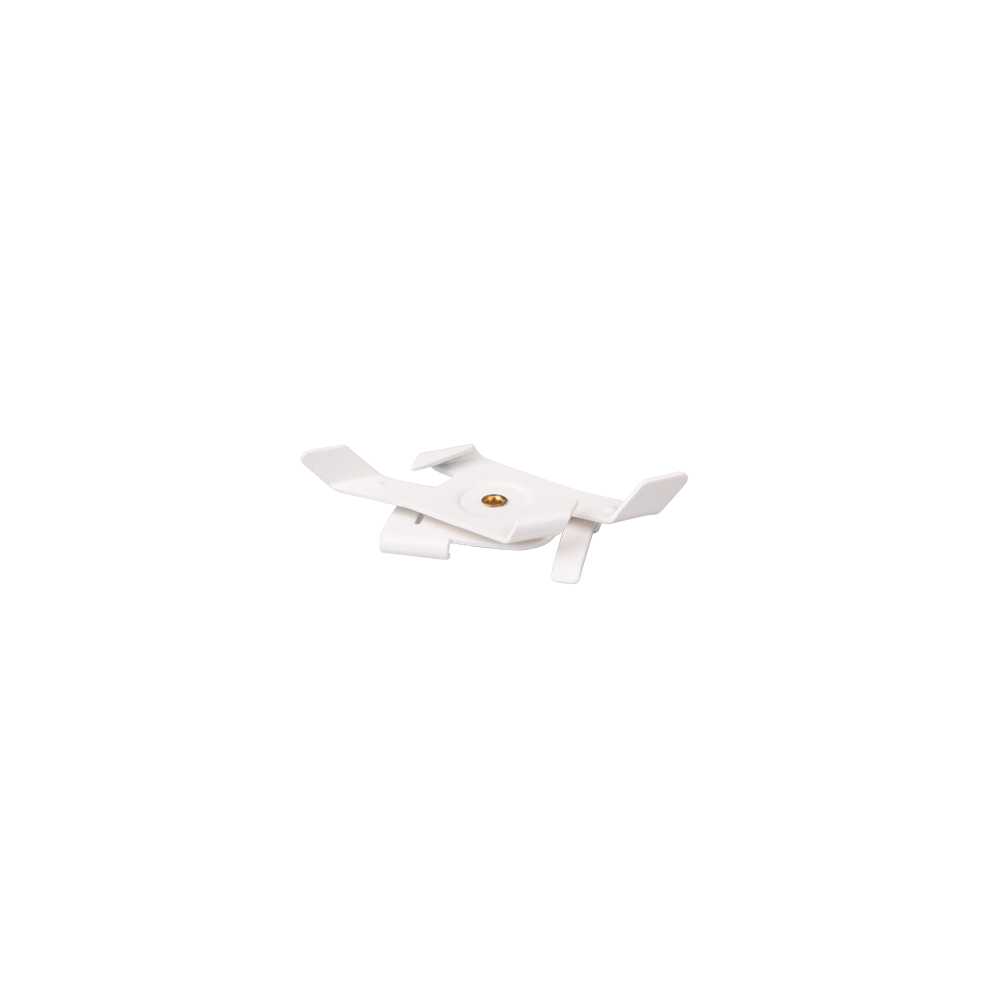

Model No. STR4899/1 WH Add to Enquiry Add Remove Remove Body Colour White

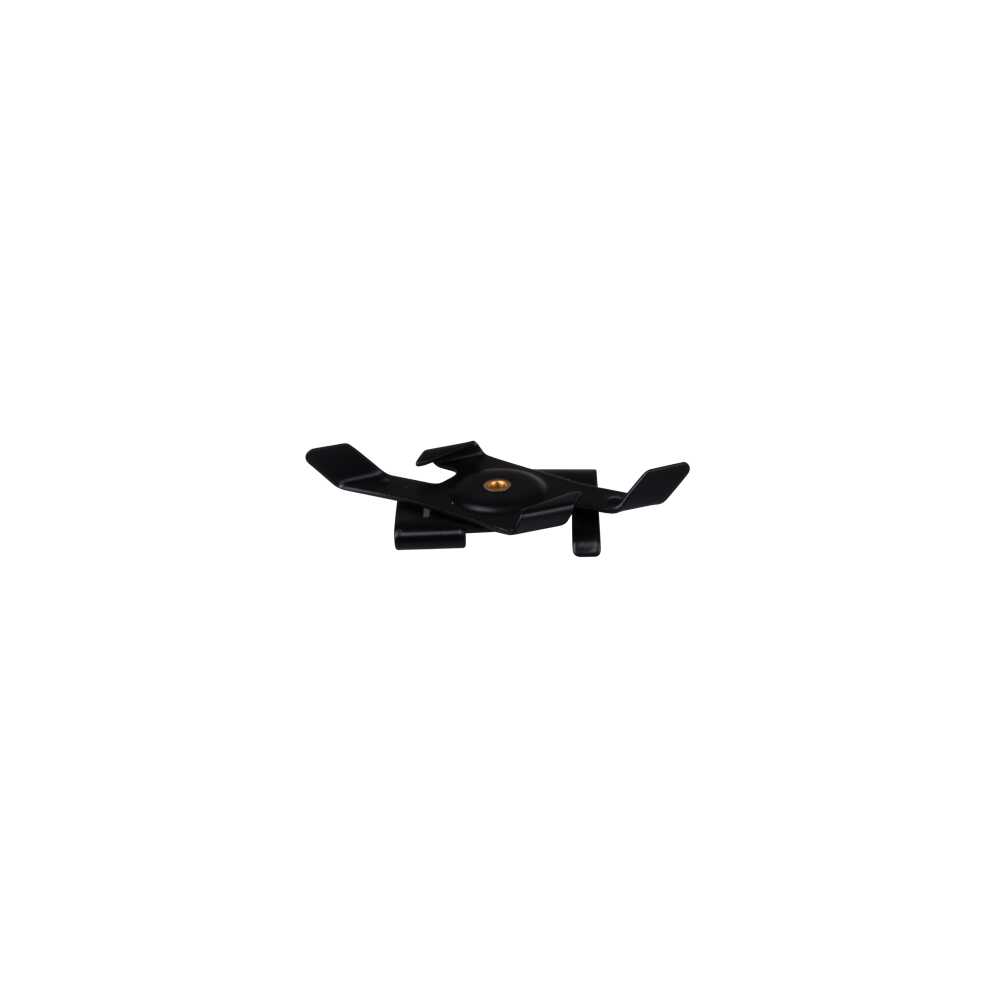

Model No. STR4899/1 BK Add to Enquiry Add Remove Remove Body Colour Black

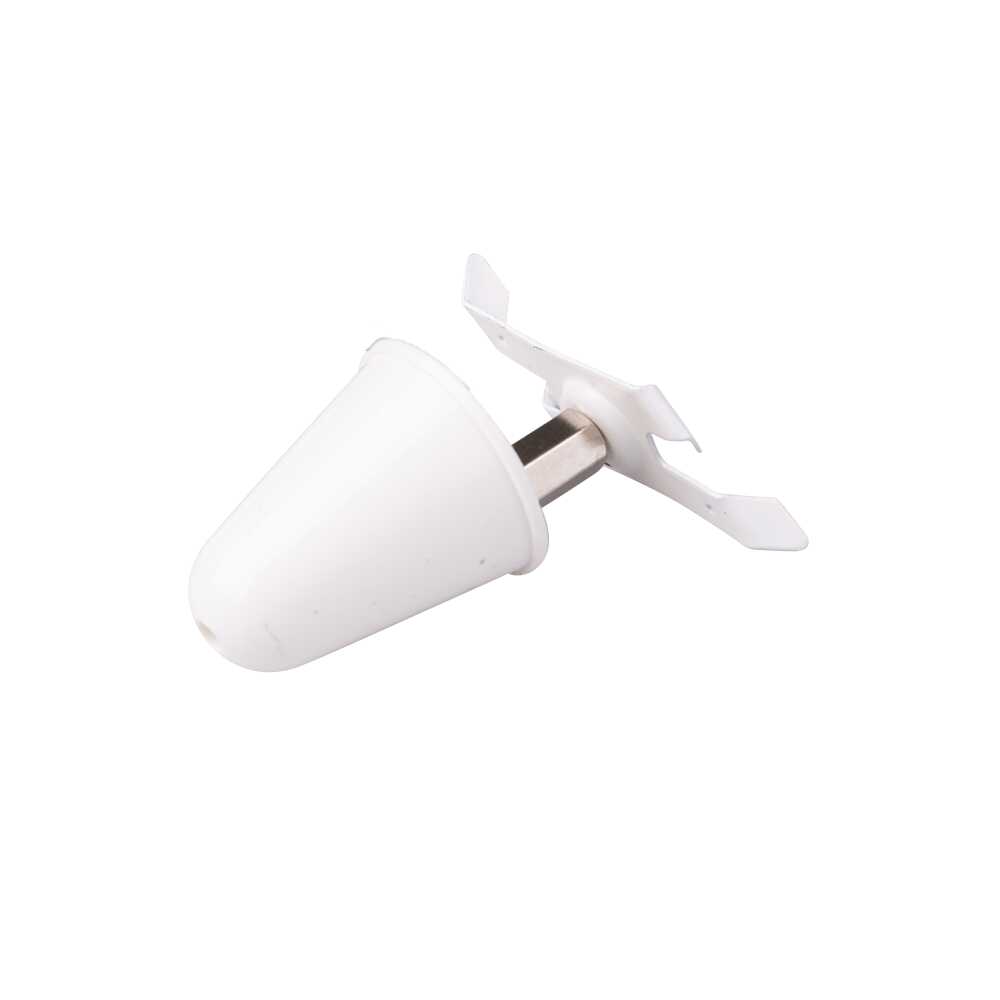

Model No. STR4899/2 WH (with 6mm/1M ROD) Add to Enquiry Add Remove Remove Body Colour White Dim 1000(L)

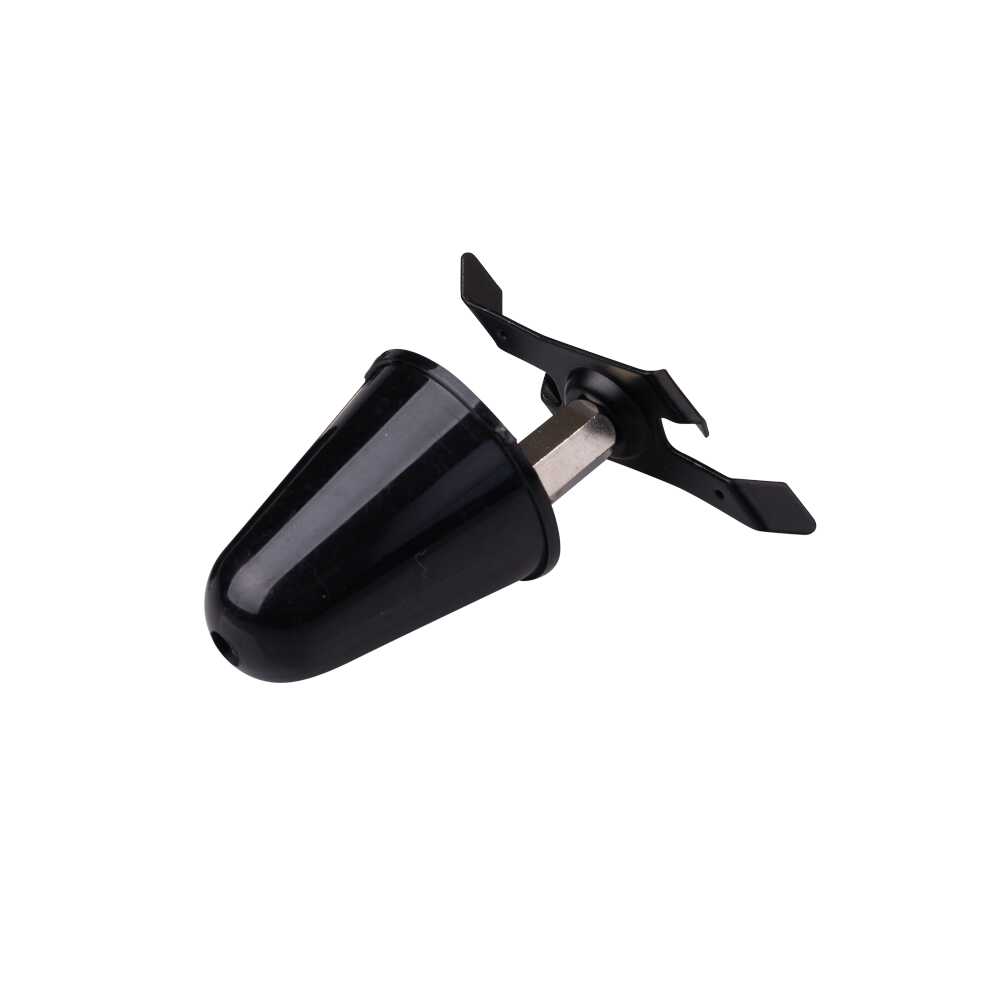

Model No. STR4899/2 BK (with 6mm/1M ROD) Add to Enquiry Add Remove Remove Body Colour Black Dim 1000(L)

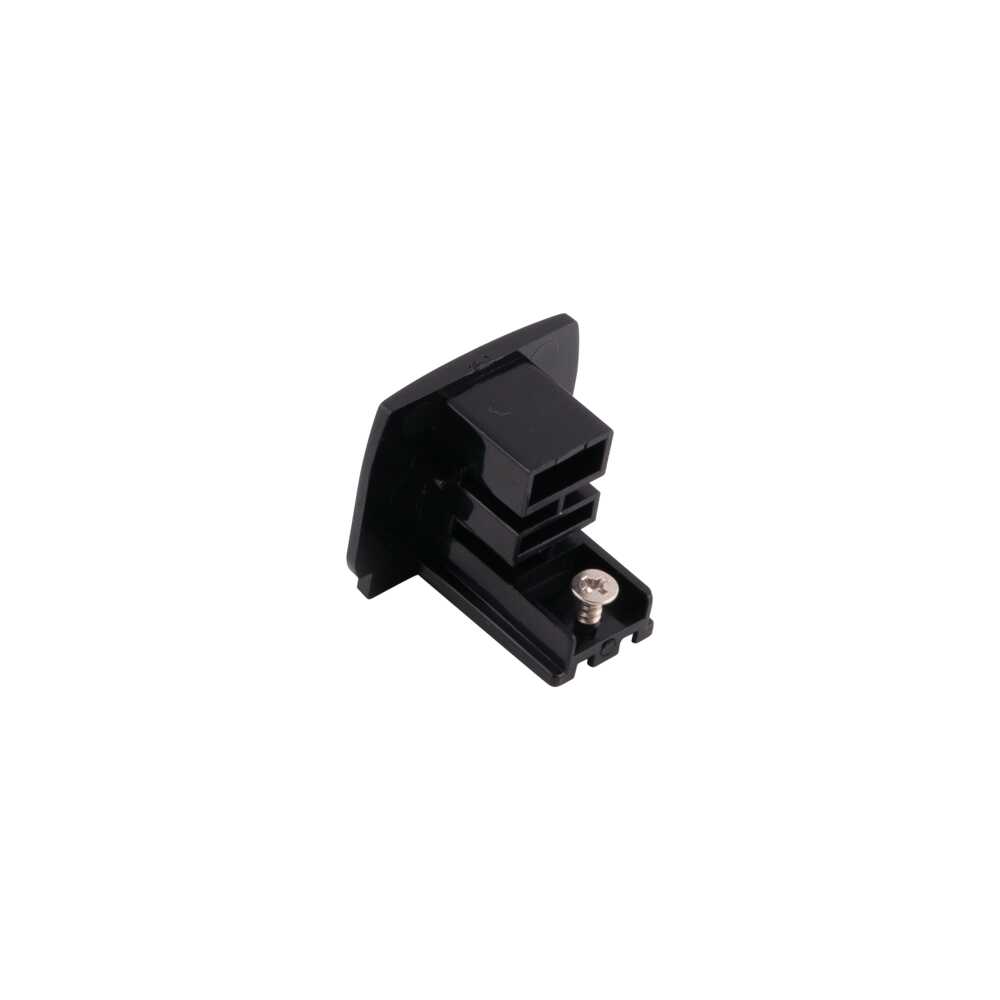

Model No. STR4890EC/BK Add to Enquiry Add Remove Remove Body Colour Black

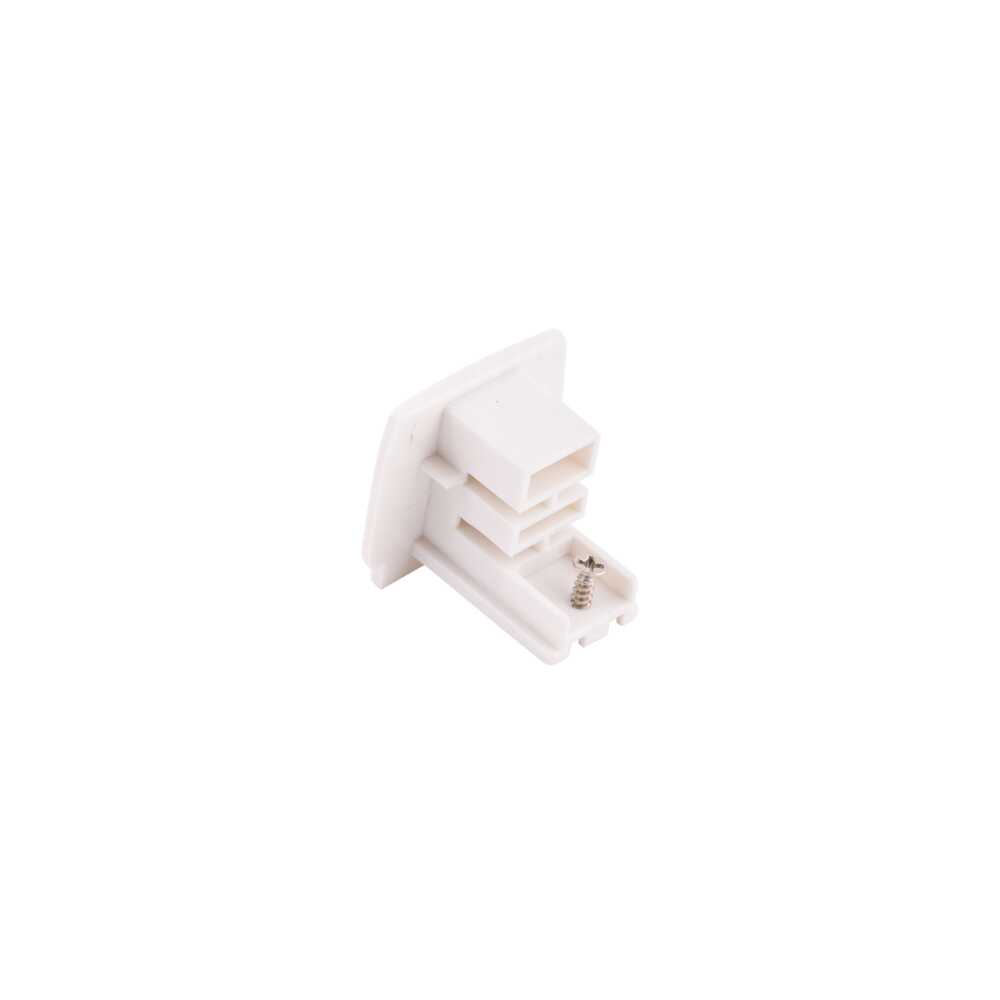

Model No. STR4890EC/WH Add to Enquiry Add Remove Remove Body Colour White

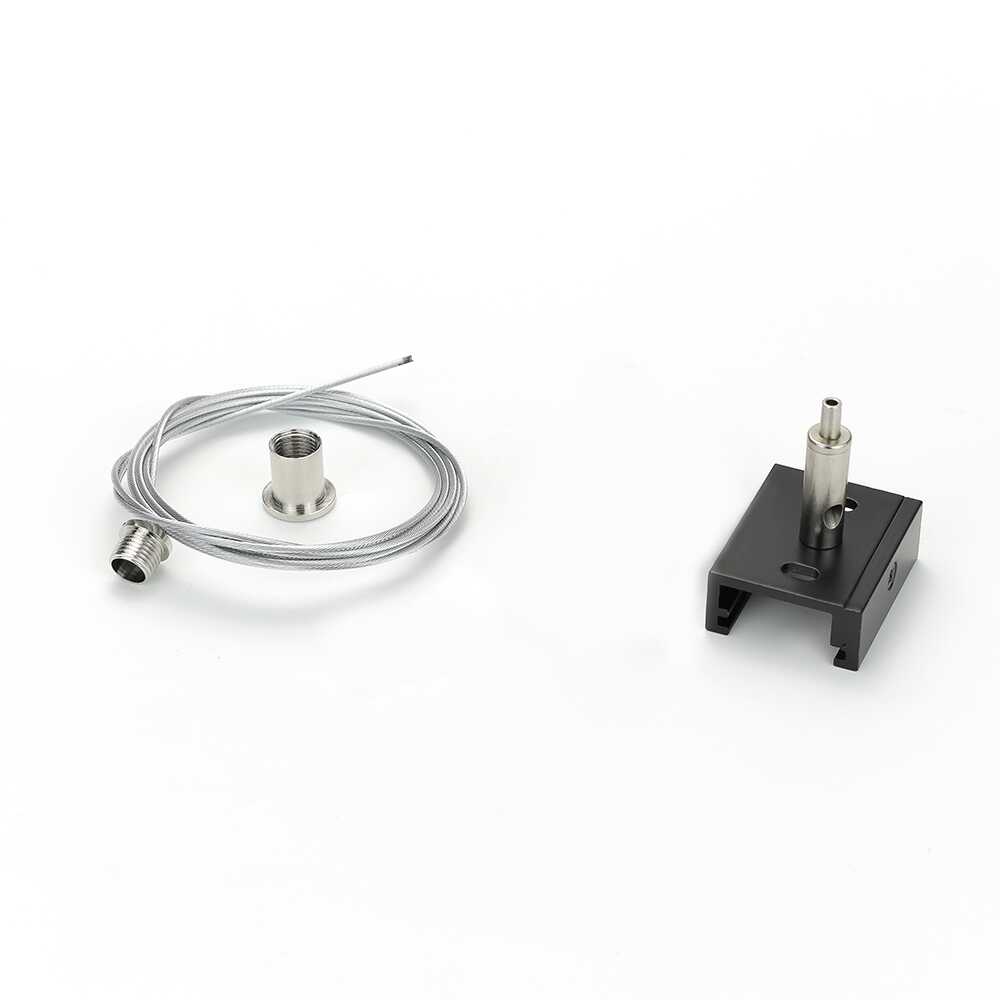

Model No. STR4899/3 WH (with 1.5mm/1500mm WIRE) Add to Enquiry Add Remove Remove Body Colour White Dim 1500(L)
Model No. STR4899/3 BK (with 1.5mm/1500mm WIRE) Add to Enquiry Add Remove Remove Body Colour Black Dim 1500(L) NOTE: tracklight systems are designed for horizontal ceiling mount, with the track opening parallel to the floor, for non-raked ceiling installations
