BISMARCK II S9794 - 34/53W
LED IP65 (above and below the ceiling) cleanroom panel
Application
Designed for cleanroom commercial interior spaces
Design Specifications
Fully enclosed design suitable for plaster troffer frames
Adjustable flip-out mounting brackets for easy installation and sealing integrity
Pressed steel frame, with a quality white powder coated finish
Precision (magnetic) sealed shockproof clear polycarbonate lens, 110 degree beam distribution, UGR<19, CCT 4000K
Integral control gear with flex and 3 pin plug fitted for faster installation
Three convenient model sizes to select, in two versatile wattages - 34 or 53 watts.

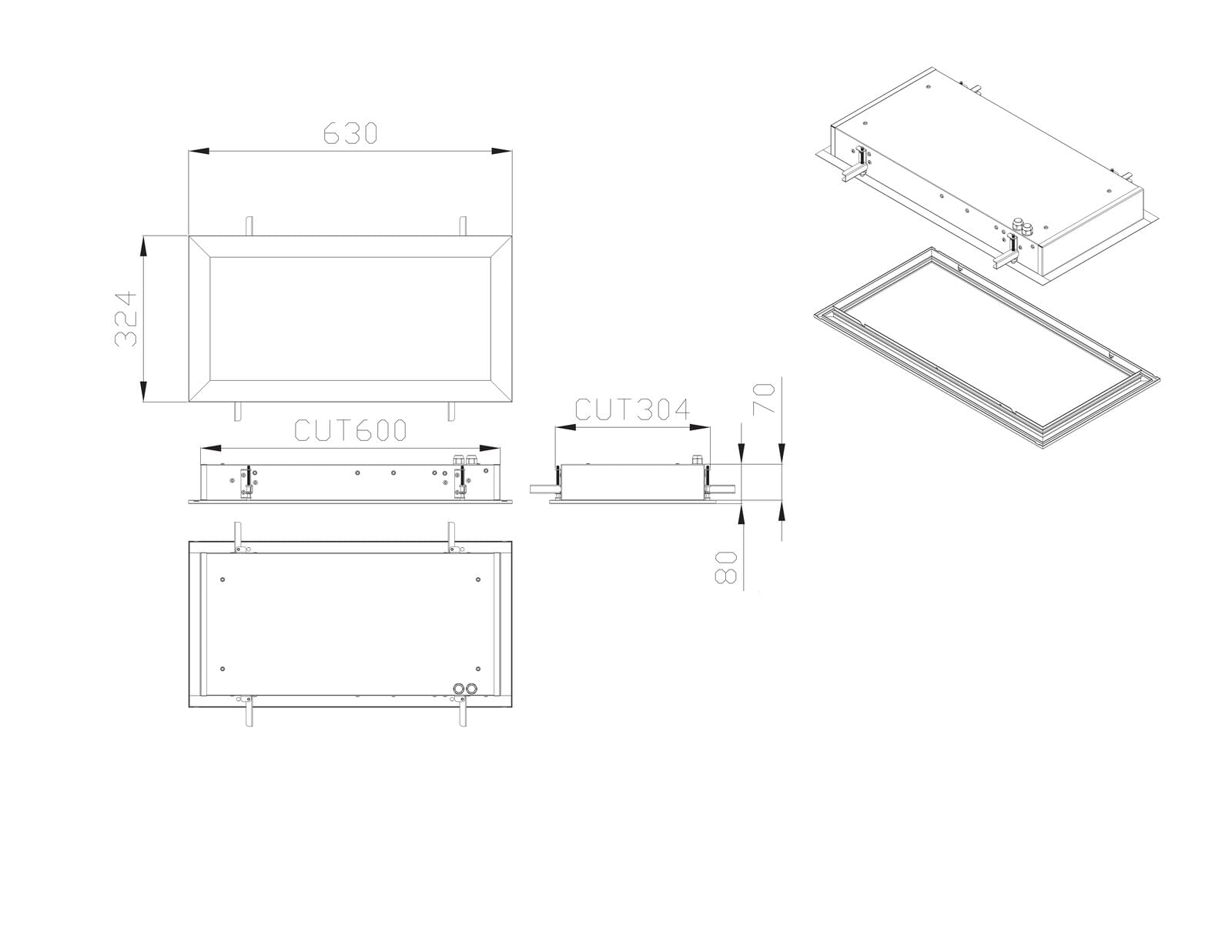

- Dimensions - Wiring Diagrams

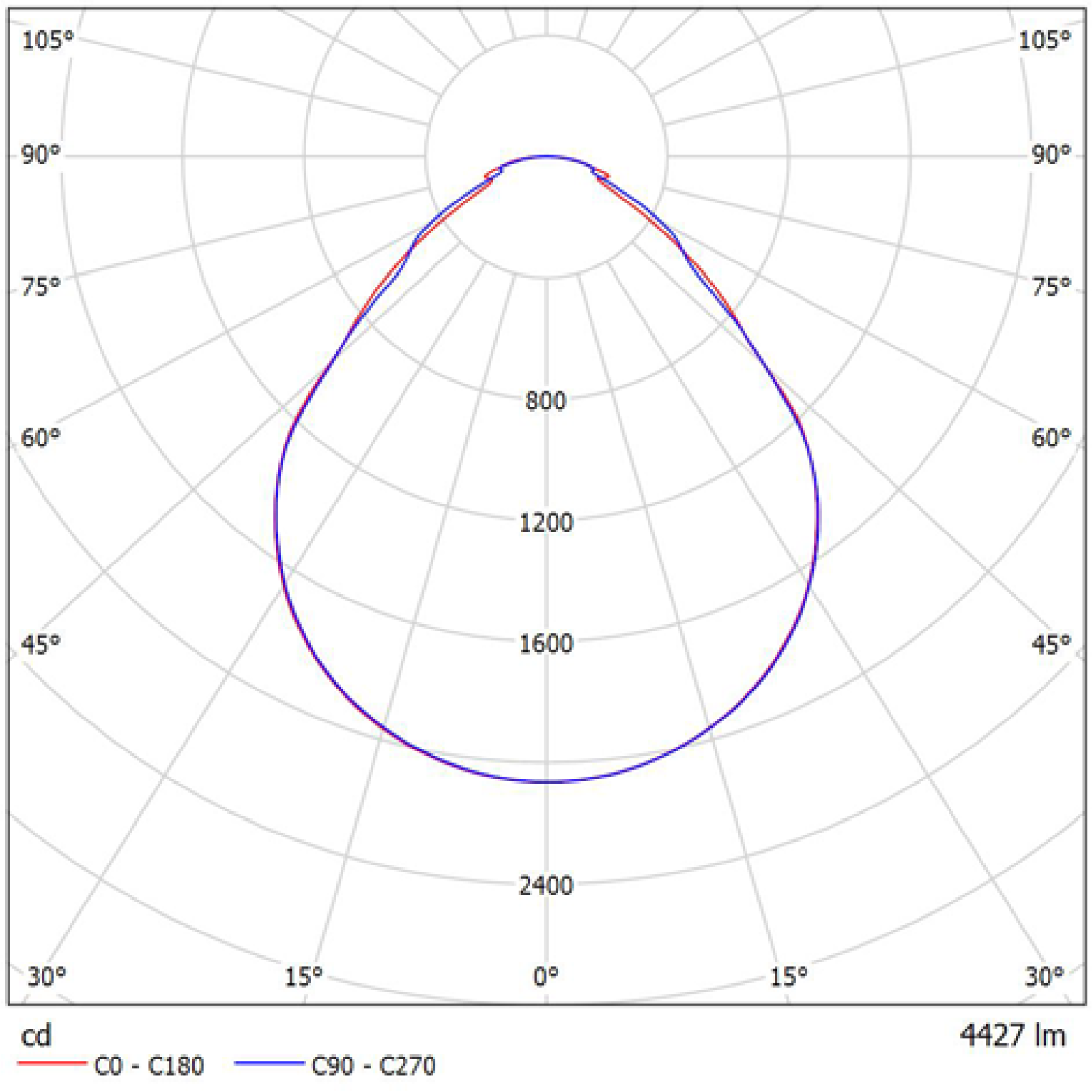

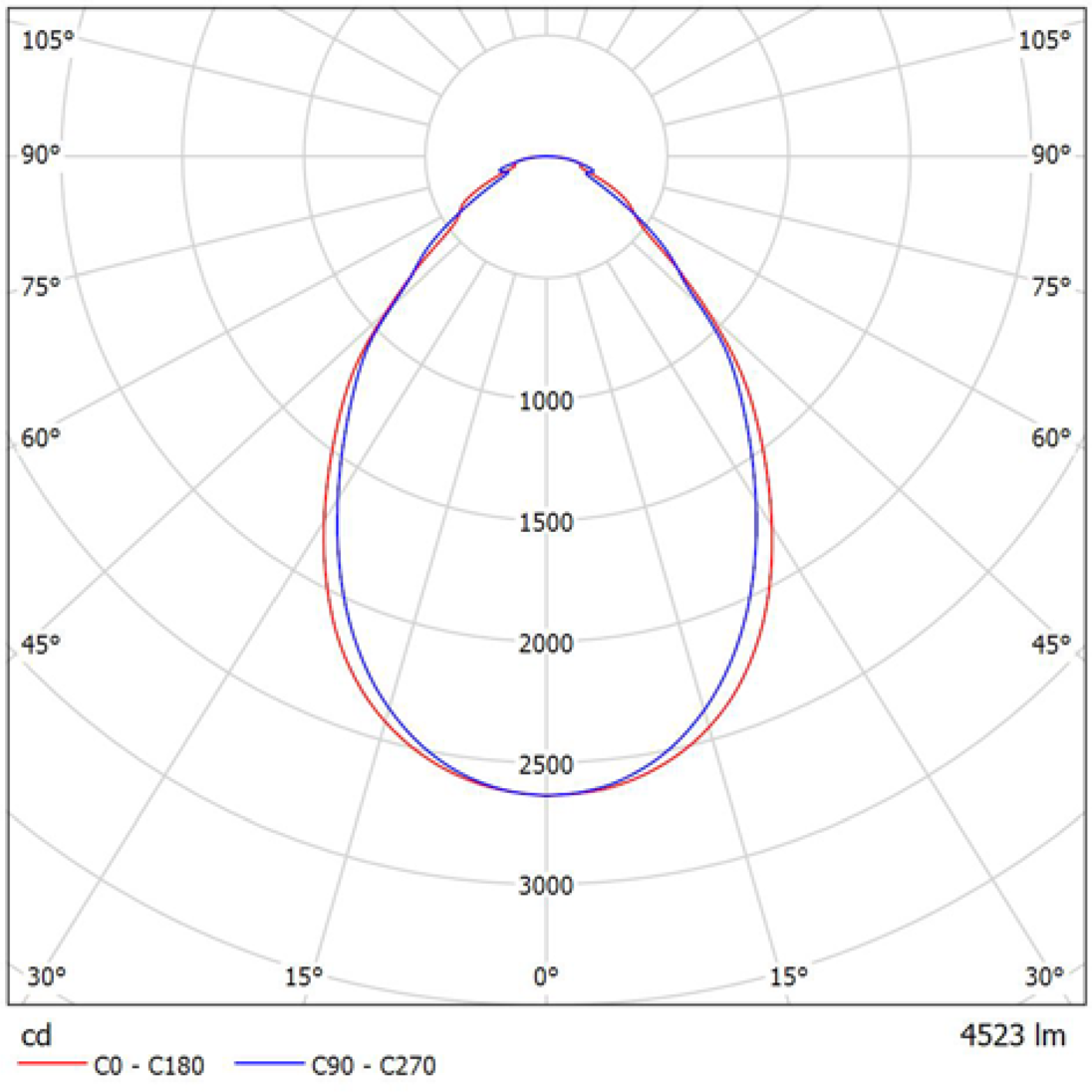

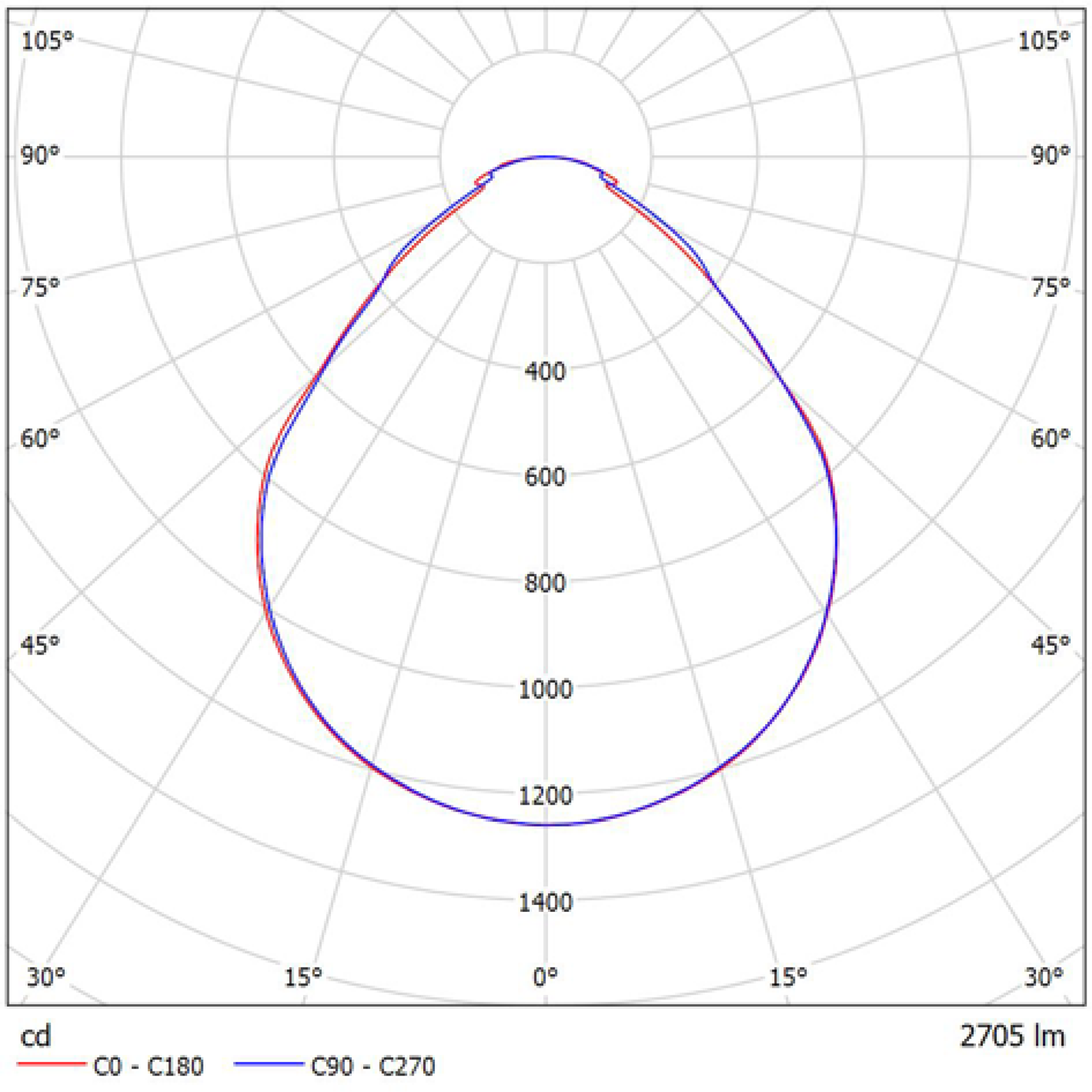

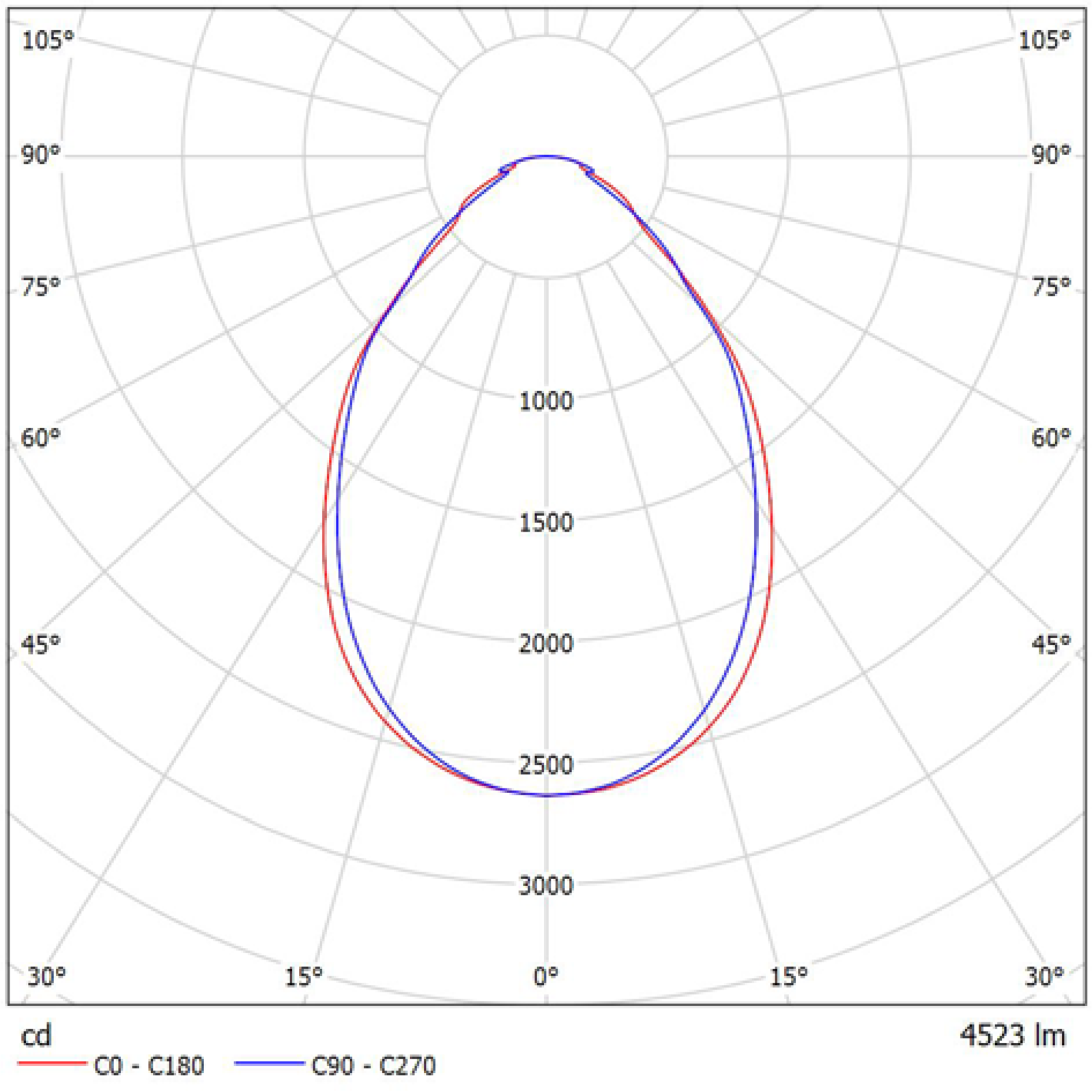

- Photometric Data
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim Mass IPART VEET

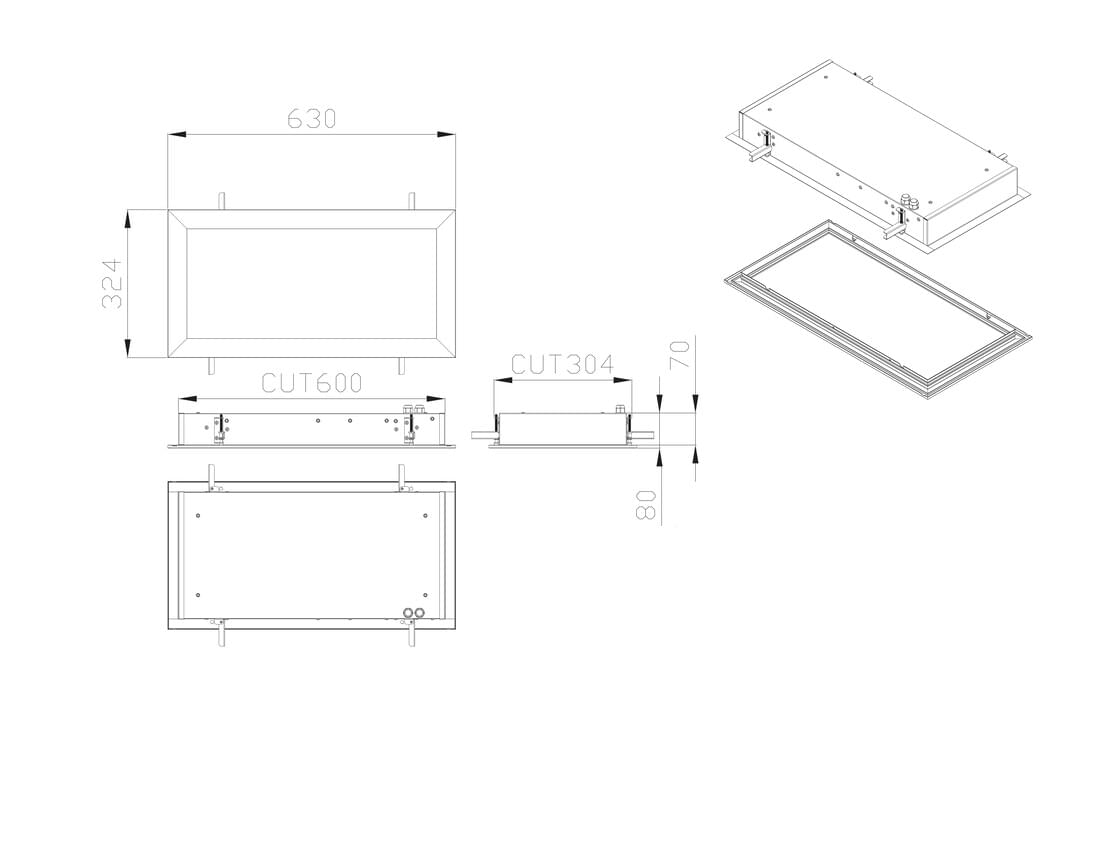

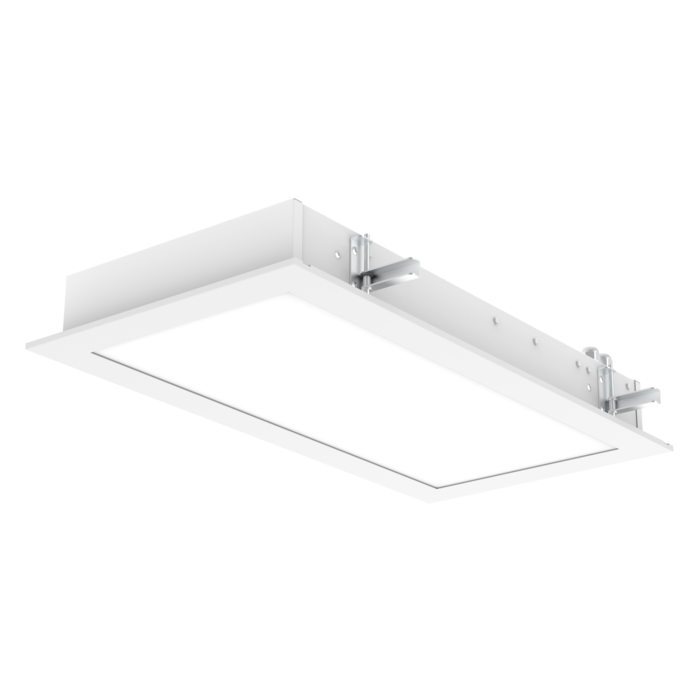

Model No. S9794/306CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 34 Lumens 3100 CCT 4000 CRI 80 Beam Angle 110 Body Colour WHITE Dim 630(L) x 324(W) x 80(H) Mass 2.3 IPART N/A VEET N/A

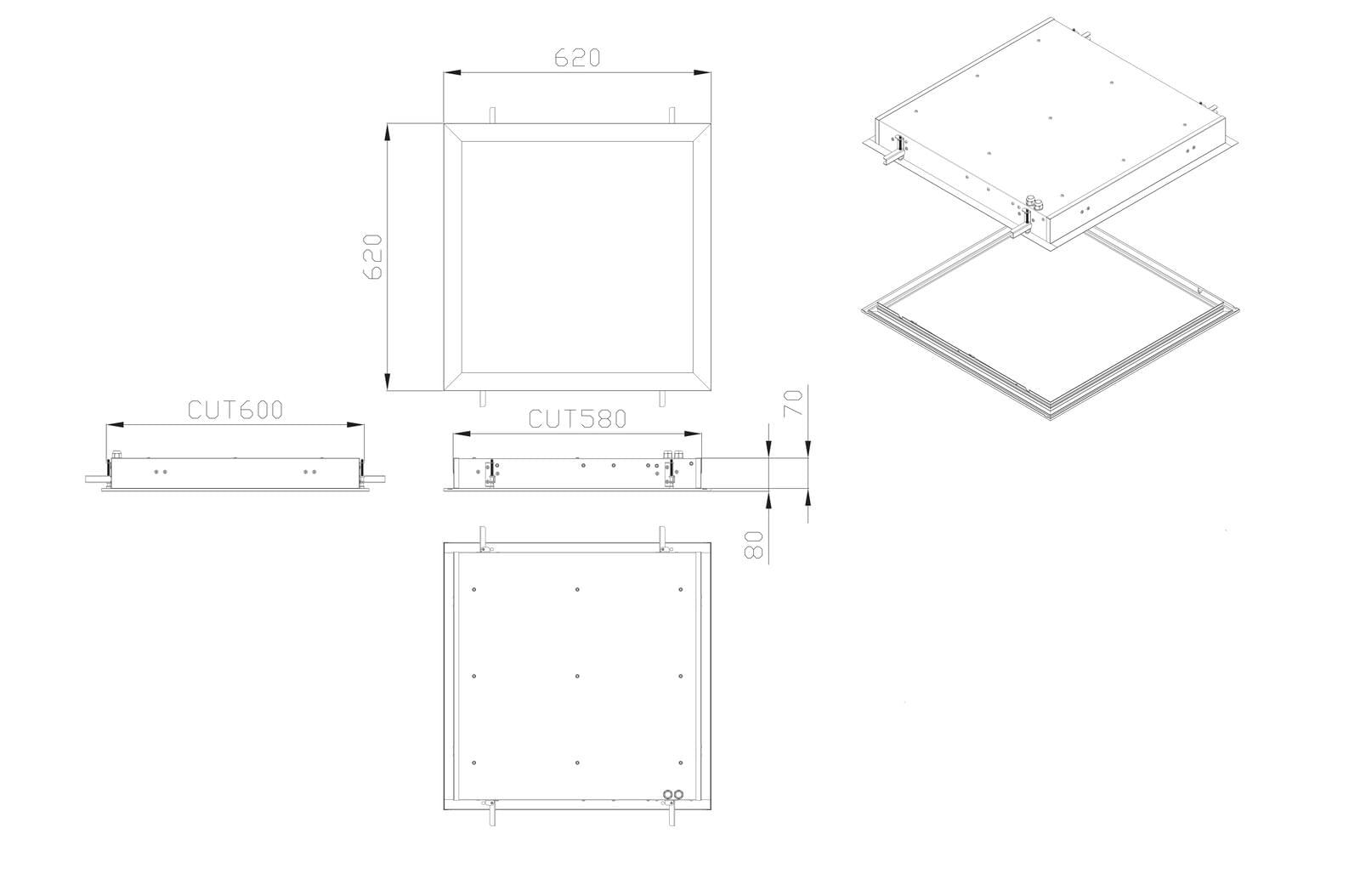

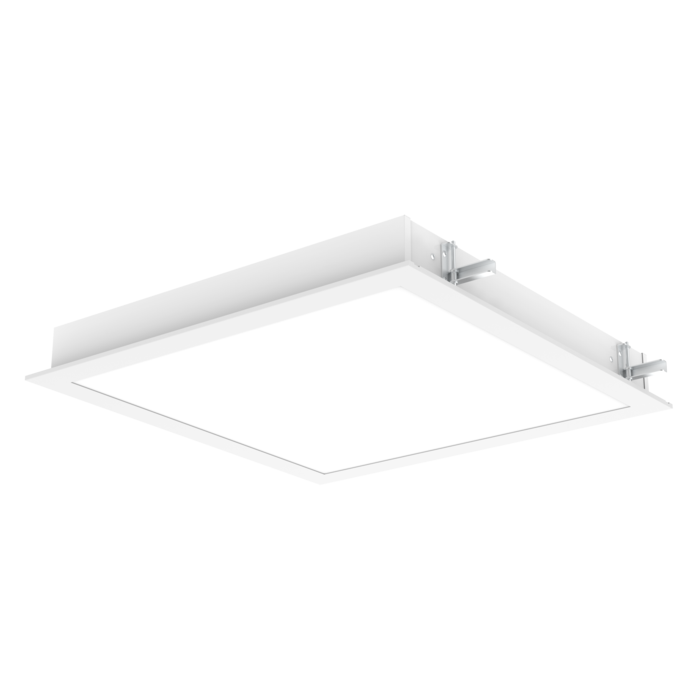

Model No. S9794/606CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 53 Lumens 5300 CCT 4000 CRI 80 Beam Angle 110 Body Colour WHITE Dim 620(L) x 620(W) x 80(H) IPART N/A VEET N/A

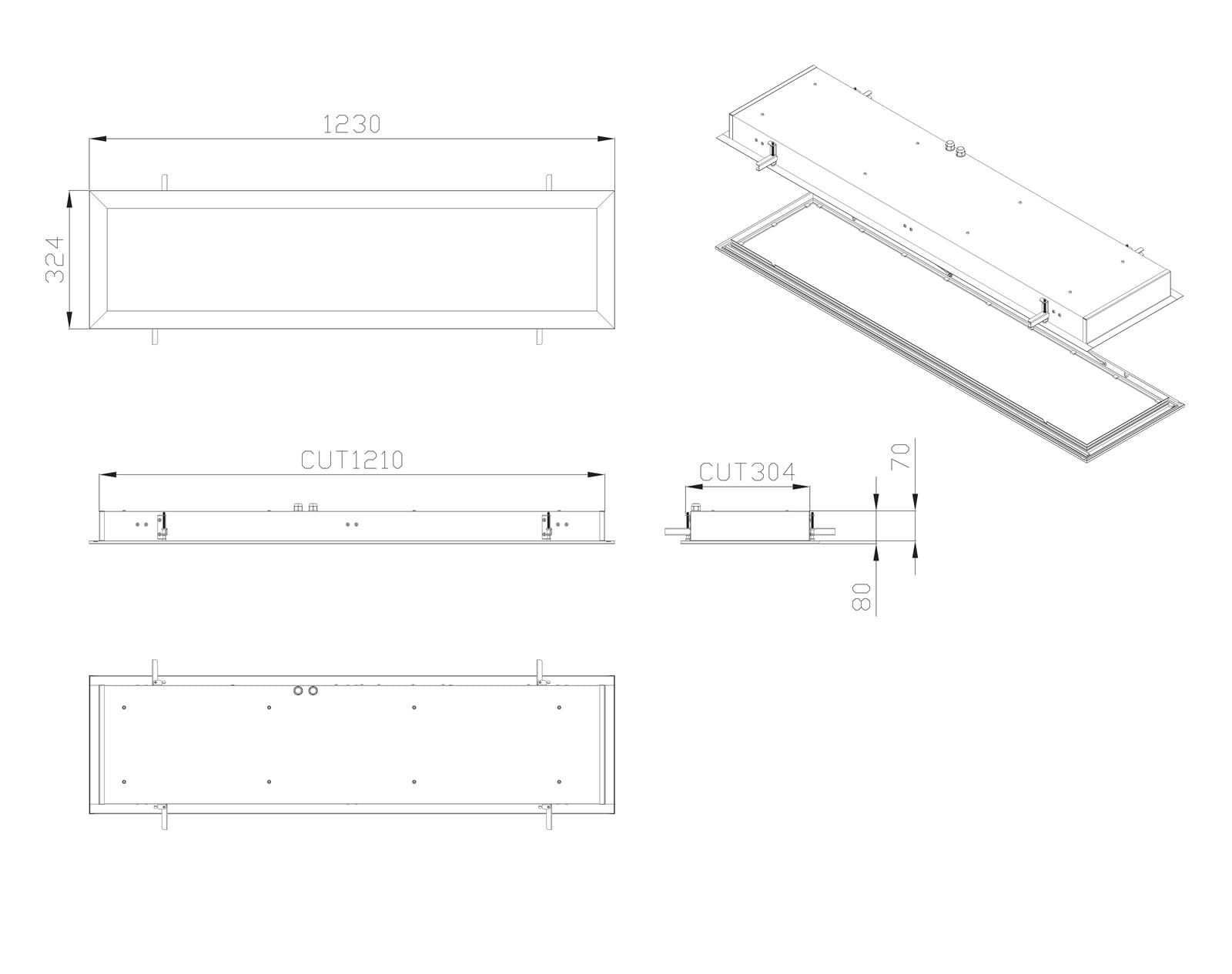

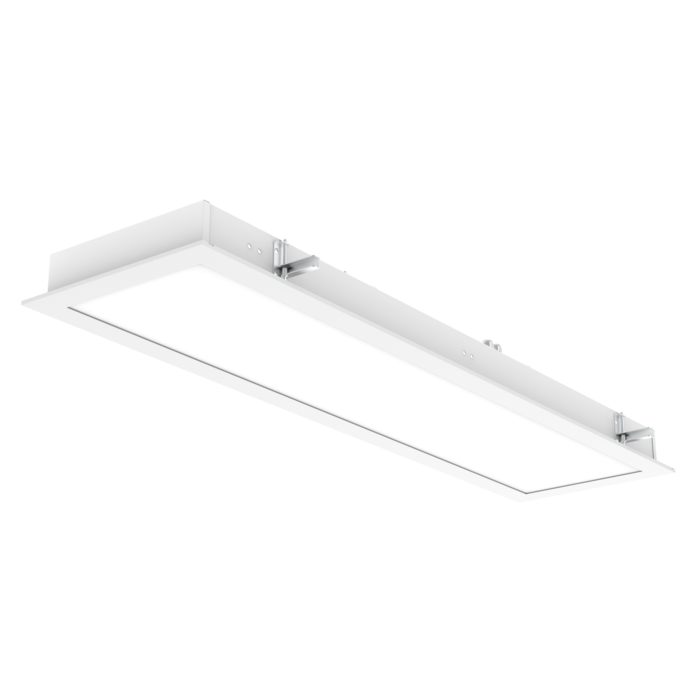

Model No. S9794/312CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 53 Lumens 5000 CCT 4000 CRI 80 Beam Angle 110 Body Colour WHITE Dim 1230(L) x 324(W) x 80(H) Mass 3 IPART N/A VEET N/A
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
