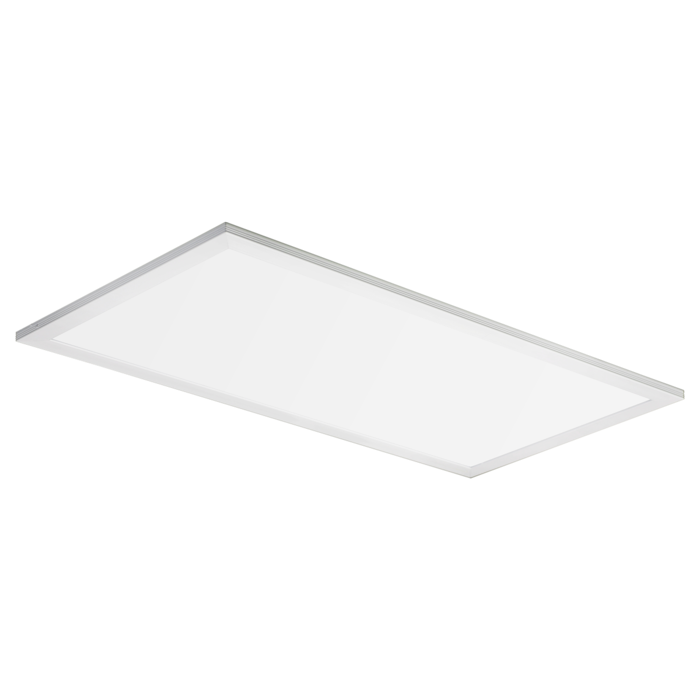

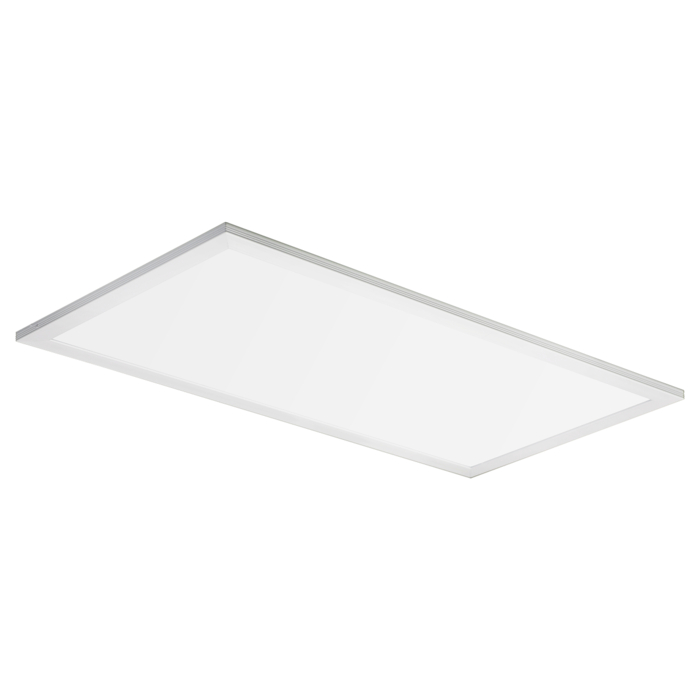

PANEL MK II S9754 18/48W
LED panel with a choice of single colour CCT or selectable CCT
Application

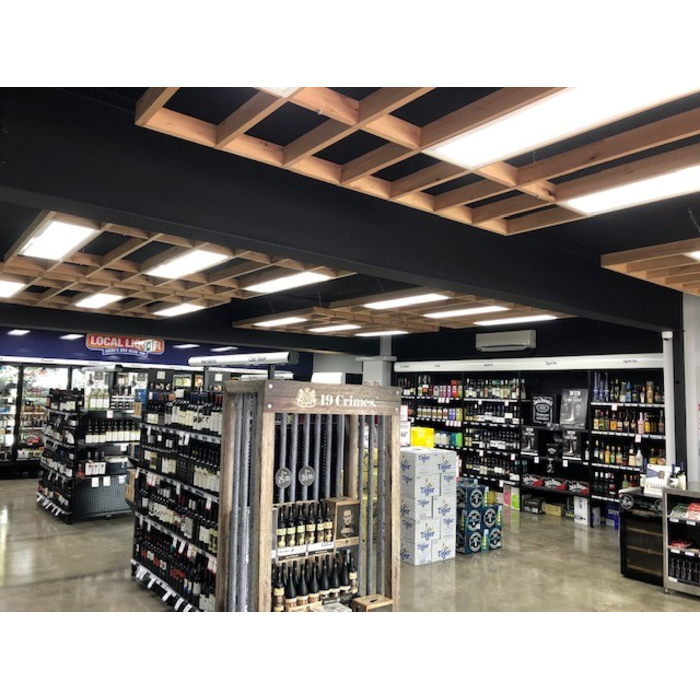

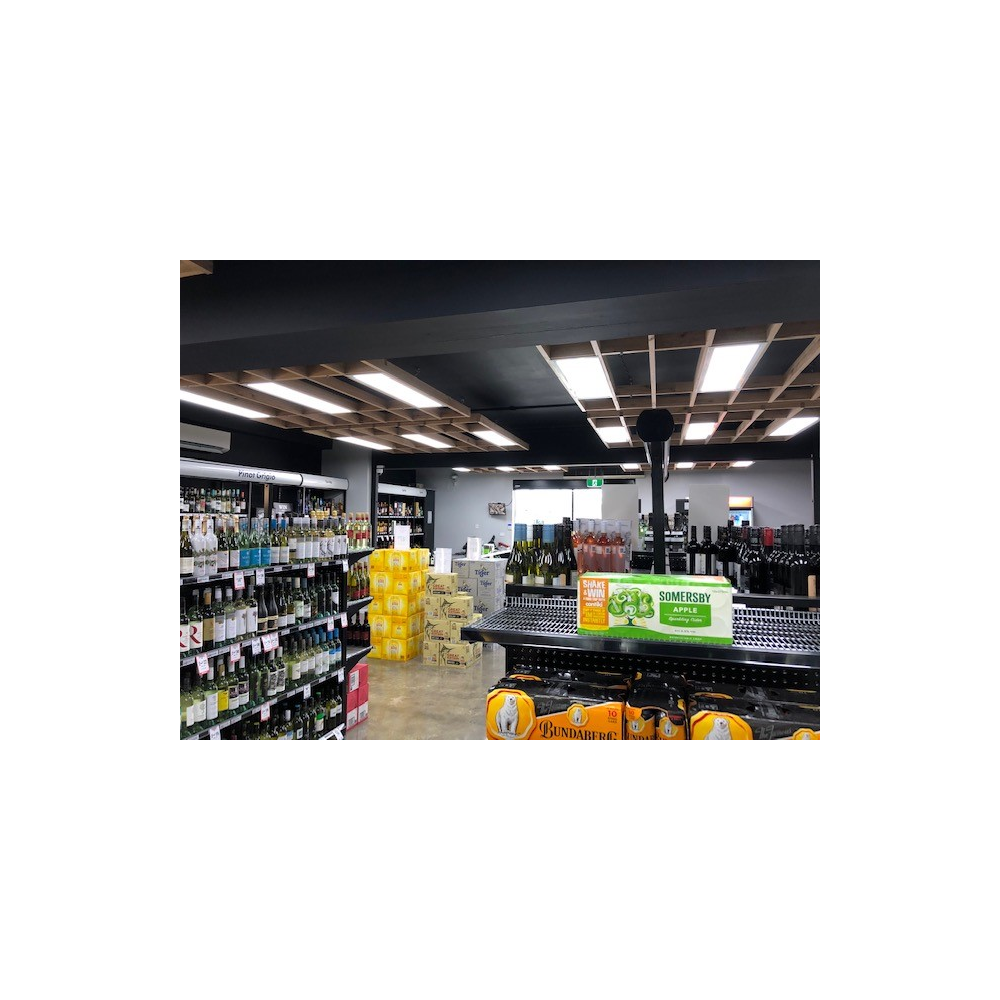

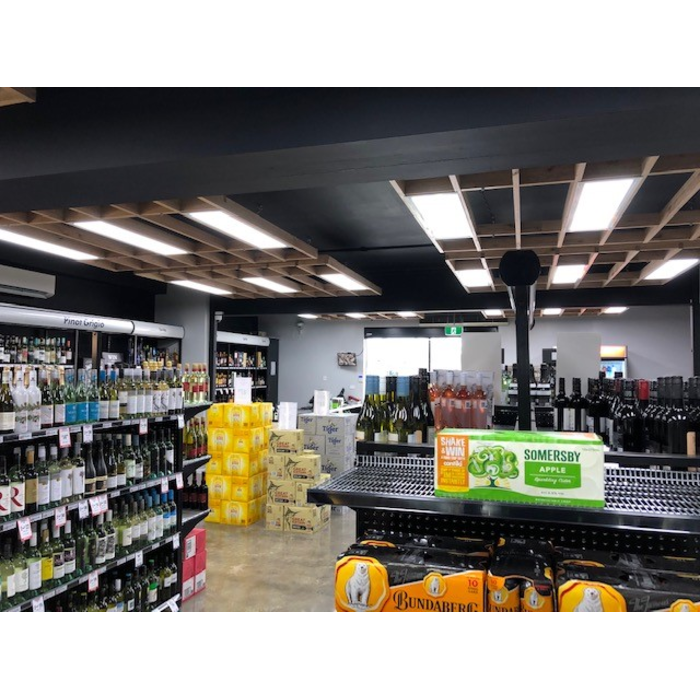

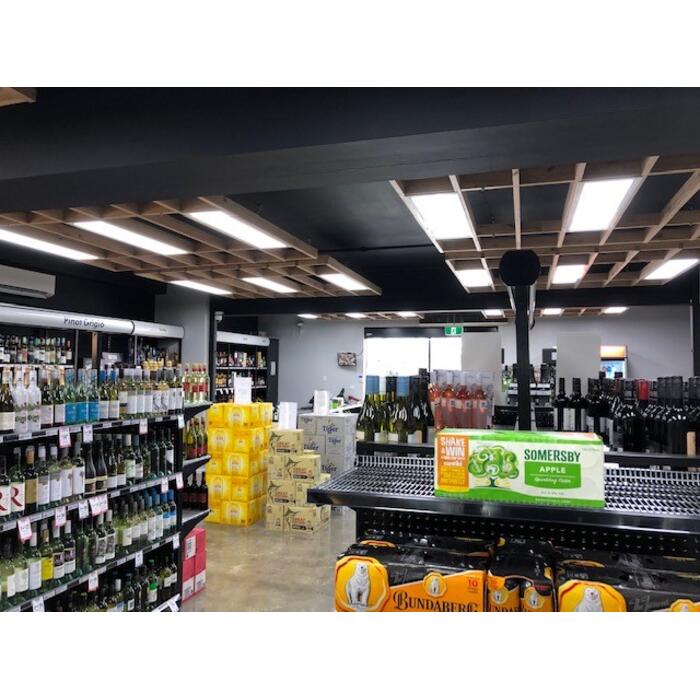

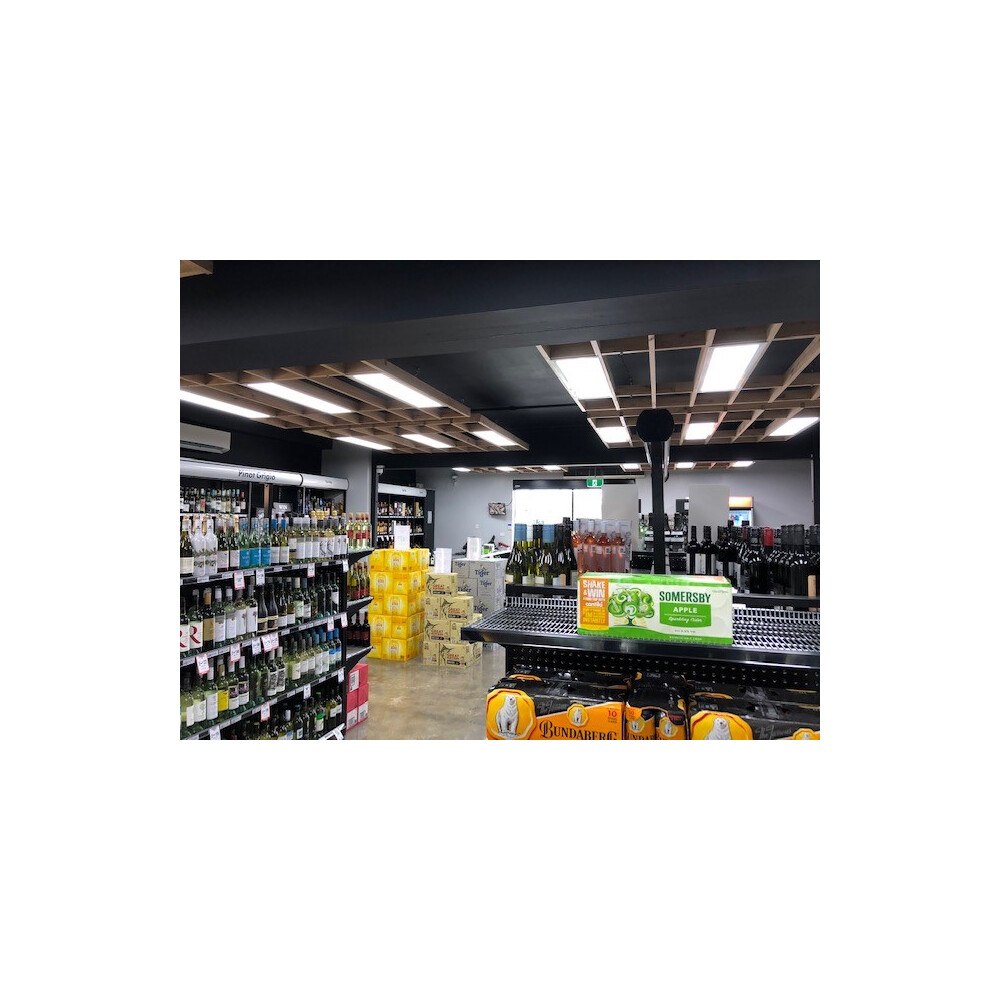

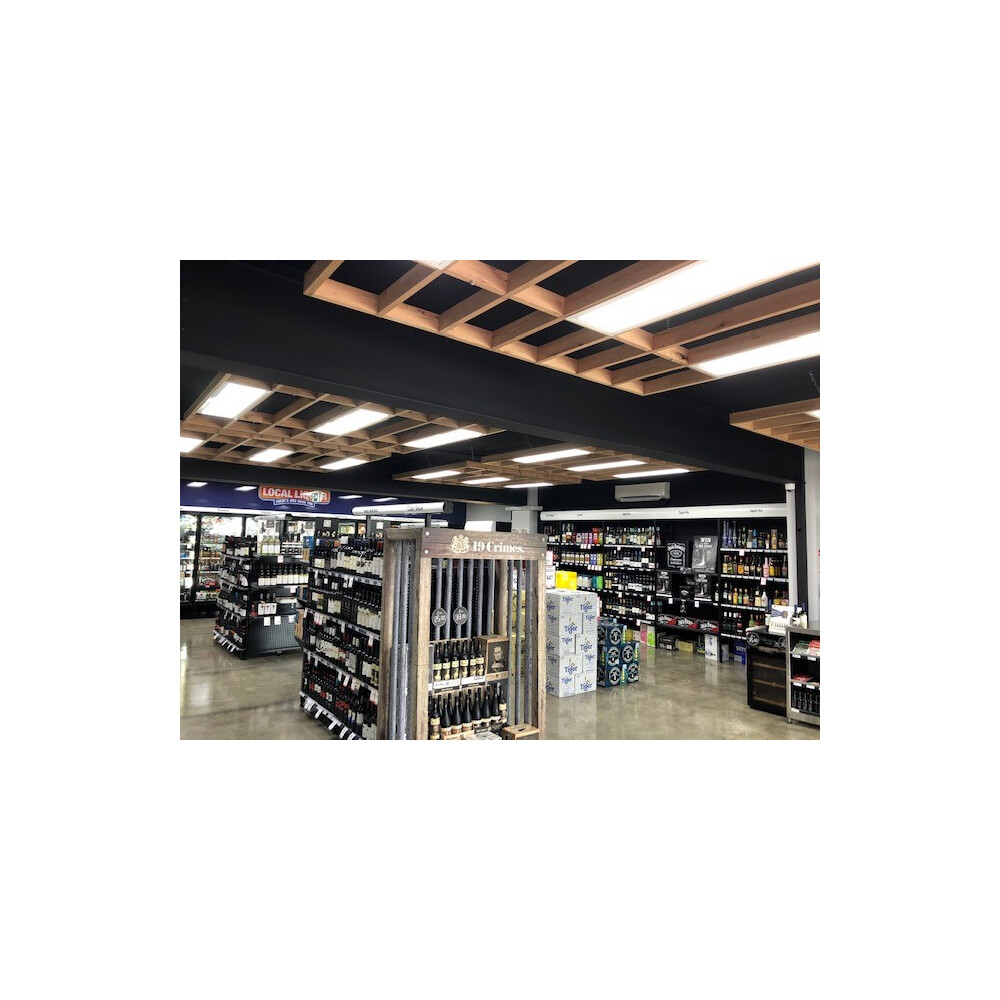

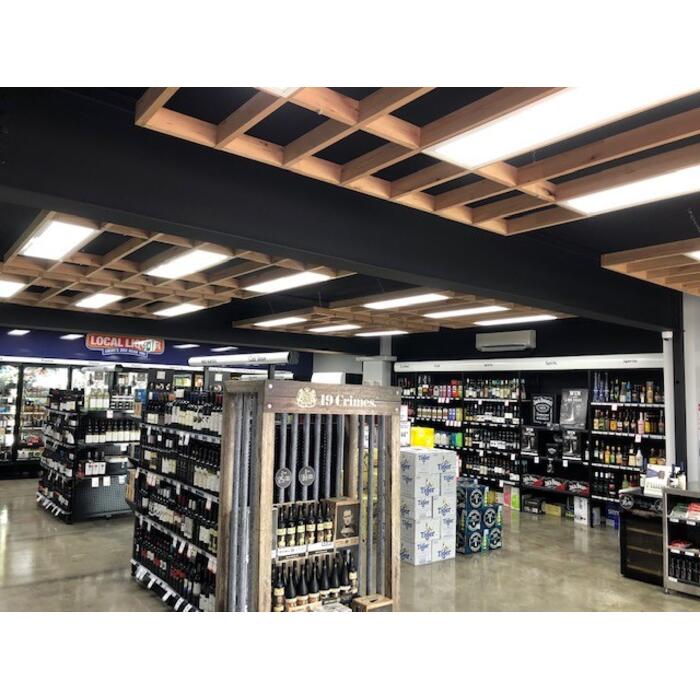

Designed for commercial and office space lighting tasks.
Design Specifications

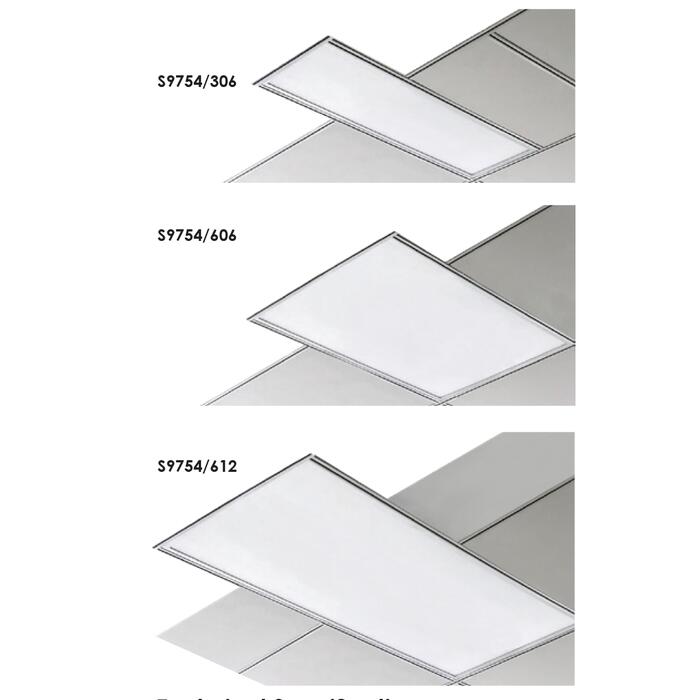

Extruded aluminium profile with high efficiency opal diffuser suitable for a range of installation types.
White powder coated finish
High efficiency LED optics, CRI >90
Remote flickerCONTROLLED non-dimmable LED driver, complete with flex and plug
Selectable CCT 3000K / 4000K / 5700K for TC models

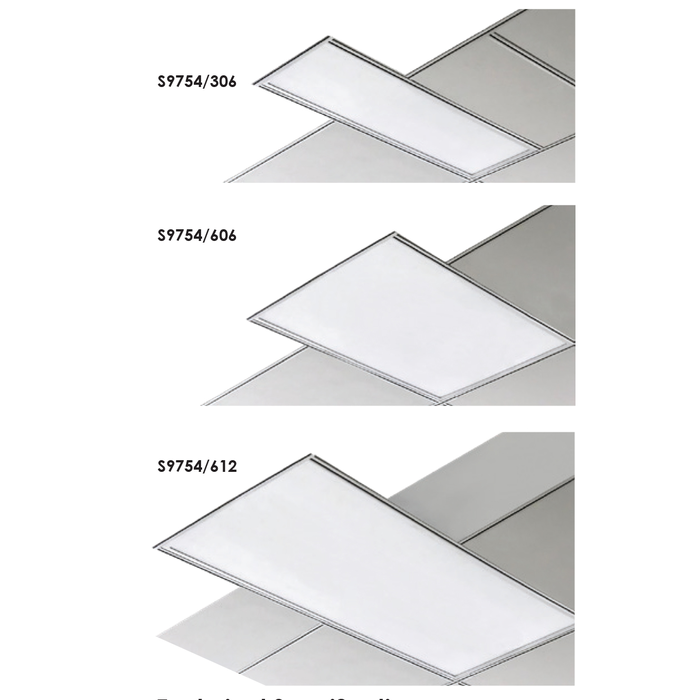

Suspended wire kits available
Emergency models compliant to AS/NZS2293, see SEL20PK EM Power Kit.
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Trailing edge,1-10V , DALI / DSI
-

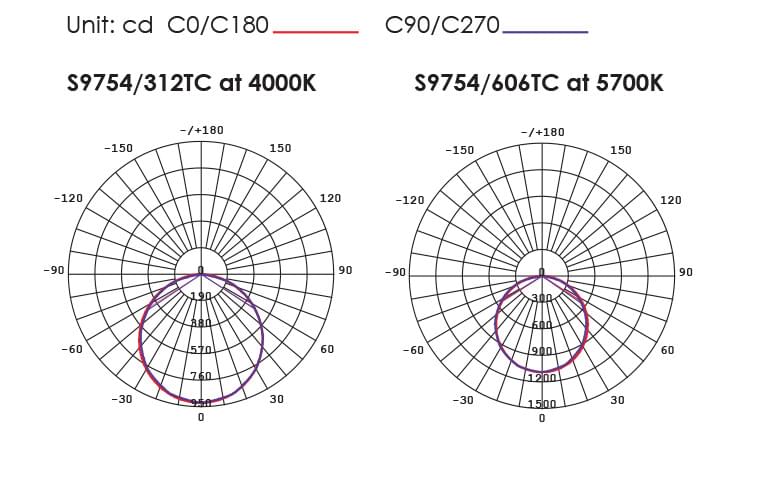

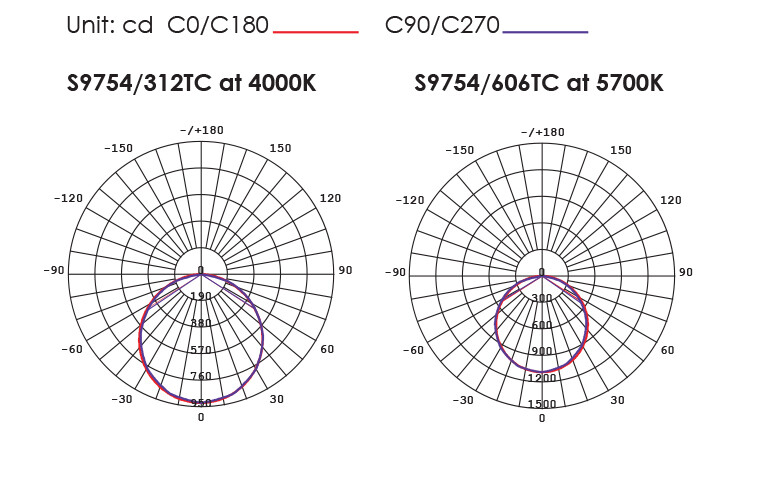

Photometric Data
-
-
Technical Specifications
Product Model No. Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickInput Voltage Power Lumens CCT CRI Beam Angle Body Colour Dim Mass IPART REES VEET
Model No. S9754/306TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 18 Lumens 1900/2000/2100 CCT 3000/4000/5700 CRI 90 Beam Angle 100 Body Colour White Dim 595(L) x 295(W) x 9(H) Mass 1.2 IPART YES REES YES VEET YES
Model No. S9754/606TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 30 Lumens 3100/3200/3300 CCT 3000/4000/5700 CRI 90 Beam Angle 100 Body Colour White Dim 595(L) x 595(W) x 9(H) Mass 2.40 IPART YES REES YES VEET YES
Model No. S9754/312TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 30 Lumens 2623/2934/2700 CCT 3000/4000/5700 CRI 90 Beam Angle 100 Body Colour White Dim 1195(L) x 295(W) x 9(H) Mass 2.4 IPART YES REES YES VEET YES
Model No. S9754/612TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 48 Lumens 5000/5200/5300 CCT 3000/4000/5700 CRI 90 Beam Angle 100 Body Colour White Dim 1195(L) x 595(W) x 12(H) Mass 4.00 IPART YES REES YES VEET YES
Model No. S9754/312CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 30 Lumens 3100 CCT 4000 CRI 80 Beam Angle 100 Body Colour White Dim 1195(L) x 295(W) x 12(H) Mass 2.80 IPART YES REES YES VEET YES
Model No. S9754/312TC/DIM Add to Enquiry Add Remove Remove Input Voltage 240 Power 30 Lumens 3000/3100/3200 CCT 3000/4000/5700 CRI 90 Beam Angle 100 Body Colour White Dim 1195(L) x 295(W) x 12(H) Mass 2.40
Model No. S9754/306EM Add to Enquiry Add Remove Remove Input Voltage 240 Power 18 CRI 90 Beam Angle 100 Body Colour White Dim 595(L) x 295(W) x 12(H) Mass 1.20 IPART N/A REES N/A VEET N/A
Model No. S9754/312EM Add to Enquiry Add Remove Remove Input Voltage 240 Power 30 CRI 90 Beam Angle 100 Body Colour White Dim 1195(L) x 295(W) x 12(H) Mass 2.40 IPART N/A REES N/A VEET N/A
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
