• LED PANELS AND TROFFERS

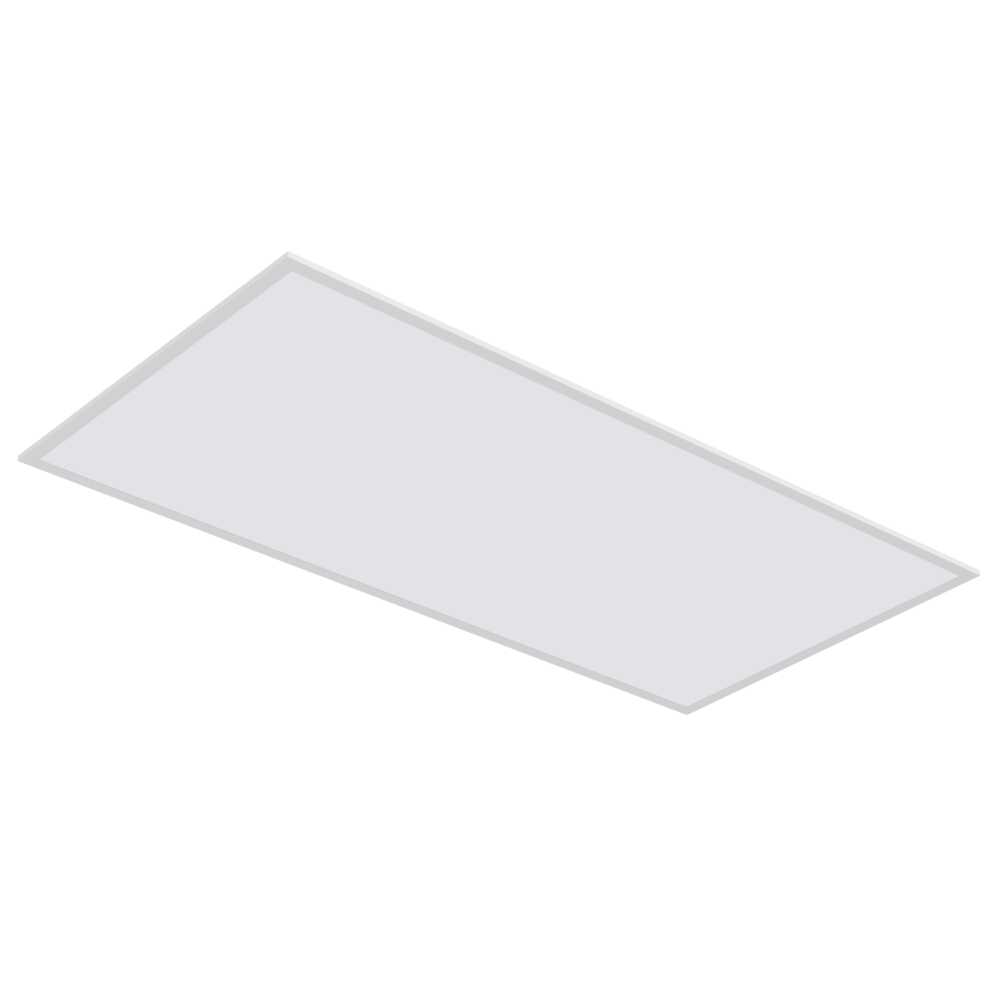

PANEL S9784U TC/DP - 10/40W

LED High performance panel with selectable colour temperature and power

Application

Designed for commercial and office space lighting tasks.

Design Specifications

  • UGR<19 performance

  • Extruded aluminium profile with high efficiency opal diffuser, suitable for a range of installation types

  • Quality white powder coat finish

  • High efficiency SMD LED chips, CRI >80

  • FlickerCONTROLLED, remote constant current non-dimmable LED driver, complete with flex and plug

  • Easy selectable colour temperature with an inbuilt DIP switch, 3000K/4000K/5000K, Suspended wire kits available, Emergency models compliant to AS/NZS2293 with D50 spacing classification available, see Interior Emergency section.

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge (excluding S9784/612), 1-10V, DALI / DSI
PANEL S9784U TC/DP
PANEL S9784U TC/DP
  • Dimensions - Wiring Diagrams
  • Design Options

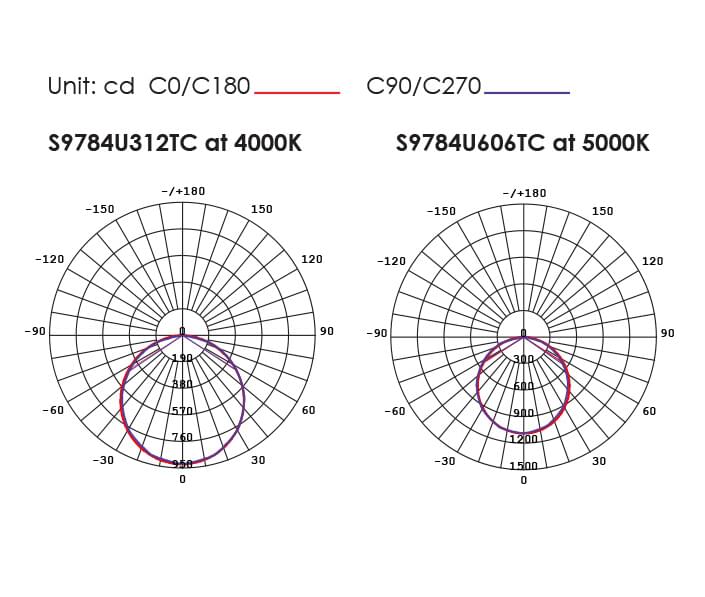

  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9784U606TC/DP Input Voltage240 Multiple Wattage16/27 Lumens2700/2850/2750 CCT3000/4000/5000 CRI80 Beam Angle80 Body ColourWHITE Dim595(L) x 595(W) x 32(H) Add to Enquiry Add Remove Remove
    Model No.S9784U312TC/DP Input Voltage240 Multiple Wattage16/27 Lumens2700/2850/2750 CCT3000/4000/5000 CRI80 Beam Angle80 Body ColourWHITE Dim1195(L) x 295(W) x 32(H) Add to Enquiry Add Remove Remove
    Model No.S9784U612TC/DP Input Voltage240 Multiple Wattage24/40 Lumens4500/4750/4600 CCT3000/4000/5000 CRI80 Beam Angle80 Body ColourWHITE Dim1195(L) x 595(W) x 32(H) Add to Enquiry Add Remove Remove

    Note (1) : Lumens (lm) shown are for FULL POWER performance.
    Note (2) : For dimmable configurations, the CCT must be specified at the time of order and the DP function is deactivated.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
